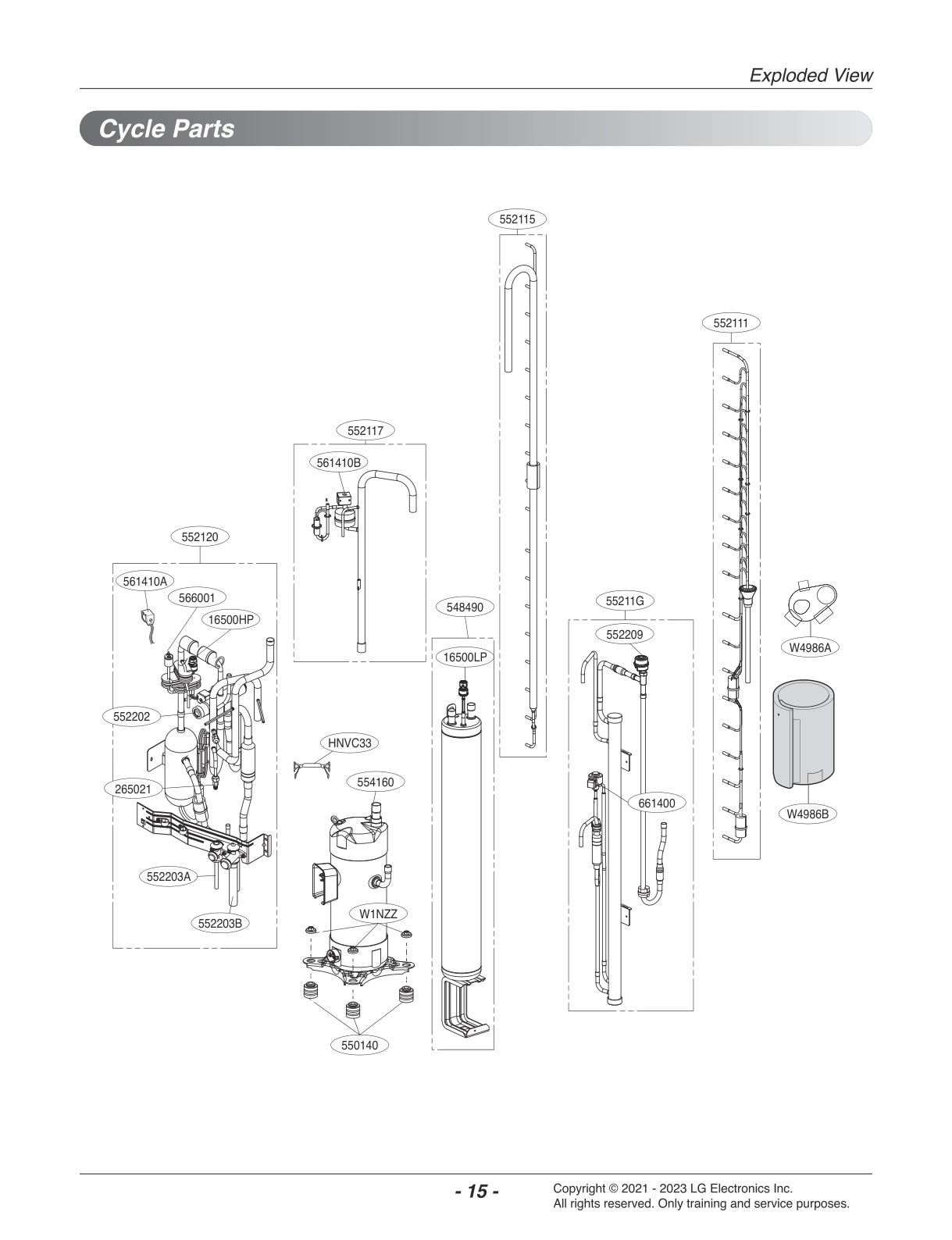

Model LG ARUN072BSS5.EWGBLUS Air Conditioners – Common Parts & Diagrams

16500HP
Sensor,Pressure
Sensor,Pressure LGE EBD60663837 Contact Us For Availability
View on Model
16500LP
Sensor,Pressure
Sensor,Pressure LGE EBD60663822 Contact Us For Availability
View on Model
55211G
Tube Assembly,Expansion
Tube Assembly,Expansion LGE AJR74362508 Contact Us For Availability
View on Model
135500
Cover
Cover LGE MCK67906105 Contact Us For Availability
View on Model
137223
Panel Assembly,Side
Panel Assembly,Side LGE AGL74392508 Contact Us For Availability
View on Model
149980
Shroud
Shroud LGE MHN63042001 Contact Us For Availability
View on Model
237205
Panel,Rear
Panel,Rear LGE MGC63319606 Contact Us For Availability
View on Model
237213
Panel,Side
Panel,Side LGE MGC63339409 Contact Us For Availability
View on Model
268711B
PCB Assembly,Main
PCB Assembly,Main LGE EBR83822909 Contact Us For Availability
View on Model
430410
Base Assembly,Outdoor
Base Assembly,Outdoor LGE AAN74888601 Contact Us For Availability
View on Model
435300
Grille,Rear
Grille,Rear LGE MDX63072005 Contact Us For Availability
View on Model
435511
Cover Assembly,Control(Outdoor)
Cover Assembly,Control(Outdoor) LGE ACQ30448101 Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE ACQ86848708 Contact Us For Availability
View on Model
437212
Panel Assembly,Rear(Outdoor)
Panel Assembly,Rear(Outdoor) LGE AGL74392607 Contact Us For Availability
View on Model
546810A
Motor Assembly,DC,Outdoor
Motor Assembly,DC,Outdoor LGE EAU62244103 Contact Us For Availability
View on Model
548490
Accumulator Assembly
Accumulator Assembly LGE AAB73490429 Contact Us For Availability
View on Model
549610
Bracket Assembly,Motor(Outdoor)
Bracket Assembly,Motor(Outdoor) LGE ABA74708303 Contact Us For Availability
View on Model
550140
Damper,Compressor
Damper,Compressor LGE MCQ62569601 Contact Us For Availability
View on Model
552111
Tube Assembly,Capillary
Tube Assembly,Capillary LGE AJR74362708 Contact Us For Availability
View on Model
552115
Tube Assembly,Manifold(Outdoor)
Tube Assembly,Manifold(Outdoor) LGE AJR74363508 Contact Us For Availability
View on Model
552117
Tube Assembly,Suction(Outdoor)
Tube Assembly,Suction(Outdoor) LGE AJR74362316 Contact Us For Availability
View on Model
552120
Tube Assembly
Tube Assembly LGE AJR74802316 Contact Us For Availability
View on Model
554031
Condenser Assembly,Bending
Condenser Assembly,Bending LGE ACG74105208 Contact Us For Availability
View on Model
554160
Compressor Set,Korea
Compressor Set,Korea LGE TBZ39197501 Contact Us For Availability
View on Model
561410A
Coil Assembly,Reverse
Coil Assembly,Reverse LGE EAP64467706 Contact Us For Availability
View on Model
561410B
Solenoid
Solenoid LGE EBE60661401 Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE ABQ30130702 Contact Us For Availability
View on Model
661400
Coil,Expansion
Coil,Expansion LGE EAP63107117 Contact Us For Availability
View on Model
HNVC33
Harness,Multi
Harness,Multi LGE EAD62666280 Contact Us For Availability
View on Model
W1NZZ
Nut,Customized
Nut,Customized LGE FAD33370601 Contact Us For Availability
View on Model
W4986A
Sound proof
Sound proof LGE MDS42399718 Contact Us For Availability
View on Model
W4986B
Sound proof
Sound proof LGE MDS42294623 Contact Us For Availability
View on Model
W6200
Filter,AC Line
Filter,AC Line LGE EAM63430931 Contact Us For Availability
View on Model
W6640
Connector,Terminal Block
Connector,Terminal Block LGE EAG63111403 Contact Us For Availability
View on Model
