Model LG ARUN038GSS4.EWGBLUS Air Conditioners – Common Parts & Diagrams

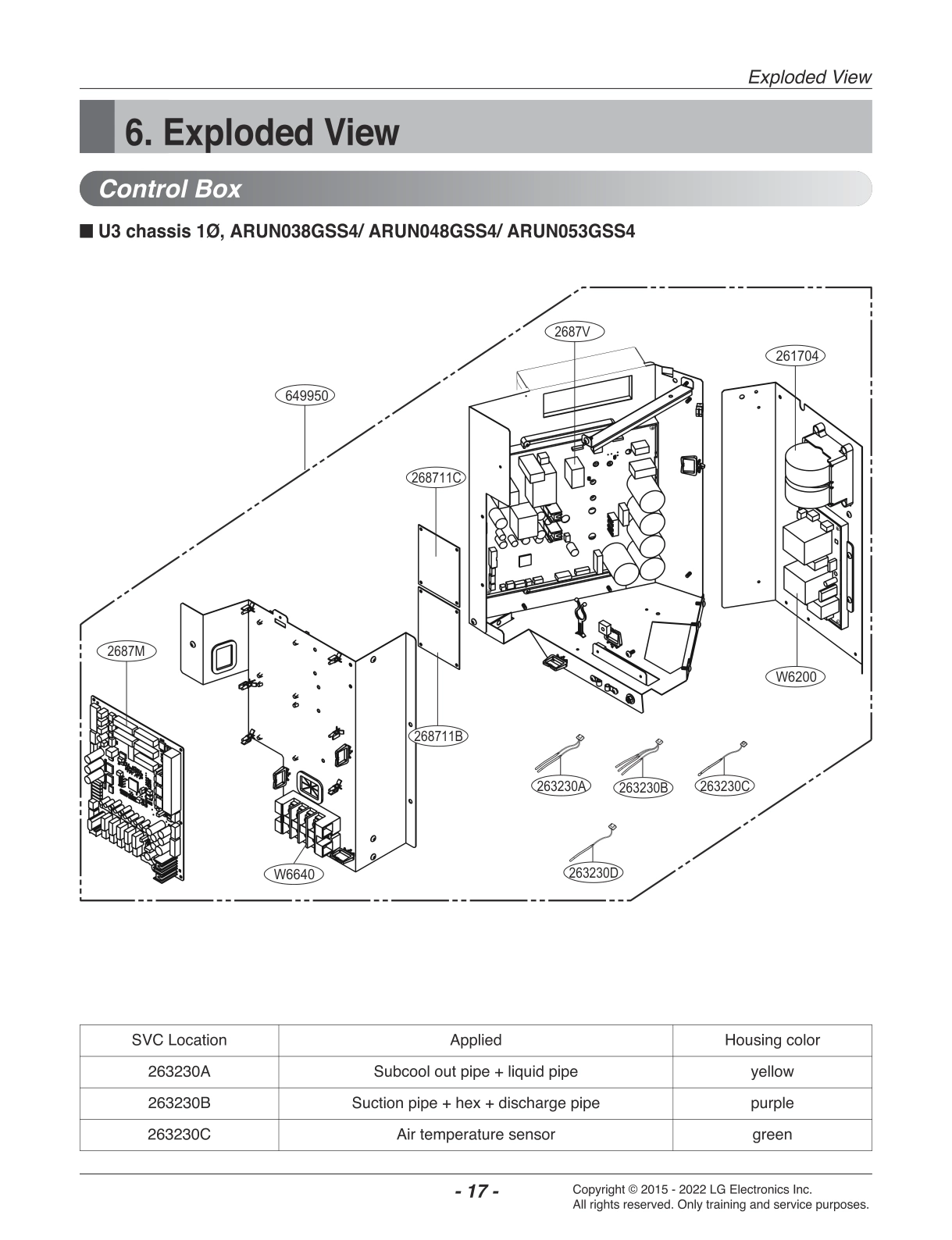

CONTROL BOX

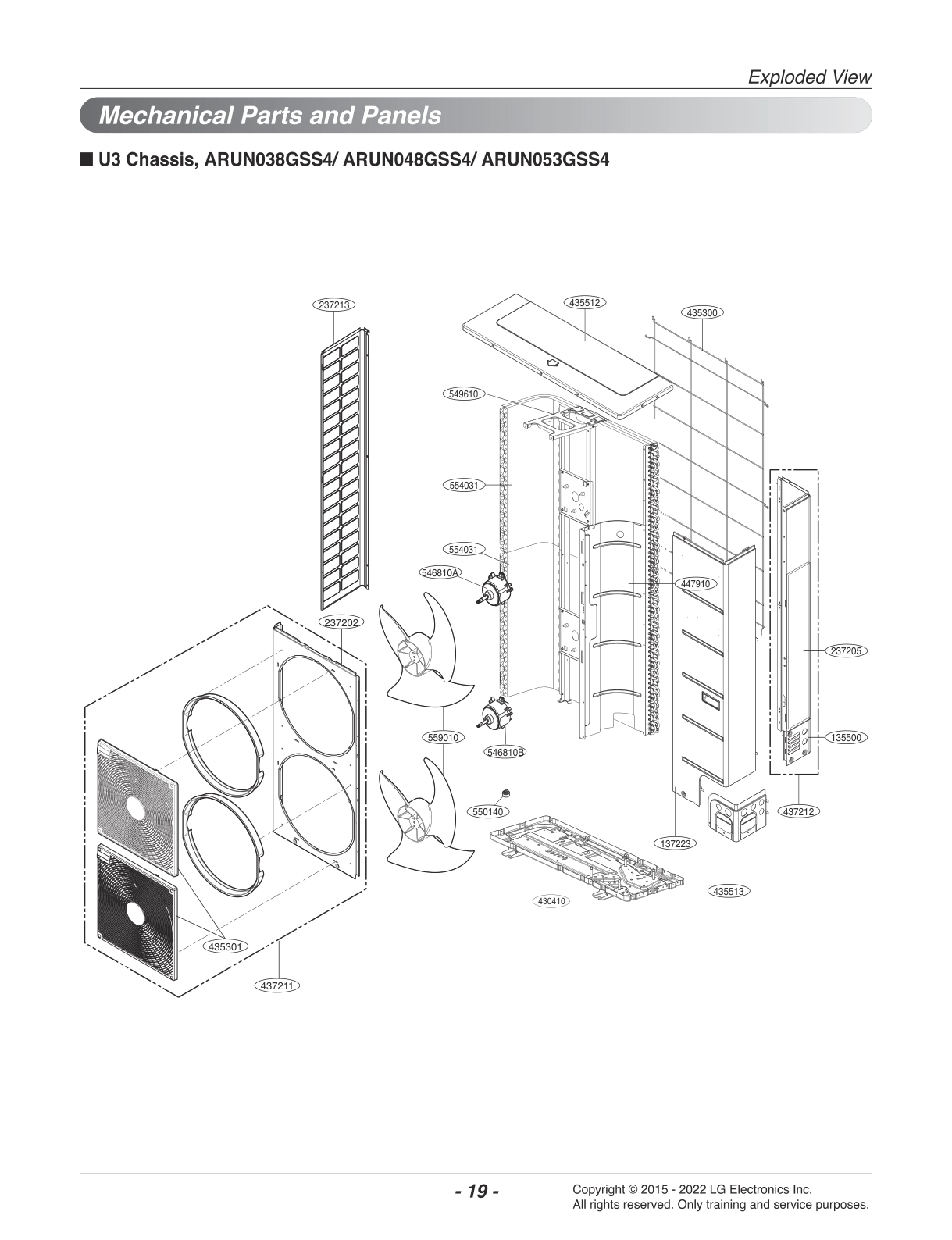

MECHANICAL PARTS AND PANELS

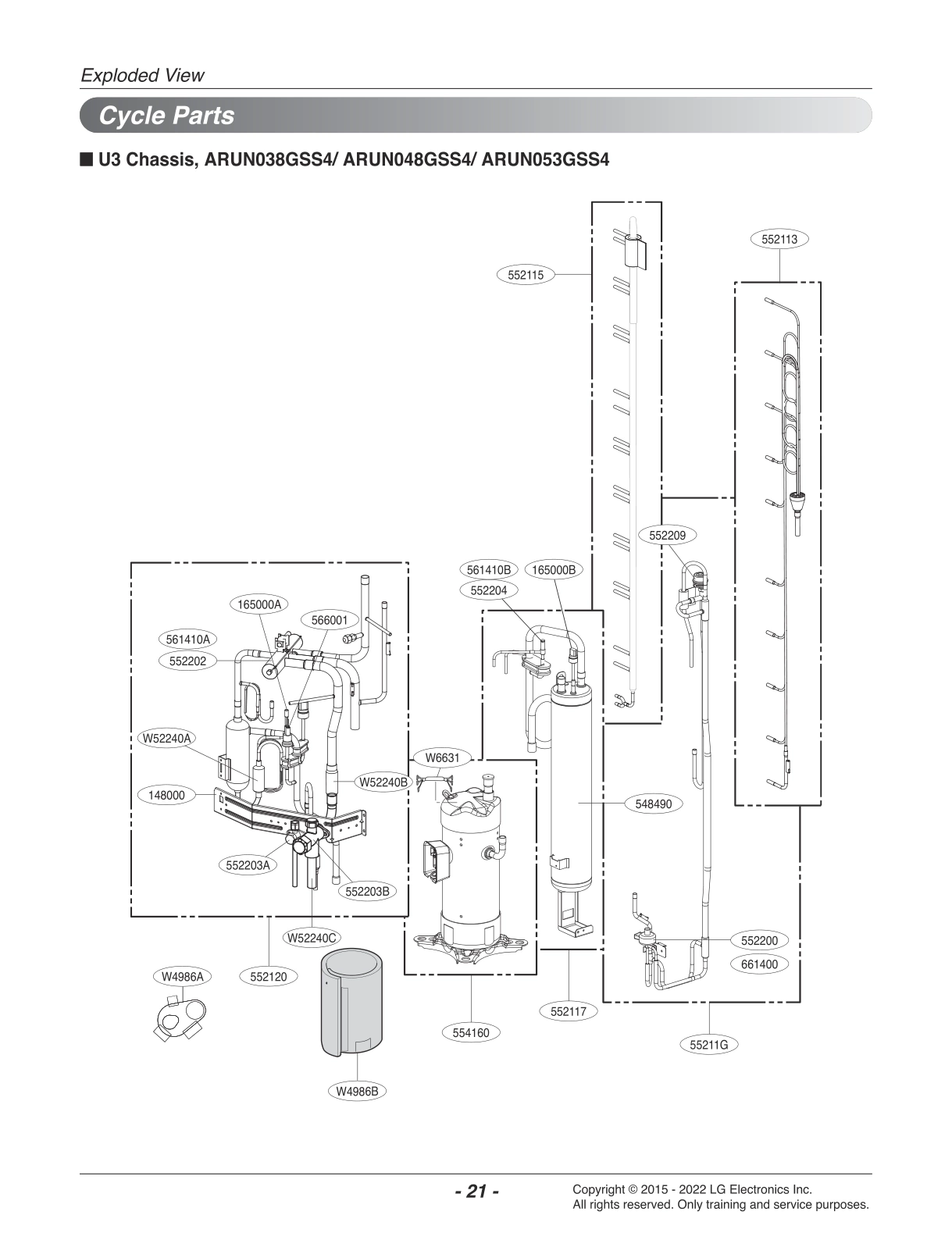

CYCLE PARTS
Common parts from model LG ARUN038GSS4.EWGBLUS Air Conditioners
135500
Cover LGE MCK39626220 Contact Us For Availability
137223
Panel Assembly,Side LGE AGL76513026 Contact Us For Availability
148000
Supporter LGE MJH39544901 Contact Us For Availability
165000B
Sensor,Pressure LGE EBD60663822 Contact Us For Availability
237202
Panel,Front LGE MGC39426114 Contact Us For Availability
237205
Panel,Rear LGE MGC39613728 Contact Us For Availability
237213
Panel,Side LGE MGC39426015 Contact Us For Availability
261704
Transformer,Reactor LGE EBJ61770404 Contact Us For Availability
263230A
Thermistor Assembly,NTC LGE EBG61826401 Contact Us For Availability
263230C
Thermistor Assembly,NTC LGE EBG61285701 Contact Us For Availability
263230D
Thermistor Assembly,NTC LGE EBG61207011 Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN74512202 Contact Us For Availability
435300
Grille,Rear LGE MDX40922518 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ35131820 Contact Us For Availability
435513
Cover Assembly,Tubing LGE ACQ34583417 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL34578711 Contact Us For Availability
437212
Panel Assembly,Rear(Outdoor) LGE AGL76512811 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM35646423 Contact Us For Availability
548490
Accumulator Assembly LGE AAB73490404 Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA34168813 Contact Us For Availability
550140
Damper,Rubber LGE MCQ68888201 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR74523301 Contact Us For Availability
552115
Tube Assembly,Manifold(Outdoor) LGE AJR74523201 Contact Us For Availability
552117
Tube Assembly,Suction(Outdoor) LGE AJR74523103 Contact Us For Availability
552120
Tube Assembly LGE AJR74524708 Contact Us For Availability
552202
Valve,Reverse LGE 3A02080E Contact Us For Availability
552203B
Valve,Service LGE MJX62253801 Contact Us For Availability
554031
Condenser Assembly,Bending LGE ACG73705903 Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ35619701 Contact Us For Availability
554160
Compressor Set,China LGE TBZ39241201 Contact Us For Availability
561410A
Solenoid LGE 6141A20010X Contact Us For Availability
561410B
Solenoid LGE EBE60659006 Contact Us For Availability
566001
Switch,Pressure LGE EBF40271405 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ74541612 Contact Us For Availability
W4986A
Sound proof LGE MDS63978804 Contact Us For Availability
W4986B
Sound proof LGE MDS63978803 Contact Us For Availability
W6631
Harness,Multi LGE EAD63768946 Contact Us For Availability
W6640
Connector,Terminal Block LGE EAG63111409 Contact Us For Availability
W52240A
Strainer LGE 5224A20002V Contact Us For Availability
W52240B
Strainer LGE 5224A20002D Contact Us For Availability
W52240C
Strainer LGE 3H03659M Contact Us For Availability
× ![]()
