Model LG ARUN024GSS4.EWGBLUS Air Conditioners – Common Parts & Diagrams
CONTROL BOX
MECHANICAL PARTS AND PANELS

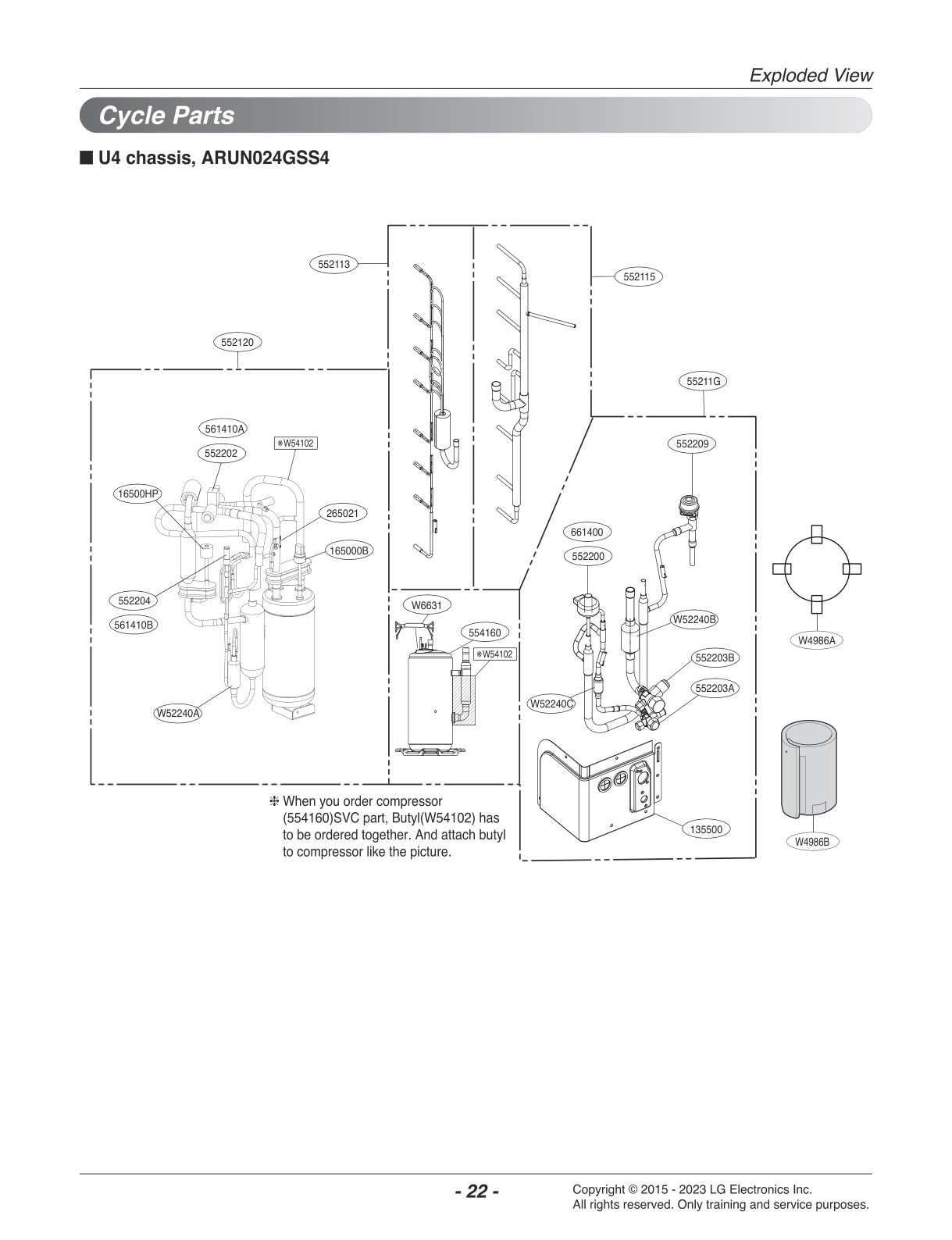

CYCLE PARTS
Common parts from model LG ARUN024GSS4.EWGBLUS Air Conditioners
55211G
Tube Assembly,Expansion LGE AJR74924708 Contact Us For Availability
135500
Cover LGE MCK62216102 Contact Us For Availability
137213A
Panel Assembly,Side LGE AGL72909307 Contact Us For Availability
137213B
Panel Assembly,Side LGE AGL72909462 Contact Us For Availability
165000B
Sensor,Pressure LGE EBD62165607 Contact Us For Availability
237202
Panel,Front LGE MGC53382919 Contact Us For Availability
263230B
Thermistor Assembly,NTC LGE EBG61826502 Contact Us For Availability
263230C
Thermistor Assembly,NTC LGE EBG61285701 Contact Us For Availability
268711D
PCB Assembly,Inverter LGE EBR78509902 Contact Us For Availability
349480
Orifice LGE 4948A20011G Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN74512202 Contact Us For Availability
435300
Grille,Rear LGE MDX61843728 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ35131820 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL72770317 Contact Us For Availability
437212
Panel Assembly,Rear(Outdoor) LGE AGL76433406 Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA74032401 Contact Us For Availability
550140
Damper,Rubber LGE MCQ68888201 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR73086506 Contact Us For Availability
552115
Tube Assembly,Manifold(Outdoor) LGE AJR75123901 Contact Us For Availability
552120
Tube Assembly LGE AJR74925209 Contact Us For Availability
552202
Valve,Reverse LGE 3A02080E Contact Us For Availability
552203A
Valve,Service LGE MJX62472208 Contact Us For Availability
552203B
Valve,Service LGE MJX62472101 Contact Us For Availability
552209
Valve Assembly LGE AJU36719731 Contact Us For Availability
554031
Condenser Assembly,Bending LGE ACG65612220 Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ37954901 Contact Us For Availability
554160
Compressor Set,China LGE TBZ39241201 Contact Us For Availability
559010
Fan,Propeller LGE MDG62002901 Contact Us For Availability
561410A
Solenoid LGE 6141A20010X Contact Us For Availability
561410B
Solenoid LGE EBE60659006 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ74541817 Contact Us For Availability
661400
Coil,Expansion LGE EAP30616911 Contact Us For Availability
W4811
Bracket Assembly LGE ABA75269706 Contact Us For Availability
W4986A
Sound proof LGE MDS63978804 Contact Us For Availability
W4986B
Sound proof LGE MDS63978813 Contact Us For Availability
W6631
Harness,Multi LGE EAD63051101 Contact Us For Availability
W6640
Connector,Terminal Block LGE EAG63111409 Contact Us For Availability
W52240A
Strainer LGE 5224A20002V Contact Us For Availability
W52240B
Strainer LGE 5224A20005Y Contact Us For Availability
W52240C
Strainer LGE 3H03659M Contact Us For Availability
× ![]()
