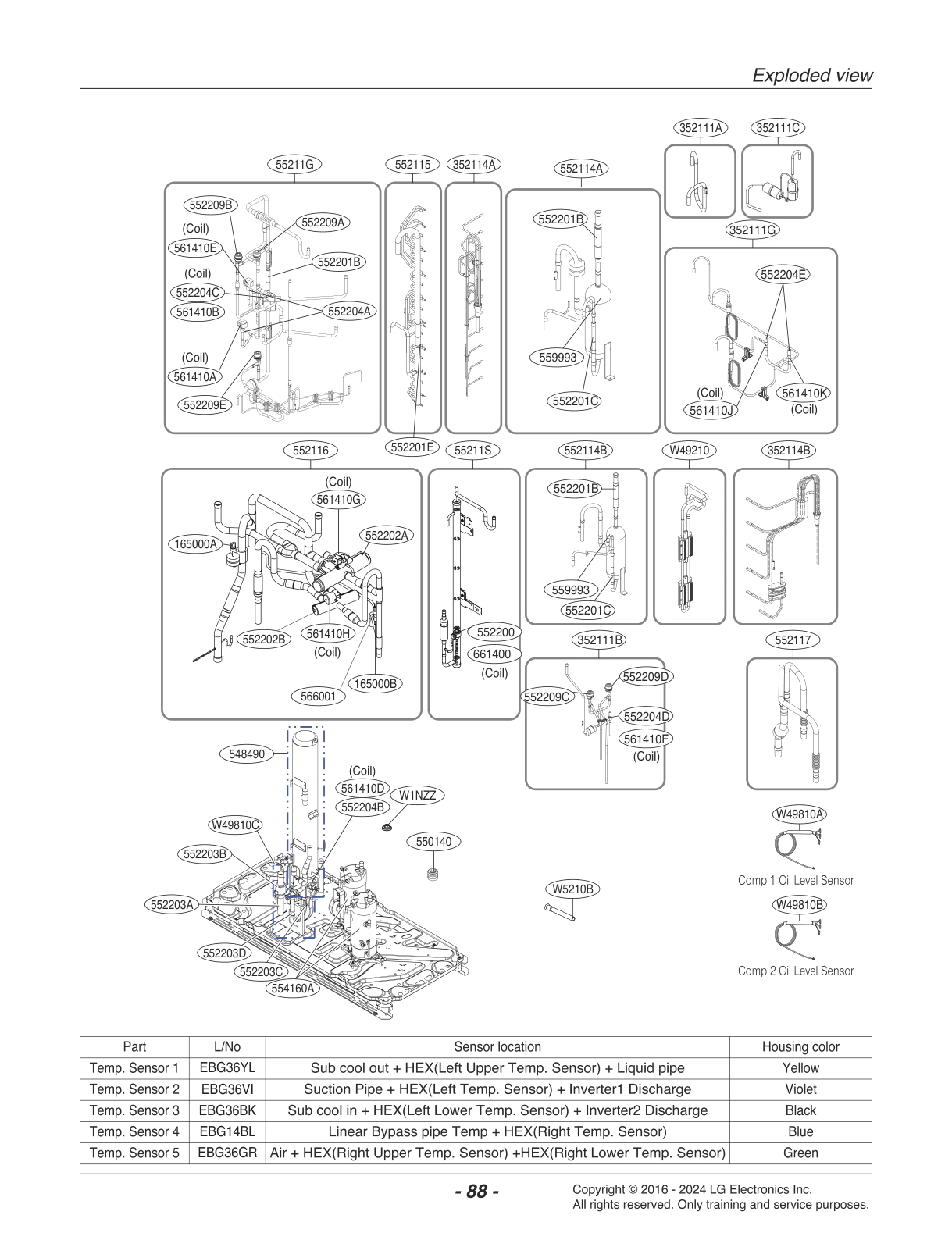

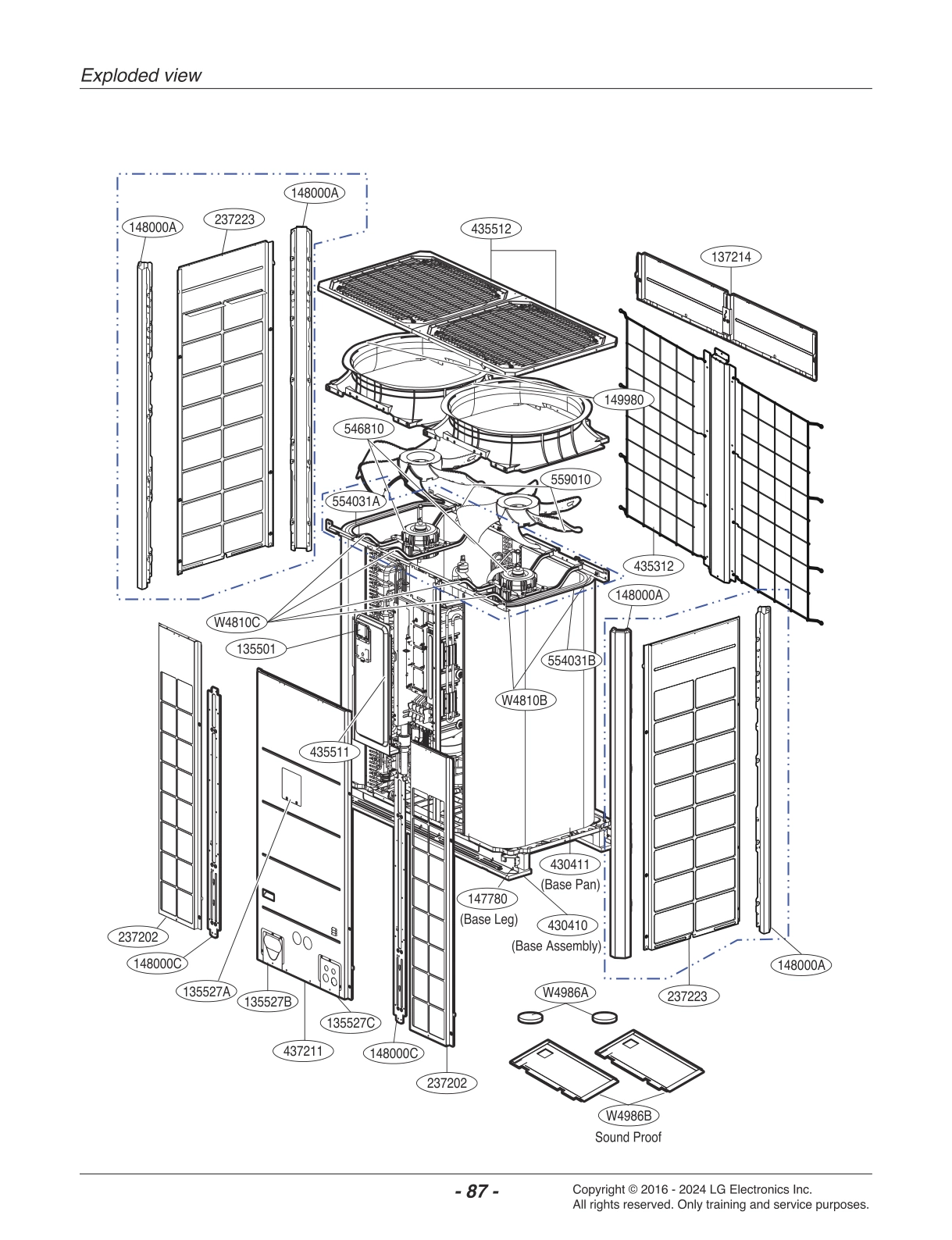

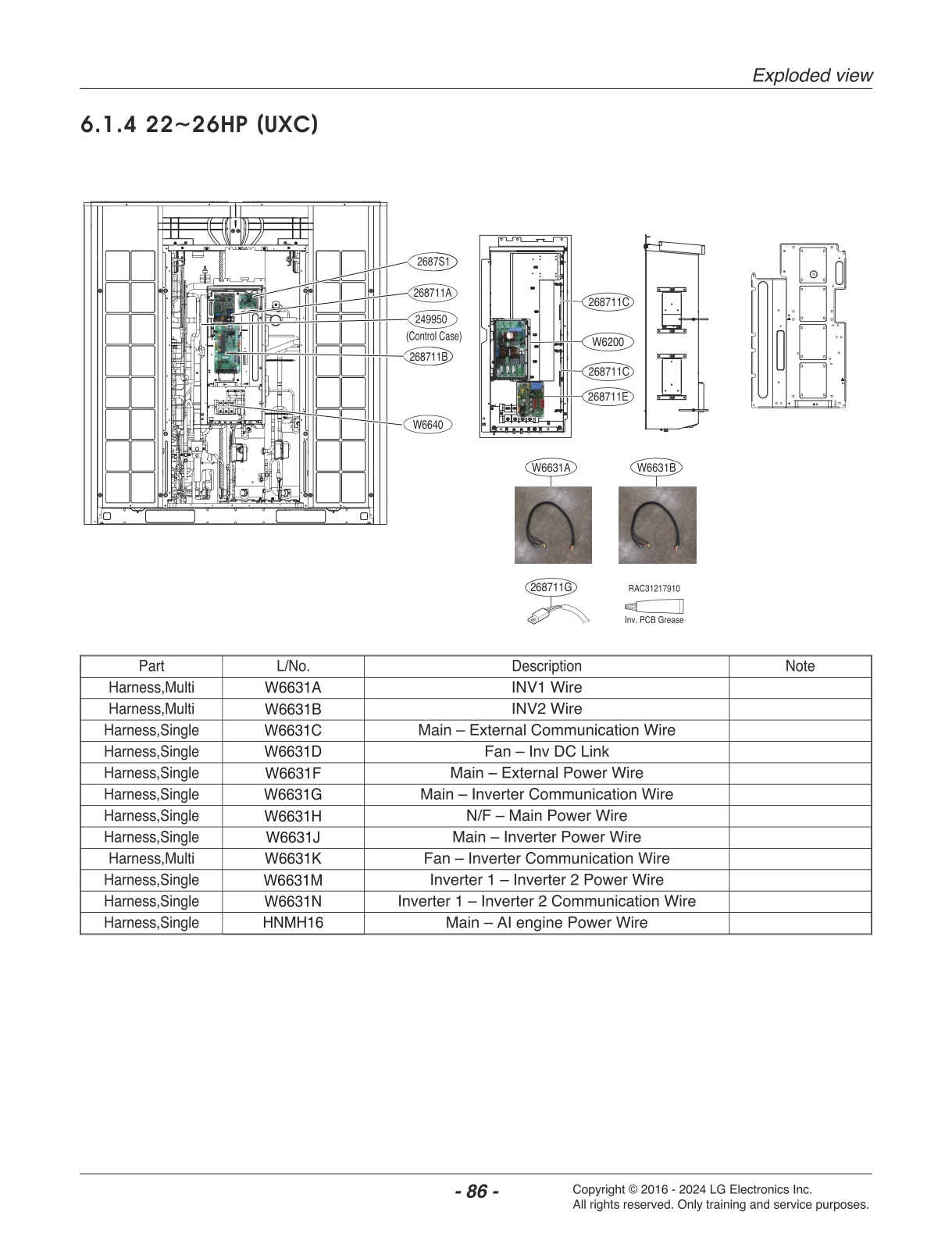

Model LG ARUM240LTE6.EWGBLEU Split rooftop dedicated outdoor air system (DOAS) – Common Parts & Diagrams

55211G
Tube Assembly,Expansion
Tube Assembly,Expansion LGE AJR30082901 Contact Us For Availability
View on Model
55211S
Tube Assembly,Expansion
Tube Assembly,Expansion LGE AJR77223908 Contact Us For Availability
View on Model
135501
Cover Assembly
Cover Assembly LGE ACQ33787704 Contact Us For Availability
View on Model
135527A
Cover
Cover LGE MCK40005905 Contact Us For Availability
View on Model
135527B
Cover
Cover LGE MCK40004912 Contact Us For Availability
View on Model
135527C
Cover
Cover LGE MCK40005013 Contact Us For Availability
View on Model
137214
Panel Assembly,Upper
Panel Assembly,Upper LGE AGL75592503 Contact Us For Availability
View on Model
147780
Leg
Leg LGE MFA63182902 Contact Us For Availability
View on Model
148000A
Supporter
Supporter LGE MJH63754113 Contact Us For Availability
View on Model
148000C
Supporter
Supporter LGE MJH64315204 Contact Us For Availability
View on Model
237202
Panel,Front
Panel,Front LGE MGC66411502 Contact Us For Availability
View on Model
237223
Panel,Side
Panel,Side LGE MGC66434002 Contact Us For Availability
View on Model
249950
Case Assembly,Control Box
Case Assembly,Control Box LGE ABQ30226409 Contact Us For Availability
View on Model
268711A
PCB Assembly,Cycle
PCB Assembly,Cycle LGE EBR35656808 Contact Us For Availability
View on Model
268711B
PCB Assembly,Main
PCB Assembly,Main LGE EBR79669920 Contact Us For Availability
View on Model
268711C
PCB Assembly,Inverter
PCB Assembly,Inverter LGE EBR33850107 Contact Us For Availability
View on Model
268711E
PCB Assembly,Fan
PCB Assembly,Fan LGE EBR38144901 Contact Us For Availability
View on Model
268711G
PCB Assembly,Sensor
PCB Assembly,Sensor LGE EBR80100301 Contact Us For Availability
View on Model
352111A
Tube Assembly,Connector
Tube Assembly,Connector LGE AJR30084501 Contact Us For Availability
View on Model
352111B
Tube Assembly,Connector
Tube Assembly,Connector LGE AJR30083201 Contact Us For Availability
View on Model
352111C
Tube Assembly,Connector
Tube Assembly,Connector LGE AJR30084701 Contact Us For Availability
View on Model
352111G
Tube Assembly,Connector
Tube Assembly,Connector LGE AJR75463518 Contact Us For Availability
View on Model
352114A
Tube Assembly,Distributor
Tube Assembly,Distributor LGE AJR77142503 Contact Us For Availability
View on Model
352114B
Tube Assembly,Distributor
Tube Assembly,Distributor LGE AJR77142603 Contact Us For Availability
View on Model
430410
Base Assembly,Outdoor
Base Assembly,Outdoor LGE AAN75690504 Contact Us For Availability
View on Model
430411
Base Assembly,Weld(Outdoor)
Base Assembly,Weld(Outdoor) LGE AAN75690408 Contact Us For Availability
View on Model
435312
Grille Assembly,Rear(Outdoor)
Grille Assembly,Rear(Outdoor) LGE AEB74884502 Contact Us For Availability
View on Model
435511
Cover Assembly,Control(Outdoor)
Cover Assembly,Control(Outdoor) LGE ACQ87960121 Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE ACQ88522301 Contact Us For Availability
View on Model
437211
Panel Assembly,Front(Outdoor)
Panel Assembly,Front(Outdoor) LGE AGL74852534 Contact Us For Availability
View on Model
546810
Motor Assembly,DC,Outdoor
Motor Assembly,DC,Outdoor LGE EAU43080015 Contact Us For Availability
View on Model
548490
Accumulator Assembly
Accumulator Assembly LGE AAB74332301 Contact Us For Availability
View on Model
550140
Damper,Compressor
Damper,Compressor LGE MCQ62569601 Contact Us For Availability
View on Model
552114A
Tube Assembly,Discharge(Outdoor)
Tube Assembly,Discharge(Outdoor) LGE AJR76163915 Contact Us For Availability
View on Model
552114B
Tube Assembly,Discharge(Outdoor)
Tube Assembly,Discharge(Outdoor) LGE AJR76163918 Contact Us For Availability
View on Model
552115
Tube Assembly,Manifold(Outdoor)
Tube Assembly,Manifold(Outdoor) LGE AJR77202404 Contact Us For Availability
View on Model
552116
Tube Assembly,Reverse
Tube Assembly,Reverse LGE AJR30083101 Contact Us For Availability
View on Model
552117
Tube Assembly,Suction(Outdoor)
Tube Assembly,Suction(Outdoor) LGE AJR30083001 Contact Us For Availability
View on Model
552200
Valve,Expansion Body
Valve,Expansion Body LGE MJX63992003 Contact Us For Availability
View on Model
552201B
Valve,Check
Valve,Check LGE MJX62771705 Contact Us For Availability
View on Model
552201E
Valve,Check
Valve,Check LGE MJX62771704 Contact Us For Availability
View on Model
552202A
Valve,Reverse
Valve,Reverse LGE MJX61911802 Contact Us For Availability
View on Model
552202B
Valve,Reverse
Valve,Reverse LGE 5220A20039A Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE MJX62572810 Contact Us For Availability
View on Model
552203B
Valve,Service
Valve,Service LGE MJX62572804 Contact Us For Availability
View on Model
552203C
Valve,Service
Valve,Service LGE MJX62792301 Contact Us For Availability
View on Model
552203D
Valve,Service
Valve,Service LGE MJX64331401 Contact Us For Availability
View on Model
552204A
Valve,Solenoid
Valve,Solenoid LGE MJX61537805 Contact Us For Availability
View on Model
552204C
Valve,Solenoid
Valve,Solenoid LGE 5220A90008Y Contact Us For Availability
View on Model
552209D
Valve Assembly
Valve Assembly LGE AJU73472415 Contact Us For Availability
View on Model
552209E
Valve Assembly
Valve Assembly LGE AJU36719737 Contact Us For Availability
View on Model
554031A
Condenser Assembly,Bending
Condenser Assembly,Bending LGE ACG74565038 Contact Us For Availability
View on Model
554031B
Condenser Assembly,Bending
Condenser Assembly,Bending LGE ACG74565039 Contact Us For Availability
View on Model
554160A
Compressor Set,Korea
Compressor Set,Korea LGE TBZ37957001 Contact Us For Availability
View on Model
559993
Separator,Oil
Separator,Oil LGE MHH62041502 Contact Us For Availability
View on Model
561410A
Solenoid
Solenoid LGE EBE60661415 Contact Us For Availability
View on Model
561410B
Solenoid
Solenoid LGE EBE61083212 Contact Us For Availability
View on Model
561410E
Solenoid
Solenoid LGE EBE60661416 Contact Us For Availability
View on Model
561410F
Solenoid
Solenoid LGE EBE60661414 Contact Us For Availability
View on Model
561410G
Solenoid
Solenoid LGE 6141A20010U Contact Us For Availability
View on Model
561410H
Solenoid
Solenoid LGE EBE60742004 Contact Us For Availability
View on Model
561410J
Solenoid
Solenoid LGE EBE61083214 Contact Us For Availability
View on Model
561410K
Solenoid
Solenoid LGE EBE61083215 Contact Us For Availability
View on Model
566001
Switch,Pressure
Switch,Pressure LGE EBF40271416 Contact Us For Availability
View on Model
661400
Coil Module,Expansion
Coil Module,Expansion LGE EAP65270716 Contact Us For Availability
View on Model
EBG14BL
Thermistor Assembly
Thermistor Assembly LGE EBG61826708 Contact Us For Availability
View on Model
EBG36BK
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61107407 Contact Us For Availability
View on Model
EBG36GR
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61486304 Contact Us For Availability
View on Model
HNMH16
Harness,Single
Harness,Single LGE EAD62092261 Contact Us For Availability
View on Model
W1NZZ
Nut,Customized
Nut,Customized LGE FAD33370601 Contact Us For Availability
View on Model
W4810B
Bracket
Bracket LGE MAZ65229701 Contact Us For Availability
View on Model
W4986A
Gasket
Gasket LGE MDS65550401 Contact Us For Availability
View on Model
W4986B
Sound proof
Sound proof LGE MDS65550301 Contact Us For Availability
View on Model
W5210B
Tube,Connector
Tube,Connector LGE MJU63108405 Contact Us For Availability
View on Model
W6200
PCB Assembly,Filter
PCB Assembly,Filter LGE EBR85687301 Contact Us For Availability
View on Model
W6631A
Harness,Multi
Harness,Multi LGE EAD62666215 Contact Us For Availability
View on Model
W6631B
Harness,Multi
Harness,Multi LGE EAD62666216 Contact Us For Availability
View on Model
W6631C
Harness,Single
Harness,Single LGE EAD63306503 Contact Us For Availability
View on Model
W6631D
Harness,Single
Harness,Single LGE EAD63306555 Contact Us For Availability
View on Model
W6631F
Harness,Single
Harness,Single LGE EAD63306504 Contact Us For Availability
View on Model
W6631G
Harness,Single
Harness,Single LGE EAD63306543 Contact Us For Availability
View on Model
W6631H
Harness,Single
Harness,Single LGE EAD63306512 Contact Us For Availability
View on Model
W6631J
Harness,Single
Harness,Single LGE EAD63306517 Contact Us For Availability
View on Model
W6631K
Harness,Multi
Harness,Multi LGE EAD63326201 Contact Us For Availability
View on Model
W6631M
Harness,Single
Harness,Single LGE EAD63306516 Contact Us For Availability
View on Model
W6631N
Harness,Single
Harness,Single LGE EAD63306518 Contact Us For Availability
View on Model
W6640
Connector,Terminal Block
Connector,Terminal Block LGE 6640A30004P Contact Us For Availability
View on Model
W49210
Heat Sink Assembly
Heat Sink Assembly LGE AEF76290301 Contact Us For Availability
View on Model
W49810A
Supporter Assembly
Supporter Assembly LGE AJJ73639906 Contact Us For Availability
View on Model
W49810B
Supporter Assembly
Supporter Assembly LGE AJJ73639907 Contact Us For Availability
View on Model
W49810C
Supporter Assembly
Supporter Assembly LGE AJJ76617501 Contact Us For Availability
