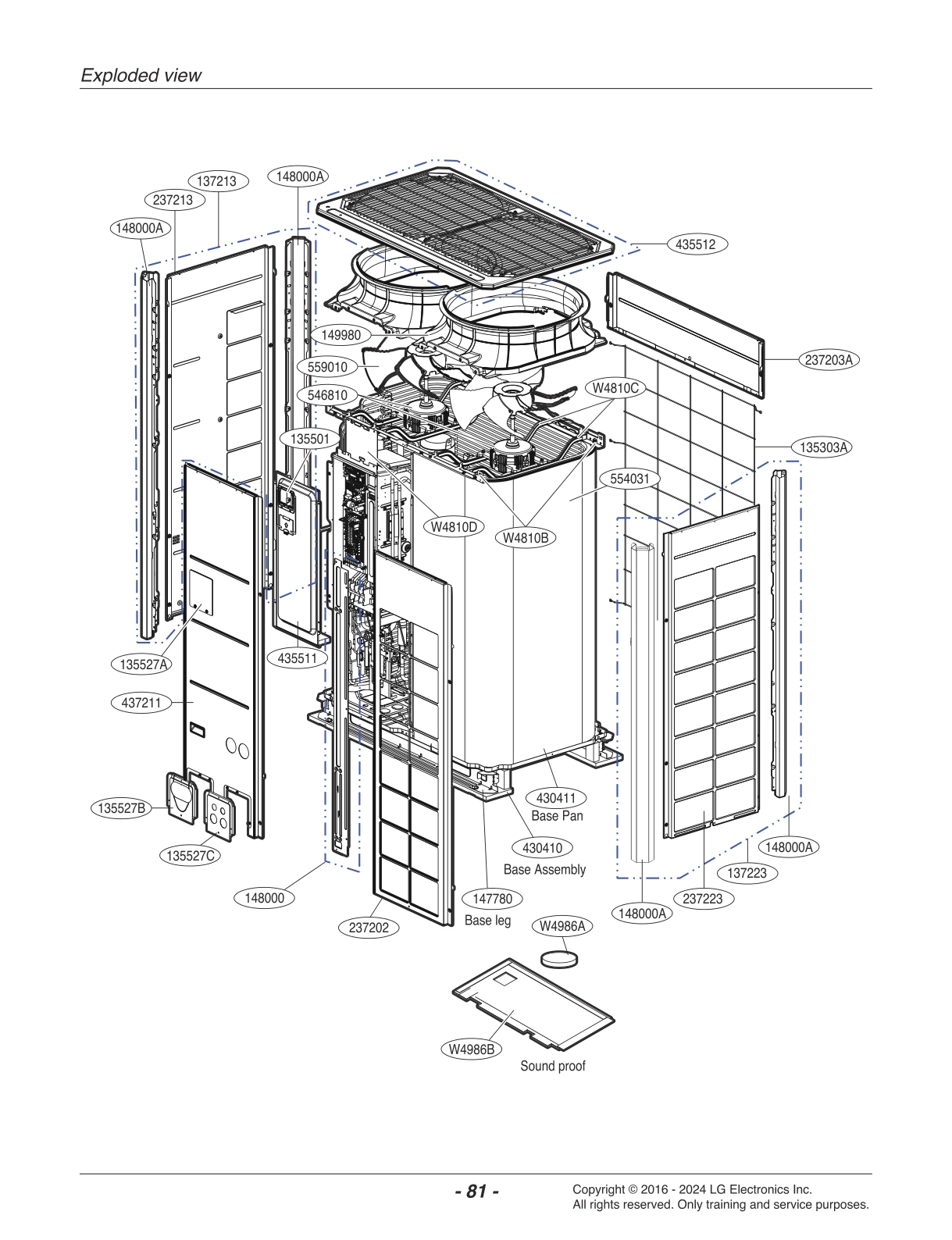

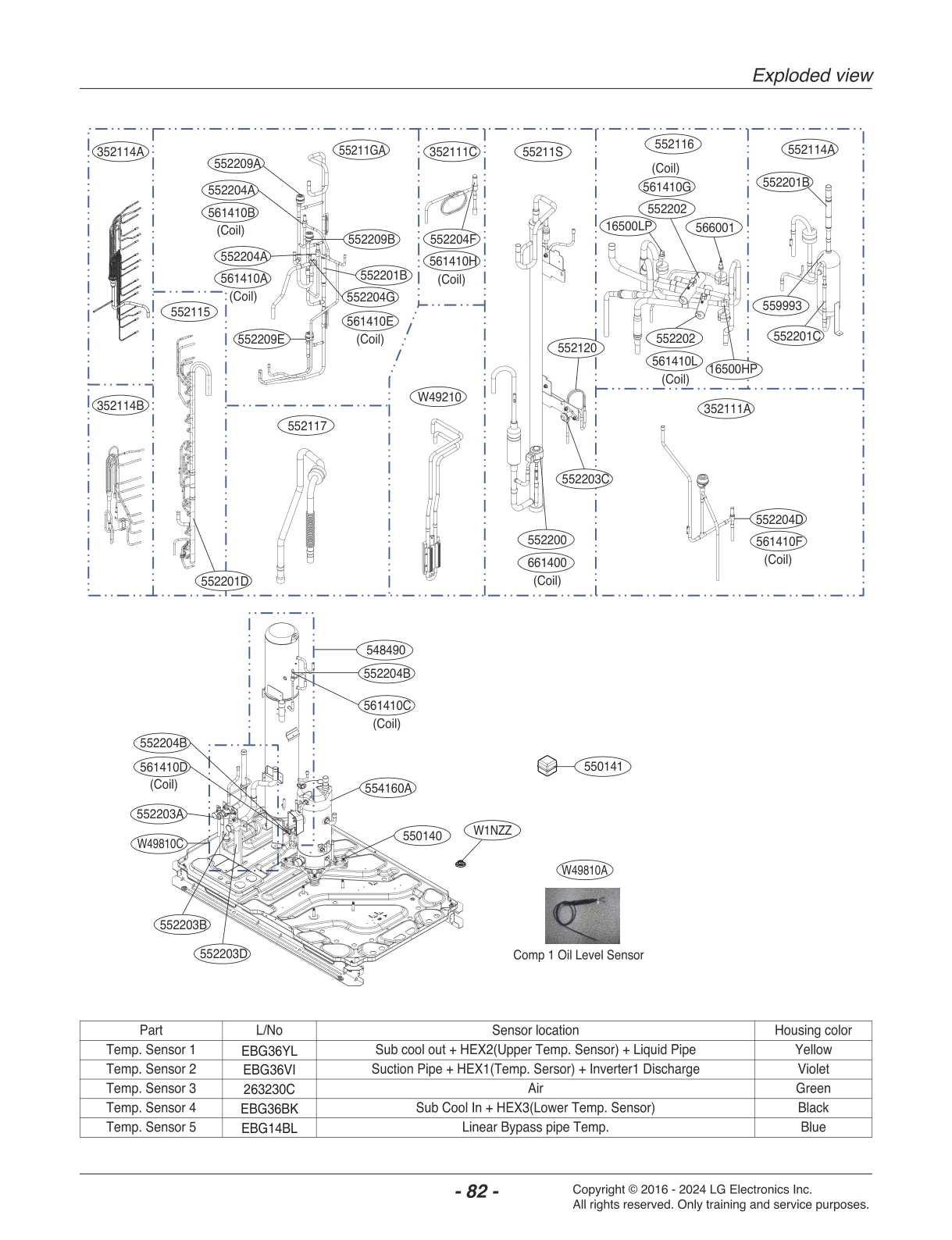

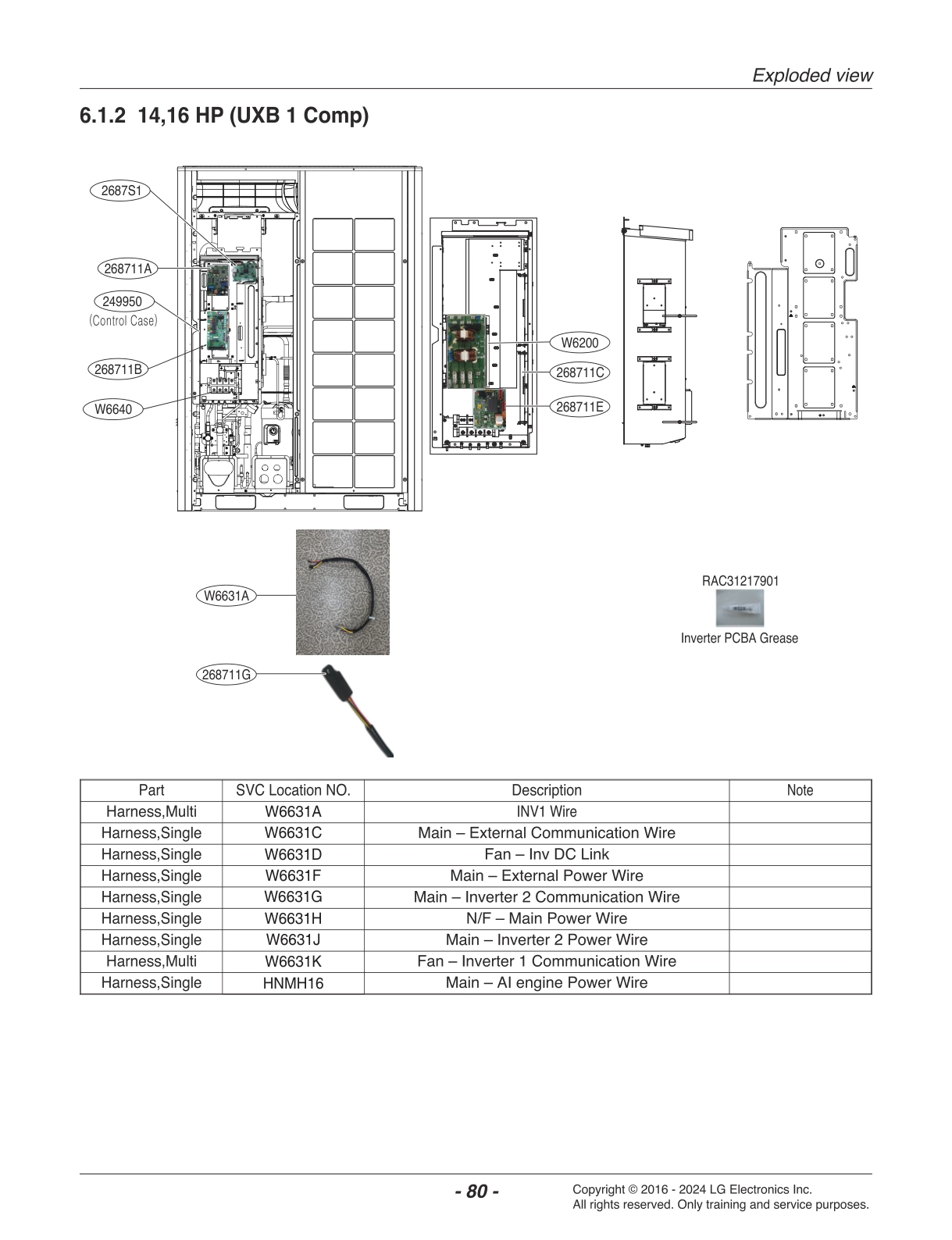

Model LG ARUM140LTE6.EWGBLEU Split rooftop dedicated outdoor air system (DOAS) – Common Parts & Diagrams
Common parts from model LG ARUM140LTE6.EWGBLEU Split rooftop dedicated outdoor air system (DOAS)
55211GA
Tube Assembly,Expansion LGE AJR77224513 Contact Us For Availability
55211S
Tube Assembly,Expansion LGE AJR77223901 Contact Us For Availability
135303A
Grille,Inlet LGE MDX63411906 Contact Us For Availability
135527C
Cover LGE MCK40005013 Contact Us For Availability
137213
Panel Assembly,Side LGE AGL74913312 Contact Us For Availability
147780
Leg LGE MFA62922902 Contact Us For Availability
148000
Supporter LGE MJH65133102 Contact Us For Availability
148000A
Supporter LGE MJH63754113 Contact Us For Availability
149980
Shroud LGE MHN63783501 Contact Us For Availability
237202
Panel,Front LGE MGC66411402 Contact Us For Availability
237223
Panel,Side LGE MGC66434002 Contact Us For Availability
249950
Case Assembly,Control Box LGE ABQ30226404 Contact Us For Availability
268711C
PCB Assembly,Inverter LGE EBR33850107 Contact Us For Availability
268711E
PCB Assembly,Fan LGE EBR89262706 Contact Us For Availability
268711G
PCB Assembly,Sensor LGE EBR80100301 Contact Us For Availability
352111A
Tube Assembly,Connector LGE AJR30019901 Contact Us For Availability
352111A
Tube Assembly,Connector LGE AJR77224805 Contact Us For Availability
352111C
Tube Assembly,Connector LGE AJR74984601 Contact Us For Availability
352114B
Tube Assembly,Distributor LGE AJR77263205 Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN75070509 Contact Us For Availability
430411
Base Assembly,Weld(Outdoor) LGE AAN75070404 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ87691201 Contact Us For Availability
546810
Motor Assembly,DC,Outdoor LGE EAU43080051 Contact Us For Availability
548490
Accumulator Assembly LGE AAB73610355 Contact Us For Availability
550140
Damper,Compressor LGE MCQ62569601 Contact Us For Availability
552114A
Tube Assembly,Discharge(Outdoor) LGE AJR76163914 Contact Us For Availability
552115
Tube Assembly,Manifold(Outdoor) LGE AJR77263005 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR30027702 Contact Us For Availability
552117
Tube Assembly,Suction(Outdoor) LGE AJR75463204 Contact Us For Availability
552120
Tube Assembly LGE AJR77226001 Contact Us For Availability
552203C
Valve,Service LGE MJX62792301 Contact Us For Availability
552204G
Valve,Solenoid LGE 5220A90008Y Contact Us For Availability
552209A
Coil Module,Gear Expansion LGE EAP65270401 Contact Us For Availability
554160A
Compressor Set,Korea LGE TBZ37957001 Contact Us For Availability
559010
Fan Assembly,Propeller LGE ADP75675701 Contact Us For Availability
561410A
Solenoid LGE EBE60661415 Contact Us For Availability
561410E
Solenoid LGE EBE61083212 Contact Us For Availability
EBG14BL
Thermistor Assembly LGE EBG61826705 Contact Us For Availability
HNMH16
Harness,Single LGE EAD62092261 Contact Us For Availability
W1NZZ
Nut,Customized LGE FAD33370601 Contact Us For Availability
W4810B
Bracket LGE MAZ64569001 Contact Us For Availability
W4810D
Bracket LGE MAZ67523701 Contact Us For Availability
W4986B
Sound proof LGE MDS65550301 Contact Us For Availability
W6631A
Harness,Multi LGE EAD62666215 Contact Us For Availability
W6631D
Harness,Single LGE EAD63306555 Contact Us For Availability
W6631F
Harness,Single LGE EAD63306504 Contact Us For Availability
W6631G
Harness,Single LGE EAD63306546 Contact Us For Availability
W6631H
Harness,Single LGE EAD63306512 Contact Us For Availability
W6631J
Harness,Single LGE EAD63306517 Contact Us For Availability
W6631K
Harness,Multi LGE EAD63326201 Contact Us For Availability
W6640
Connector,Terminal Block LGE 6640A30004P Contact Us For Availability
W49810C
Supporter Assembly LGE AJJ76559004 Contact Us For Availability
× ![]()
