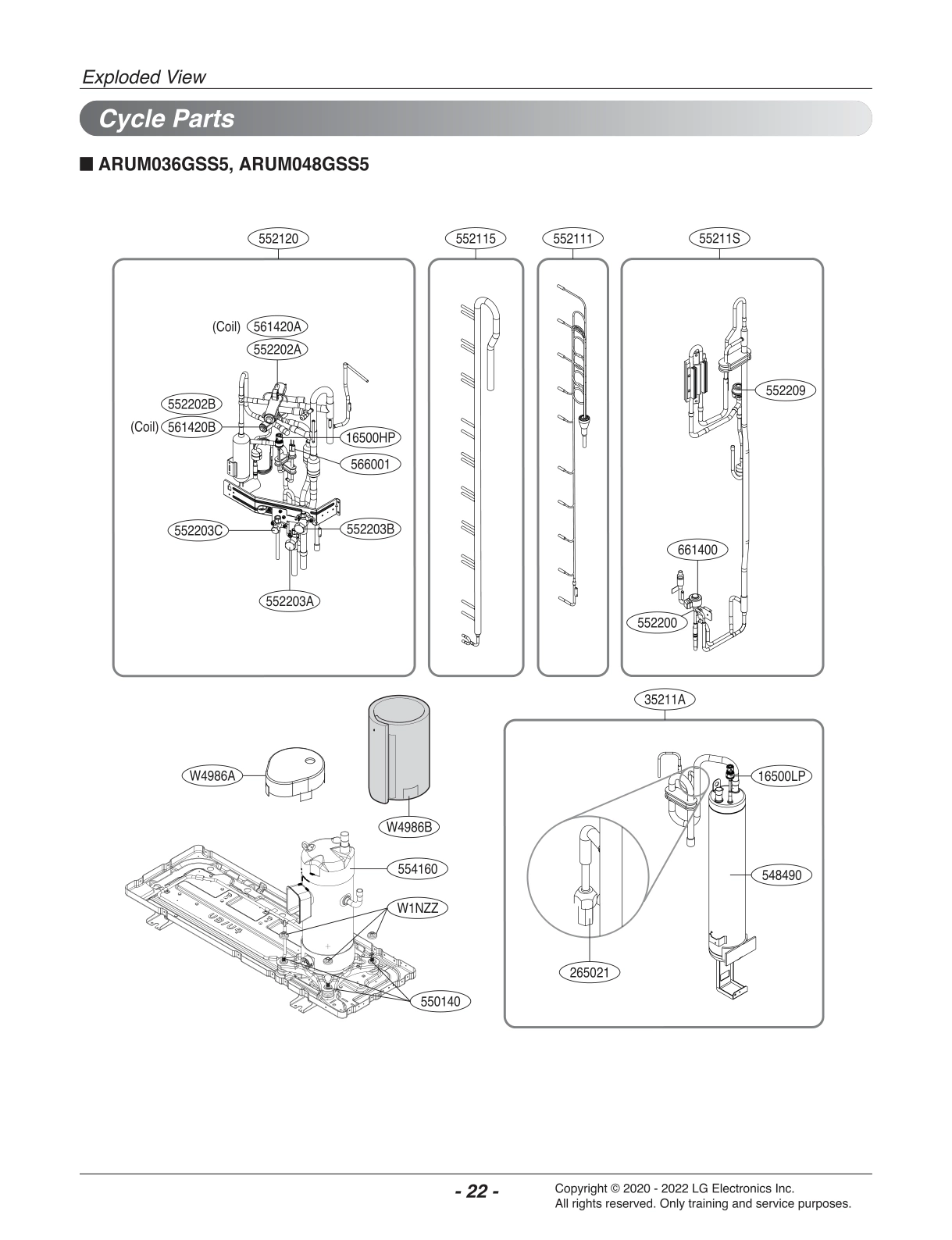

Model LG ARUM036GSS5.EWGBLUS Air Conditioners – Common Parts & Diagrams

16500HP
Sensor,Pressure
Sensor,Pressure LGE EBD60663821 Contact Us For Availability
View on Model
16500LP
Sensor,Pressure
Sensor,Pressure LGE EBD60663822 Contact Us For Availability
View on Model
35211A
Tube Assembly,Suction
Tube Assembly,Suction LGE AJR75805705 Contact Us For Availability
View on Model
135500
Cover
Cover LGE MCK39626220 Contact Us For Availability
View on Model
137223
Panel Assembly,Side
Panel Assembly,Side LGE AGL76513044 Contact Us For Availability
View on Model
235512
Cover Assembly,Display
Cover Assembly,Display LGE ACQ89948702 Contact Us For Availability
View on Model
237202
Panel,Front
Panel,Front LGE MGC39426114 Contact Us For Availability
View on Model
237205
Panel,Rear
Panel,Rear LGE MGC39613728 Contact Us For Availability
View on Model
237213
Panel,Side
Panel,Side LGE MGC39426015 Contact Us For Availability
View on Model
263230A
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61826401 Contact Us For Availability
View on Model
263230C
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61285701 Contact Us For Availability
View on Model
268711C
PCB Assembly,Fan
PCB Assembly,Fan LGE EBR79191511 Contact Us For Availability
View on Model
268711D
PCB Assembly,Inv(H/W)
PCB Assembly,Inv(H/W) LGE EBR83821105 Contact Us For Availability
View on Model
349480
Orifice
Orifice LGE MFX63082101 Contact Us For Availability
View on Model
430410
Base Assembly,Outdoor
Base Assembly,Outdoor LGE AAN75870804 Contact Us For Availability
View on Model
435300
Grille,Rear
Grille,Rear LGE MDX40922518 Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE ACQ35131820 Contact Us For Availability
View on Model
435513
Cover Assembly,Tubing
Cover Assembly,Tubing LGE ACQ34583418 Contact Us For Availability
View on Model
437211
Panel Assembly,Front(Outdoor)
Panel Assembly,Front(Outdoor) LGE AGL34578724 Contact Us For Availability
View on Model
437212
Panel Assembly,Rear(Outdoor)
Panel Assembly,Rear(Outdoor) LGE AGL76512809 Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE AAM35646432 Contact Us For Availability
View on Model
546810B
Motor Assembly,DC,Outdoor
Motor Assembly,DC,Outdoor LGE EAU62543704 Contact Us For Availability
View on Model
548490
Accumulator Assembly
Accumulator Assembly LGE AAB73490404 Contact Us For Availability
View on Model
549610
Bracket Assembly,Motor(Outdoor)
Bracket Assembly,Motor(Outdoor) LGE ABA34168809 Contact Us For Availability
View on Model
550140
Damper,Compressor
Damper,Compressor LGE MCQ62569601 Contact Us For Availability
View on Model
552111
Tube Assembly,Capillary
Tube Assembly,Capillary LGE AJR74522408 Contact Us For Availability
View on Model
552115
Tube Assembly,Manifold(Outdoor)
Tube Assembly,Manifold(Outdoor) LGE AJR75803202 Contact Us For Availability
View on Model
552120
Tube Assembly
Tube Assembly LGE AJR75803306 Contact Us For Availability
View on Model
552200
Valve,Expansion Body
Valve,Expansion Body LGE MJX63991901 Contact Us For Availability
View on Model
552202B
Valve,Reverse
Valve,Reverse LGE MJX63491601 Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE MJX62253801 Contact Us For Availability
View on Model
554031
Condenser Assembly,Bending
Condenser Assembly,Bending LGE ACG74464806 Contact Us For Availability
View on Model
554160
Compressor Set,Korea
Compressor Set,Korea LGE TBZ37420301 Contact Us For Availability
View on Model
554160
Compressor Set,Korea
Compressor Set,Korea LGE TBZ38235901 Contact Us For Availability
View on Model
561420A
Coil Assembly,Reverse
Coil Assembly,Reverse LGE EAP64467706 Contact Us For Availability
View on Model
561420B
Coil Assembly,Reverse
Coil Assembly,Reverse LGE EAP64467704 Contact Us For Availability
View on Model
566001
Switch,Pressure
Switch,Pressure LGE EBF40271405 Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE ABQ75804507 Contact Us For Availability
View on Model
661400
Coil,Expansion
Coil,Expansion LGE EAP63107107 Contact Us For Availability
View on Model
753000
Heater,Electric
Heater,Electric LGE MEE63124904 Contact Us For Availability
View on Model
HNVC33
Harness,Multi
Harness,Multi LGE EAD62727227 Contact Us For Availability
View on Model
W1NZZ
Nut,Customized
Nut,Customized LGE FAD33370601 Contact Us For Availability
View on Model
W4986A
Sound proof
Sound proof LGE MDS42399718 Contact Us For Availability
View on Model
W4986B
Sound proof
Sound proof LGE MDS42294623 Contact Us For Availability
View on Model
W6200
Filter,Line Noise
Filter,Line Noise LGE EAM62792407 Contact Us For Availability
View on Model
W6640
Connector,Terminal Block
Connector,Terminal Block LGE EAG63111403 Contact Us For Availability
View on Model
W49200
Heat Sink
Heat Sink LGE MED63010804 Contact Us For Availability
View on Model
