Model Whirlpool ARTC8600E ELECTRIC RANGE – Common Parts & Diagrams
01 - BACKGUARD

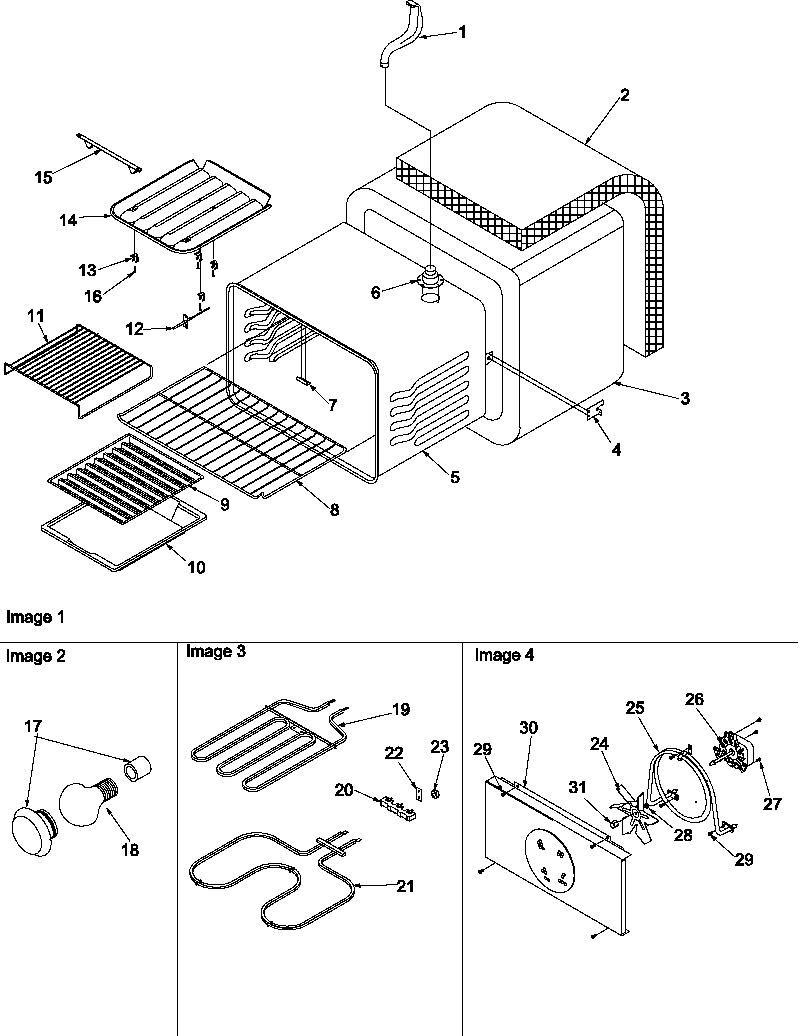

03 - CAVITY

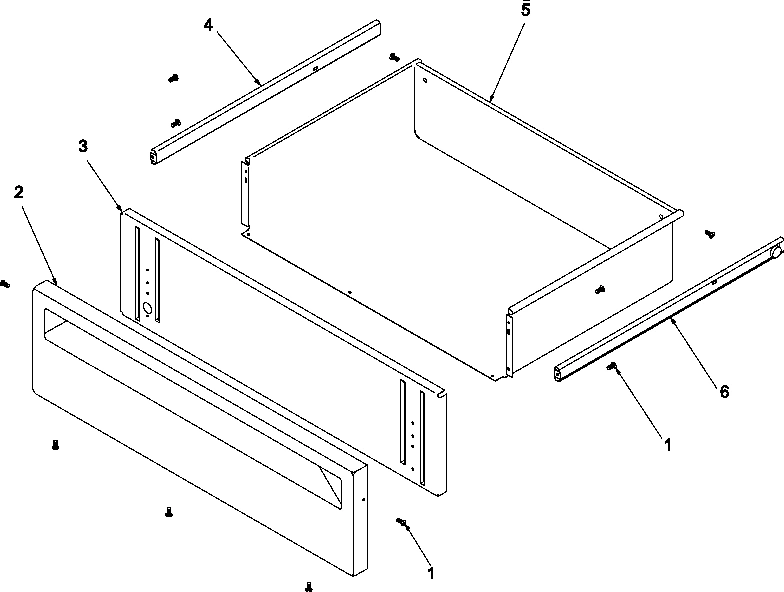

06 - STORAGE DRAWER
02 - CABINET

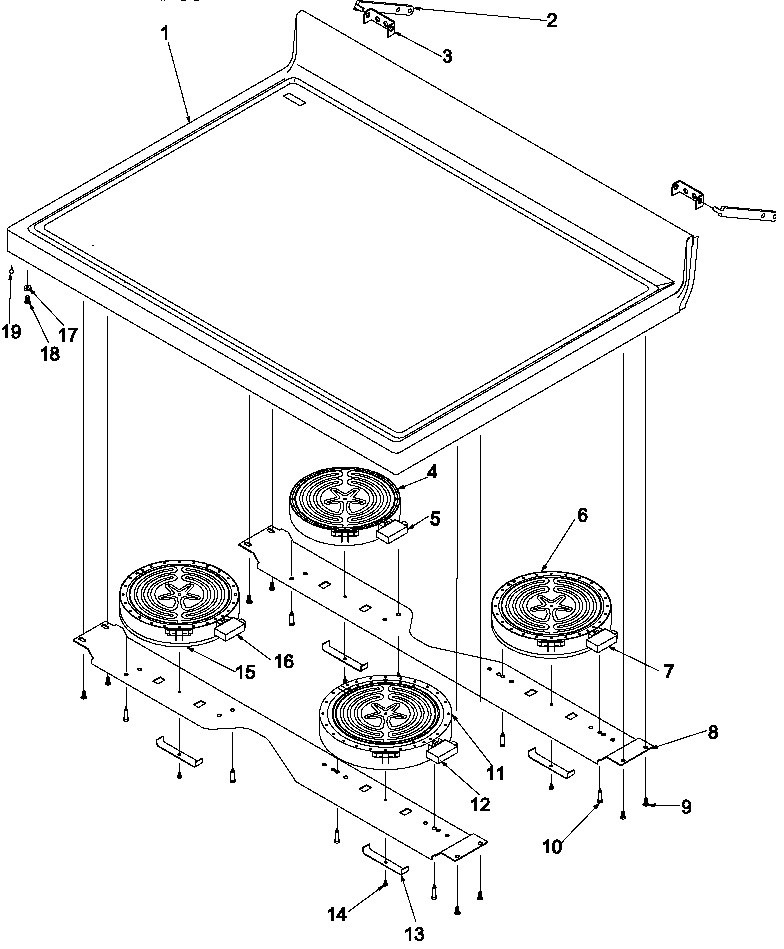

04 - MAIN TOP

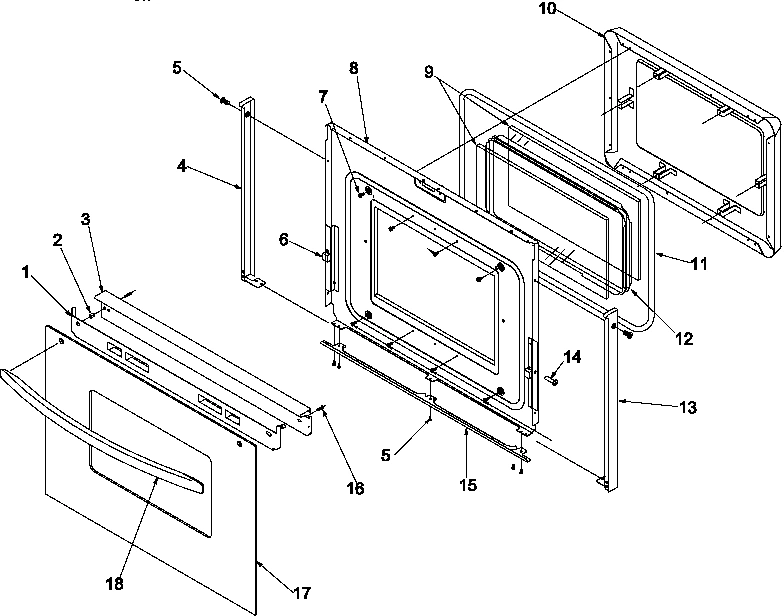

05 - OVEN DOOR
Common parts from model Whirlpool ARTC8600E ELECTRIC RANGE
1
TUBE, VENT WPL 0315917 Contact Us For Availability
1
LATCH, OVEN DOOR WPL Y0309430 Contact Us For Availability
1
ASSY, TOP & GLASS (6610/8600 B WPL 315914B Contact Us For Availability
1
ASSY, GLASS HEAT SHIELD WPL 315946B Contact Us For Availability
2
INSULATION, REAR WPL Y0300974 Contact Us For Availability
2
PANEL, DRAWER (BLK) WPL 309177B Contact Us For Availability
2
SWITCH, DOOR LATCH WPL Y0314277 Contact Us For Availability
2
PIN, HINGE WPL Y0315931 Contact Us For Availability
2
BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability
3
BUMPER, RUBBER WPL Y0314643 Contact Us For Availability
3
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
3
LINER, DRAWER PANEL (BLK) WPL 309179B Contact Us For Availability
3
BRKT, LATCH MTG WPL Y0316243 Contact Us For Availability
3
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
3
TRIM, DOOR TOP WPL 315945B Contact Us For Availability
4
STARTER, FLOURESCENT WPL 0071920 Contact Us For Availability
4
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
4
RUNNER STORAGE DWR-LH WPL 0314664 Contact Us For Availability
4
END CAP, LT (BLK) WPL 309458B Contact Us For Availability
5
LAMP HOLDER-FLOURES WPL Y0304559 Contact Us For Availability
5
OVEN, CAVITY (ENAMELLED) WPL 309775CG Contact Us For Availability
5
DRAWER, STORAGE (WHT) WPL 316253W Contact Us For Availability
5
SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability
5
LIMITER (2000 WATTS) WPL 0316688 Contact Us For Availability
6
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
6
RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability
6
BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability
6
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
7
HARNESS, WIRING WPL 0314521 Contact Us For Availability
7
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
7
COVER, CHIP WPL Y0315022 Contact Us For Availability
7
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
7
LIMITER (1500 WATTS) WPL 0316687 Contact Us For Availability
8
RACK, OVEN WPL 309988J Contact Us For Availability
8
SUPPORT-CIRCUIT BOARD WPL Y0306900 Contact Us For Availability
8
BRKT, ELEMENT WPL Y0316248 Contact Us For Availability
8
LINER, OVEN DOOR (ELEC) WPL 315986CG Contact Us For Availability
9
COVER, LIGHT WPL 315834B Contact Us For Availability
9
CIRCUIT BOARD, ERC WPL Y0309305 Contact Us For Availability
9
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
9
GLASS WINDOW 18`` X 11`` X 3/16`` WPL Y0309074 Contact Us For Availability
10
BALLAST WPL Y0071869 Contact Us For Availability
10
RETAINER, REAR INSUL. WPL 0309081 Contact Us For Availability
10
SCREW, SHOULDER WPL Y0316569 Contact Us For Availability
10
PAD, OVEN DOOR WPL 309781CG Contact Us For Availability
11
START HOLDR-FLOUR.LMP WPL Y0304560 Contact Us For Availability
11
RACK, BROILER WPL Y0306531 Contact Us For Availability
11
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
11
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
12
INDICATOR LIGHT WPL Y0071820 Contact Us For Availability
12
COVER, REAR WPL Y0307342 Contact Us For Availability
12
SEE NOTE LIMITER- DUAL RF -- (NOT FIELD REPLA WPL Y00000000 Contact Us For Availability
12
FRAME, WINDOW PACK WPL Y0309071 Contact Us For Availability
13
COVER, UPPER REAR WPL 0315887 Contact Us For Availability
13
BRACKET, MOUNTING WPL 0315402 Contact Us For Availability
13
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
13
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
13
END CAP, RT (BLK) WPL 309457B Contact Us For Availability
14
BOARD, ADAPTER WPL Y0314034 Contact Us For Availability
14
REFLECTOR, BROIL ELEMENT WPL Y0315403 Contact Us For Availability
14
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
14
RIVET, POP WPL Y0302648 Contact Us For Availability
15
SWITCH, DUAL INF. WPL Y0315855 Contact Us For Availability
15
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
15
PANEL, SIDE (BLK) WPL 317036B Contact Us For Availability
15
ELEMENT, RIBBON (1200 WATTS) WPL Y0314909 Contact Us For Availability
15
SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability
16
RIVET, POP WPL Y0097822 Contact Us For Availability
16
CHANNEL, BROIL BURNER WPL Y0304019 Contact Us For Availability
16
LIMITER (1200 WATTS) WPL 0316686 Contact Us For Availability
16
SCREW, 10-32 X 1.250`` PAN HD WPL Y0316793 Contact Us For Availability
17
BKGD. SUPPORT-RH WPL 315876B Contact Us For Availability
17
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
17
SPACER, NYLON (.14``) WPL Y0062445 Contact Us For Availability
17
GLASS, OVEN DR (BLACK) WPL 315944B Contact Us For Availability
18
END CAP-GLASS BKGD RH WPL 315842B Contact Us For Availability
18
BULB, LIGHT WPL Y0042175 Contact Us For Availability
18
HANDLE, DOOR (BLK) WPL 316792B Contact Us For Availability
19
LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability
20
BUSHING, WIRE WPL 0316548 Contact Us For Availability
20
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
21
SCREW No.8ABX1/4 PH HD WPL Y0041807 Contact Us For Availability
21
TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability
22
SHIELD, BKGD TRIM HEAT WPL 315874B Contact Us For Availability
22
KIT, DOOR HINGE(RH-SS) WPL Y0317068 Contact Us For Availability
23
GLASS,BACKGUARD WPL 315833B Contact Us For Availability
23
HEX NUT No.10-32 NICKEL WPL 0306381 Contact Us For Availability
23
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
24
KNOB, DUAL INF AMANA WPL 315848B Contact Us For Availability
24
BLADE, FAN WPL Y0307036 Contact Us For Availability
24
SHIELD, HEAT WPL Y0315146 Contact Us For Availability
25
KNOB, INFINITE AMANA WPL 315846B Contact Us For Availability
25
ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability
25
TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability
26
MTG. PNL, BKGD CONTROL WPL 315840B Contact Us For Availability
26
ASSY, CONV. FAN & BLADE WPL Y0305246 Contact Us For Availability
26
KIT, DOOR HINGE(LH-HS) WPL Y0317067 Contact Us For Availability
28
ERC, 4800-CONTROL WPL Y0316739 Contact Us For Availability
28
WASHER (ZN) WPL 0307038 Contact Us For Availability
29
SCREW, No.8-32 X 3/16`` WPL Y0316546 Contact Us For Availability
29
LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability
30
COVER, FAN (ENAMELED) WPL 309774CG Contact Us For Availability
30
SWITCH, OVEN DOOR WPL Y0305797 Contact Us For Availability
31
BKGD. SUPPORT-LH WPL 315877B Contact Us For Availability
31
NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability
31
SCREW, No.8-18 X .500 AB (BLK) WPL Y0305004 Contact Us For Availability
32
BRKT, MAINTOP (PAINTED) WPL Y0314891 Contact Us For Availability
NI
SCREW No.8 - 18 X .250 WPL Y0061164 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PAN HD PH WPL Y0073657 Contact Us For Availability
NI
COLLAR, STARTER SOCKET WPL Y0305391 Contact Us For Availability
NI
HARNESS, WIRE BKGD (CONV) WPL Y0315870 Contact Us For Availability
NI
HARNESS, WIRE BKGD (ERC-RELAY WPL Y0315920 Contact Us For Availability
NI
RIVET, POP WPL Y0076357 Contact Us For Availability
NI
CLIP, TINNERMAN WPL 31730101 Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PH TAPTITE) WPL Y0091599 Contact Us For Availability
NI
HARNESS, WIRING WPL Y0314570 Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PAN PH HD) WPL Y0316004 Contact Us For Availability
NI
SCREW, No.8-18 X 7/8 PPH WPL Y0076035 Contact Us For Availability
NI
CLAMP, TUBE (1/2``) WPL Y0307456 Contact Us For Availability
NI
LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability
NI
INSULATION,OVEN DOOR WPL Y0309772 Contact Us For Availability
× ![]()
