Model Maytag ART318FFDB03 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

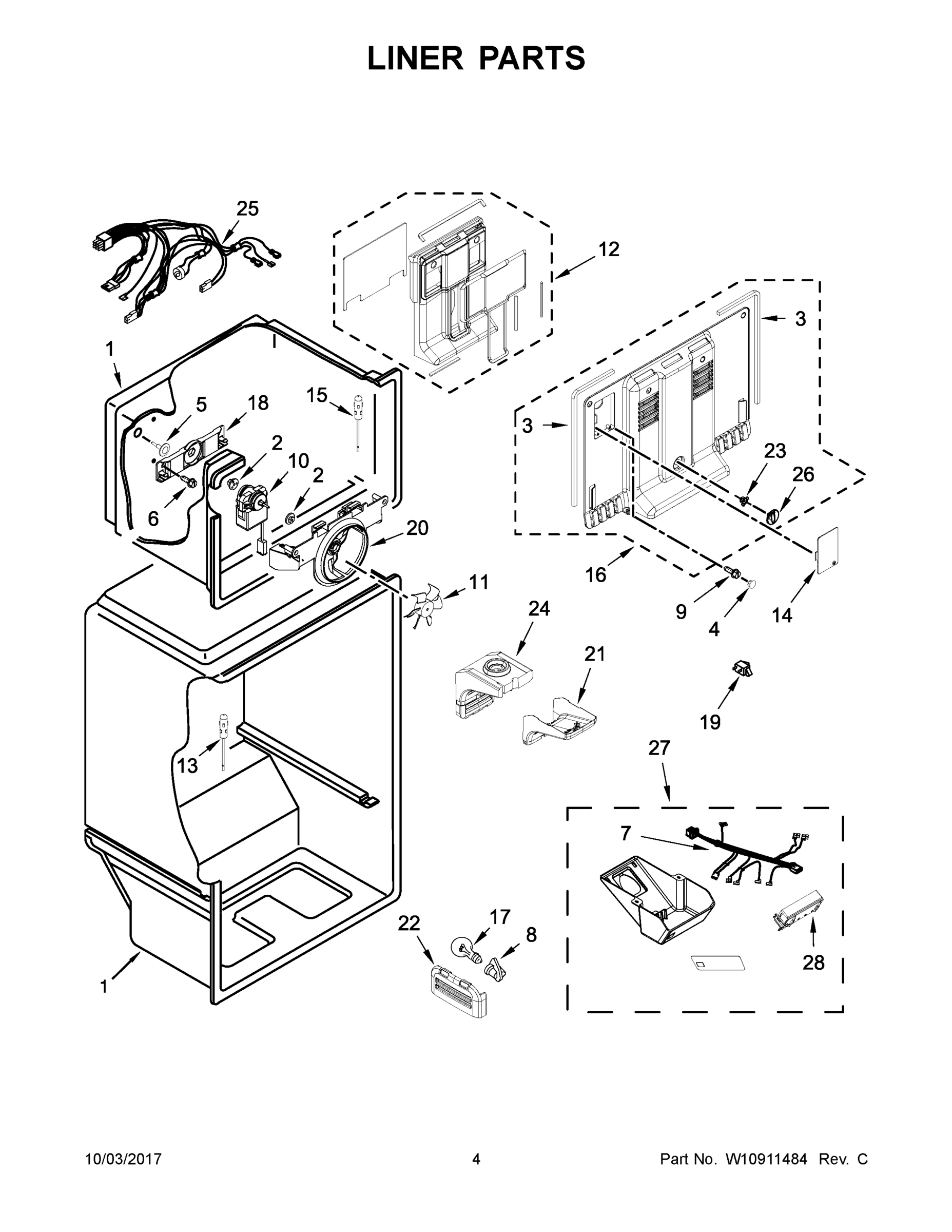

03 - LINER PARTS
04 - SHELF PARTS

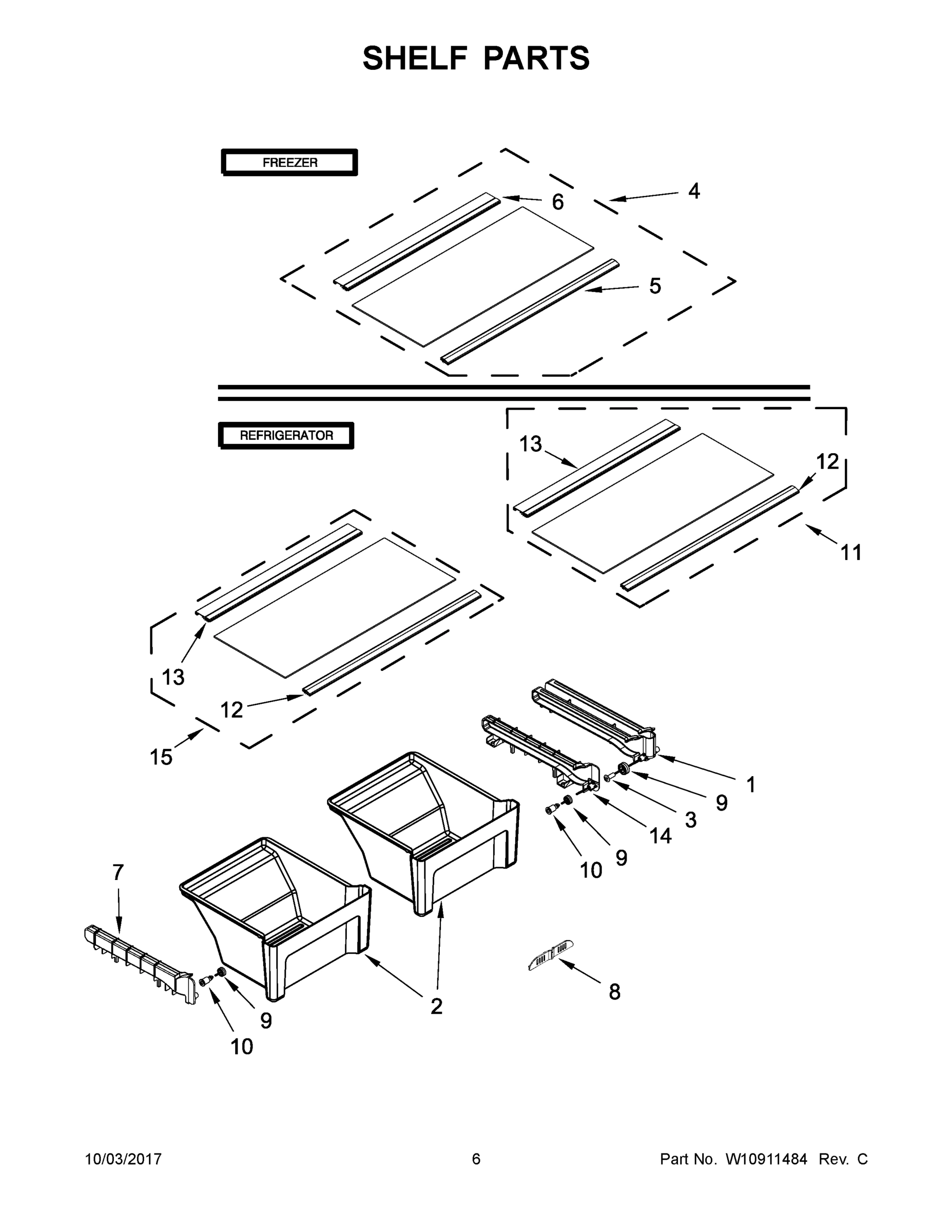

05 - DOOR PARTS

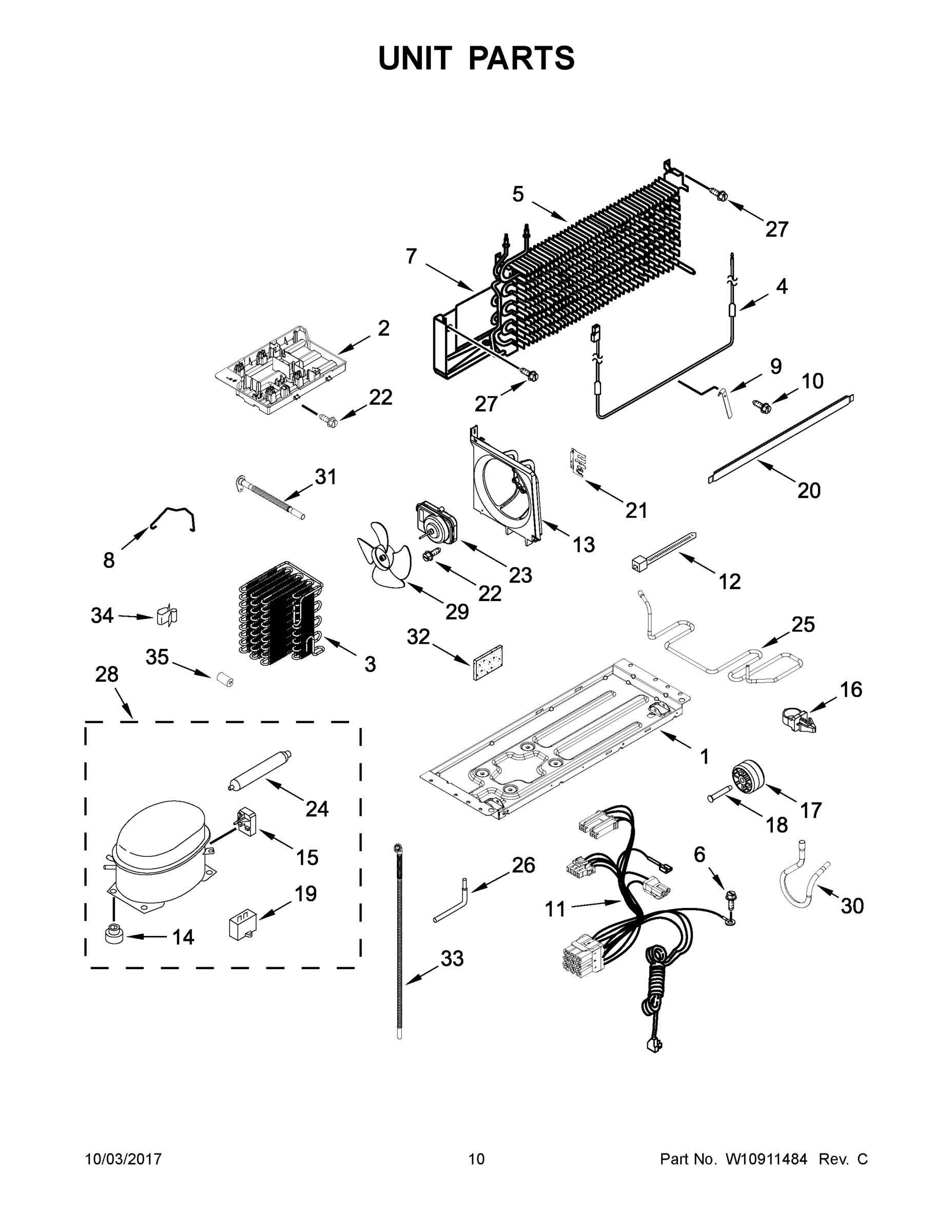

06 - UNIT PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag ART318FFDB03 REFRIGERATOR, TOP MOUNT
1
TECH SHEET MAY W10872104 Contact Us For Availability
1
TRACK, RAIL CENTER MAY W10694127 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES DOOR GASKET & DOO MAY W10680726 Contact Us For Availability
1
SUPPORT PLATE, COMPRESSOR MAY W10638694 Contact Us For Availability
1A
USE & CARE GUIDE MAY W10885250 Contact Us For Availability
1A
REFRIGERATOR DOOR (INCLUDES DOOR GASKET & DOO MAY W10680725 Contact Us For Availability
1B
MAY W11095235 MAY W11095235 Contact Us For Availability
1B
REFRIGERATOR DOOR (INCLUDES DOOR GASKET & DOO MAY W10798950 Contact Us For Availability
2
ASSEMBLY, TOP HINGE MAY 2261963 Contact Us For Availability
2
GROMMET MAY 2197380 Contact Us For Availability
2
ASSEMBLY, CRISPER PAN MAY W10668872 Contact Us For Availability
2
HANDLE, CUP (WHITE) MAY W10352523 Contact Us For Availability
2
TRAY, EVAPORATOR MAY W10633582 Contact Us For Availability
2A
HANDLE, CUP (BLACK) MAY W10174743 Contact Us For Availability
2B
HANDLE, CUP (GREY) MAY W10631993 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10842654 Contact Us For Availability
3
GASKET, EVAPORATOR COVER MAY W10709194 Contact Us For Availability
3
SCREW (STAINLESS) MAY 3400065 Contact Us For Availability
3
TRIM, DOOR MAY W10719702 Contact Us For Availability
3
CONDENSER MAY W10633575 Contact Us For Availability
4
COVER, SCREW MAY W10487421 Contact Us For Availability
4
ASSEMBLY, SHELF MAY W10809783 Contact Us For Availability
4
TRIM, DOOR MAY W10678772 Contact Us For Availability
4
HEATER, DEFROST MAY W10316428 Contact Us For Availability
5
HOLE PLUG (WHITE) MAY 941839 Contact Us For Availability
5
TRIM, SHELF FRONT MAY W10809773 Contact Us For Availability
5
DOOR GASKET, MAGNETIC (WHITE) MAY W10638676 Contact Us For Availability
5
ASSEMBLY, EVAPORATOR MAY W10570565 Contact Us For Availability
5A
DOOR GASKET, MAGNETIC (BLACK) MAY W10678768 Contact Us For Availability
6
SCREW MAY 488208 Contact Us For Availability
6
TRIM, SHELF REAR MAY W10628690 Contact Us For Availability
6
TRIM, DOOR MAY W10719703 Contact Us For Availability
6
SCREW MAY 488500 Contact Us For Availability
7
SCREW MAY 489497 Contact Us For Availability
7
WIRE ASSEMBLY, CONTROL BOX MAY W10855785 Contact Us For Availability
7
RAIL, TRACK (LEFT HAND) MAY W10694125 Contact Us For Availability
7
BADGE (WHITE) MAY W10849465 Contact Us For Availability
7
SHIELD, HEAT MAY W10314195 Contact Us For Availability
7A
BADGE (BLACK) MAY W10846751 Contact Us For Availability
7B
BADGE (STAINLESS) MAY W10846752 Contact Us For Availability
8
HINGE, CENTER MAY 2254618 Contact Us For Availability
8
SOCKET, LIGHT MAY 2162085 Contact Us For Availability
8
CONTROL, HUMIDITY MAY W10356844 Contact Us For Availability
8
TRIM, DOOR MAY W10719700 Contact Us For Availability
8
STRAP, BALE MAY W10216075 Contact Us For Availability
9
SHIM, HINGE CENTER MAY 2183852 Contact Us For Availability
9
SCREW MAY 2262178 Contact Us For Availability
9
ROLLER, PAN MAY W10628713 Contact Us For Availability
9
FREEZER DOOR (INCLUDES DOOR GASKET & DOOR HAN MAY W10680729 Contact Us For Availability
9
HEAT PROBE MAY 2258429 Contact Us For Availability
9A
FREEZER DOOR (INCLUDES DOOR GASKET & DOOR HAN MAY W10680728 Contact Us For Availability
9B
FREEZER DOOR (INCLUDES DOOR GASKET & DOOR HAN MAY W10798951 Contact Us For Availability
10
LOWER HINGE AND ROLLER ASSEMBLY MAY W10843861 Contact Us For Availability
10
MOTOR, EVAPORATOR FAN MAY 2315539 Contact Us For Availability
10
AXLE, ROLLER MAY W10628712 Contact Us For Availability
10
DOOR, FLIP UP MAY 2188234 Contact Us For Availability
10
SCREW MAY 489478 Contact Us For Availability
11
HOLE PLUG (WHITE) MAY W10520304 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
ASSEMBLY, SHELF MAY W10809785 Contact Us For Availability
11
THIMBLE MAY 2262054 Contact Us For Availability
11
HARNESS, UNIT MAY W10637655 Contact Us For Availability
12
DOME CAP, WASHER MAY W10674773 Contact Us For Availability
12
ASSEMBLY, EVAPORATOR PLENUM MAY W10676682 Contact Us For Availability
12
TRIM, SHELF FRONT MAY W10809774 Contact Us For Availability
12
DOOR GASKET, MAGNETIC (WHITE) MAY W10638675 Contact Us For Availability
12
TIE, WIRE MAY 2263990 Contact Us For Availability
12A
DOOR GASKET, MAGNETIC (BLACK) MAY W10667843 Contact Us For Availability
13
WASHER, PLASTIC MAY 489341 Contact Us For Availability
13
THERMISTOR, REFRIGERATOR MAY W10556397 Contact Us For Availability
13
TRIM, SHELF REAR MAY W10628686 Contact Us For Availability
13
TRIM, SHELF DOOR MAY W10719701 Contact Us For Availability
13
BRACKET, FAN MAY W10633579 Contact Us For Availability
14
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
14
COVER, HOLE MAY W10677275 Contact Us For Availability
14
RAIL, TRACK (RIGHT HAND) MAY W10694126 Contact Us For Availability
14
BRACKET, DOOR STOP MAY 2189202 Contact Us For Availability
14
GROMMET MAY 2183042 Contact Us For Availability
15
THERMISTOR MAY W10384183 Contact Us For Availability
15
ASSEMBLY, SHELF MAY W10809784 Contact Us For Availability
15
SCREW MAY 488921 Contact Us For Availability
15
DEVICE, START MAY W10798748 Contact Us For Availability
16
SHIM, TOP HINGE (WHITE) MAY 2221885 Contact Us For Availability
16
COVER, EVAPORATOR MAY W10668482 Contact Us For Availability
16
HOLE PLUG (WHITE) MAY 2212648 Contact Us For Availability
16
CLIP, HARNESS MAY 2219077 Contact Us For Availability
16A
HOLE PLUG (BLACK) MAY 2212651 Contact Us For Availability
16B
HOLE PLUG (GREY) MAY 2254517 Contact Us For Availability
17
ROLLER MAY W10475495 Contact Us For Availability
17
COVER, UNIT MAY W10633591 Contact Us For Availability
17
BULB, LIGHT MAY 2311792 Contact Us For Availability
17
ENDCAP, TRIM MAY 2156003 Contact Us For Availability
18
AXLE, ROLLER MAY 981126 Contact Us For Availability
18
BRACKET, EVAPORATOR FAN REAR MAY 2254454 Contact Us For Availability
18
DOOR, COMPARTMENT MAY 2218113 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
19
CLIP, ROLLER MAY 2174706 Contact Us For Availability
19
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
19
BRACKET, DOOR STOP MAY W10638692 Contact Us For Availability
19
CAPACITOR MAY W10590083 Contact Us For Availability
20
DOME CAP (WHITE) MAY W10674771 Contact Us For Availability
20
BRACKET, FAN MOTOR MAY W10321162 Contact Us For Availability
20
COVER, HEATER MAY W10300902 Contact Us For Availability
20A
DOME CAP (BLACK) MAY W10679135 Contact Us For Availability
21
LEVELER MAY W10671258 Contact Us For Availability
21
COVER, AIR DIFFUSER MAY W10705209 Contact Us For Availability
21
BRACKET, EVAPORATOR MAY W10314197 Contact Us For Availability
22
HINGE PIN MAY W10638688 Contact Us For Availability
22
CUP, AIR DIFFUSER MAY W10638176 Contact Us For Availability
22
SCREW MAY W10622701 Contact Us For Availability
23
BAFFLE, AIR MANUAL MAY W10570951 Contact Us For Availability
23
MOTOR, CONDENSER FAN MAY W10909387 Contact Us For Availability
24
ASSEMBLY, AIR DIFFUSER MAY W10633587 Contact Us For Availability
24
DRIER MAY W10669573 Contact Us For Availability
25
ASSEMBLY, EVAPORATOR FAN WIRE MAY W10637660 Contact Us For Availability
25
TUBE, DISCHARGE MAY W10810952 Contact Us For Availability
26
KNOB, AIR CONTROL MAY W10570952 Contact Us For Availability
26
TUBE, PROCESS MAY W10908782 Contact Us For Availability
27
SCREW MAY 489442 Contact Us For Availability
27
ASSEMBLY, CONTROL BOX MAY W10883379 Contact Us For Availability
28
CONTROL, ELECTRONIC MAY W10866518 Contact Us For Availability
28
COMPRESSOR MAY W10810988 Contact Us For Availability
29
BLADE, FAN MAY W10817071 Contact Us For Availability
30
TUBE, SUCTION MAY W10810959 Contact Us For Availability
31
EXTENSION, DRAIN TUBE MAY W10646247 Contact Us For Availability
32
INSULATION, SOUND MAY 2215468 Contact Us For Availability
33
TUBE, DRAIN MAY W10633573 Contact Us For Availability
34
CLIP, WIRE MAY 2326941 Contact Us For Availability
35
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
CEMENT, ALUMILASTIC (1 1/4 OZ.) MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3" X 24" X 48") MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") MAY 876370 Contact Us For Availability
NI
INSULATION, FIBERGLASS (63 1/2" X 35 1/2" X 2 MAY 978941 Contact Us For Availability
NI
ICE MAKER ASSEMBLY (ECKMF95) MAY W10715708 Contact Us For Availability
× ![]()
