Model Maytag ART316TFDW00 REFRIGERATOR – Common Parts & Diagrams

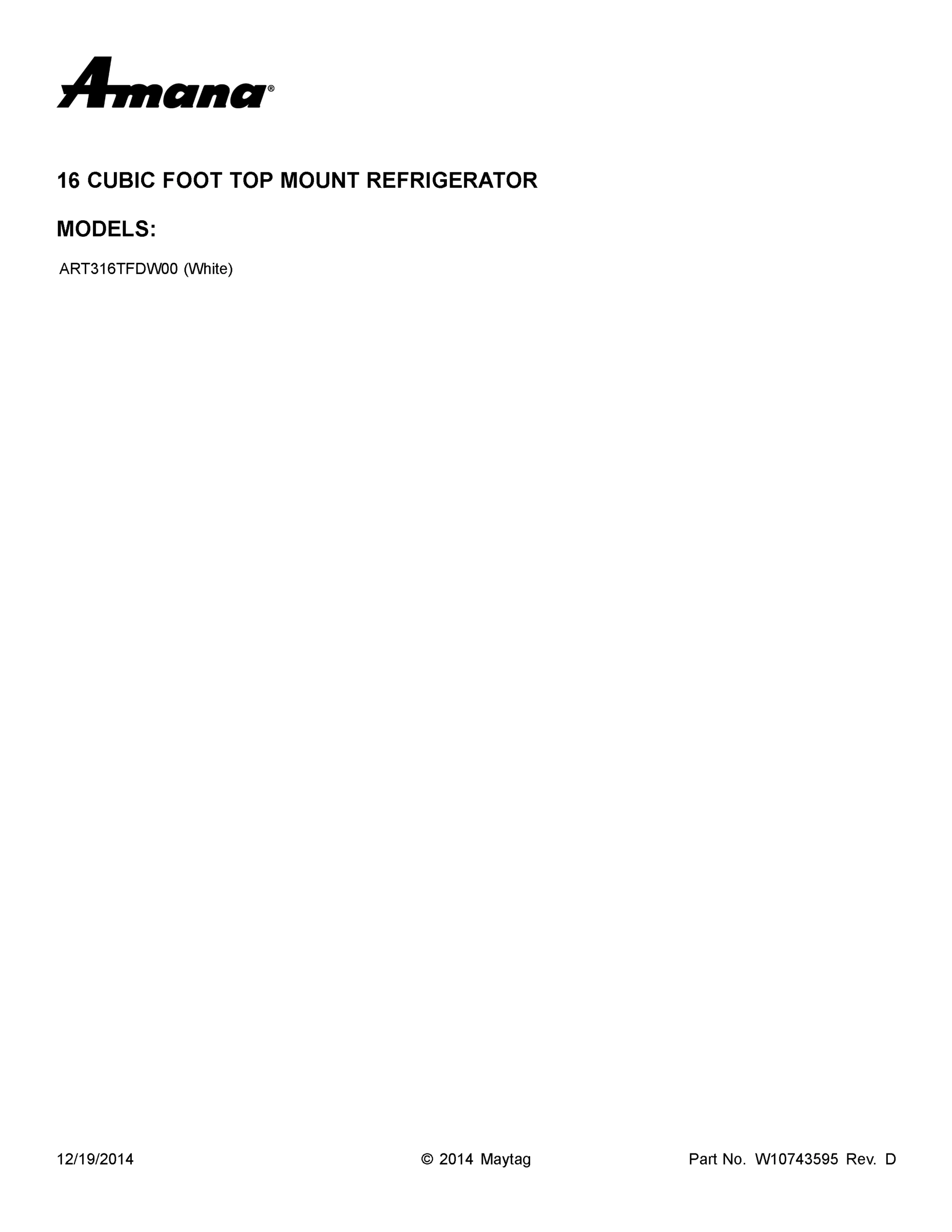

01 - COVER SHEET

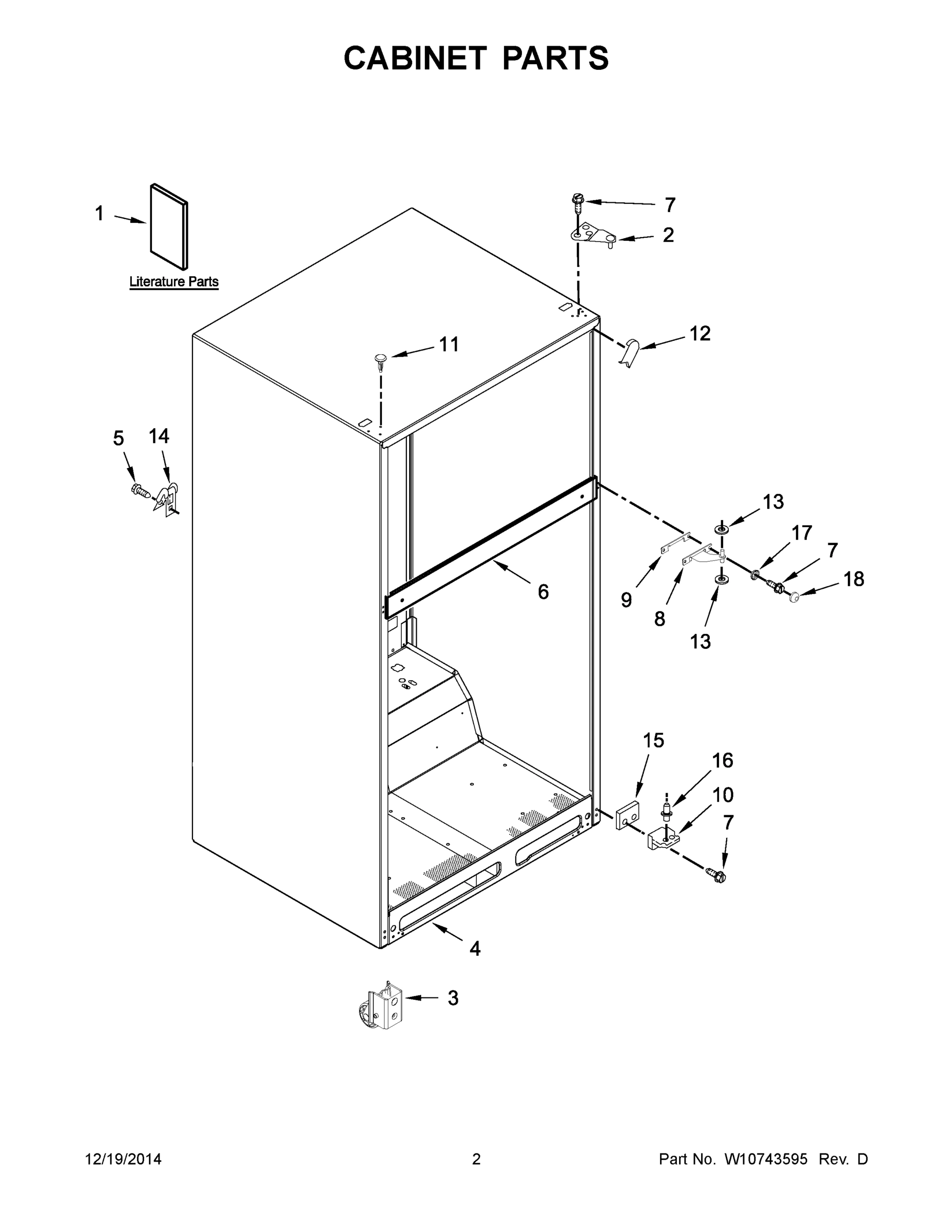

02 - CABINET PARTS

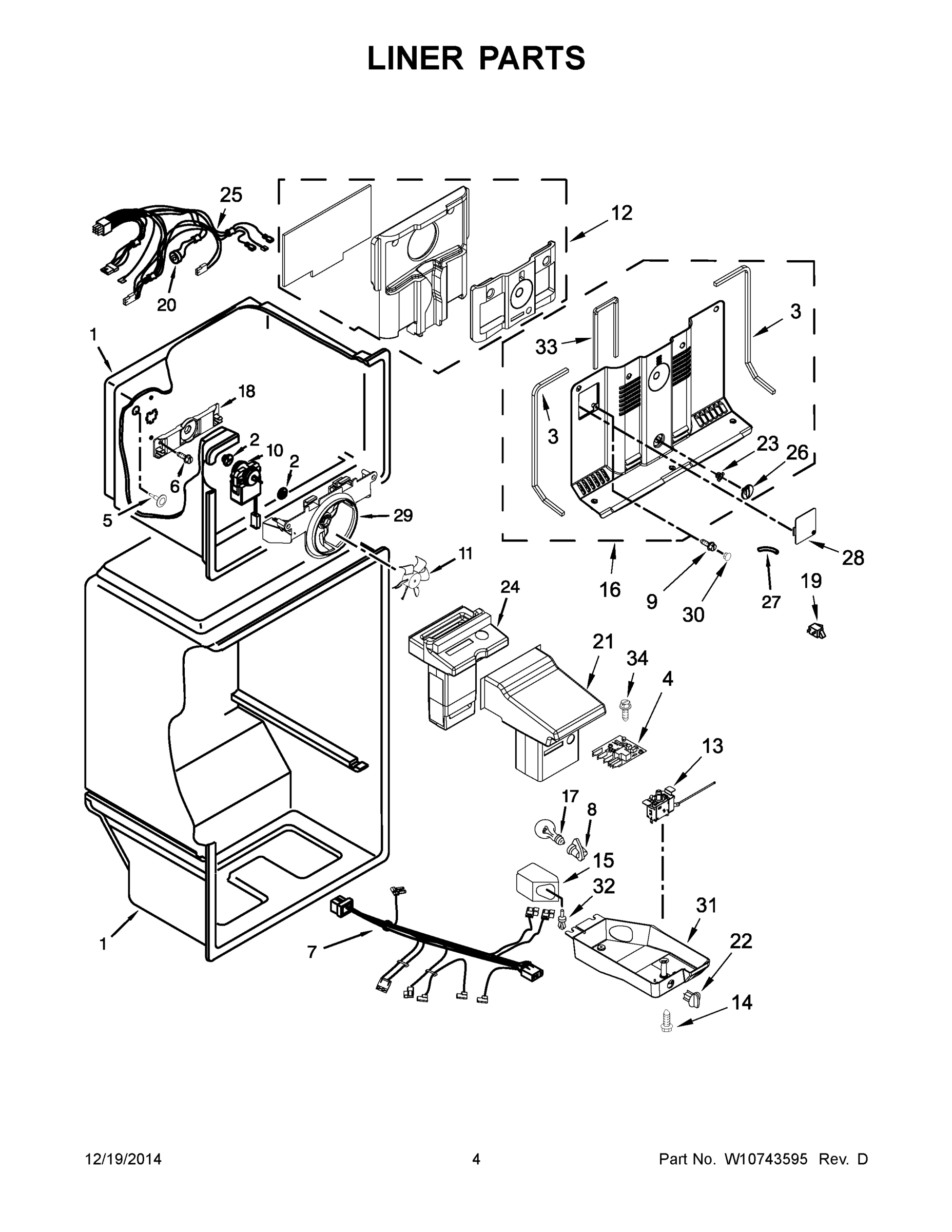

03 - LINER PARTS

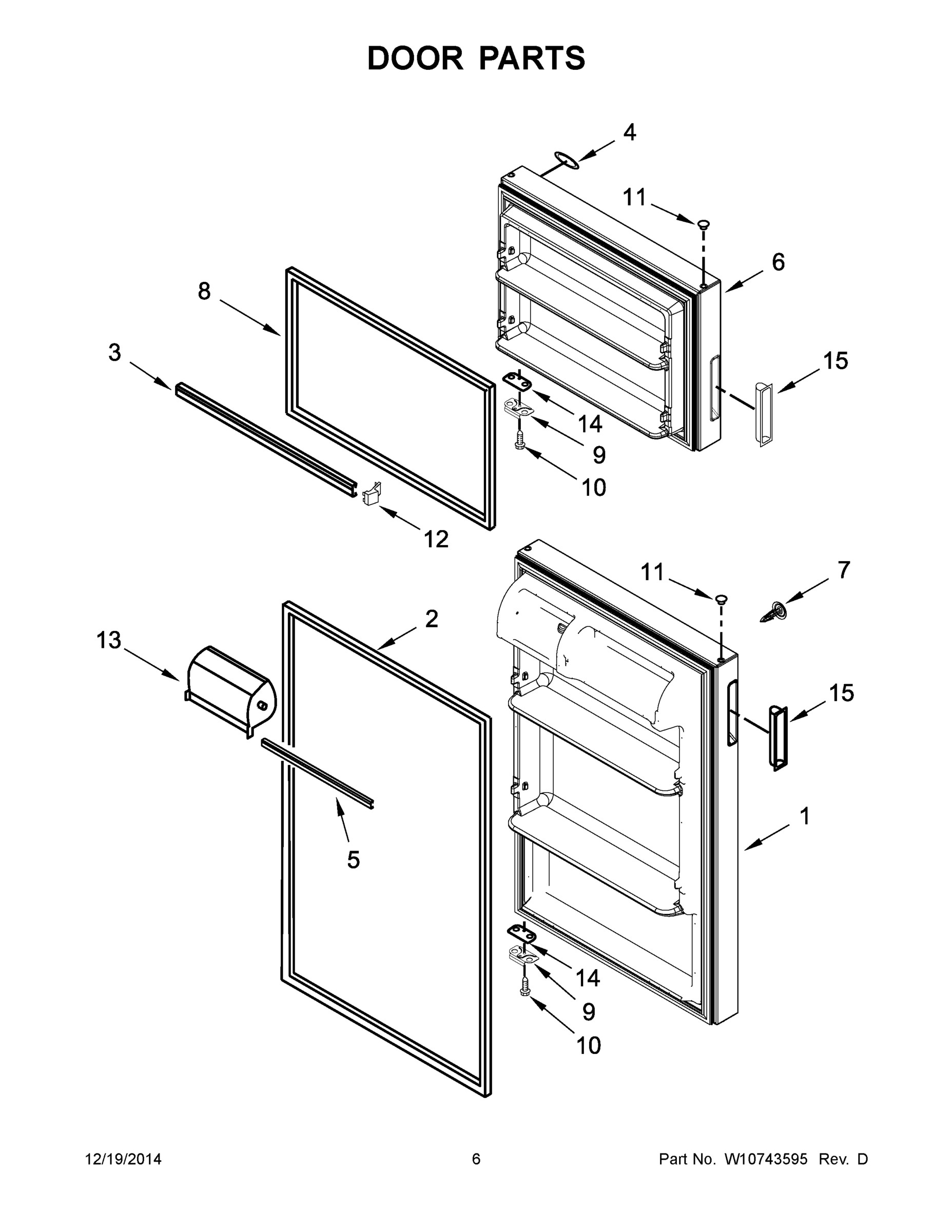

04 - DOOR PARTS

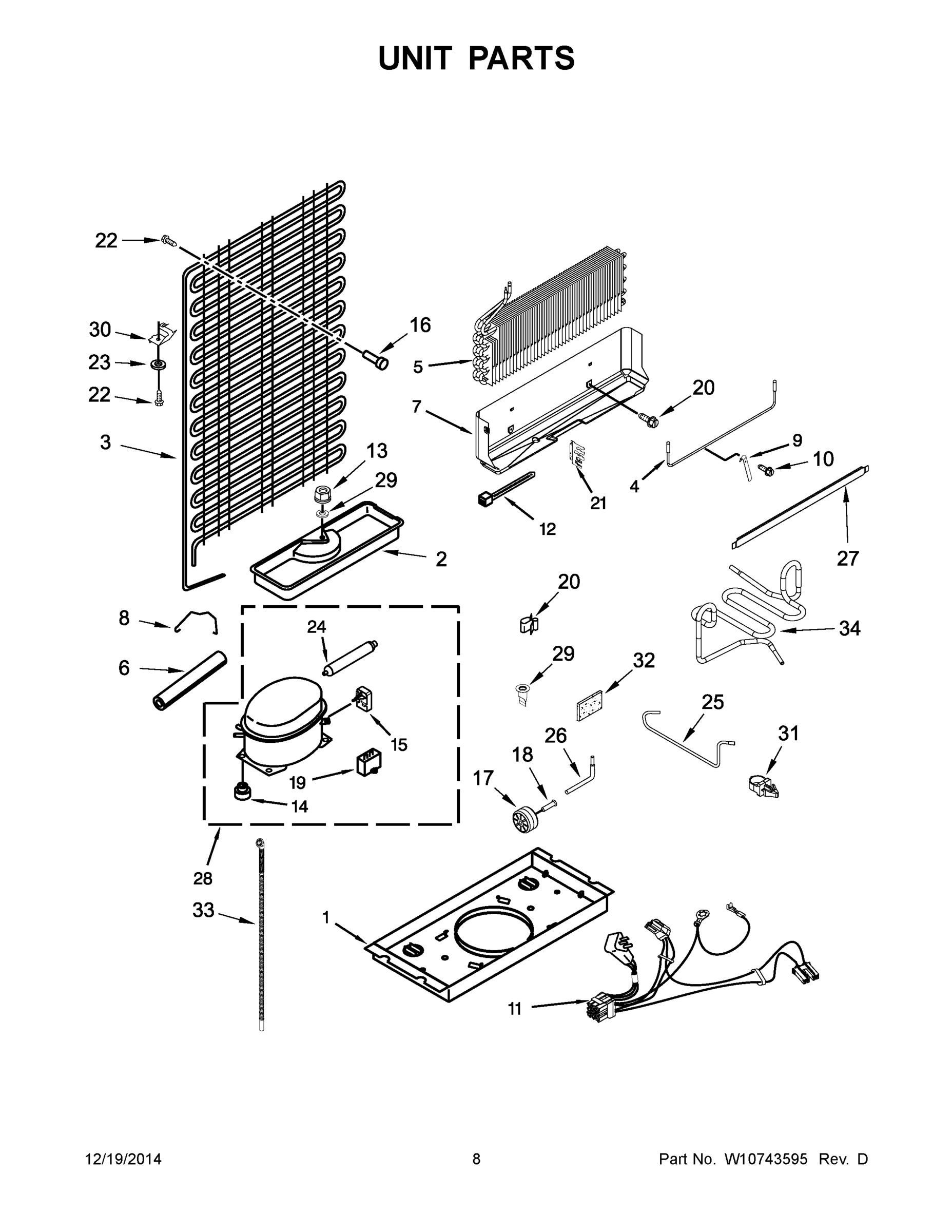

05 - UNIT PARTS

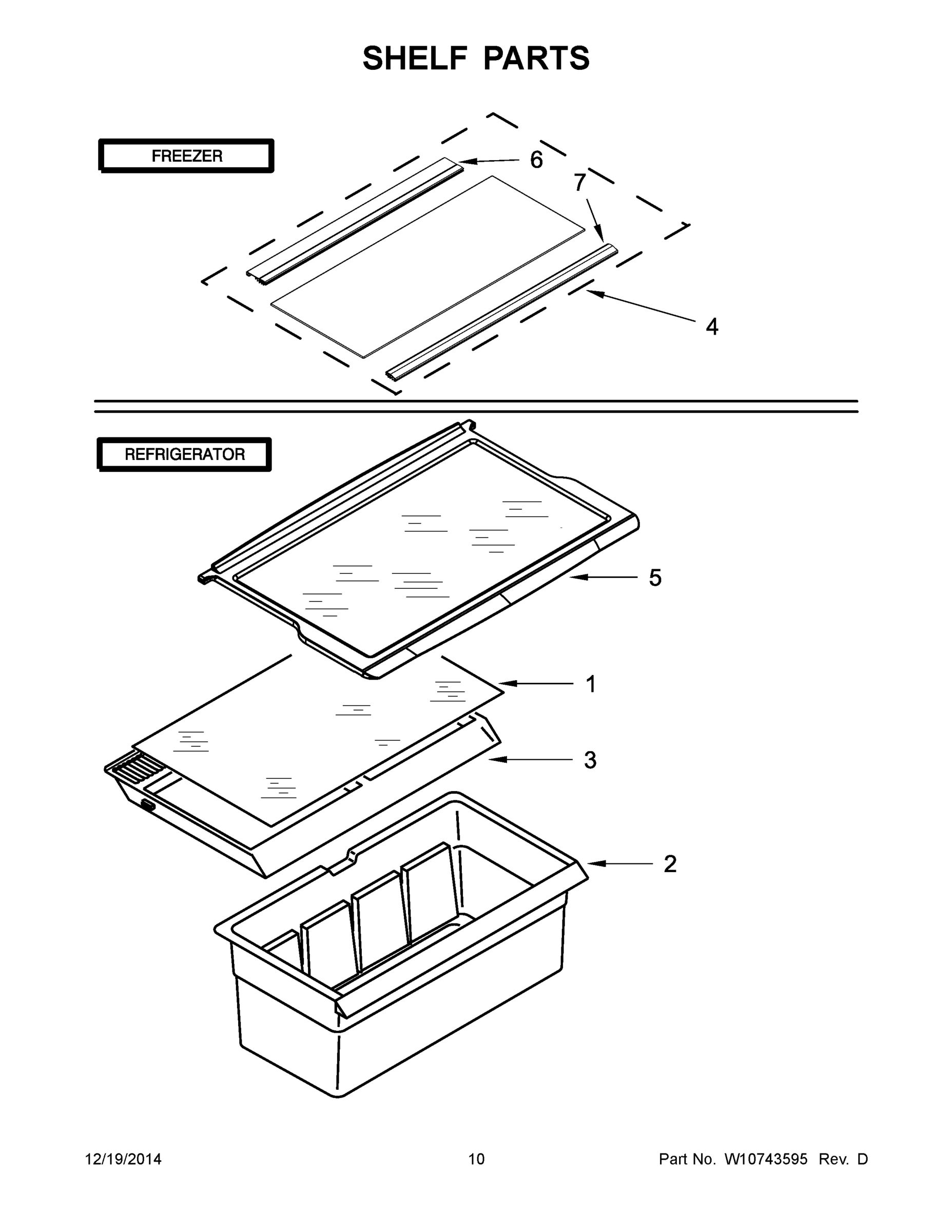

06 - SHELF PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag ART316TFDW00 REFRIGERATOR
1
MAY W10723054 MAY W10723054 Contact Us For Availability
1
MAY W10573330 MAY W10573330 Contact Us For Availability
1
PLATE, COMPRESSOR SUPPORT MAY W10222451 Contact Us For Availability
1
MAY 2210047 MAY 2210047 Contact Us For Availability
1A
MAY W10715809 MAY W10715809 Contact Us For Availability
1B
MAY W10652633 MAY W10652633 Contact Us For Availability
2
ASSEMBLY, TOP HINGE MAY 2261963 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
DOOR GASKET, MAGNETIC (WHITE) MAY 2264729 Contact Us For Availability
2
TRAY, EVAPORATOR MAY W10174378 Contact Us For Availability
2
CRISPER PAN MAY 2192009 Contact Us For Availability
3
MAY W10142530 MAY W10142530 Contact Us For Availability
3
MAY W10579698 MAY W10579698 Contact Us For Availability
3
MAY 2266727 MAY 2266727 Contact Us For Availability
3
MAY W10219348 MAY W10219348 Contact Us For Availability
3
MAY 2192250 MAY 2192250 Contact Us For Availability
4
CONTROL, ADAPTIVE DEFROST MAY 2303825 Contact Us For Availability
4
MAY W10200425 MAY W10200425 Contact Us For Availability
4
MAY W10570573 MAY W10570573 Contact Us For Availability
4
MAY W10604629 MAY W10604629 Contact Us For Availability
5
MAY 489442 MAY 489442 Contact Us For Availability
5
HOLE PLUG (WHITE) MAY 941839 Contact Us For Availability
5
TRIM, DOOR MAY W10234242 Contact Us For Availability
5
MAY W10570565 MAY W10570565 Contact Us For Availability
5
ASSEMBLY, SHELF MAY 2263643 Contact Us For Availability
6
SCREW MAY 488208 Contact Us For Availability
6
MAY W10573333 MAY W10573333 Contact Us For Availability
6
MAY 2161302 MAY 2161302 Contact Us For Availability
6
MAY W10272382 MAY W10272382 Contact Us For Availability
7
MAY 489497 MAY 489497 Contact Us For Availability
7
MAY W10520304 MAY W10520304 Contact Us For Availability
7
MAY W10578836 MAY W10578836 Contact Us For Availability
7
MAY W10570572 MAY W10570572 Contact Us For Availability
7
MAY W10604633 MAY W10604633 Contact Us For Availability
8
ASSEMBLY, HINGE (CENTER) MAY 2166086 Contact Us For Availability
8
SOCKET, LIGHT MAY 2162085 Contact Us For Availability
8
MAY 2264726 MAY 2264726 Contact Us For Availability
8
MAY W10174384 MAY W10174384 Contact Us For Availability
9
SHIM, HINGE CENTER (WHITE) MAY 2166043 Contact Us For Availability
9
MAY W10720456 MAY W10720456 Contact Us For Availability
9
MAY 2189202 MAY 2189202 Contact Us For Availability
9
MAY 2258429 MAY 2258429 Contact Us For Availability
10
MAY 2325482 MAY 2325482 Contact Us For Availability
10
MOTOR, EVAPORATOR FAN MAY 2315539 Contact Us For Availability
10
MAY 488921 MAY 488921 Contact Us For Availability
10
MAY 489478 MAY 489478 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
HOLE PLUG (WHITE) MAY 2212648 Contact Us For Availability
11
MAY W10578837 MAY W10578837 Contact Us For Availability
12
FILLER, WRAPPER (WHITE) MAY 2166003 Contact Us For Availability
12
MAY W10716213 MAY W10716213 Contact Us For Availability
12
ENDCAP, TRIM MAY 2156003 Contact Us For Availability
12
TIE, WIRE MAY 2263990 Contact Us For Availability
13
WASHER MAY 487802 Contact Us For Availability
13
MAY W10511937 MAY W10511937 Contact Us For Availability
13
MAY 2207942 MAY 2207942 Contact Us For Availability
13
NUT, HEX MAY 489153 Contact Us For Availability
14
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
14
MAY 489174 MAY 489174 Contact Us For Availability
14
SHIM, DOOR STOP (WHITE) MAY 2258681W Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
15
SHIM, HINGE (BOTTOM) MAY 2201567 Contact Us For Availability
15
SHIELD, LIGHT MAY 9791702 Contact Us For Availability
15
HANDLE, CUP (WHITE) MAY W10182940 Contact Us For Availability
15
DEVICE, START MAY W10448874 Contact Us For Availability
16
PIN, HINGE (BOTTOM) MAY 2325483 Contact Us For Availability
16
MAY W10573325 MAY W10573325 Contact Us For Availability
16
SPACER, CONDENSER MAY 2258452 Contact Us For Availability
17
MAY W10674773 MAY W10674773 Contact Us For Availability
17
MAY 2311792 MAY 2311792 Contact Us For Availability
17
MAY W10475495 MAY W10475495 Contact Us For Availability
18
MAY W10674771 MAY W10674771 Contact Us For Availability
18
BRACKET, EVAPORATOR FAN REAR MAY 2254454 Contact Us For Availability
18
AXLE, ROLLER MAY 2264756 Contact Us For Availability
19
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
19
MAY W10662129 MAY W10662129 Contact Us For Availability
20
MAY W10392132 MAY W10392132 Contact Us For Availability
20
CLIP, WIRE (COMPRESSOR) MAY 939054 Contact Us For Availability
21
MAY W10570941 MAY W10570941 Contact Us For Availability
21
MAY W10314197 MAY W10314197 Contact Us For Availability
22
KNOB, CONTROL MAY 2202885 Contact Us For Availability
22
MAY 8533892 MAY 8533892 Contact Us For Availability
23
MAY W10169456 MAY W10169456 Contact Us For Availability
23
MAY VS611 MAY VS611 Contact Us For Availability
24
MAY W10570939 MAY W10570939 Contact Us For Availability
24
MAY W10669573 MAY W10669573 Contact Us For Availability
25
MAY W10570517 MAY W10570517 Contact Us For Availability
25
MAY W10608276 MAY W10608276 Contact Us For Availability
26
MAY W10570952 MAY W10570952 Contact Us For Availability
26
MAY VS20001 MAY VS20001 Contact Us For Availability
27
TUBE, THERMOSTAT BARRIER MAY 1118680 Contact Us For Availability
27
MAY W10300902 MAY W10300902 Contact Us For Availability
28
MAY W10636223 MAY W10636223 Contact Us For Availability
28
MAY W10575980 MAY W10575980 Contact Us For Availability
29
MAY W10321162 MAY W10321162 Contact Us For Availability
29
MAY W10519112 MAY W10519112 Contact Us For Availability
30
MAY W10487421 MAY W10487421 Contact Us For Availability
30
CLIP, CONDENSER MAY 2172892 Contact Us For Availability
31
MAY W10648656 MAY W10648656 Contact Us For Availability
31
CLIP, HARNESS MAY 2219077 Contact Us For Availability
32
RIVET, PLASTIC MAY 939962 Contact Us For Availability
32
MAY 2215468 MAY 2215468 Contact Us For Availability
33
MAY W10579707 MAY W10579707 Contact Us For Availability
33
MAY W10286976 MAY W10286976 Contact Us For Availability
34
SCREW MAY 488693 Contact Us For Availability
34
MAY W10609247 MAY W10609247 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3" X 24" X 48") MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") MAY 876370 Contact Us For Availability
NI
INSULATION, FIBERGLASS (63 1/2" X 35 1/2" X 2 MAY 978941 Contact Us For Availability
NI
MAY W10715708 MAY W10715708 Contact Us For Availability
× ![]()
