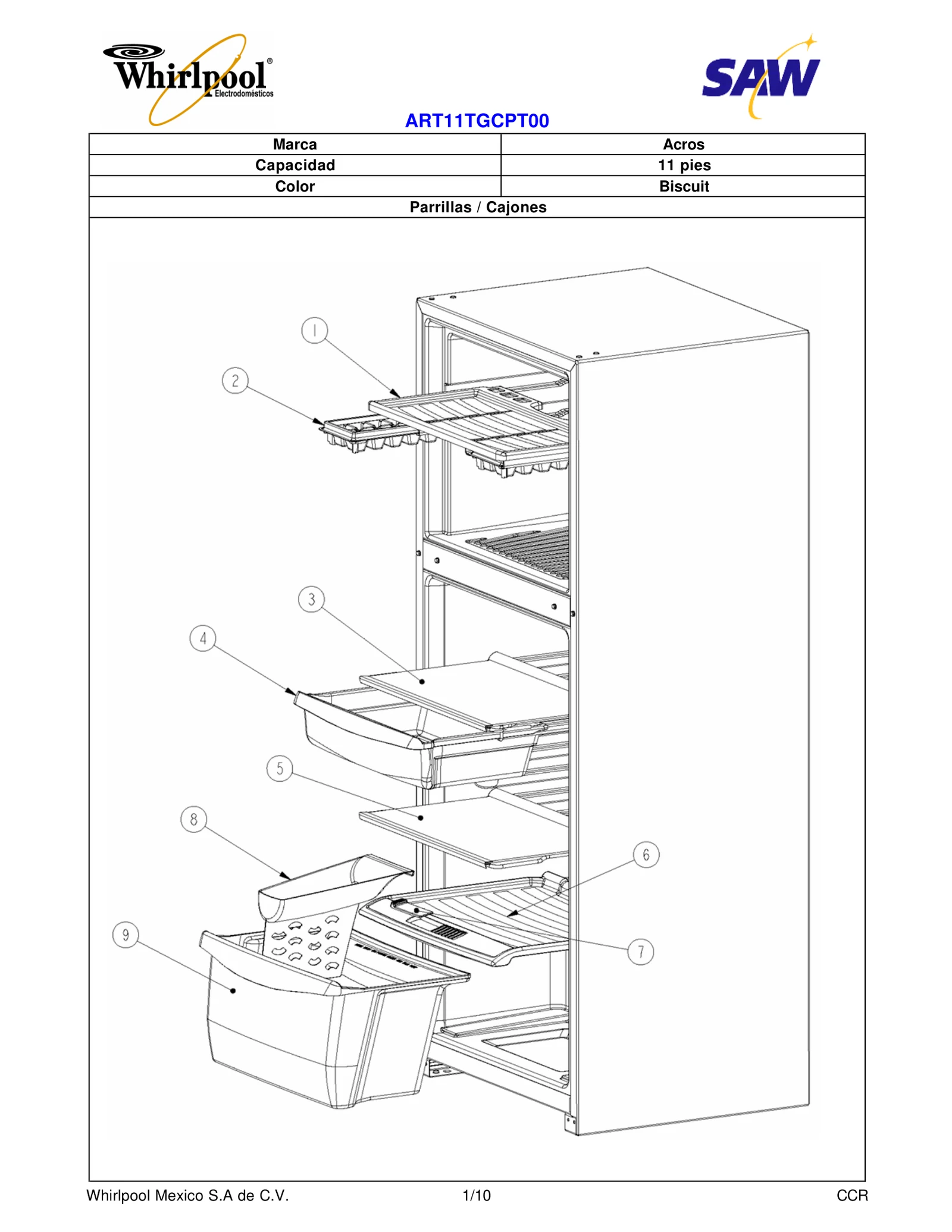

Model Whirlpool ART11TGCPT00 Refrigerator – Common Parts & Diagrams

1
16 Tubo de descarga
16 Tubo de descarga WPL 2217957 Contact Us For Availability
View on Model
1
42 Resistencia de deshielo
42 Resistencia de deshielo WPL 2211094 Contact Us For Availability
View on Model
1
2 Caja de controles
2 Caja de controles WPL 2211021 Contact Us For Availability
View on Model
1
3 Perilla termostato
3 Perilla termostato WPL 2252583 Contact Us For Availability
View on Model
1
4 Deodorizador
4 Deodorizador WPL 2211234 Contact Us For Availability
View on Model
1
5 Soporte deodorizador
5 Soporte deodorizador WPL 2210923 Contact Us For Availability
View on Model
1
6 Socket
6 Socket WPL 2210924 Contact Us For Availability
View on Model
1
10 Tornillo 8-18x0.500
10 Tornillo 8-18x0.500 WPL 2211074 Contact Us For Availability
View on Model
1
12 Tornillo 8-18x0.500
12 Tornillo 8-18x0.500 WPL 2252587 Contact Us For Availability
View on Model
1
15 Tornillo 8-18x0.500
15 Tornillo 8-18x0.500 WPL 2211092 Contact Us For Availability
View on Model
1
20 Termostato
20 Termostato WPL 2188372 Contact Us For Availability
View on Model
1
21 Tornillo 6-20x0.500 #8tr
21 Tornillo 6-20x0.500 #8tr WPL 2211030 Contact Us For Availability
View on Model
1
24 Cuerpo del difusor de aire posterior
24 Cuerpo del difusor de aire posterior WPL 2211026 Contact Us For Availability
View on Model
1
25 Torre de aire Acros
25 Torre de aire Acros WPL 2210844 Contact Us For Availability
View on Model
1
26 Tuerca de presión del damper
26 Tuerca de presión del damper WPL 2252582 Contact Us For Availability
View on Model
1
28 Tornillo 8-18x0.500
28 Tornillo 8-18x0.500 WPL 2211099 Contact Us For Availability
View on Model
1
31 Aspas para motor abanico 90mm
31 Aspas para motor abanico 90mm WPL 2209956 Contact Us For Availability
View on Model
1
34 Tornillo 8-18x0.600
34 Tornillo 8-18x0.600 WPL 2211020 Contact Us For Availability
View on Model
1
38 Perilla de control congelador
38 Perilla de control congelador WPL 2211238 Contact Us For Availability
View on Model
1
40 Ducto caja para drenado
40 Ducto caja para drenado WPL 2210879 Contact Us For Availability
View on Model
1
46 Cucharon de desagüe
46 Cucharon de desagüe WPL 999335 Contact Us For Availability
View on Model
1
ü Adaptador protector socket (Shroud light )
ü Adaptador protector socket (Shroud light ) WPL 2211236 Contact Us For Availability
View on Model
1
2 Puerta ensamble congelador
2 Puerta ensamble congelador WPL 2258474T Contact Us For Availability
View on Model
1
3 Tapón para agujero de bisagra (Puertas)
3 Tapón para agujero de bisagra (Puertas) WPL 2258554T Contact Us For Availability
View on Model
1
5 Anaquel congelador
5 Anaquel congelador WPL 2211147 Contact Us For Availability
View on Model
1
7 Puerta multiusos superior (mantequillera)
7 Puerta multiusos superior (mantequillera) WPL 2211148 Contact Us For Availability
View on Model
1
8 Cubierta multiusos superior (mantequillera)
8 Cubierta multiusos superior (mantequillera) WPL 2211132 Contact Us For Availability
View on Model
1
9 Divisor de barandilla (separador de botella
9 Divisor de barandilla (separador de botella WPL 2252591 Contact Us For Availability
View on Model
1
11 Charola para huevos
11 Charola para huevos WPL 2252590 Contact Us For Availability
View on Model
1
12 Anaquel refrigerador media
12 Anaquel refrigerador media WPL 2252595 Contact Us For Availability
View on Model
1
13 Anaquel refrigerador inferior
13 Anaquel refrigerador inferior WPL 2256900 Contact Us For Availability
View on Model
1
14 Freno puerta
14 Freno puerta WPL 2252588 Contact Us For Availability
View on Model
1
Puertas Whirlpool Mexico S.A de C.V. 6/10 CCR
Puertas Whirlpool Mexico S.A de C.V. 6/10 CCR WPL 2252577 Contact Us For Availability
View on Model
1
3 Bisagra superior
3 Bisagra superior WPL 1100511 Contact Us For Availability
View on Model
1
6 Separador bisagra central
6 Separador bisagra central WPL 2215295 Contact Us For Availability
View on Model
1
14 Tornillo 10-32x0.313 HW
14 Tornillo 10-32x0.313 HW WPL 2211161 Contact Us For Availability
View on Model
1
4 Arandela plana 1/4 ZN
4 Arandela plana 1/4 ZN WPL 2252732 Contact Us For Availability
View on Model
1
8 Tornillo 8-18x0.600
8 Tornillo 8-18x0.600 WPL 2252705 Contact Us For Availability
View on Model
1
17 Amortigüador
17 Amortigüador WPL 2256748 Contact Us For Availability
View on Model
1
20 Espaciador para charola de evaporación **
20 Espaciador para charola de evaporación ** WPL 2263930 Contact Us For Availability
View on Model
1
27 Soporte compresor
27 Soporte compresor WPL 2256749 Contact Us For Availability
View on Model
1
34 Tornillo tapa trasera
34 Tornillo tapa trasera WPL 2256814 Contact Us For Availability
View on Model
2
37 Damper del congelador
37 Damper del congelador WPL 2210813 Contact Us For Availability
View on Model
2
4 Empaque magnético congelador
4 Empaque magnético congelador WPL 2211250T Contact Us For Availability
View on Model
2
6 Empaque magnético refrigerador
6 Empaque magnético refrigerador WPL 2256892 Contact Us For Availability
View on Model
2
10 Anaquel de puerta multiposiciones
10 Anaquel de puerta multiposiciones WPL 2252594 Contact Us For Availability
View on Model
2
15 Tornillo 8-15x0.500 PN CR A
15 Tornillo 8-15x0.500 PN CR A WPL 2211124 Contact Us For Availability
View on Model
2
11 Separador bisagra inferior
11 Separador bisagra inferior WPL 489498 Contact Us For Availability
View on Model
2
Gabinete Whirlpool Mexico S.A de C.V. 8/10 CC
Gabinete Whirlpool Mexico S.A de C.V. 8/10 CC WPL 2215288 Contact Us For Availability
View on Model
2
6 Arnés principal
6 Arnés principal WPL 8533892 Contact Us For Availability
View on Model
2
31 Rodillo trasero
31 Rodillo trasero WPL 999203 Contact Us For Availability
View on Model
4
ü Placa marca
ü Placa marca WPL 2210973 Contact Us For Availability
View on Model
4
26 Ensamble tubo de descarga
26 Ensamble tubo de descarga WPL N/S Contact Us For Availability
View on Model
