Model Maytag ARS2367AC REFRIGERATOR – Common Parts & Diagrams

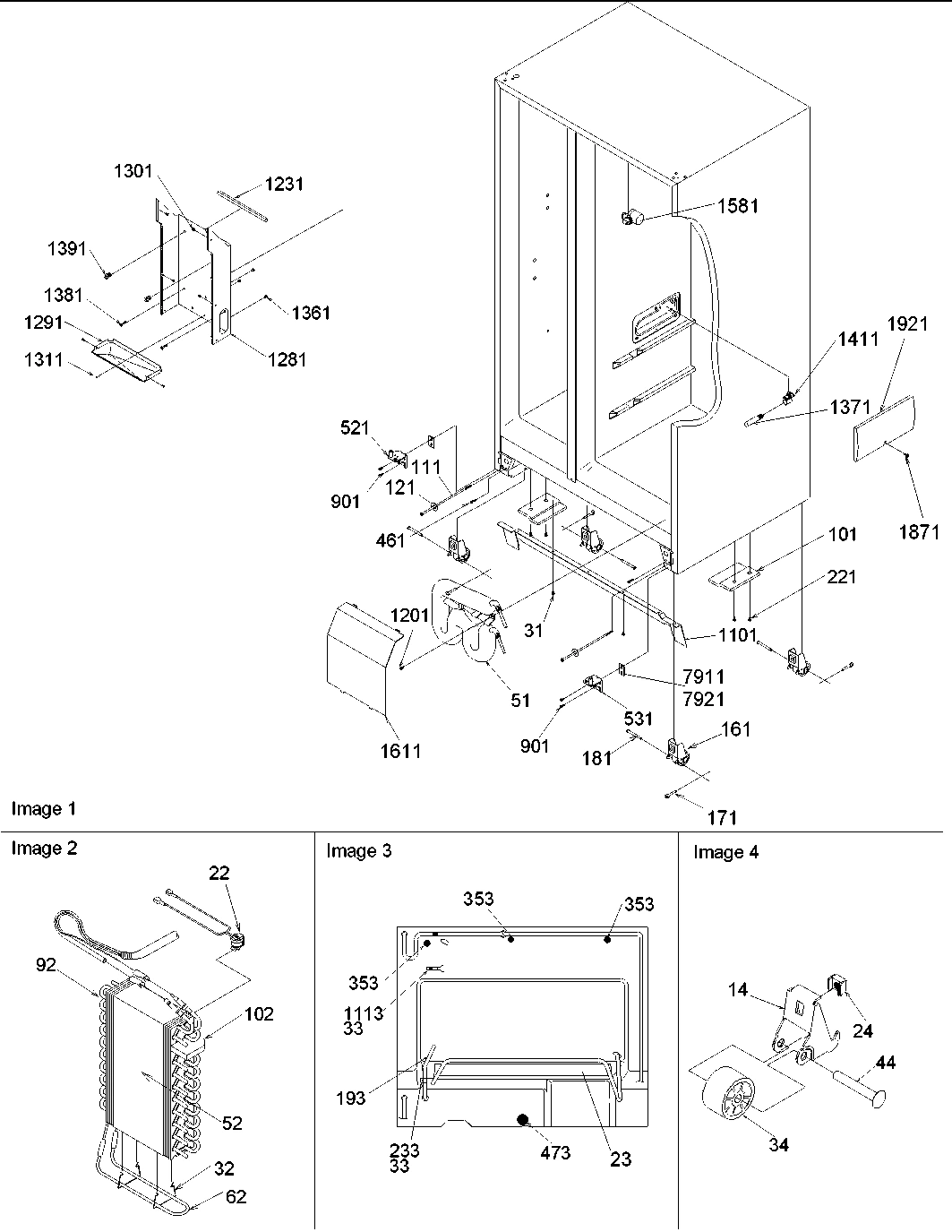

01 - Cabinet Back
02 - Cabinet Parts

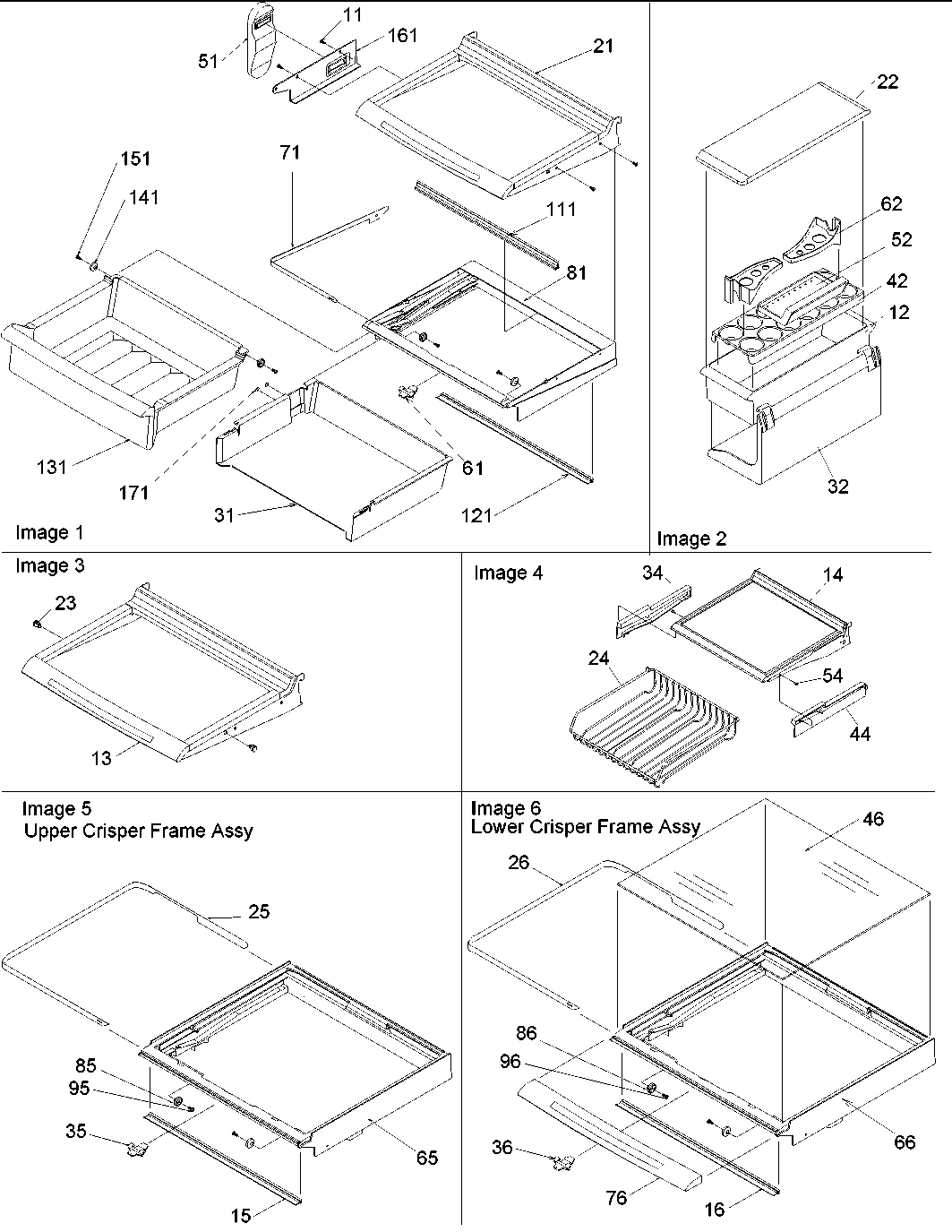

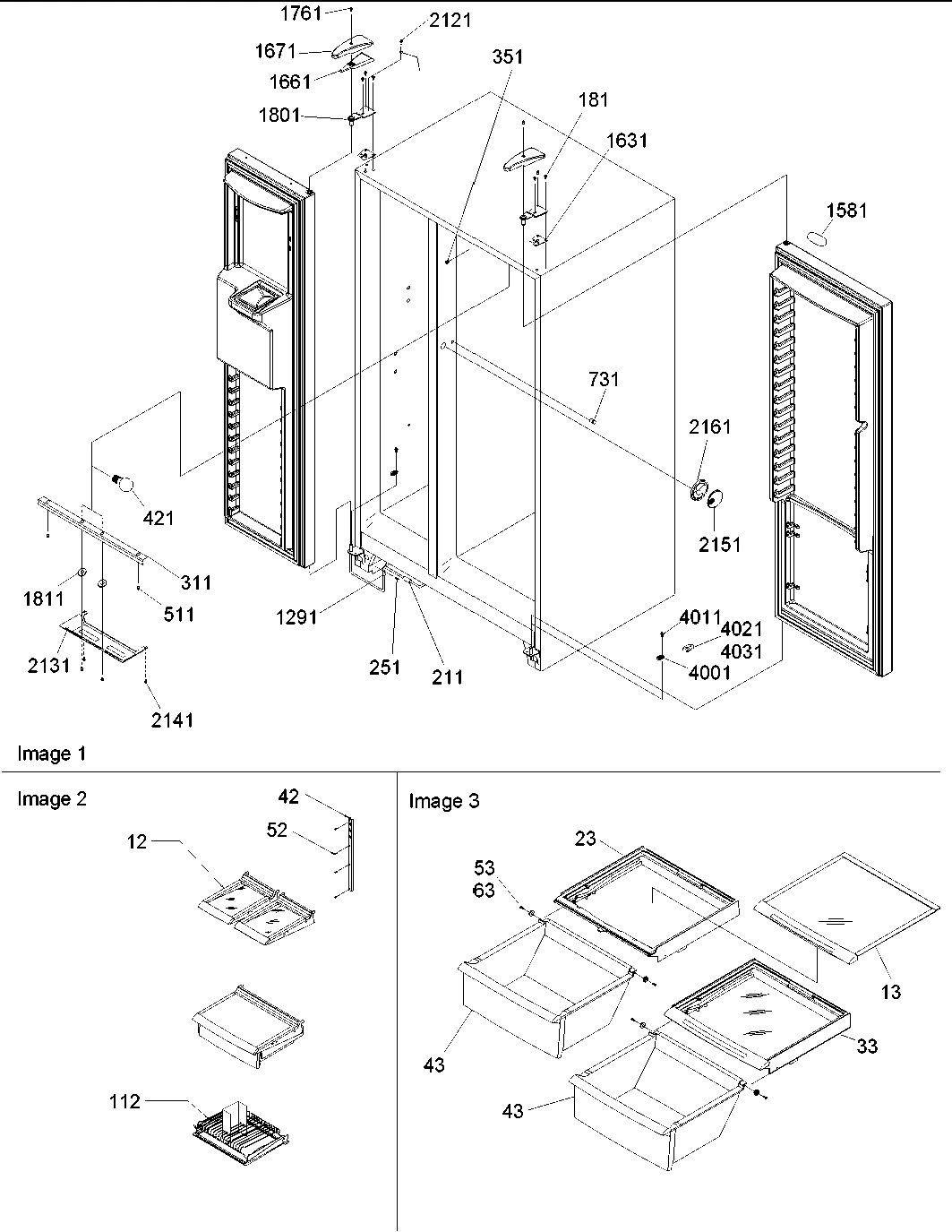

03 - Deli, Shelves & Crisper Assy

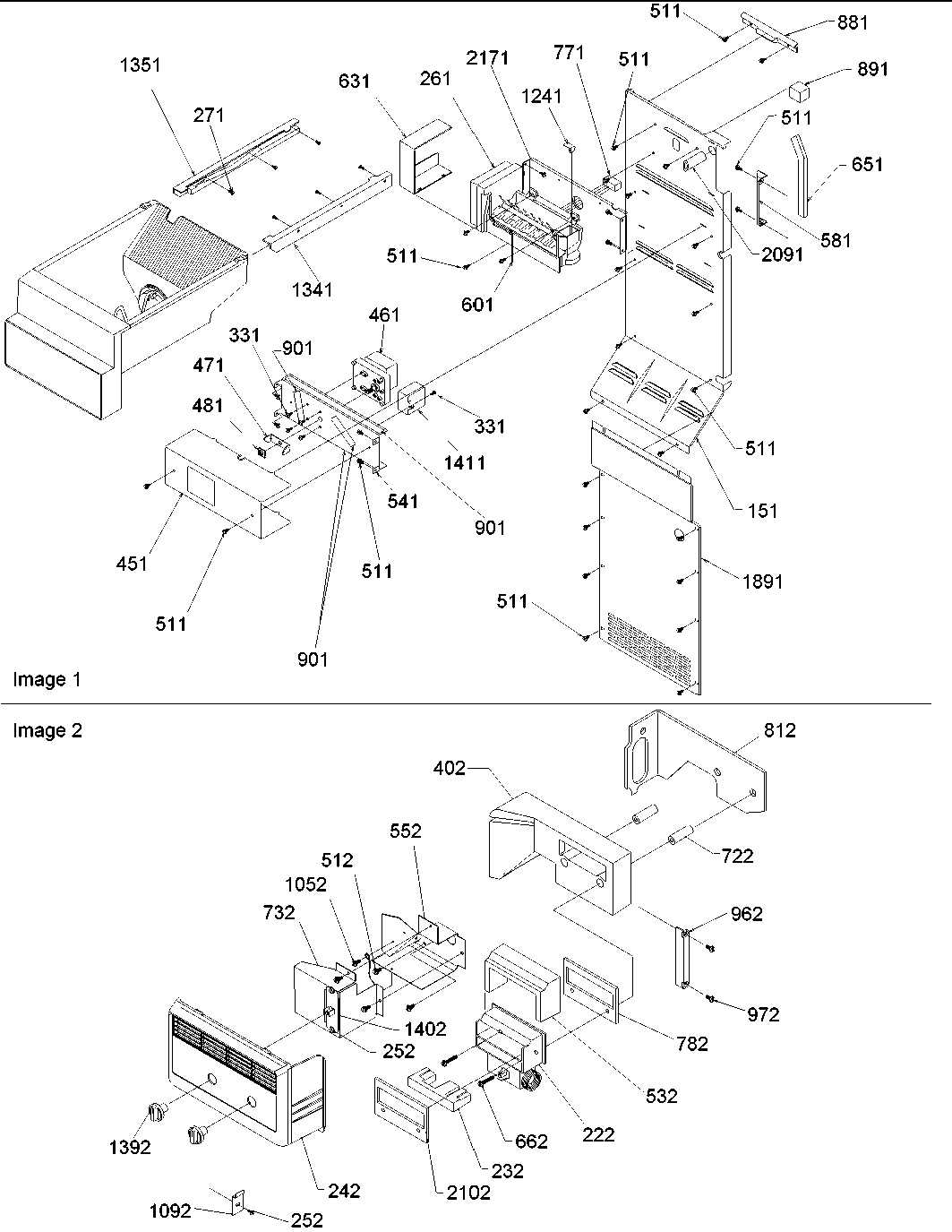

04 - Drain, Rollers & Evap Assy

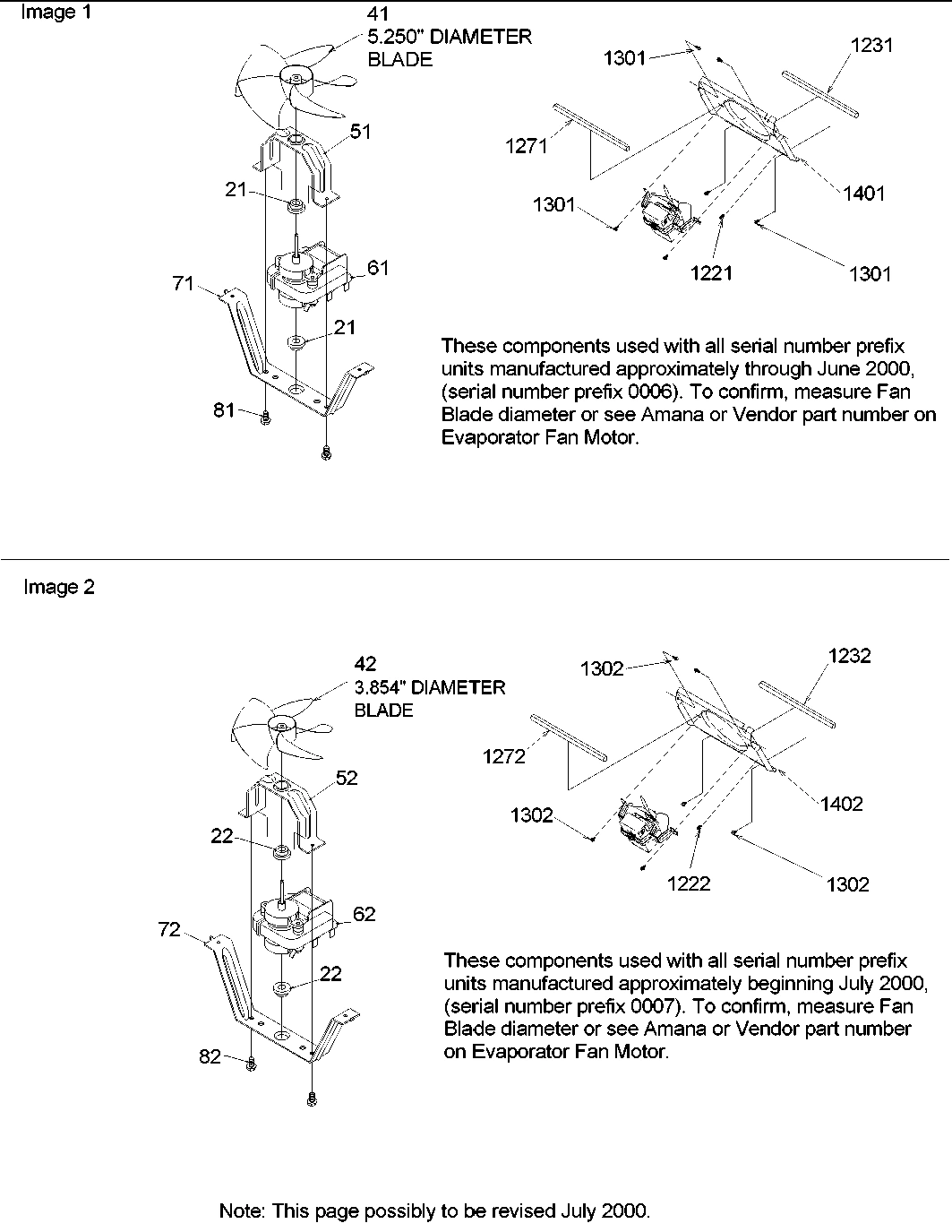

05 - Evaporator Fan Shroud & Motor Assemblies

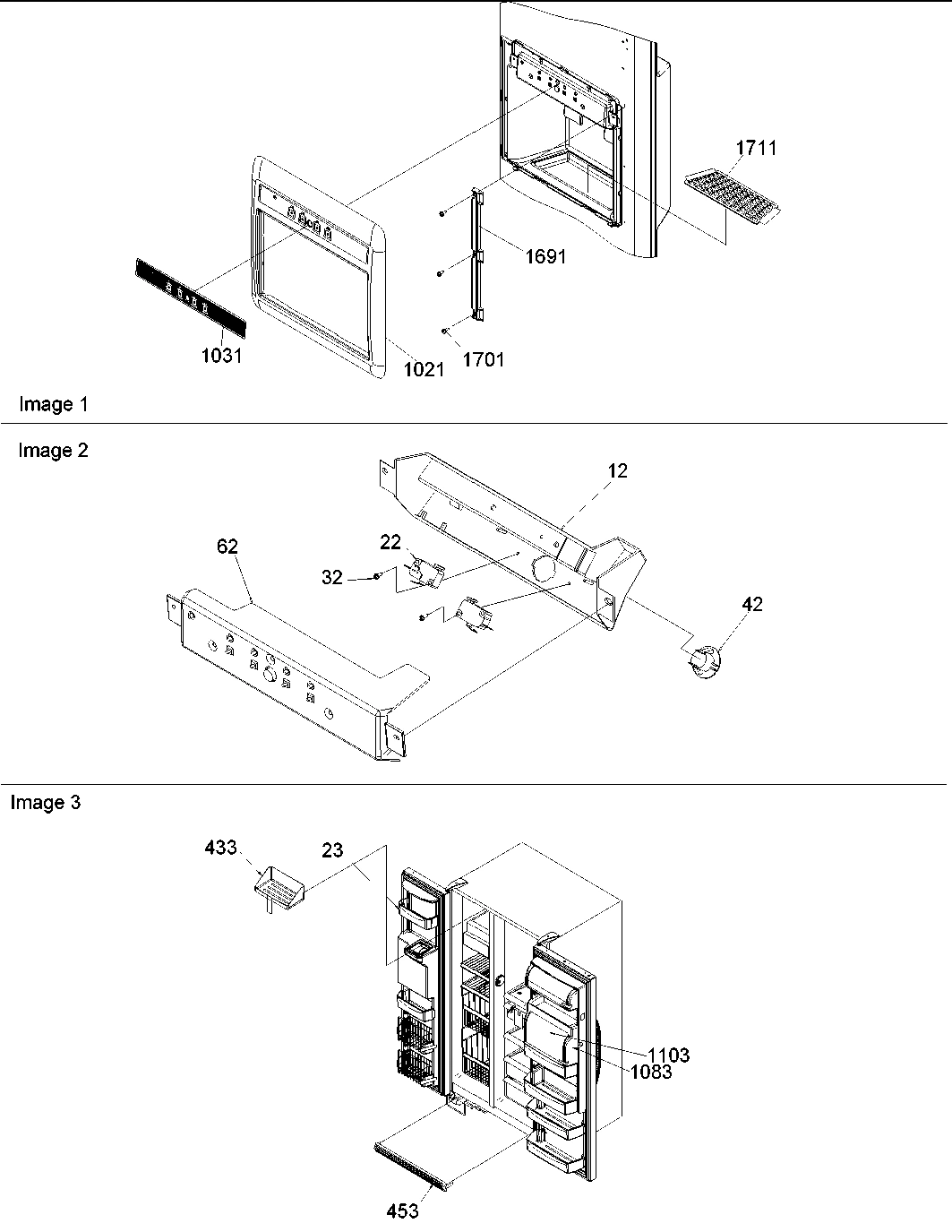

06 - Façade Dispenser Cover, Elec Brkt Assy

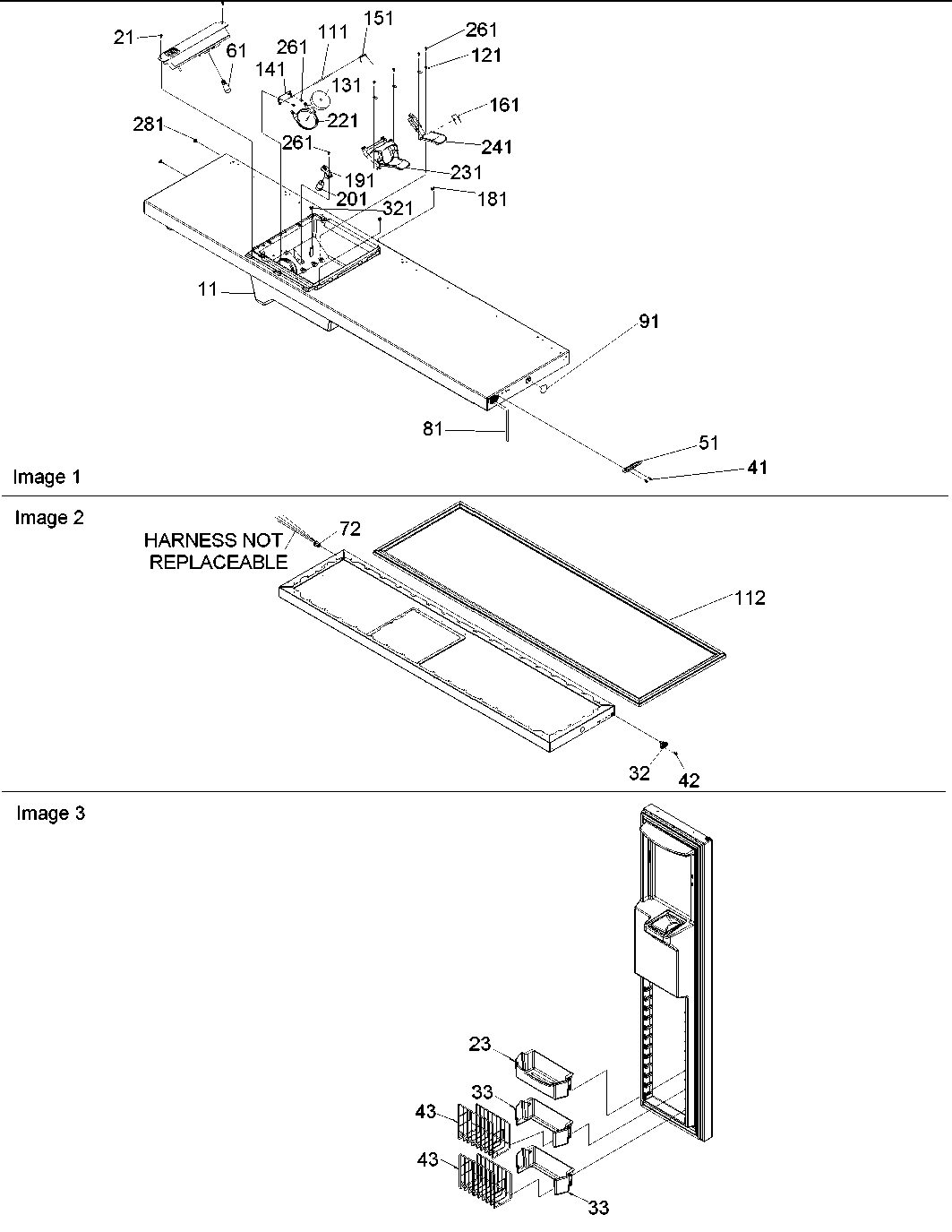

07 - Freezer Door

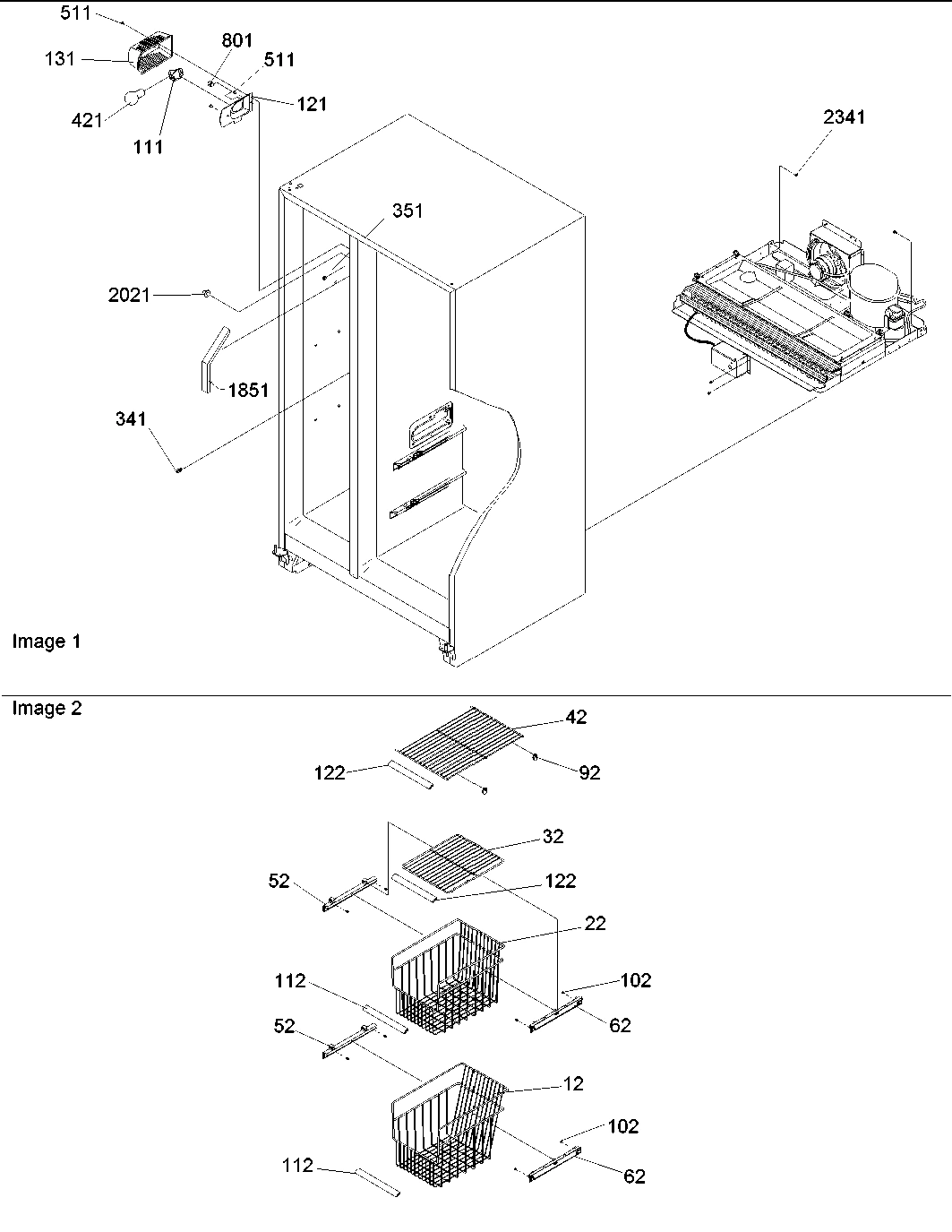

08 - Freezer Shelves & Lights

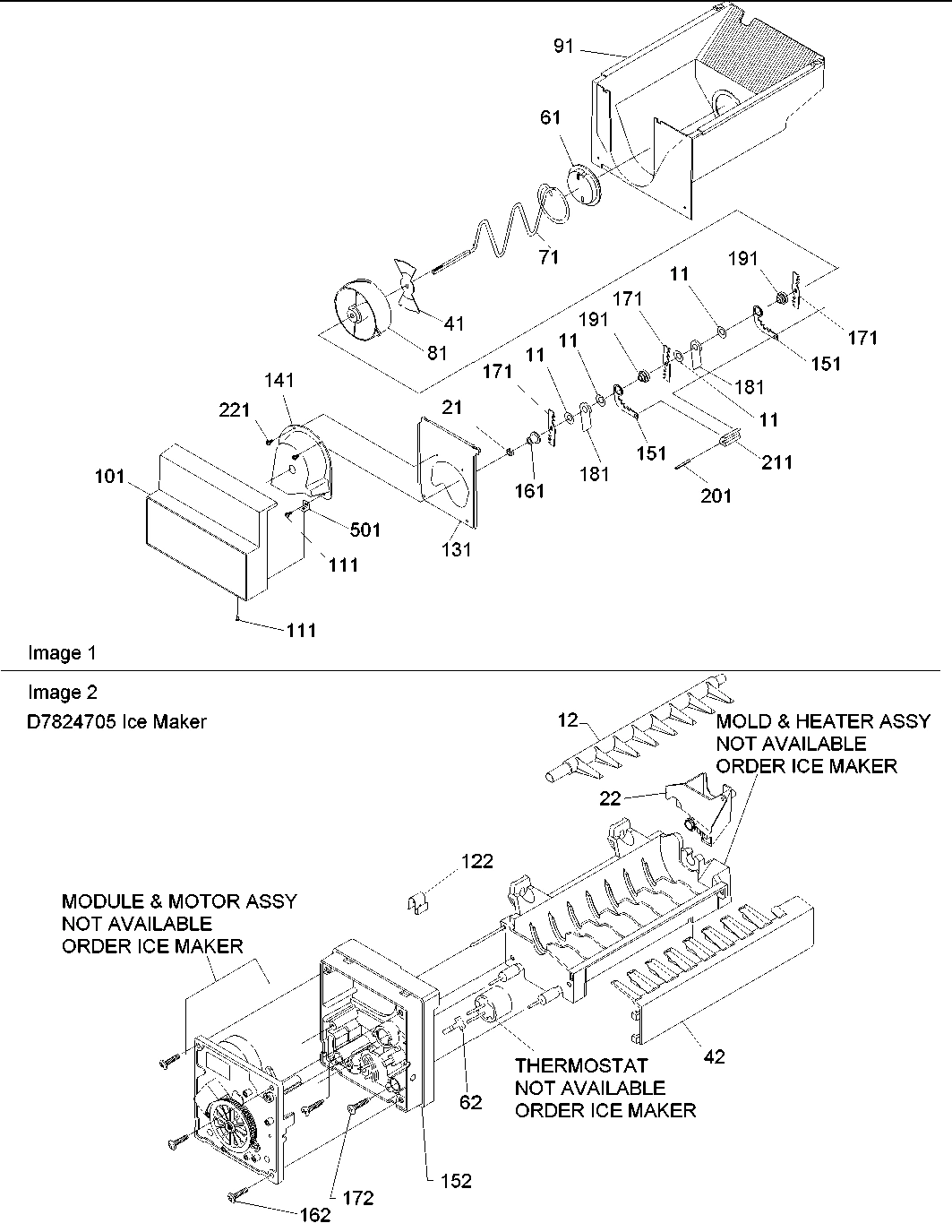

09 - Ice Bucket Auger & Ice Maker Parts
10 - Ice Maker/Control Assy
11 - Lights, Hinges & Shelving

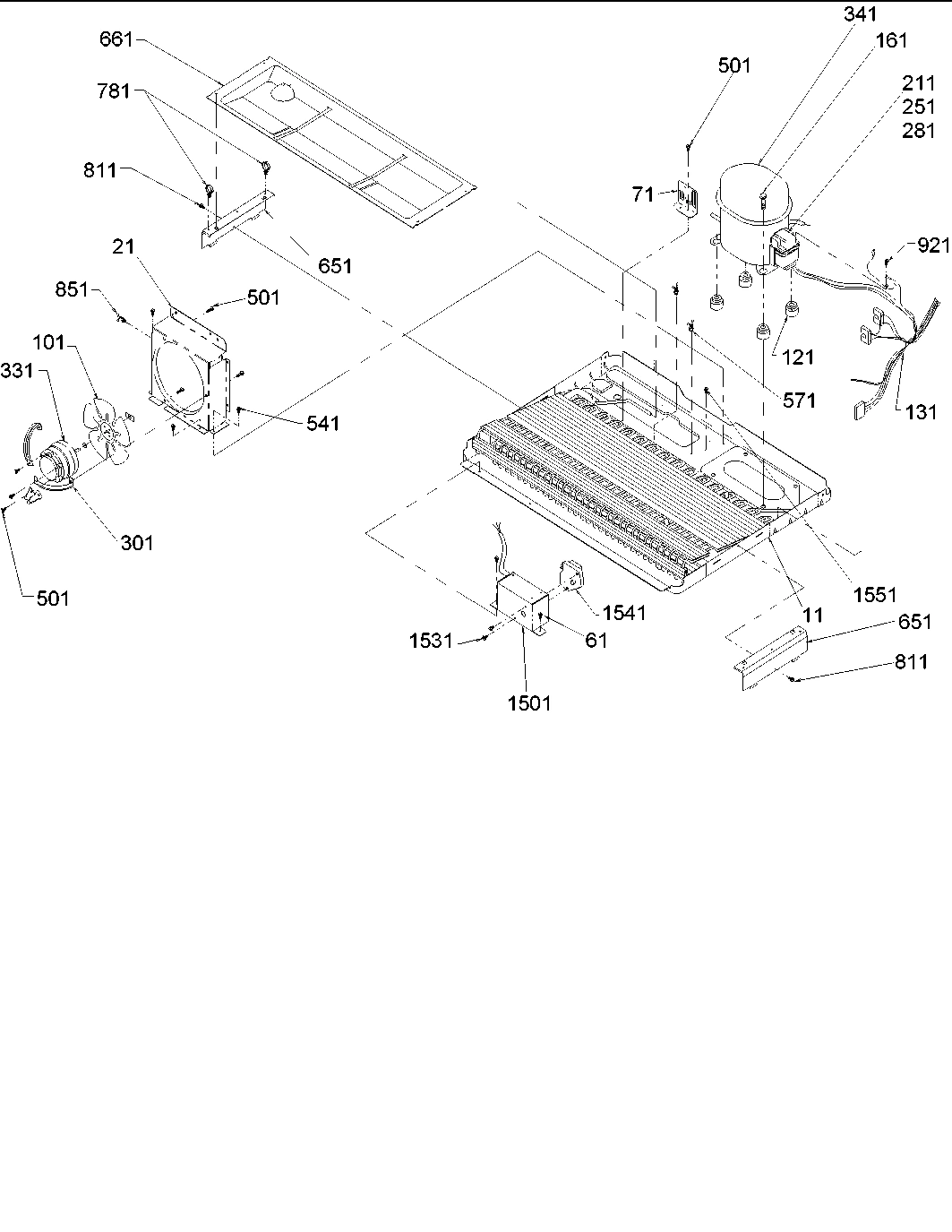

12 - Machine Compartment

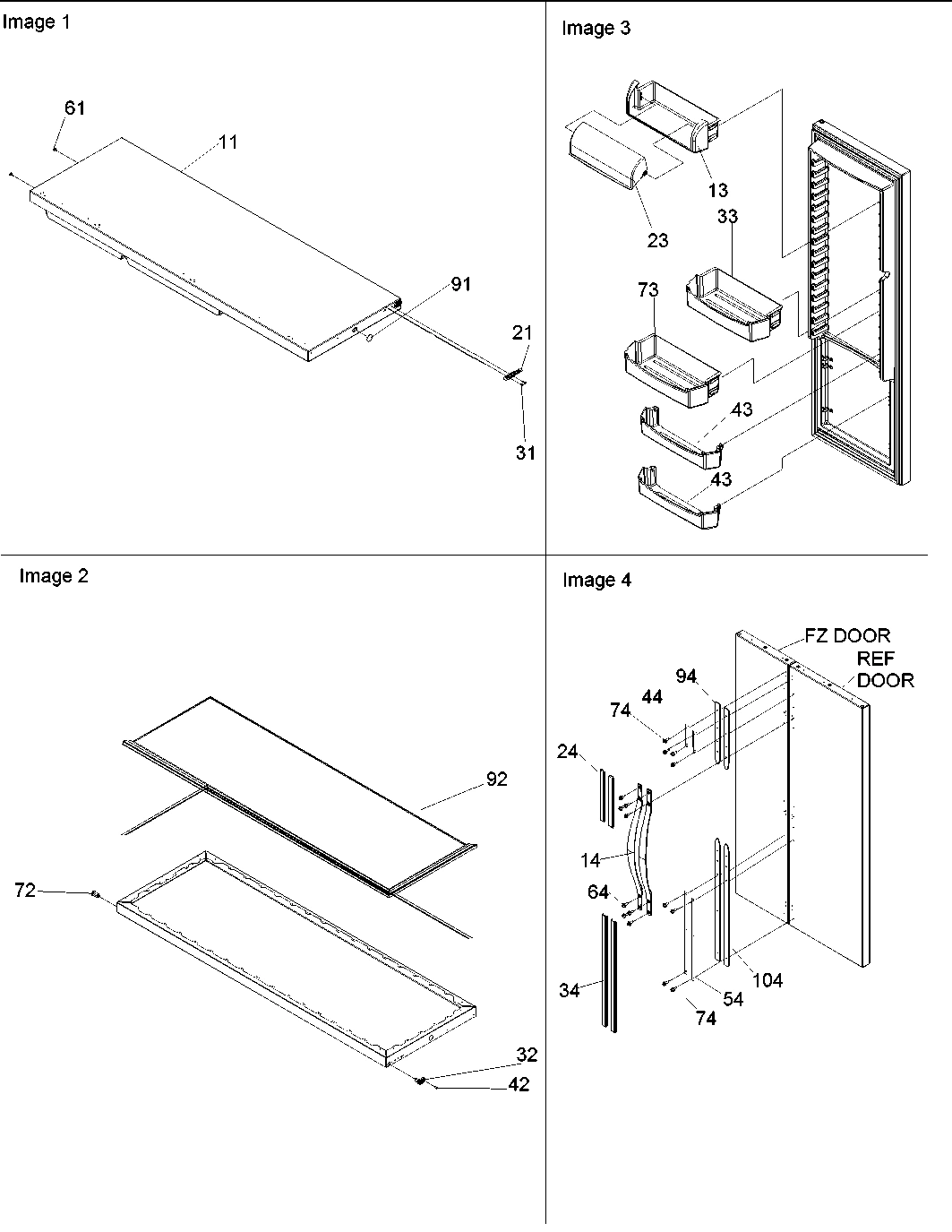

13 - Refr. Door, Trim & Handles

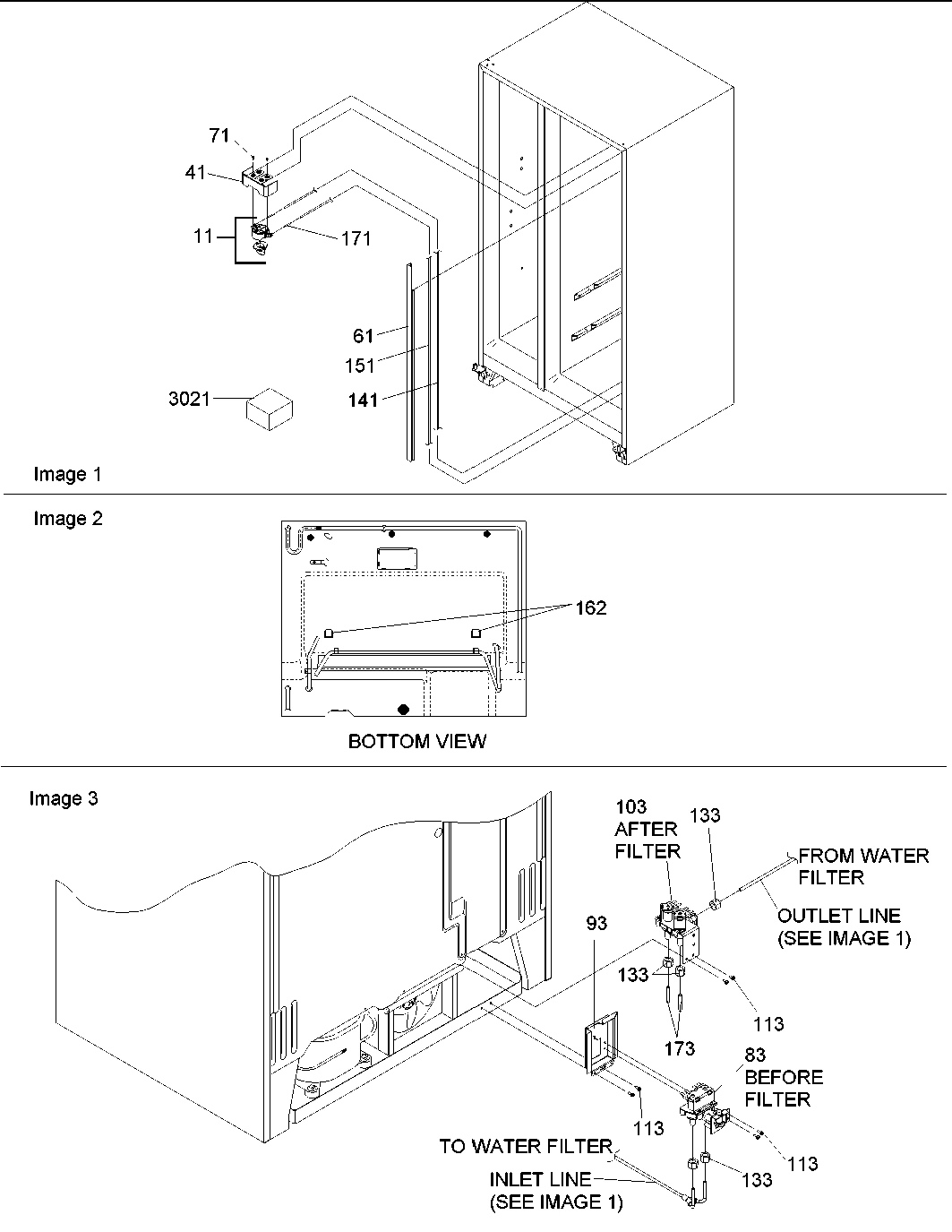

14 - Water Filter Assy
Common parts from model Maytag ARS2367AC REFRIGERATOR
Note: This page possibly to be revised July 2 MAY NOTE: Contact Us For Availability
11
MAY M0213129 MAY M0213129 Contact Us For Availability
11
MAY 12309908CQ MAY 12309908CQ Contact Us For Availability
11
WASHER, WAVED MAY 10275101 Contact Us For Availability
11
MAY 10544114 MAY 10544114 Contact Us For Availability
11
MAY 12309705CQ MAY 12309705CQ Contact Us For Availability
11
MAY 12319904 MAY 12319904 Contact Us For Availability
12
MAY 10423129 MAY 10423129 Contact Us For Availability
12
MAY 10323308 MAY 10323308 Contact Us For Availability
12
MAY 12314701 MAY 12314701 Contact Us For Availability
12
MAY R0183119 MAY R0183119 Contact Us For Availability
12
MAY 10883329Q MAY 10883329Q Contact Us For Availability
13
MAY 10809727 MAY 10809727 Contact Us For Availability
13
MAY 10783124 MAY 10783124 Contact Us For Availability
13
MAY 12308603 MAY 12308603 Contact Us For Availability
14
MAY 10809540 MAY 10809540 Contact Us For Availability
14
MAY C8742402 MAY C8742402 Contact Us For Availability
14
MAY 12495001C MAY 12495001C Contact Us For Availability
16
MAY 10968801 MAY 10968801 Contact Us For Availability
21
MAY 10809613 MAY 10809613 Contact Us For Availability
21
MAY C8972411 MAY C8972411 Contact Us For Availability
21
MAY 10602408 MAY 10602408 Contact Us For Availability
22
MAY 10436404 MAY 10436404 Contact Us For Availability
22
MAY 12017823 MAY 12017823 Contact Us For Availability
22
MAY A1017202 MAY A1017202 Contact Us For Availability
22
MAY 12419601 MAY 12419601 Contact Us For Availability
22
MAY 12314801 MAY 12314801 Contact Us For Availability
22
MAY R0156839 MAY R0156839 Contact Us For Availability
23
MAY 10875101 MAY 10875101 Contact Us For Availability
23
MAY 10906502 MAY 10906502 Contact Us For Availability
23
MAY 12311806 MAY 12311806 Contact Us For Availability
23
MAY 12311908 MAY 12311908 Contact Us For Availability
23
MAY 10882801Q MAY 10882801Q Contact Us For Availability
23
MAY 12308702 MAY 12308702 Contact Us For Availability
24
MAY 12500001 MAY 12500001 Contact Us For Availability
24
MAY M0286708 MAY M0286708 Contact Us For Availability
24
MAY 12273517 MAY 12273517 Contact Us For Availability
26
MAY 10882701 MAY 10882701 Contact Us For Availability
31
MAY 10784001 MAY 10784001 Contact Us For Availability
32
MAY 10992303 MAY 10992303 Contact Us For Availability
32
MAY M0229005 MAY M0229005 Contact Us For Availability
32
MAY 12113203 MAY 12113203 Contact Us For Availability
32
MAY 12353305 MAY 12353305 Contact Us For Availability
32
MAY 12113204 MAY 12113204 Contact Us For Availability
33
MAY 12498801 MAY 12498801 Contact Us For Availability
33
MAY 10882821Q MAY 10882821Q Contact Us For Availability
33
MAY 12309513 MAY 12309513 Contact Us For Availability
34
MAY 12528203 MAY 12528203 Contact Us For Availability
34
MAY 10450602 MAY 10450602 Contact Us For Availability
34
MAY 12273518 MAY 12273518 Contact Us For Availability
41
MAY C8971902 MAY C8971902 Contact Us For Availability
41
MAY 10890101 MAY 10890101 Contact Us For Availability
41
BAR, CRSH ICE BUCKET MAY 10113801 Contact Us For Availability
41
MAY 12445402 MAY 12445402 Contact Us For Availability
42
MAY 10436506 MAY 10436506 Contact Us For Availability
42
MAY 12217201 MAY 12217201 Contact Us For Availability
42
MAY 10131702 MAY 10131702 Contact Us For Availability
42
MAY M0220432 MAY M0220432 Contact Us For Availability
42
MAY 12363402 MAY 12363402 Contact Us For Availability
42
MAY R0183120 MAY R0183120 Contact Us For Availability
42
MAY 12373101 MAY 12373101 Contact Us For Availability
43
MAY 12498901 MAY 12498901 Contact Us For Availability
43
MAY 10783201 MAY 10783201 Contact Us For Availability
43
MAY 12311208 MAY 12311208 Contact Us For Availability
44
MAY 12528204 MAY 12528204 Contact Us For Availability
44
MAY M1205302 MAY M1205302 Contact Us For Availability
44
MAY 12273806 MAY 12273806 Contact Us For Availability
46
MAY Y10370066 MAY Y10370066 Contact Us For Availability
51
MAY 10872701 MAY 10872701 Contact Us For Availability
51
MAY 10988502 MAY 10988502 Contact Us For Availability
51
MAY 10656102 MAY 10656102 Contact Us For Availability
52
MAY 10310901 MAY 10310901 Contact Us For Availability
52
MAY R0170055 MAY R0170055 Contact Us For Availability
52
MAY 10492801 MAY 10492801 Contact Us For Availability
52
MAY 12015101 MAY 12015101 Contact Us For Availability
52
MAY M0238636 MAY M0238636 Contact Us For Availability
53
ROLLER, PAN MAY 10481001 Contact Us For Availability
54
MAY M0214931 MAY M0214931 Contact Us For Availability
54
MAY 12273807 MAY 12273807 Contact Us For Availability
61
MAY M0238616 MAY M0238616 Contact Us For Availability
61
MAY 10852501 MAY 10852501 Contact Us For Availability
61
MAY 10513803 MAY 10513803 Contact Us For Availability
61
MAY M0311606 MAY M0311606 Contact Us For Availability
61
MAY D7749401 MAY D7749401 Contact Us For Availability
61
MAY 12421801 MAY 12421801 Contact Us For Availability
62
MAY 12103905 MAY 12103905 Contact Us For Availability
62
MAY 12049801 MAY 12049801 Contact Us For Availability
62
MAY 10449505 MAY 10449505 Contact Us For Availability
62
MAY 12513302 MAY 12513302 Contact Us For Availability
62
MAY 10972801 MAY 10972801 Contact Us For Availability
62
MAY R0191094 MAY R0191094 Contact Us For Availability
63
MAY M0238105 MAY M0238105 Contact Us For Availability
64
MAY M0223230 MAY M0223230 Contact Us For Availability
66
MAY 10782901 MAY 10782901 Contact Us For Availability
71
MAY 12023401Q MAY 12023401Q Contact Us For Availability
71
MAY 10986401 MAY 10986401 Contact Us For Availability
71
MAY M0211018 MAY M0211018 Contact Us For Availability
71
MAY 10909401 MAY 10909401 Contact Us For Availability
71
MAY 10114401 MAY 10114401 Contact Us For Availability
71
MAY 12421101 MAY 12421101 Contact Us For Availability
72
MAY 10492701 MAY 10492701 Contact Us For Availability
72
MAY C8964401 MAY C8964401 Contact Us For Availability
72
MAY 10961001 MAY 10961001 Contact Us For Availability
73
MAY 12309514 MAY 12309514 Contact Us For Availability
74
MAY M0216517 MAY M0216517 Contact Us For Availability
76
MAY 12113010 MAY 12113010 Contact Us For Availability
81
MAY 10783803 MAY 10783803 Contact Us For Availability
81
MAY B5705326 MAY B5705326 Contact Us For Availability
81
MAY 10114703 MAY 10114703 Contact Us For Availability
83
MAY 12313403 MAY 12313403 Contact Us For Availability
91
MAY A3080001 MAY A3080001 Contact Us For Availability
91
MAY 10111905 MAY 10111905 Contact Us For Availability
92
MAY 10629601 MAY 10629601 Contact Us For Availability
92
SUPPORT, FRZ SHELF MAY C8973801 Contact Us For Availability
92
MAY R9800046 MAY R9800046 Contact Us For Availability
93
MAY 12236001 MAY 12236001 Contact Us For Availability
94
MAY 12495103S MAY 12495103S Contact Us For Availability
101
MAY 10508001 MAY 10508001 Contact Us For Availability
101
MAY 10870907 MAY 10870907 Contact Us For Availability
101
MAY 10518702 MAY 10518702 Contact Us For Availability
102
MAY 10629001 MAY 10629001 Contact Us For Availability
103
MAY 12313404 MAY 12313404 Contact Us For Availability
104
MAY 12495104S MAY 12495104S Contact Us For Availability
111
MAY 10876301 MAY 10876301 Contact Us For Availability
111
MAY 10093307 MAY 10093307 Contact Us For Availability
111
MAY A1061501 MAY A1061501 Contact Us For Availability
111
MAY D7714407 MAY D7714407 Contact Us For Availability
111
SCREW, SM MAY M0238642 Contact Us For Availability
112
MAY R9800047 MAY R9800047 Contact Us For Availability
112
MAY 12314101 MAY 12314101 Contact Us For Availability
112
MAY 12224204Q MAY 12224204Q Contact Us For Availability
121
MAY 10873802 MAY 10873802 Contact Us For Availability
121
MAY M0274067 MAY M0274067 Contact Us For Availability
121
MAY A1061601 MAY A1061601 Contact Us For Availability
121
MAY D7753505 MAY D7753505 Contact Us For Availability
121
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
122
MAY 12314102 MAY 12314102 Contact Us For Availability
122
MAY 10319801 MAY 10319801 Contact Us For Availability
131
MAY 10115001 MAY 10115001 Contact Us For Availability
131
MAY 10923101 MAY 10923101 Contact Us For Availability
131
MAY 10784201 MAY 10784201 Contact Us For Availability
131
MAY B8380701 MAY B8380701 Contact Us For Availability
131
MAY D7786603 MAY D7786603 Contact Us For Availability
131
MAY 10967603 MAY 10967603 Contact Us For Availability
133
NUT, SLEEVE MAY M0753001 Contact Us For Availability
141
MAY B8380802 MAY B8380802 Contact Us For Availability
141
MAY 10114004 MAY 10114004 Contact Us For Availability
141
MAY Y12445301 MAY Y12445301 Contact Us For Availability
151
MAY B8380901 MAY B8380901 Contact Us For Availability
151
MAY 10114601 MAY 10114601 Contact Us For Availability
151
MAY D7821174 MAY D7821174 Contact Us For Availability
151
MAY 12319001 MAY 12319001 Contact Us For Availability
152
MAY R0183121 MAY R0183121 Contact Us For Availability
161
MAY 10872601 MAY 10872601 Contact Us For Availability
161
MAY 12452602Q MAY 12452602Q Contact Us For Availability
161
MAY B8385401 MAY B8385401 Contact Us For Availability
161
MAY 10113901 MAY 10113901 Contact Us For Availability
161
MAY M0221523 MAY M0221523 Contact Us For Availability
162
MAY M0104102 MAY M0104102 Contact Us For Availability
162
MAY R0186041 MAY R0186041 Contact Us For Availability
163
MAY 12231603 MAY 12231603 Contact Us For Availability
171
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
171
MAY D7785402 MAY D7785402 Contact Us For Availability
171
MAY M0051701 MAY M0051701 Contact Us For Availability
171
MAY M1200004 MAY M1200004 Contact Us For Availability
171
BLADE, ROTATING MAY 10114501 Contact Us For Availability
172
MAY R0186040 MAY R0186040 Contact Us For Availability
173
SPRING, ANTI KINK MAY A1055105 Contact Us For Availability
181
MAY M1200202 MAY M1200202 Contact Us For Availability
181
MAY B8390302 MAY B8390302 Contact Us For Availability
181
MAY 10275201 MAY 10275201 Contact Us For Availability
181
MAY M0238731 MAY M0238731 Contact Us For Availability
191
MAY C8972501 MAY C8972501 Contact Us For Availability
191
WASHER STEPPED MAY 10114301 Contact Us For Availability
193
MAY 10505101 MAY 10505101 Contact Us For Availability
201
MAY C8973602 MAY C8973602 Contact Us For Availability
201
MAY M1200108 MAY M1200108 Contact Us For Availability
211
MAY 10114101 MAY 10114101 Contact Us For Availability
211
UNION K MAY B5706901 Contact Us For Availability
211
MAY 10377023 MAY 10377023 Contact Us For Availability
221
MAY M0253942 MAY M0253942 Contact Us For Availability
221
MAY 10246601 MAY 10246601 Contact Us For Availability
221
MAY M0231704 MAY M0231704 Contact Us For Availability
222
MAY D7547411 MAY D7547411 Contact Us For Availability
231
MAY 12102106 MAY 12102106 Contact Us For Availability
232
MAY C8902601 MAY C8902601 Contact Us For Availability
233
MAY M0102303 MAY M0102303 Contact Us For Availability
241
MAY 10872112 MAY 10872112 Contact Us For Availability
242
MAY 10862713 MAY 10862713 Contact Us For Availability
251
MAY M0211016 MAY M0211016 Contact Us For Availability
251
MAY 10097202 MAY 10097202 Contact Us For Availability
261
MAY M0211116 MAY M0211116 Contact Us For Availability
261
MAY D7824705 MAY D7824705 Contact Us For Availability
271
MAY M0213529 MAY M0213529 Contact Us For Availability
281
MAY 10757301 MAY 10757301 Contact Us For Availability
301
MAY 10496501 MAY 10496501 Contact Us For Availability
303
MAY M0581001 MAY M0581001 Contact Us For Availability
311
MAY 10014716 MAY 10014716 Contact Us For Availability
321
MAY 12454803 MAY 12454803 Contact Us For Availability
331
MAY M0226528 MAY M0226528 Contact Us For Availability
331
MAY 10884501 MAY 10884501 Contact Us For Availability
341
MAY 12049712 MAY 12049712 Contact Us For Availability
351
MAY M0580007 MAY M0580007 Contact Us For Availability
371
MAY D7753903 MAY D7753903 Contact Us For Availability
381
SEAL, O RING MAY M0500703 Contact Us For Availability
391
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
402
MAY 10176606Q MAY 10176606Q Contact Us For Availability
421
MAY 10187501 MAY 10187501 Contact Us For Availability
421
MAY A0282807 MAY A0282807 Contact Us For Availability
431
MAY 10187601 MAY 10187601 Contact Us For Availability
433
MAY 10870802 MAY 10870802 Contact Us For Availability
451
MAY 12427502 MAY 12427502 Contact Us For Availability
451
MAY D7788837 MAY D7788837 Contact Us For Availability
453
MAY 12321814Q MAY 12321814Q Contact Us For Availability
461
MAY D7297604 MAY D7297604 Contact Us For Availability
461
MAY M0204339 MAY M0204339 Contact Us For Availability
461
MAY 12501001 MAY 12501001 Contact Us For Availability
471
DRIVER (ICE MAKER) MAY 10114901 Contact Us For Availability
491
MAY 12466102 MAY 12466102 Contact Us For Availability
501
MAY 10894901 MAY 10894901 Contact Us For Availability
501
MAY M0223816 MAY M0223816 Contact Us For Availability
511
MAY 12466101 MAY 12466101 Contact Us For Availability
521
MAY 12431707 MAY 12431707 Contact Us For Availability
531
MAY 12431709 MAY 12431709 Contact Us For Availability
532
MAY D7788201 MAY D7788201 Contact Us For Availability
541
MAY D7749207 MAY D7749207 Contact Us For Availability
541
MAY M0216716 MAY M0216716 Contact Us For Availability
552
MAY D7822406 MAY D7822406 Contact Us For Availability
571
MAY M0585401 MAY M0585401 Contact Us For Availability
581
MAY D7838302 MAY D7838302 Contact Us For Availability
601
MAY 10270203 MAY 10270203 Contact Us For Availability
601
MAY D7877001Q MAY D7877001Q Contact Us For Availability
611
MAY A3189337 MAY A3189337 Contact Us For Availability
631
MAY D7820401 MAY D7820401 Contact Us For Availability
651
MAY B8386602 MAY B8386602 Contact Us For Availability
651
MAY 10495702 MAY 10495702 Contact Us For Availability
661
MAY 10507903 MAY 10507903 Contact Us For Availability
662
MAY M0216539 MAY M0216539 Contact Us For Availability
722
MAY A3044208 MAY A3044208 Contact Us For Availability
731
MAY 10426801 MAY 10426801 Contact Us For Availability
732
MAY D7868606 MAY D7868606 Contact Us For Availability
771
MAY 10906501 MAY 10906501 Contact Us For Availability
771
MAY D7824601 MAY D7824601 Contact Us For Availability
781
MAY 10906503 MAY 10906503 Contact Us For Availability
781
MAY M0322202 MAY M0322202 Contact Us For Availability
782
MAY B8345401 MAY B8345401 Contact Us For Availability
801
MAY B5733302 MAY B5733302 Contact Us For Availability
811
MAY A4539601 MAY A4539601 Contact Us For Availability
812
MAY 10177901 MAY 10177901 Contact Us For Availability
851
MAY M0585403 MAY M0585403 Contact Us For Availability
881
MAY 12146803 MAY 12146803 Contact Us For Availability
881
MAY C8976201 MAY C8976201 Contact Us For Availability
891
MAY C8976102 MAY C8976102 Contact Us For Availability
901
MAY M0241408 MAY M0241408 Contact Us For Availability
901
MAY A3030305 MAY A3030305 Contact Us For Availability
911
MAY B5642901 MAY B5642901 Contact Us For Availability
921
MAY M0231604 MAY M0231604 Contact Us For Availability
962
MAY C8977301 MAY C8977301 Contact Us For Availability
972
SCREW 1`` MAY M0211021 Contact Us For Availability
1021
MAY 12501901C MAY 12501901C Contact Us For Availability
1031
MAY 12508201C MAY 12508201C Contact Us For Availability
1083
MAY 12313702 MAY 12313702 Contact Us For Availability
1092
MAY 12414701 MAY 12414701 Contact Us For Availability
1101
MAY 10508107 MAY 10508107 Contact Us For Availability
1103
MAY 12313902 MAY 12313902 Contact Us For Availability
1113
MAY M0585206 MAY M0585206 Contact Us For Availability
1211
MAY B5705321 MAY B5705321 Contact Us For Availability
1221
MAY M0114003 MAY M0114003 Contact Us For Availability
1232
MAY B8386608 MAY B8386608 Contact Us For Availability
1241
MAY B5720301 MAY B5720301 Contact Us For Availability
1243
MAY 12072603 MAY 12072603 Contact Us For Availability
1272
MAY B8386607 MAY B8386607 Contact Us For Availability
1281
MAY 10893803 MAY 10893803 Contact Us For Availability
1291
MAY D7850202 MAY D7850202 Contact Us For Availability
1302
MAY M0224416 MAY M0224416 Contact Us For Availability
1311
MAY 10178505 MAY 10178505 Contact Us For Availability
1311
MAY 10098801 MAY 10098801 Contact Us For Availability
1341
MAY D7849904 MAY D7849904 Contact Us For Availability
1351
MAY D7849903 MAY D7849903 Contact Us For Availability
1361
MAY M0580002 MAY M0580002 Contact Us For Availability
1371
MAY A3079001 MAY A3079001 Contact Us For Availability
1381
MAY 10527401 MAY 10527401 Contact Us For Availability
1391
MAY 10623003 MAY 10623003 Contact Us For Availability
1392
MAY 12500101 MAY 12500101 Contact Us For Availability
1401
MAY 10890202 MAY 10890202 Contact Us For Availability
1402
MAY 10890206 MAY 10890206 Contact Us For Availability
1402
MAY R0161092 MAY R0161092 Contact Us For Availability
1411
MAY 10281602 MAY 10281602 Contact Us For Availability
1411
MAY C8931608 MAY C8931608 Contact Us For Availability
1501
MAY 12534801 MAY 12534801 Contact Us For Availability
1531
MAY M0216705 MAY M0216705 Contact Us For Availability
1541
MAY 10530703 MAY 10530703 Contact Us For Availability
1551
MAY M0232903 MAY M0232903 Contact Us For Availability
1581
MAY D7714408 MAY D7714408 Contact Us For Availability
1611
MAY 10914202 MAY 10914202 Contact Us For Availability
1631
MAY 12428101 MAY 12428101 Contact Us For Availability
1661
MAY 10863501 MAY 10863501 Contact Us For Availability
1671
MAY 10849409 MAY 10849409 Contact Us For Availability
1691
MAY 12335602 MAY 12335602 Contact Us For Availability
1711
MAY 12502001C MAY 12502001C Contact Us For Availability
1801
MAY 12426201 MAY 12426201 Contact Us For Availability
1811
MAY M0270508 MAY M0270508 Contact Us For Availability
1851
MAY A3189335 MAY A3189335 Contact Us For Availability
1891
MAY 10655902 MAY 10655902 Contact Us For Availability
1921
MAY Y10270101 MAY Y10270101 Contact Us For Availability
1932
MAY B5794201 MAY B5794201 Contact Us For Availability
2002
MAY 10916505 MAY 10916505 Contact Us For Availability
2021
MAY M0560005 MAY M0560005 Contact Us For Availability
2061
MAY A3189336 MAY A3189336 Contact Us For Availability
2091
MAY A3127413 MAY A3127413 Contact Us For Availability
2102
MAY 10383201 MAY 10383201 Contact Us For Availability
2131
MAY 10493302 MAY 10493302 Contact Us For Availability
2141
MAY M0238846 MAY M0238846 Contact Us For Availability
2151
MAY 10164815 MAY 10164815 Contact Us For Availability
2161
MAY 10164701 MAY 10164701 Contact Us For Availability
2171
MAY D7821004 MAY D7821004 Contact Us For Availability
2302
DRIER MAY B2150504 Contact Us For Availability
2322
MAY 10547002 MAY 10547002 Contact Us For Availability
2332
MAY M0103904 MAY M0103904 Contact Us For Availability
2341
MAY M0211357 MAY M0211357 Contact Us For Availability
2352
MAY M0239216 MAY M0239216 Contact Us For Availability
3021
MAY 12527301 MAY 12527301 Contact Us For Availability
4001
MAY 12431302 MAY 12431302 Contact Us For Availability
4021
MAY 10361806 MAY 10361806 Contact Us For Availability
4031
MAY 10361804 MAY 10361804 Contact Us For Availability
7911
MAY 12187603 MAY 12187603 Contact Us For Availability
7921
MAY 12146702 MAY 12146702 Contact Us For Availability
NI
MAY 12310203 MAY 12310203 Contact Us For Availability
NI
MAY R0156692 MAY R0156692 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY R0156803 MAY R0156803 Contact Us For Availability
NI
MAY 10526701 MAY 10526701 Contact Us For Availability
NI
MAY 12310201 MAY 12310201 Contact Us For Availability
× ![]()
