Model LG ARNU763B8Z4.ANWSLUS Air Conditioners – Common Parts & Diagrams

Common parts from model LG ARNU763B8Z4.ANWSLUS Air Conditioners

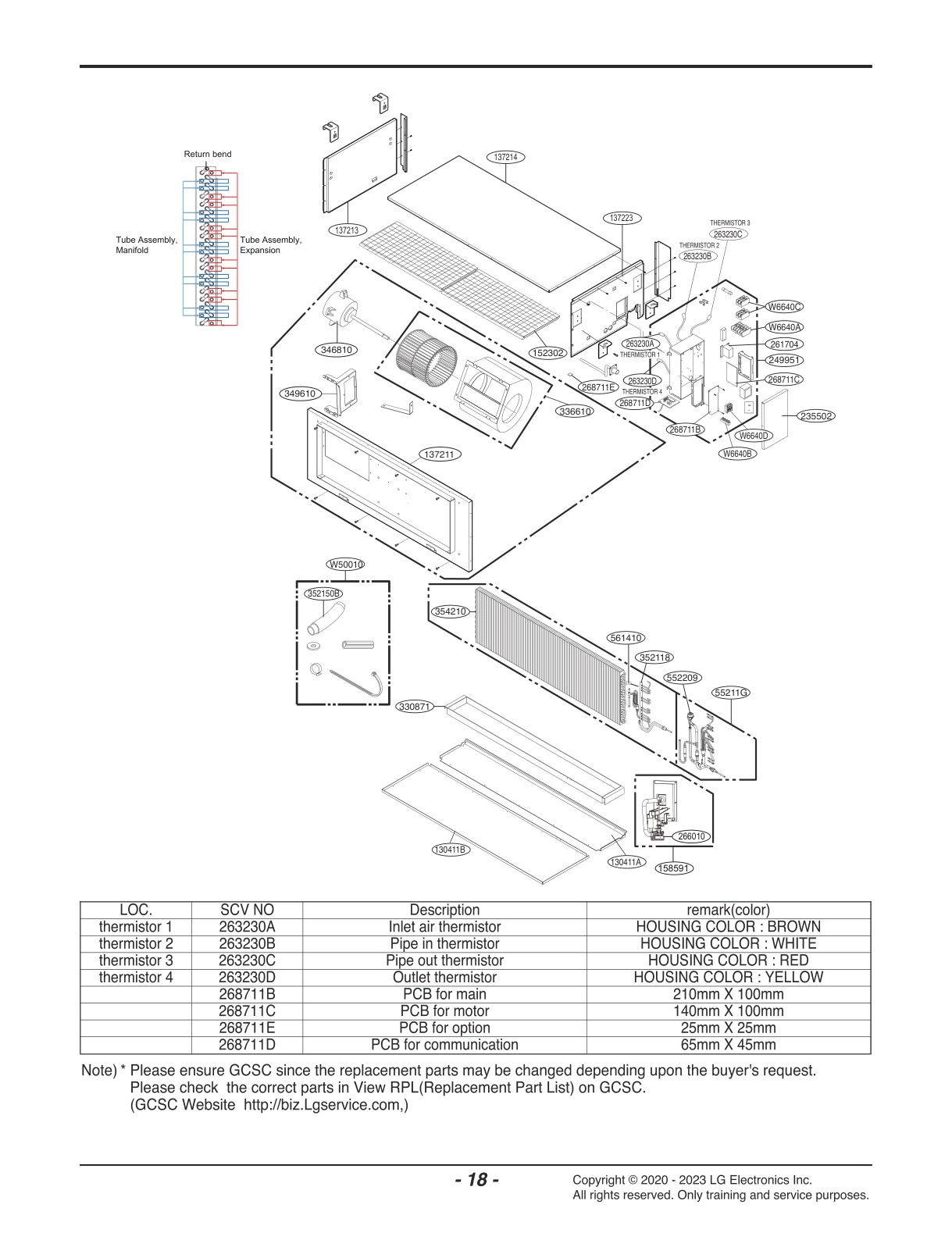

DIAGRAM 1

Print

• This Diagram
• All Diagrams

130411A

Base Assembly,Indoor LGE AAN75848701 Contact Us For Availability

View on Model

130411B

Base Assembly,Indoor LGE AAN75848702 Contact Us For Availability

View on Model

137211

Panel Assembly,Front(Indoor) Backorder LGE AGL35764830 View Details $417.58

View on Model

137213

PANEL ASSEMBLY,SIDE Backorder LGE AGL35764707 View Details $205.43

View on Model

137214

Panel Assembly,Upper LGE AGL75653501 Contact Us For Availability

View on Model

137223

Panel Assembly,Side LGE AGL35764412 Contact Us For Availability

View on Model

152302

5230A30017D LG Air Filter Backorder LGE 5230A30017D View Details $122.27

View on Model

158591

5859A20002K LG Water Pump Assembly Backorder LGE 5859A20002K View Details $181.30

View on Model

235502

Cover Backorder LGE MCK39875411 View Details $122.27

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ30047201 Contact Us For Availability

View on Model

261704

Linear Trans LGE 5874A90003H Contact Us For Availability

View on Model

263230A

Thermistor Assembly,NTC LGE EBG61106830 Contact Us For Availability

View on Model

263230B

EBG61287706 LG Temperature Sensor Thermistor Backorder LGE EBG61287706 View Details $23.97

View on Model

263230C

EBG61325803 LG Temperature Sensor Thermistor Backorder LGE EBG61325803 View Details $23.97

View on Model

263230D

EBG61106816 LG Thermistor NTC Assembly Backorder LGE EBG61106816 View Details $18.59

View on Model

266010

6601A20013P LG Switch Assembly Backorder LGE 6601A20013P View Details $58.41

View on Model

268711B

PCB Assembly,Main Backorder LGE EBR79004830 View Details $231.49

View on Model

268711C

EBR80820305 LG PCB Sub Assembly Backorder LGE EBR80820305 View Details $181.30

View on Model

268711D

PCB Assembly,Sub LGE EBR72059619 Contact Us For Availability

View on Model

268711E

PCB ASSEMBLY,SUB Backorder LGE EBR79304124 View Details $13.52

View on Model

330871

Pan Assembly,Drain Backorder LGE AGK34943708 View Details $300.89

View on Model

336610

Housing Assembly Backorder LGE 3661A20025N View Details $492.45

View on Model

346810

Motor Assembly,DC,Indoor Backorder LGE EAU37067118 View Details $651.48

View on Model

352118

Tube Assembly,Manifold(Indoor) LGE AJR33316213 Contact Us For Availability

View on Model

352150B

5251AP2984C LG Drain Hose Assembly Backorder LGE 5251AP2984C View Details $19.42

View on Model

354210

Evaporator Assembly,First Backorder LGE 5421A20217L View Details $703.40

View on Model

552209

Valve Assembly LGE AJU36719728 Contact Us For Availability

View on Model

561410

Solenoid LGE EBE60661413 Contact Us For Availability

View on Model

W6640A

Connector,Terminal Block LGE EAG63452303 Contact Us For Availability

View on Model

W6640B

3H00390A LG Terminal Block Connector Backorder LGE 3H00390A View Details $5.27

View on Model

W6640C

Connector,Terminal Block LGE EAG38884445 Contact Us For Availability

View on Model

W6640D

Connector,Terminal Block LGE 6640000036U Contact Us For Availability

View on Model

W50010

Accessory Assembly LGE AAA30342801 Contact Us For Availability

View on Model

×
