Model LG ARNU423NKA4.AMBHLUS Air Conditioners – Common Parts & Diagrams

Common parts from model LG ARNU423NKA4.AMBHLUS Air Conditioners

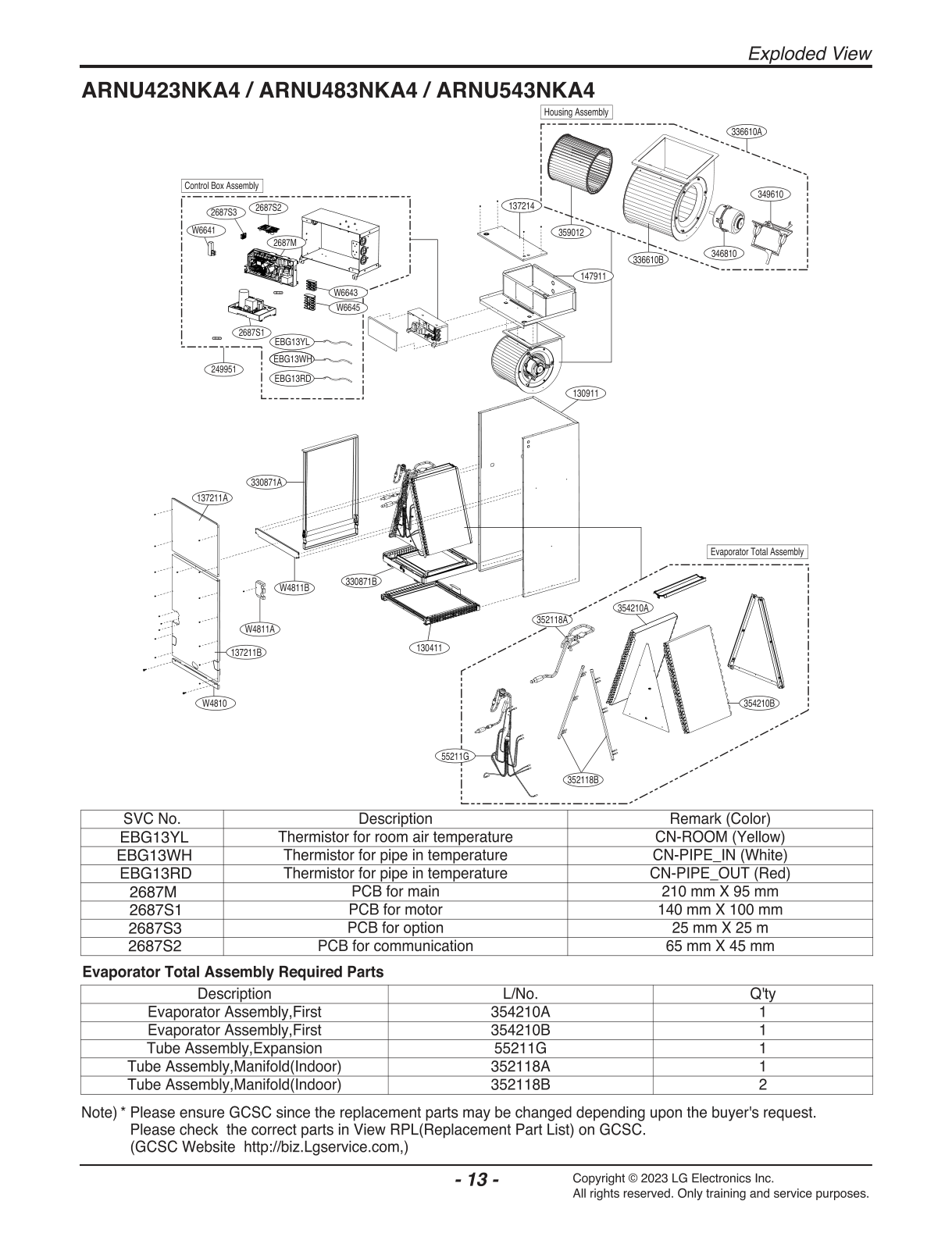

DIAGRAM 1

Print

• This Diagram
• All Diagrams

2687M

PCB Assembly,Main LGE EBR40150701 Contact Us For Availability

View on Model

2687S1

PCB Assembly,Sub Backorder LGE EBR40150801 View Details $160.72

View on Model

2687S2

PCB Assembly,Sub LGE EBR39402701 Contact Us For Availability

View on Model

2687S3

PCB Assembly,Sub LGE EBR77627439 Contact Us For Availability

View on Model

55211G

Tube Assembly,Expansion LGE AJR73323807 Contact Us For Availability

View on Model

130411

Base Assembly,Indoor LGE AAN30001502 Contact Us For Availability

View on Model

130911

Cabinet Assembly,Indoor LGE ABJ73308605 Contact Us For Availability

View on Model

137211A

Panel Assembly,Front(Indoor) Backorder LGE AGL73334001 View Details $256.68

View on Model

137211B

Panel Assembly,Front(Indoor) LGE AGL73334103 Contact Us For Availability

View on Model

137214

Panel Assembly,Upper LGE AGL73333901 Contact Us For Availability

View on Model

147911

Barrier Assembly,Indoor LGE AAM73151302 Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ30227306 Contact Us For Availability

View on Model

330871A

Pan Assembly,Drain LGE AGK73070503 Contact Us For Availability

View on Model

330871B

Pan Assembly,Drain LGE AGK74530402 Contact Us For Availability

View on Model

336610A

Housing Assembly Backorder LGE AEN72991908 View Details $1,001.95

View on Model

336610B

Housing Assembly LGE AEN73131701 Contact Us For Availability

View on Model

346810

Motor Assembly,DC,Indoor Backorder LGE EAU37067119 View Details $375.65

View on Model

349610

Bracket Assembly,Motor(Indoor) LGE 3G00788C Contact Us For Availability

View on Model

352118A

Tube Assembly,Manifold(Indoor) Backorder LGE AJR73324401 View Details $231.49

View on Model

352118B

Tube Assembly,Manifold(Indoor) LGE AJR73324501 Contact Us For Availability

View on Model

354210A

Evaporator Assembly,First LGE ADL73261207 Contact Us For Availability

View on Model

354210B

EVAPORATOR ASSEMBLY,FIRST Backorder LGE ADL73261208 View Details $519.27

View on Model

359012

Fan Assembly,Blower LGE 2A00578M Contact Us For Availability

View on Model

EBG13RD

Thermistor Assembly,NTC Backorder LGE EBG61325811 View Details $30.89

View on Model

EBG13WH

EBG61287713 LG Thermistor Assembly,Ntc Backorder LGE EBG61287713 View Details $30.89

View on Model

EBG13YL

Thermistor Assembly,NTC Backorder LGE EBG61106837 View Details $23.97

View on Model

W4810

Bracket LGE MAZ62851808 Contact Us For Availability

View on Model

W4811A

Bracket Assembly LGE ABA73488301 Contact Us For Availability

View on Model

W4811B

Bracket Assembly LGE ABA73809412 Contact Us For Availability

View on Model

W6641

3H00390B LG Air Conditioner Terminal Block Co Backorder LGE 3H00390B View Details $3.40

View on Model

W6643

Connector,Terminal Block Backorder LGE EAG38884401 View Details $9.50

View on Model

W6645

CONNECTOR,TERMINAL BLOCK Backorder LGE EAG63452301 View Details $23.97

View on Model

×
