Model LG ARNU423NKA2.AMBBLUS Air Conditioners – Common Parts & Diagrams

Common parts from model LG ARNU423NKA2.AMBBLUS Air Conditioners

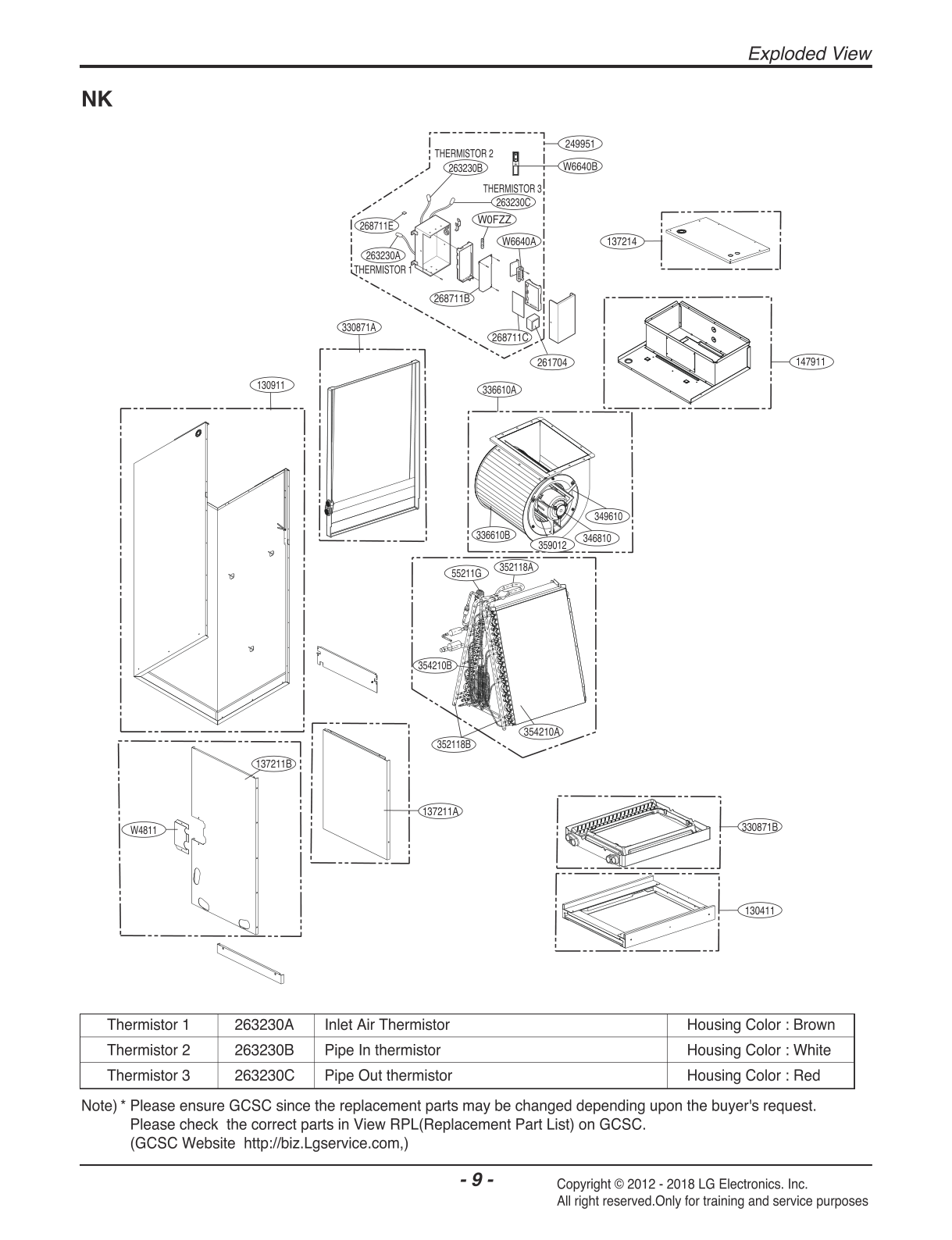

DIAGRAM 1

Print

• This Diagram
• All Diagrams

55211G

Tube Assembly,Expansion LGE AJR73323801 Contact Us For Availability

View on Model

130411

Base Assembly,Indoor LGE AAN30001502 Contact Us For Availability

View on Model

130411

Base Assembly,Indoor LGE AAN73350802 Contact Us For Availability

View on Model

130911

Cabinet Assembly,Indoor LGE ABJ73308602 Contact Us For Availability

View on Model

137211A

Panel Assembly,Front(Indoor) Backorder LGE AGL73334001 View Details $256.68

View on Model

137211B

Panel Assembly,Front(Indoor) LGE AGL73334103 Contact Us For Availability

View on Model

137211B

Panel Assembly,Front(Indoor) LGE AGL73334101 Contact Us For Availability

View on Model

137214

Panel Assembly,Upper LGE AGL73333901 Contact Us For Availability

View on Model

147911

Barrier Assembly,Indoor LGE AAM73151301 Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ59260714 Contact Us For Availability

View on Model

261704

Linear Trans LGE 5874A90003H Contact Us For Availability

View on Model

263230A

Thermistor Assembly,NTC Backorder LGE EBG61106837 View Details $23.97

View on Model

263230A

Thermistor Assembly LGE 6323A20010C Contact Us For Availability

View on Model

263230B

EBG61287713 LG Thermistor Assembly,Ntc Backorder LGE EBG61287713 View Details $30.89

View on Model

263230C

Thermistor Assembly,NTC Backorder LGE EBG61325811 View Details $30.89

View on Model

268711B

EBR66367401 LG Main PCB Assembly Backorder LGE EBR66367401 View Details $282.55

View on Model

268711C

PCB ASSEMBLY,SUB Backorder LGE 6871A20912D View Details $181.30

View on Model

268711E

EBR71210405 LG PCB Sub Assembly Backorder LGE EBR71210405 View Details $13.52

View on Model

330871A

Pan Assembly,Drain LGE AGK73070501 Contact Us For Availability

View on Model

330871B

Pan Assembly,Drain Backorder LGE AGK73070601 View Details $185.10

View on Model

330871B

Pan Assembly,Drain LGE AGK74530402 Contact Us For Availability

View on Model

336610A

Housing Assembly LGE AEN72991902 Contact Us For Availability

View on Model

336610B

Housing Assembly LGE AEN73131701 Contact Us For Availability

View on Model

346810

Motor Assembly,DC,Indoor LGE EAU37067105 Contact Us For Availability

View on Model

349610

Bracket Assembly,Motor(Indoor) LGE 3G00788C Contact Us For Availability

View on Model

352118A

Tube Assembly,Manifold(Indoor) Backorder LGE AJR73324401 View Details $231.49

View on Model

352118B

Tube Assembly,Manifold(Indoor) LGE AJR73324501 Contact Us For Availability

View on Model

354210A

EVAPORATOR ASSEMBLY,FIRST Backorder LGE ADL73261203 View Details $519.27

View on Model

354210A

Evaporator Assembly,First LGE ADL73261201 Contact Us For Availability

View on Model

354210B

EVAPORATOR ASSEMBLY,FIRST Backorder LGE ADL73261204 View Details $519.27

View on Model

354210B

Evaporator Assembly,First LGE ADL73261202 Contact Us For Availability

View on Model

359012

Fan Assembly,Blower LGE 2A00578M Contact Us For Availability

View on Model

W0FZZ

6900AQ9028D LG Time Delay Fuse Backorder LGE 6900AQ9028D View Details $8.99

View on Model

W4811

Bracket Assembly LGE ABA73488301 Contact Us For Availability

View on Model

W6640A

4G00103A LG Connector Terminal Block Backorder LGE 4G00103A View Details $22.29

View on Model

W6640A

Connector,Terminal Block LGE 4G00103G Contact Us For Availability

View on Model

W6640B

3H00390B LG Air Conditioner Terminal Block Co Backorder LGE 3H00390B View Details $3.40

View on Model

×
