Model LG ARNU363TNC4.ANWALUS Air Conditioners – Common Parts & Diagrams

Common parts from model LG ARNU363TNC4.ANWALUS Air Conditioners

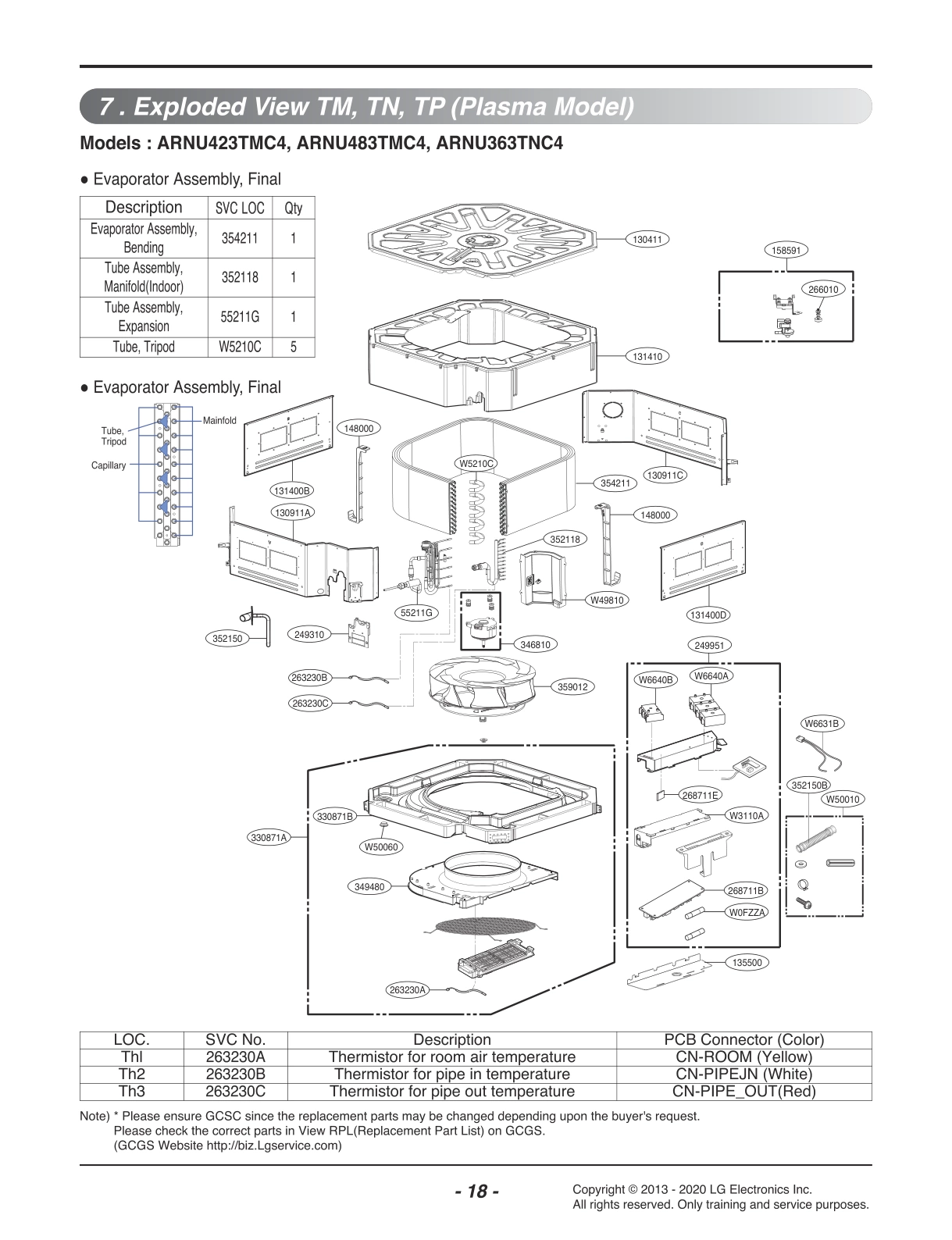

DIAGRAM 1

Print

• This Diagram
• All Diagrams

130911A

Cabinet Assembly,Indoor LGE ABJ32881207 Contact Us For Availability

View on Model

130911C

Cabinet Assembly,Indoor LGE ABJ32881405 Contact Us For Availability

View on Model

131400B

Cabinet LGE MBH36241202 Contact Us For Availability

View on Model

131400D

Cabinet LGE MBH36241402 Contact Us For Availability

View on Model

131410

Cabinet Assembly LGE ABJ74008101 Contact Us For Availability

View on Model

135500

Cover Backorder LGE MCK36239315 View Details $23.97

View on Model

148000

Supporter LGE MJH62939401 Contact Us For Availability

View on Model

158591

AHA32883202 LG Water Pump Assembly Backorder LGE AHA32883202 View Details $181.30

View on Model

249310

Holder Assembly LGE AEJ32882701 Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ74222811 Contact Us For Availability

View on Model

263230A

EBG61106804 LG Thermistor Temperature Sensor Backorder LGE EBG61106804 View Details $13.52

View on Model

263230B

EBG61287707 LG Temperature Sensor Thermistor Backorder LGE EBG61287707 View Details $23.97

View on Model

263230C

EBG61325803 LG Temperature Sensor Thermistor Backorder LGE EBG61325803 View Details $23.97

View on Model

266010

Switch Assembly Backorder LGE 6601A20013L View Details $49.19

View on Model

268711B

PCB Assembly,Main Backorder LGE EBR81221801 View Details $256.68

View on Model

268711B

EBR81221804 LG Main PCB Assembly Backorder LGE EBR81221804 View Details $256.68

View on Model

268711B

PCB Assembly,Main LGE EBR79629507 Contact Us For Availability

View on Model

268711E

PCB Assembly,Sub LGE EBR77057804 Contact Us For Availability

View on Model

330871A

Pan Assembly,Drain LGE AGK73470706 Contact Us For Availability

View on Model

330871B

Pan Assembly,Drain Backorder LGE AGK73430601 View Details $205.43

View on Model

346810

4681A20172Z LG Indoor DC Motor Assembly Backorder LGE 4681A20172Z View Details $438.08

View on Model

349480

Orifice LGE MFX62461901 Contact Us For Availability

View on Model

352118

Tube Assembly,Manifold(Indoor) Backorder LGE AJR74263302 View Details $160.72

View on Model

352150

Hose Assembly,Drain Backorder LGE AEM32883702 View Details $30.89

View on Model

352150B

5251AP2984C LG Drain Hose Assembly Backorder LGE 5251AP2984C View Details $19.42

View on Model

354211

Evaporator Assembly,Bending Backorder LGE ADL73841802 View Details $615.75

View on Model

359012

Fan Assembly,Turbo LGE ADP73573601 Contact Us For Availability

View on Model

W0FZZA

Fuse,Time Delay LGE EAF60673101 Contact Us For Availability

View on Model

W3110A

Case Backorder LGE MBN64409001 View Details $85.18

View on Model

W5210C

Tube,Tripod Backorder LGE MJU62167502 View Details $13.52

View on Model

W6631B

Harness,Single Backorder LGE EAD63468111 View Details $8.99

View on Model

W6640A

Connector,Terminal Block LGE EAG38884446 Contact Us For Availability

View on Model

W6640B

Connector,Terminal Block LGE EAG63452303 Contact Us For Availability

View on Model

W49810

Supporter Assembly LGE AJJ73860502 Contact Us For Availability

View on Model

W50010

Accessory Assembly LGE AAA31075410 Contact Us For Availability

View on Model

W50060

CAP Backorder LGE MBL36236701 View Details $3.00

View on Model

×
