Model LG ARNU363TMAA Multi V_I/D_Cassette – Common Parts & Diagrams

Common parts from model LG ARNU363TMAA Multi V_I/D_Cassette

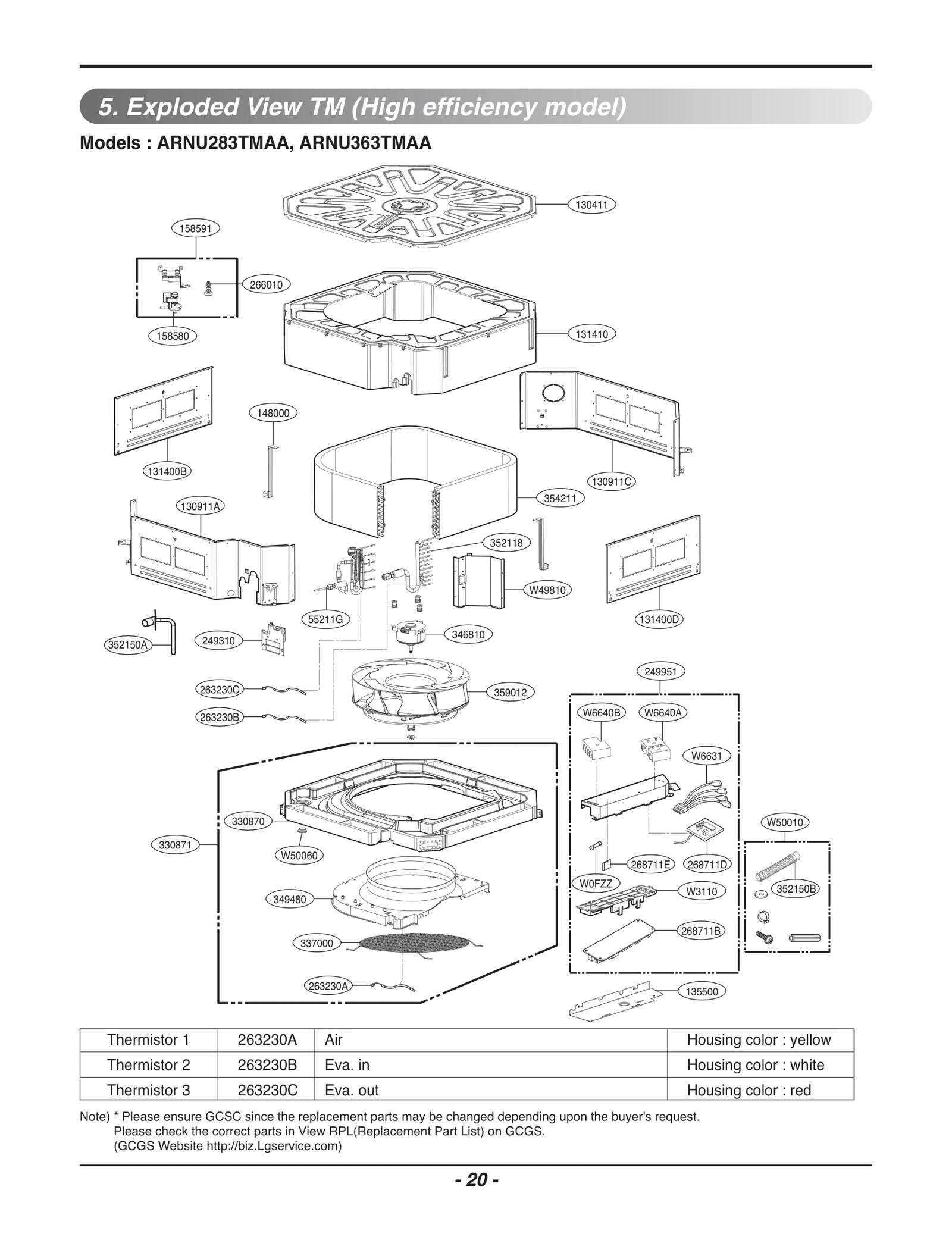

Diagram 0

Print

• This Diagram
• All Diagrams

130911A

Cabinet Assembly,Indoor LGE ABJ31579105 Contact Us For Availability

View on Model

130911C

Cabinet Assembly,Indoor LGE ABJ32882405 Contact Us For Availability

View on Model

131400B

Cabinet LGE MBH33966602 Contact Us For Availability

View on Model

131400D

Cabinet LGE MBH33966802 Contact Us For Availability

View on Model

131410

Cabinet Assembly LGE ABJ32324106 Contact Us For Availability

View on Model

135500

MCK36239315 LG Cover Backorder LGE MCK36239315 View Details $24.37

View on Model

148000

Supporter LGE MJH64495101 Contact Us For Availability

View on Model

158580

Pump,Water LGE MGQ32156401 Contact Us For Availability

View on Model

158591

AHA32883202 LG Water Pump Assembly Backorder LGE AHA32883202 View Details $184.39

View on Model

249310

Holder Assembly LGE AEJ32882701 Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ74440801 Contact Us For Availability

View on Model

263230A

EBG61106804 LG Thermistor Temperature Sensor Backorder LGE EBG61106804 View Details $13.75

View on Model

263230B

EBG61325803 LG Temperature Sensor Thermistor Backorder LGE EBG61325803 View Details $24.37

View on Model

263230C

EBG61287707 LG Temperature Sensor Thermistor Backorder LGE EBG61287707 View Details $24.37

View on Model

266010

Switch Assembly LGE 6601A20013B Contact Us For Availability

View on Model

268711B

PCB Assembly,Main LGE EBR78401707 Contact Us For Availability

View on Model

268711D

6871A20712A LG Power Control Board Assembly Backorder LGE 6871A20712A View Details $163.42

View on Model

268711E

PCB Assembly,Sub LGE EBR77923401 Contact Us For Availability

View on Model

330870

Pan Assembly LGE AGK73130506 Contact Us For Availability

View on Model

330871

Pan Assembly,Drain LGE AGK73050706 Contact Us For Availability

View on Model

337000

Mesh,Metal LGE MFN55272303 Contact Us For Availability

View on Model

346810

4681A20172J LG Motor Assembly,Dc,Indoor Backorder LGE 4681A20172J View Details $216.82

View on Model

346810

Motor Assembly,DC,Indoor LGE 4681A20172A Contact Us For Availability

View on Model

349480

Orifice LGE MFX62141901 Contact Us For Availability

View on Model

352118

Tube Assembly,Menifold(Indoor) LGE AJR36541501 Contact Us For Availability

View on Model

352150A

AEM32883701 LG Drain Hose Assembly Backorder LGE AEM32883701 View Details $31.40

View on Model

352150B

5251AP2984C LG Drain Hose Assembly Backorder LGE 5251AP2984C View Details $19.73

View on Model

354211

ADL32881105 LG Evaporator Bending Assembly Backorder LGE ADL32881105 View Details $424.70

View on Model

359012

Fan Assembly,Turbo LGE ADP73573601 Contact Us For Availability

View on Model

W0FZZ

Fuse,Time Delay LGE EAF60673101 Contact Us For Availability

View on Model

W3110

Case LGE MBN36239701 Contact Us For Availability

View on Model

W6631

Harness,Multi LGE 6877A20210V Contact Us For Availability

View on Model

W6640A

6640000036T LG Terminal Block Connector Backorder LGE 6640000036T View Details $31.40

View on Model

W6640B

Connector,Terminal Block LGE EAG38884441 Contact Us For Availability

View on Model

W49810

Supporter Assembly LGE AJJ73018301 Contact Us For Availability

View on Model

W50010

Accessory Assembly LGE AAA31075410 Contact Us For Availability

View on Model

W50060

Cap LGE MBL64919401 Contact Us For Availability

View on Model

×
