Model LG ARNU363NJA4.AMBBLUS Air Conditioners – Common Parts & Diagrams

Common parts from model LG ARNU363NJA4.AMBBLUS Air Conditioners

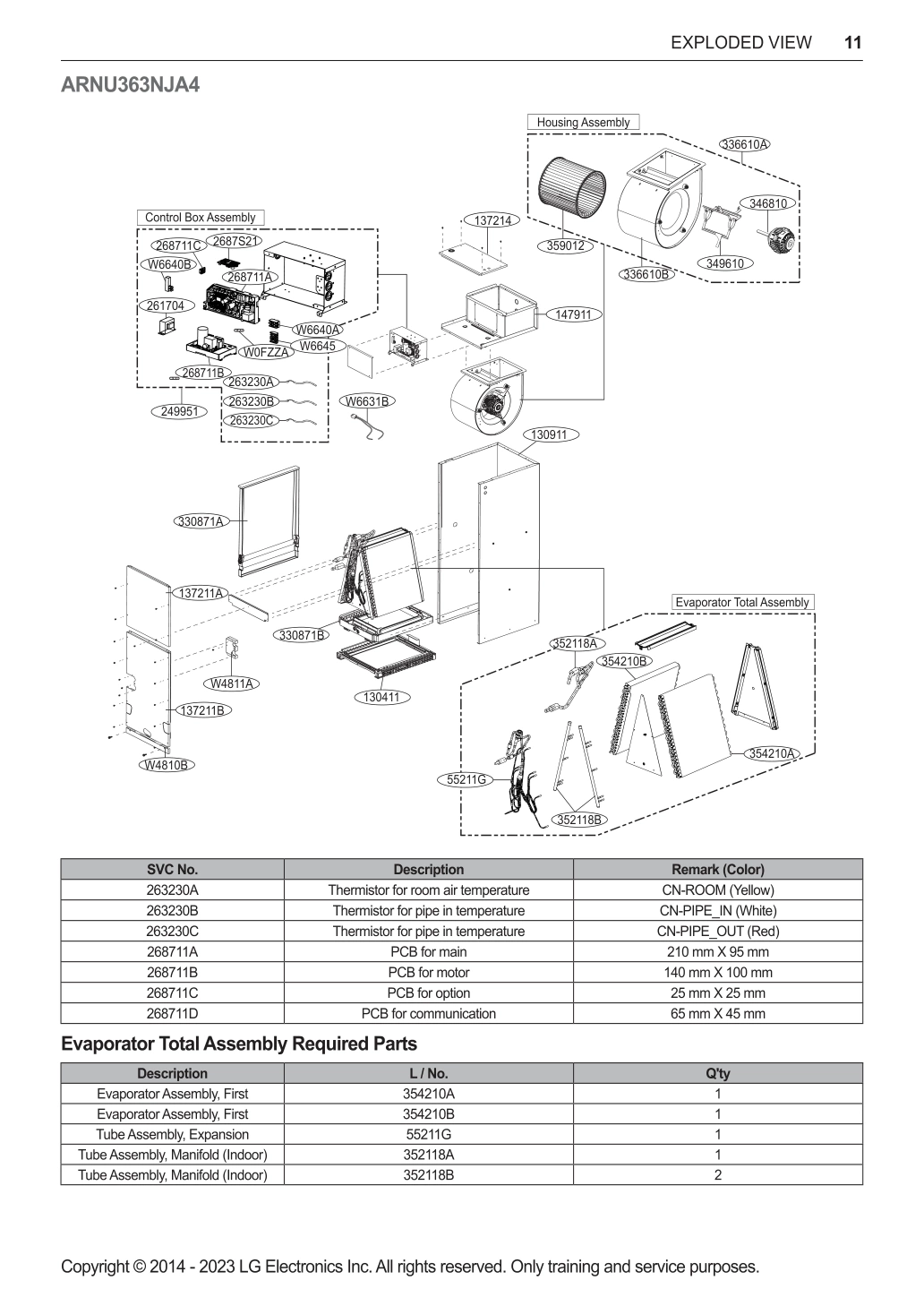

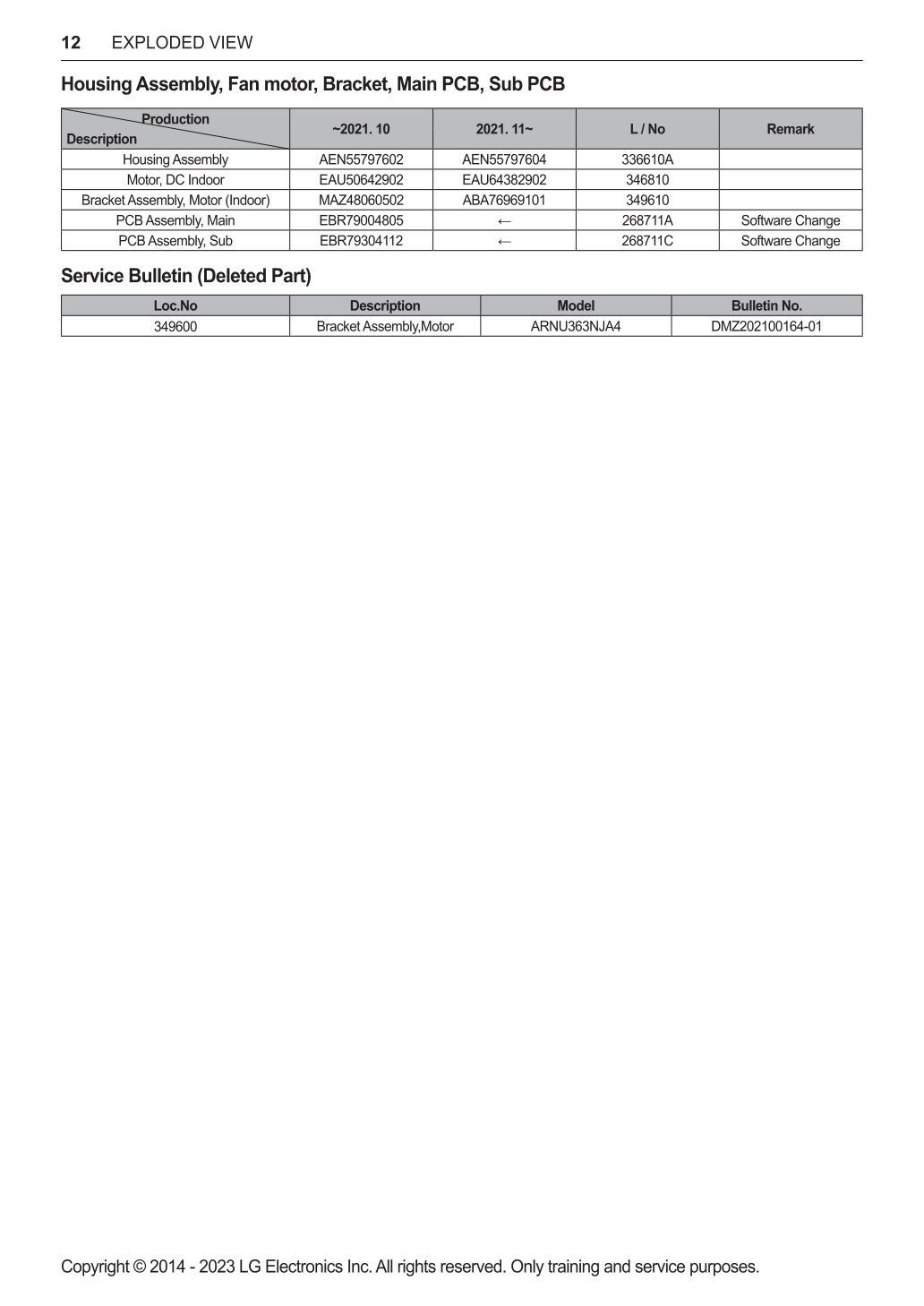

DIAGRAM 1

Print

• This Diagram
• All Diagrams

2687S21

EBR80820305 LG PCB Sub Assembly Backorder LGE EBR80820305 View Details $159.35

View on Model

55211G

Tube Assembly,Expansion LGE AJR73363201 Contact Us For Availability

View on Model

130411

Base Assembly,Indoor LGE AAN30001501 Contact Us For Availability

View on Model

130411

Base Assembly,Indoor LGE AAN73350805 Contact Us For Availability

View on Model

130911

Cabinet Assembly,Indoor LGE ABJ73227109 Contact Us For Availability

View on Model

137211A

Panel Assembly,Front(Indoor) LGE AGL73252603 Contact Us For Availability

View on Model

137211B

Panel Assembly,Front(Indoor) LGE AGL73252701 Contact Us For Availability

View on Model

137211B

Panel Assembly,Front(Indoor) LGE AGL73252704 Contact Us For Availability

View on Model

137214

Panel Assembly,Upper LGE AGL73252803 Contact Us For Availability

View on Model

147911

Barrier Assembly,Indoor LGE AAM73111204 Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ59260727 Contact Us For Availability

View on Model

261704

Transformer,Reactor LGE 5874FR2112F Contact Us For Availability

View on Model

263230A

Thermistor Assembly,NTC LGE EBG61106837 Contact Us For Availability

View on Model

263230B

Thermistor Assembly,NTC LGE EBG61287713 Contact Us For Availability

View on Model

263230C

Thermistor Assembly,NTC LGE EBG61325811 Contact Us For Availability

View on Model

268711A

PCB Assembly,Main LGE EBR79004805 Contact Us For Availability

View on Model

268711B

PCB Assembly,Sub LGE EBR72059611 Contact Us For Availability

View on Model

268711C

PCB Assembly,Sub LGE EBR79304112 Contact Us For Availability

View on Model

330871A

Pan Assembly,Drain LGE AGK73050503 Contact Us For Availability

View on Model

330871B

Pan Assembly,Drain LGE AGK73050602 Contact Us For Availability

View on Model

330871B

Pan Assembly,Drain LGE AGK74530401 Contact Us For Availability

View on Model

336610A

Housing Assembly LGE AEN55797604 Contact Us For Availability

View on Model

336610B

Housing Assembly LGE 3661AP1139L Contact Us For Availability

View on Model

346810

Motor Assembly,DC,Indoor LGE EAU64382902 Contact Us For Availability

View on Model

349600

Bracket Assembly,Motor(Indoor) LGE ABA76969101 Contact Us For Availability

View on Model

352118A

AJR73327001 LG Indoor Manifold Tube Assembly Backorder LGE AJR73327001 View Details $159.35

View on Model

352118B

Tube Assembly,Manifold(Indoor) LGE AJR73342801 Contact Us For Availability

View on Model

354210A

ADL73180901 LG Evaporator Assembly Backorder LGE ADL73180901 View Details $381.16

View on Model

354210B

ADL73180902 LG Evaporator Assembly Backorder LGE ADL73180902 View Details $381.16

View on Model

359012

Fan Assembly,Blower LGE 2A00578F Contact Us For Availability

View on Model

W0FZZA

6900AQ9028D LG Time Delay Fuse Backorder LGE 6900AQ9028D View Details $7.81

View on Model

W4810B

MAZ62607820 LG Bracket Backorder LGE MAZ62607820 View Details $51.37

View on Model

W4811A

Bracket Assembly LGE ABA73488301 Contact Us For Availability

View on Model

W6631B

Harness,Single LGE EAD63468111 Contact Us For Availability

View on Model

W6640A

Connector,Terminal Block LGE EAG38884446 Contact Us For Availability

View on Model

W6640B

3H00390B LG Air Conditioner Terminal Block Co Backorder LGE 3H00390B View Details $2.95

View on Model

W6645

Connector,Terminal Block LGE EAG63452301 Contact Us For Availability

View on Model

×
