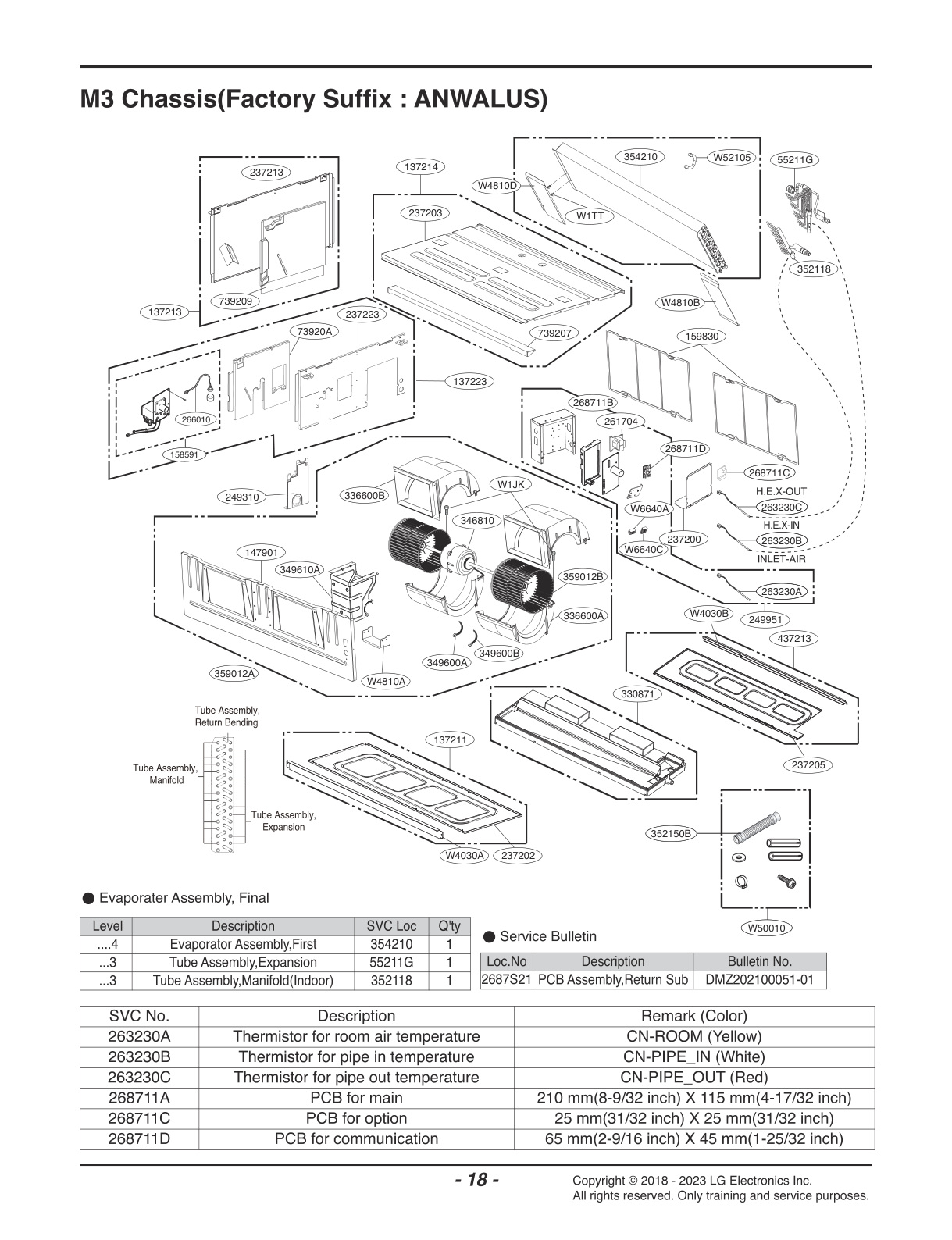

Model LG ARNU283M3A4.ANWALUS Air Conditioners – Common Parts & Diagrams

73920A
Packing,Right
Packing,Right LGE MFZ63776902 Contact Us For Availability
View on Model
137213
Panel Assembly,Side
Panel Assembly,Side LGE AGL74256804 Contact Us For Availability
View on Model
137214
Panel Assembly,Upper
Panel Assembly,Upper LGE AGL30099001 Contact Us For Availability
View on Model
137223
Panel Assembly,Side
Panel Assembly,Side LGE AGL74256832 Contact Us For Availability
View on Model
147901
Barrier,Indoor
Barrier,Indoor LGE MAL62683903 Contact Us For Availability
View on Model
237200
Panel,Control
Panel,Control LGE MGC66161701 Contact Us For Availability
View on Model
237202
Panel,Front
Panel,Front LGE MGC63182103 Contact Us For Availability
View on Model
237203
Panel,Upper
Panel,Upper LGE MGC66391301 Contact Us For Availability
View on Model
237205
Panel,Rear
Panel,Rear LGE MGC63182205 Contact Us For Availability
View on Model
237213
Panel,Side
Panel,Side LGE MGC63184504 Contact Us For Availability
View on Model
237223
Panel,Side
Panel,Side LGE MGC63184522 Contact Us For Availability
View on Model
249310
Holder Assembly
Holder Assembly LGE AEJ76299601 Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE ABQ30215613 Contact Us For Availability
View on Model
268711C
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR80296233 Contact Us For Availability
View on Model
336600A
Housing,Wrapper
Housing,Wrapper LGE MEK62786901 Contact Us For Availability
View on Model
336600A
Housing,Wrapper
Housing,Wrapper LGE MEK62786904 Contact Us For Availability
View on Model
336600A
Housing,Wrapper
Housing,Wrapper LGE MEK62786903 Contact Us For Availability
View on Model
336600B
Housing,Wrapper
Housing,Wrapper LGE MEK62786801 Contact Us For Availability
View on Model
336600B
Housing,Wrapper
Housing,Wrapper LGE MEK62786804 Contact Us For Availability
View on Model
336600B
Housing,Wrapper
Housing,Wrapper LGE MEK62786803 Contact Us For Availability
View on Model
349600A
Bracket,Motor
Bracket,Motor LGE MAZ67558701 Contact Us For Availability
View on Model
349600B
Bracket,Motor
Bracket,Motor LGE MAZ67559302 Contact Us For Availability
View on Model
352118
Tube Assembly,Manifold(Indoor)
Tube Assembly,Manifold(Indoor) LGE AJR74466308 Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE ADL74001018 Contact Us For Availability
View on Model
359012A
Fan Assembly,Final
Fan Assembly,Final LGE ADP73813520 Contact Us For Availability
View on Model
437213
Panel Assembly,Rear(Indoor)
Panel Assembly,Rear(Indoor) LGE AGL74235008 Contact Us For Availability
View on Model
739207
Packing,Upper
Packing,Upper LGE MFZ63776803 Contact Us For Availability
View on Model
739209
Packing,Left
Packing,Left LGE MFZ63777002 Contact Us For Availability
View on Model
W4030A
Flange
Flange LGE MDM61941201 Contact Us For Availability
View on Model
W4030B
Flange
Flange LGE MDM61941301 Contact Us For Availability
View on Model
W4810A
Bracket
Bracket LGE MAZ64043906 Contact Us For Availability
View on Model
W4810A
Bracket
Bracket LGE MAZ64043902 Contact Us For Availability
View on Model
W4810B
Bracket
Bracket LGE MAZ63847920 Contact Us For Availability
View on Model
W4810D
Bracket
Bracket LGE MAZ67085701 Contact Us For Availability
View on Model
W6640A
Connector,Terminal Block
Connector,Terminal Block LGE EAG38884445 Contact Us For Availability
View on Model
W52105
Tube,Return Bending
Tube,Return Bending LGE 5210AR4124G Contact Us For Availability
View on Model
