Model LG ARNU243SKS4 Multi V_I/D_Wall Mounted – Common Parts & Diagrams

Common parts from model LG ARNU243SKS4 Multi V_I/D_Wall Mounted

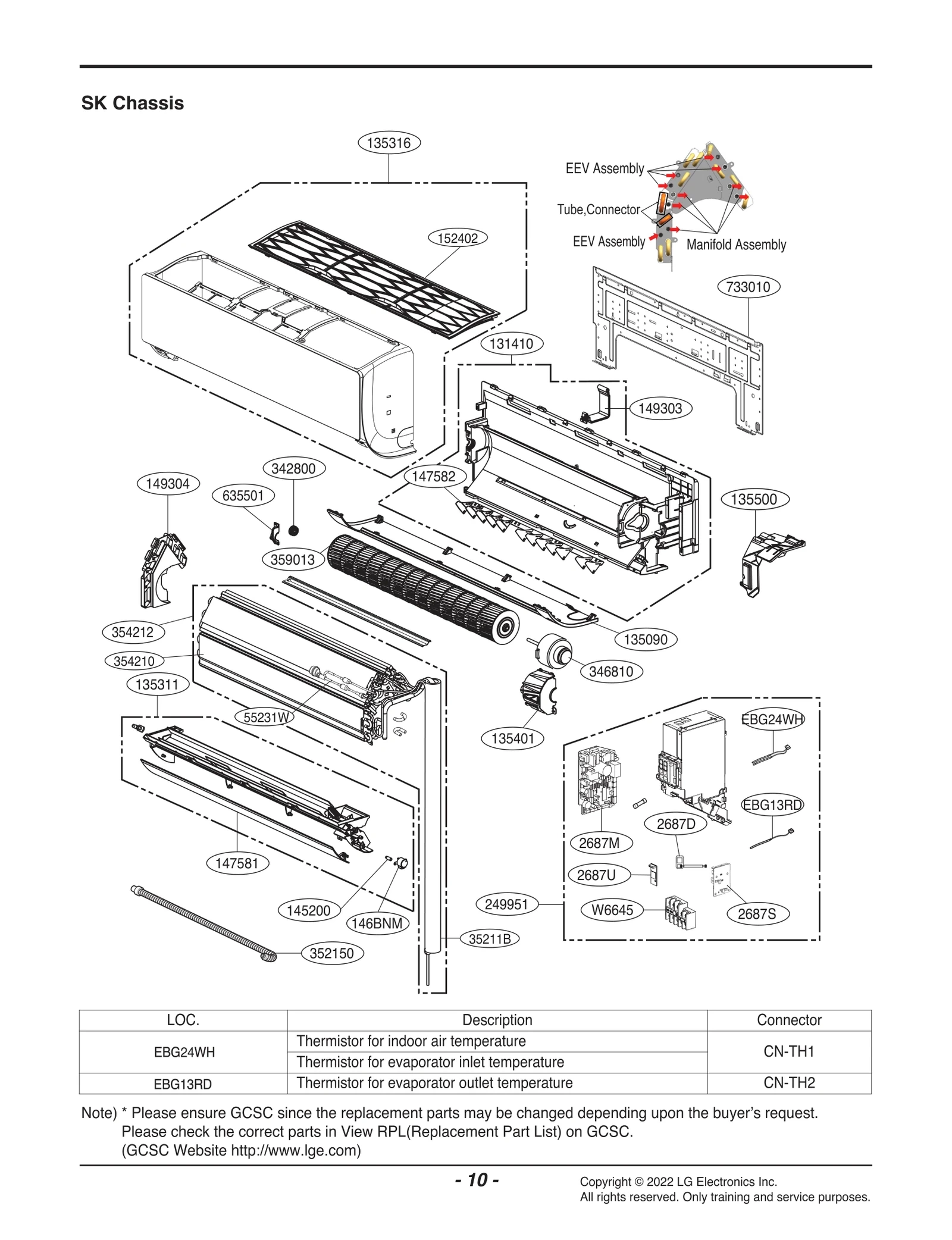

Diagram 0

Print

• This Diagram
• All Diagrams

2687M

PCB Assembly,Main LGE EBR39013301 Contact Us For Availability

View on Model

2687S

PCB Assembly,Sub LGE EBR39402701 Contact Us For Availability

View on Model

2687U

EBR32418501 LG Pcb Assembly,Wifi Backorder LGE EBR32418501 View Details $44.94

View on Model

35211B

Tube Assembly,Tubing Backorder LGE AJR76022301 View Details $492.45

View on Model

35211B

Tube Assembly,Tubing LGE AJR76022308 Contact Us For Availability

View on Model

55231W

Valve Assembly Backorder LGE AJU32452014 View Details $256.68

View on Model

131410

ABW74032603 LG Chassis Assembly Backorder LGE ABW74032603 View Details $81.20

View on Model

135090

Decor Assembly Backorder LGE ACW76637702 View Details $58.41

View on Model

135090

Decor Assembly LGE ACW75497622 Contact Us For Availability

View on Model

135311

AEB74384557 LG Indoor Discharge Grille Assemb Backorder LGE AEB74384557 View Details $98.48

View on Model

135316

Grille Assembly,Front(Indoor) LGE AEB75744919 Contact Us For Availability

View on Model

135401

MCK68484803 LG Cover Backorder LGE MCK68484803 View Details $7.98

View on Model

135401

Cover LGE MCK68484810 Contact Us For Availability

View on Model

135500

MCK69546601 LG Cover Backorder LGE MCK69546601 View Details $14.15

View on Model

135500

Cover LGE MCK69546612 Contact Us For Availability

View on Model

145200

MFF60198910 LG Link Backorder LGE MFF60198910 View Details $3.40

View on Model

147581

MFH62983601 LG Horizontal Louver Backorder LGE MFH62983601 View Details $26.57

View on Model

147582

Louver,Vertical LGE MFH63063603 Contact Us For Availability

View on Model

149303

MEG56994610 LG Tubing Holder Backorder LGE MEG56994610 View Details $3.40

View on Model

149303

Holder,Tubing LGE MEG56994618 Contact Us For Availability

View on Model

149304

Holder,Evaporator Backorder LGE MEG64118609 View Details $7.98

View on Model

152402

MDJ64344607 LG Air Filter Backorder LGE MDJ64344607 View Details $45.05

View on Model

152402

Filter,Air Backorder LGE MDJ64344618 View Details $26.57

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ30201007 Contact Us For Availability

View on Model

342800

Bearing Backorder LGE MAP64313505 View Details $5.27

View on Model

346810

EAU62543502 LG Indoor DC Motor Assembly Backorder LGE EAU62543502 View Details $200.46

View on Model

352150

AEM73493417 LG Assembly Drain Hose Backorder LGE AEM73493417 View Details $10.91

View on Model

352150

Hose Assembly,Drain LGE AEM73493425 Contact Us For Availability

View on Model

354210

Evaporator Assembly,First Backorder LGE ADL74761211 View Details $417.58

View on Model

354210

Evaporator Assembly,First LGE ADL74761264 Contact Us For Availability

View on Model

354212

Evaporator Assembly,Final Backorder LGE ADL74741195 View Details $459.40

View on Model

359013

ADP73513403 LG Fan Cross Flow Assembly Backorder LGE ADP73513403 View Details $55.80

View on Model

359013

Fan Assembly,Cross Flow Backorder LGE ADP73513409 View Details $45.05

View on Model

635501

MCK67886605 LG Bearing Cover Backorder LGE MCK67886605 View Details $3.40

View on Model

733010

AGU65884502 LG Installation Plate Assembly Backorder LGE AGU65884502 View Details $39.47

View on Model

733010

Plate Assembly,Installation LGE AGU76189201 Contact Us For Availability

View on Model

EBG13RD

EBG61325801 LG Temperature Sensor Assembly Th Backorder LGE EBG61325801 View Details $12.28

View on Model

EBG24WH

EBG61108913 LG Thermistor Assembly,Ntc Backorder LGE EBG61108913 View Details $37.90

View on Model

W6645

Connector,Terminal Block Backorder LGE EAG38884403 View Details $12.28

View on Model

×
