Model LG ARNU243CFU4.ANWALUS Air Conditioners – Common Parts & Diagrams

Common parts from model LG ARNU243CFU4.ANWALUS Air Conditioners

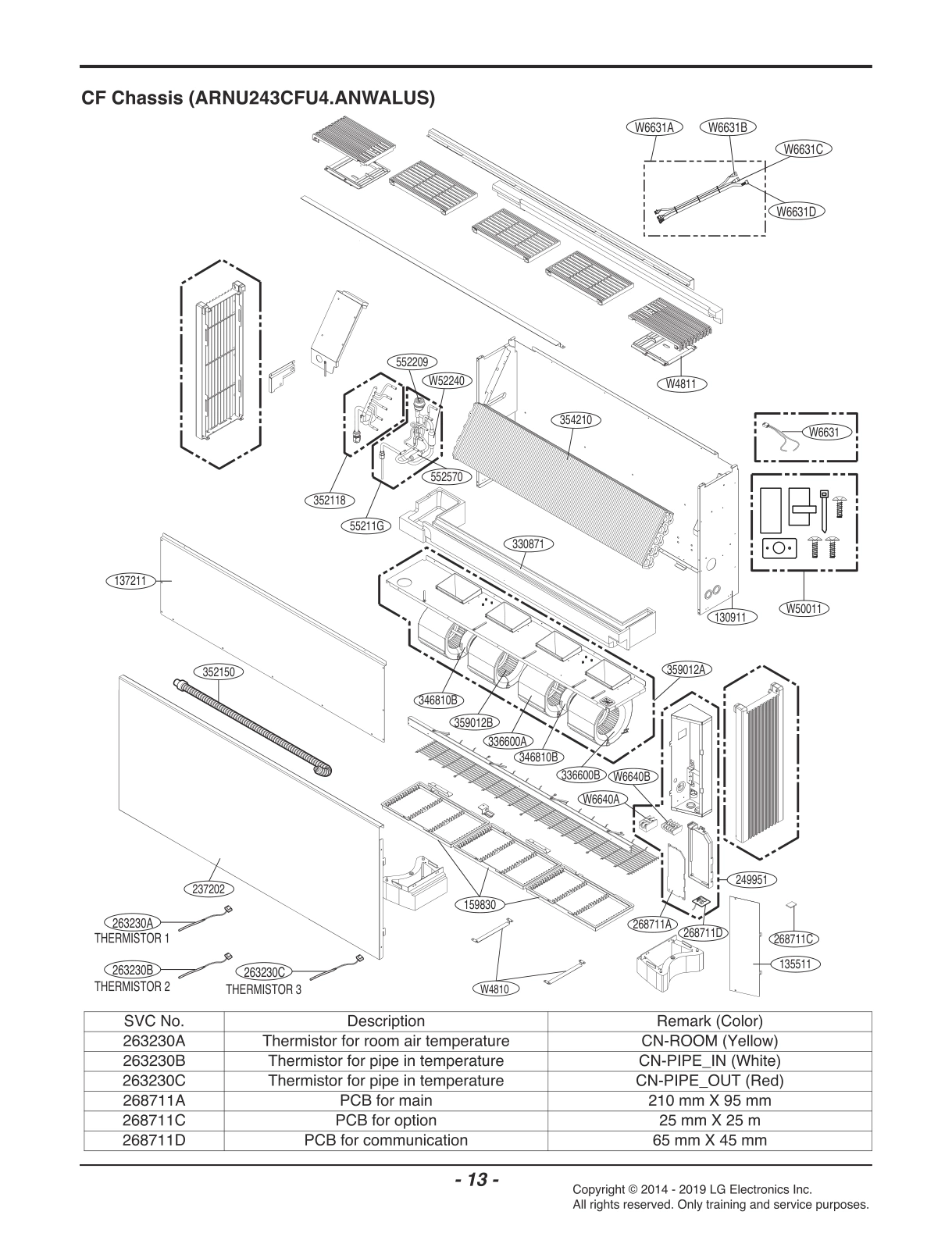

DIAGRAM 1

Print

• This Diagram
• All Diagrams

135511

Cover Assembly,Control(Indoor) LGE ACQ30632501 Contact Us For Availability

View on Model

137211

Panel Assembly,Front(Indoor) LGE AGL30307801 Contact Us For Availability

View on Model

159830

Filter Assembly,Air Cleaner Backorder LGE 5231A20053B View Details $75.86

View on Model

237202

Panel,Front LGE MGC30240501 Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) Backorder LGE ABQ59261506 View Details $492.45

View on Model

263230A

Thermistor Assembly,NTC Backorder LGE EBG61106819 View Details $18.59

View on Model

263230B

EBG61287708 LG Thermistor Temperature Sensor In Stock LGE EBG61287708 View Details $23.97

View on Model

263230C

EBG61325801 LG Temperature Sensor Assembly Th Backorder LGE EBG61325801 View Details $12.28

View on Model

268711A

PCB Assembly,Main LGE EBR79004803 Contact Us For Availability

View on Model

268711C

PCB Assembly,Sub LGE EBR79304109 Contact Us For Availability

View on Model

330871

Pan Assembly,Drain LGE AGK30348204 Contact Us For Availability

View on Model

336600A

Housing,Wrapper LGE 3660A20059A Contact Us For Availability

View on Model

336600B

Housing,Wrapper LGE 3660A20060A Contact Us For Availability

View on Model

346810B

4681A20198G LG Indoor DC Motor Assembly Backorder LGE 4681A20198G View Details $231.49

View on Model

352118

Tube Assembly,Manifold(Indoor) LGE AJR30072402 Contact Us For Availability

View on Model

352150

AEM36740101 LG Drain Hose Assembly Backorder LGE AEM36740101 View Details $10.91

View on Model

354210

Evaporator Assembly,First LGE 5421A20280C Contact Us For Availability

View on Model

359012A

Fan Assembly,Final LGE 5901A20057G Contact Us For Availability

View on Model

359012B

Fan Assembly,Blower LGE 5901A20049A Contact Us For Availability

View on Model

552209

AJU36719710 LG Valve Assembly Backorder LGE AJU36719710 View Details $256.68

View on Model

552570

Muffler Assembly LGE 5257A20010A Contact Us For Availability

View on Model

W4810

Bracket Backorder LGE MAZ30584602 View Details $30.89

View on Model

W4811

Bracket Assembly LGE ABA30578901 Contact Us For Availability

View on Model

W6631

Harness,Single Backorder LGE EAD63468111 View Details $8.99

View on Model

W6631A

Harness,Single LGE EAD63145702 Contact Us For Availability

View on Model

W6631B

Harness,Single LGE EAD63146602 Contact Us For Availability

View on Model

W6631C

Harness,Single LGE 6631A30122N Contact Us For Availability

View on Model

W6631D

Harness,Single LGE 6631A30122R Contact Us For Availability

View on Model

W6640A

Connector,Terminal Block Backorder LGE EAG38884408 View Details $13.52

View on Model

W6640B

CONNECTOR,TERMINAL BLOCK Backorder LGE EAG63452301 View Details $23.97

View on Model

W50011

Accessory Assembly,Indoor LGE AAA71414201 Contact Us For Availability

View on Model

W52240

Strainer LGE 3H03659N Contact Us For Availability

View on Model

×
