Model LG ARNU183TMC2.ANWALUS Split rooftop dedicated outdoor air system (DOAS) – Common Parts & Diagrams

Common parts from model LG ARNU183TMC2.ANWALUS Split rooftop dedicated outdoor air system (DOAS)

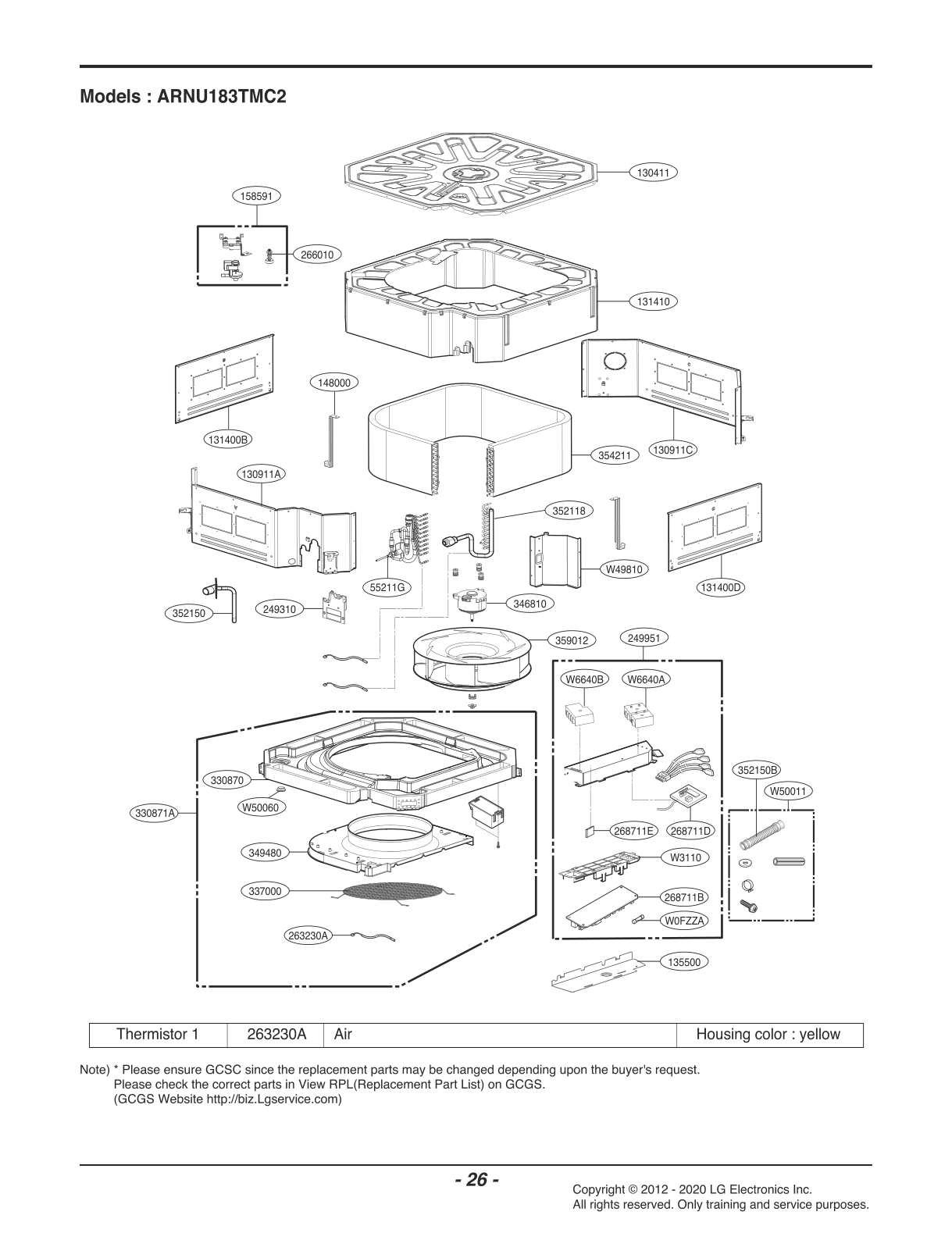

DIAGRAM 1

Print

• This Diagram
• All Diagrams

130411

Base Assembly,Indoor LGE AAN31579001 Contact Us For Availability

View on Model

130911A

Cabinet Assembly,Indoor LGE ABJ31579105 Contact Us For Availability

View on Model

130911C

Cabinet Assembly,Indoor LGE ABJ32882405 Contact Us For Availability

View on Model

131400B

Cabinet LGE MBH33966802 Contact Us For Availability

View on Model

131400D

Cabinet LGE MBH33966602 Contact Us For Availability

View on Model

131410

Cabinet Assembly LGE ABJ32324101 Contact Us For Availability

View on Model

135500

Cover LGE MCK36239315 Contact Us For Availability

View on Model

148000

Supporter LGE MJH62281901 Contact Us For Availability

View on Model

158591

AHA32883202 LG Water Pump Assembly Backorder LGE AHA32883202 View Details $159.35

View on Model

249310

Holder Assembly LGE AEJ32882701 Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ59260009 Contact Us For Availability

View on Model

263230A

EBG61106804 LG Thermistor Temperature Sensor Backorder LGE EBG61106804 View Details $11.75

View on Model

266010

Switch Assembly LGE 6601A20013L Contact Us For Availability

View on Model

268711B

PCB Assembly,Main LGE EBR78401707 Contact Us For Availability

View on Model

268711D

6871A20712A LG Power Control Board Assembly Backorder LGE 6871A20712A View Details $139.78

View on Model

268711E

PCB Assembly,Sub LGE EBR74406004 Contact Us For Availability

View on Model

330870

Pan Assembly LGE AGK73130507 Contact Us For Availability

View on Model

330871A

Pan Assembly,Drain LGE AGK32882917 Contact Us For Availability

View on Model

337000

Mesh,Metal LGE MFN55272301 Contact Us For Availability

View on Model

346810

Motor Assembly,DC,Indoor LGE 4681A20172A Contact Us For Availability

View on Model

346810

Motor Assembly,DC,Indoor LGE 4681A20172J Contact Us For Availability

View on Model

349480

Orifice LGE MFX36238601 Contact Us For Availability

View on Model

352118

Tube Assembly,Manifold(Indoor) LGE AJR36541501 Contact Us For Availability

View on Model

352150

Hose Assembly,Drain LGE AEM32883701 Contact Us For Availability

View on Model

352150B

5251AP2984C LG Drain Hose Assembly Backorder LGE 5251AP2984C View Details $19.80

View on Model

354211

Evaporator Assembly,Bending LGE ADL32881101 Contact Us For Availability

View on Model

359012

Fan Assembly,Turbo LGE ADP32236101 Contact Us For Availability

View on Model

W0FZZA

Fuse,Time Delay LGE EAF60673101 Contact Us For Availability

View on Model

W3110

Case LGE MBN36239701 Contact Us For Availability

View on Model

W6640A

Connector,Terminal Block LGE EAG38884401 Contact Us For Availability

View on Model

W6640B

6640000036A LG Terminal Block Connector Backorder LGE 6640000036A View Details $12.32

View on Model

W49810

Supporter Assembly LGE AJJ73239001 Contact Us For Availability

View on Model

W50011

Accessory Assembly LGE AAA31075410 Contact Us For Availability

View on Model

W50060

Cap LGE MBL36236701 Contact Us For Availability

View on Model

×
