Model LG ARNU183TLC2.ANWALUS Air Conditioners – Common Parts & Diagrams

Common parts from model LG ARNU183TLC2.ANWALUS Air Conditioners

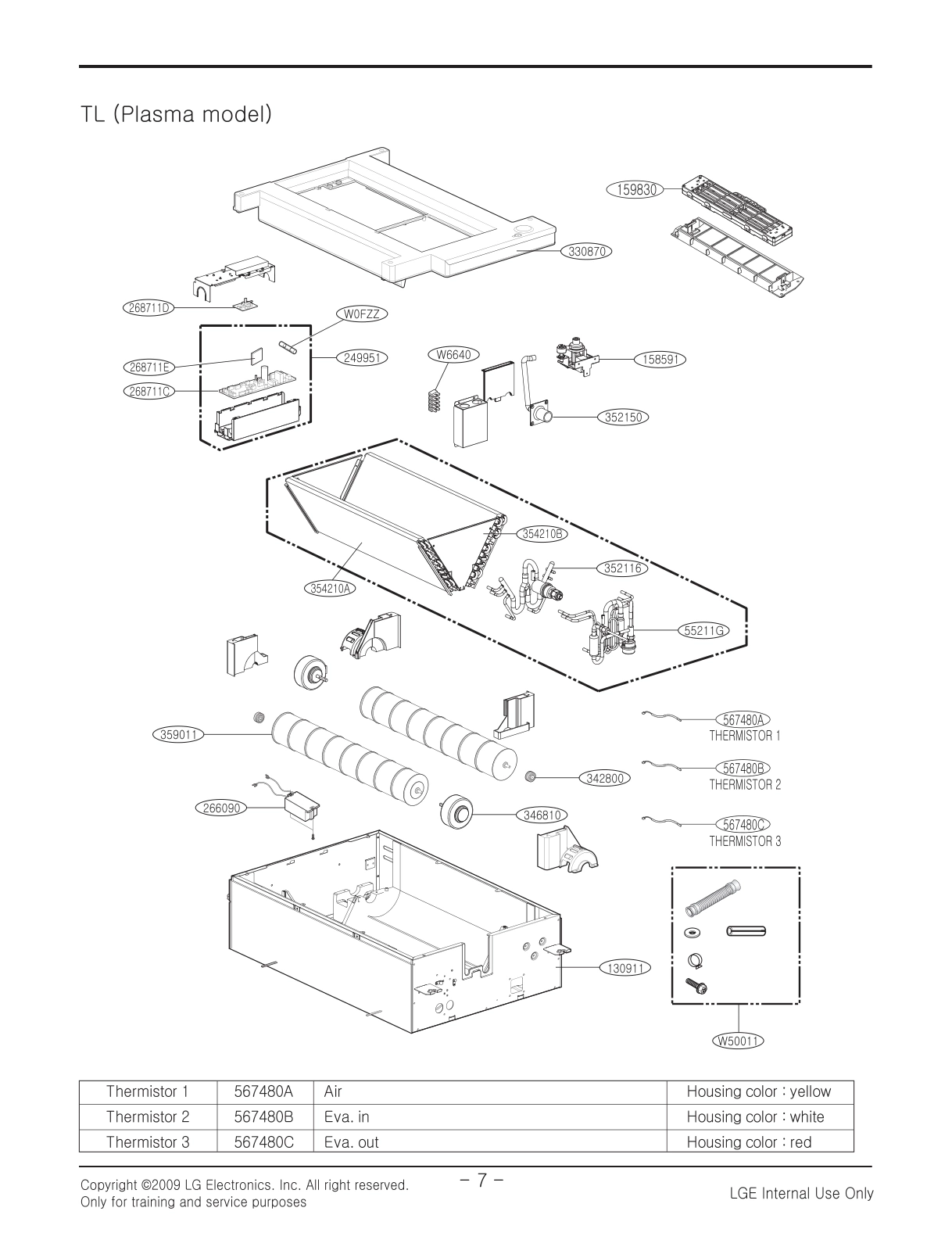

DIAGRAM 1

Print

• This Diagram
• All Diagrams

158591

Pump Assembly,Water LGE 5859A20005B Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ30161711 Contact Us For Availability

View on Model

268711C

PCB Assembly,Main LGE EBR39187717 Contact Us For Availability

View on Model

268711E

PCB Assembly,Sub LGE EBR57705312 Contact Us For Availability

View on Model

342800

4280A20004M LG Air Conditioner Blower Wheel H In Stock LGE 4280A20004M View Details $5.27

View on Model

346810

EAU62004010 LG Air Conditioner Indoor Motor A In Stock LGE EAU62004010 View Details $231.49

View on Model

346810

Motor,DC LGE 4681A20091K Contact Us For Availability

View on Model

346810

Motor,DC LGE 4681A20091V Contact Us For Availability

View on Model

352116

Tube Assembly,Evaporator(Out) LGE 5211A21725F Contact Us For Availability

View on Model

354210A

Evaporator Assembly,First LGE 5421A20269C Contact Us For Availability

View on Model

354210B

Evaporator Assembly,First LGE 5421A20269D Contact Us For Availability

View on Model

359011

5901AR6141D LG Cross Flow Fan Assembly Backorder LGE 5901AR6141D View Details $45.05

View on Model

359011

Fan Assembly,Cross Flow LGE 5901AR6141A Contact Us For Availability

View on Model

W6640

6640000036A LG Terminal Block Connector Backorder LGE 6640000036A View Details $14.15

View on Model

×
