Model LG ARNU123NJA4.AMBHLUS Air Conditioners – Common Parts & Diagrams

Common parts from model LG ARNU123NJA4.AMBHLUS Air Conditioners

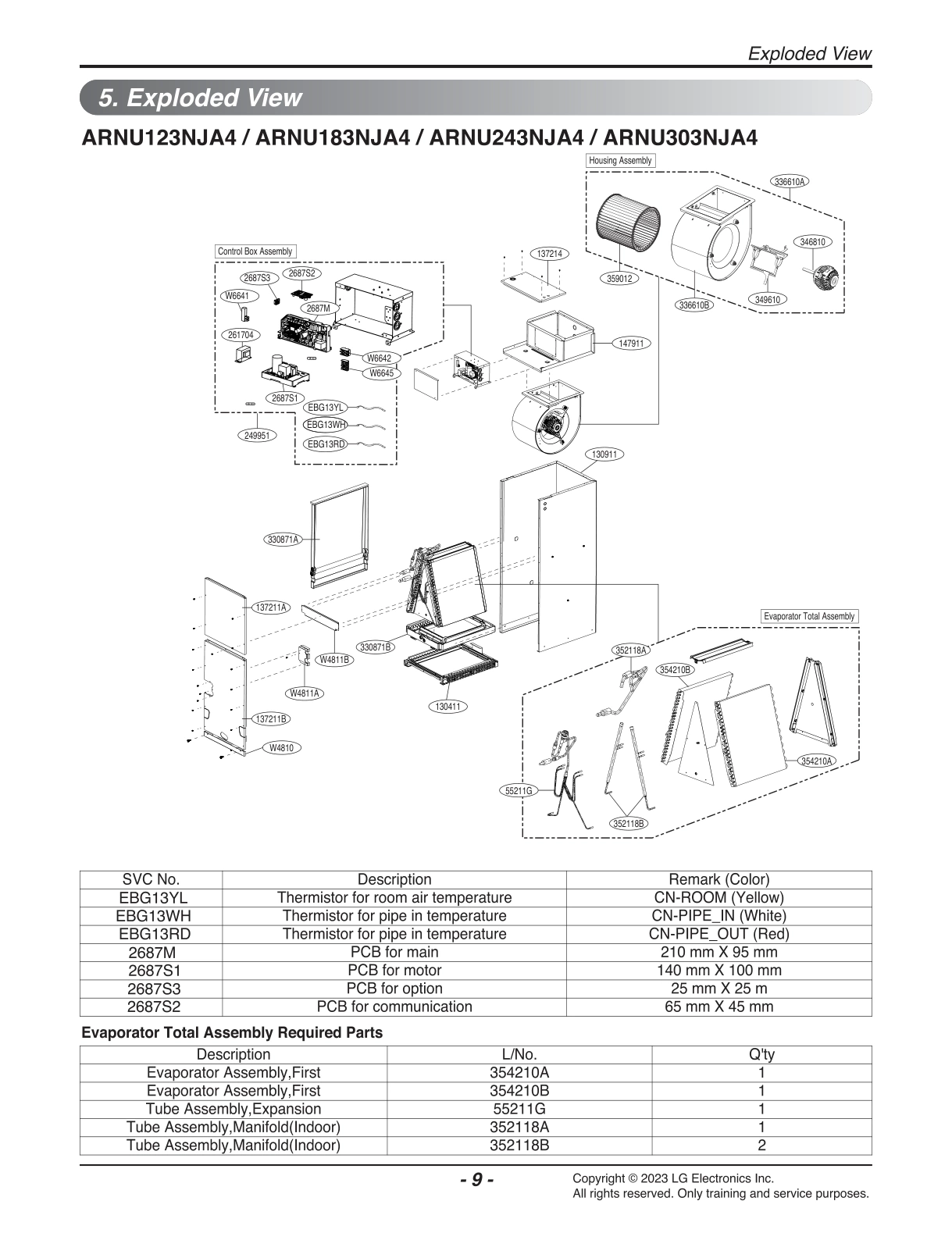

DIAGRAM 1

Print

• This Diagram
• All Diagrams

2687M

PCB Assembly,Main LGE EBR40150701 Contact Us For Availability

View on Model

2687S1

PCB Assembly,Sub LGE EBR40150801 Contact Us For Availability

View on Model

2687S2

PCB Assembly,Sub LGE EBR39402701 Contact Us For Availability

View on Model

2687S3

PCB Assembly,Sub LGE EBR77627434 Contact Us For Availability

View on Model

55211G

AJR73364401 LG Expansion Tube Assembly Backorder LGE AJR73364401 View Details $417.58

View on Model

130411

Base Assembly,Indoor LGE AAN30001501 Contact Us For Availability

View on Model

130911

Cabinet Assembly,Indoor LGE ABJ73227108 Contact Us For Availability

View on Model

137211A

Panel Assembly,Front(Indoor) LGE AGL73252603 Contact Us For Availability

View on Model

137211B

Panel Assembly,Front(Indoor) LGE AGL73252704 Contact Us For Availability

View on Model

137214

Panel Assembly,Upper LGE AGL73252803 Contact Us For Availability

View on Model

147911

Barrier Assembly,Indoor LGE AAM73111204 Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ30227301 Contact Us For Availability

View on Model

261704

Transformer,Reactor LGE 5874FR2112F Contact Us For Availability

View on Model

330871A

Pan Assembly,Drain LGE AGK73050503 Contact Us For Availability

View on Model

330871B

Pan Assembly,Drain LGE AGK74530401 Contact Us For Availability

View on Model

336610A

Housing Assembly LGE AEN55797604 Contact Us For Availability

View on Model

336610B

Housing Assembly LGE 3661AP1139L Contact Us For Availability

View on Model

346810

Motor Assembly,DC,Indoor LGE EAU64382902 Contact Us For Availability

View on Model

349610

Bracket Assembly,Motor(Indoor) LGE ABA76969101 Contact Us For Availability

View on Model

352118A

Tube Assembly,Manifold(Indoor) LGE AJR73327002 Contact Us For Availability

View on Model

352118B

AJR73364601 LG Indoor Manifold Tube Assembly Backorder LGE AJR73364601 View Details $85.18

View on Model

354210A

ADL73180904 LG Evaporator Assembly Backorder LGE ADL73180904 View Details $492.45

View on Model

354210A

Evaporator Assembly,First LGE ADL73180914 Contact Us For Availability

View on Model

354210B

ADL73180903 LG Evaporator Assembly First Backorder LGE ADL73180903 View Details $492.45

View on Model

354210B

Evaporator Assembly,First LGE ADL73180913 Contact Us For Availability

View on Model

359012

Fan Assembly,Blower LGE 2A00578F Contact Us For Availability

View on Model

EBG13RD

Thermistor Assembly,NTC LGE EBG61325811 Contact Us For Availability

View on Model

EBG13WH

EBG61287713 LG Thermistor Assembly,Ntc Backorder LGE EBG61287713 View Details $30.89

View on Model

EBG13YL

Thermistor Assembly,NTC LGE EBG61106837 Contact Us For Availability

View on Model

W4810

MAZ62607820 LG Bracket Backorder LGE MAZ62607820 View Details $58.41

View on Model

W4811A

Bracket Assembly LGE ABA73488301 Contact Us For Availability

View on Model

W4811B

Bracket Assembly LGE ABA73809414 Contact Us For Availability

View on Model

W6641

3H00390B LG Air Conditioner Terminal Block Co Backorder LGE 3H00390B View Details $3.40

View on Model

W6642

Connector,Terminal Block LGE EAG38884446 Contact Us For Availability

View on Model

W6645

Connector,Terminal Block LGE EAG63452301 Contact Us For Availability

View on Model

×
