Model LG ARNU093TRD4 Multi V_I/D_Cassette – Common Parts & Diagrams

Common parts from model LG ARNU093TRD4 Multi V_I/D_Cassette

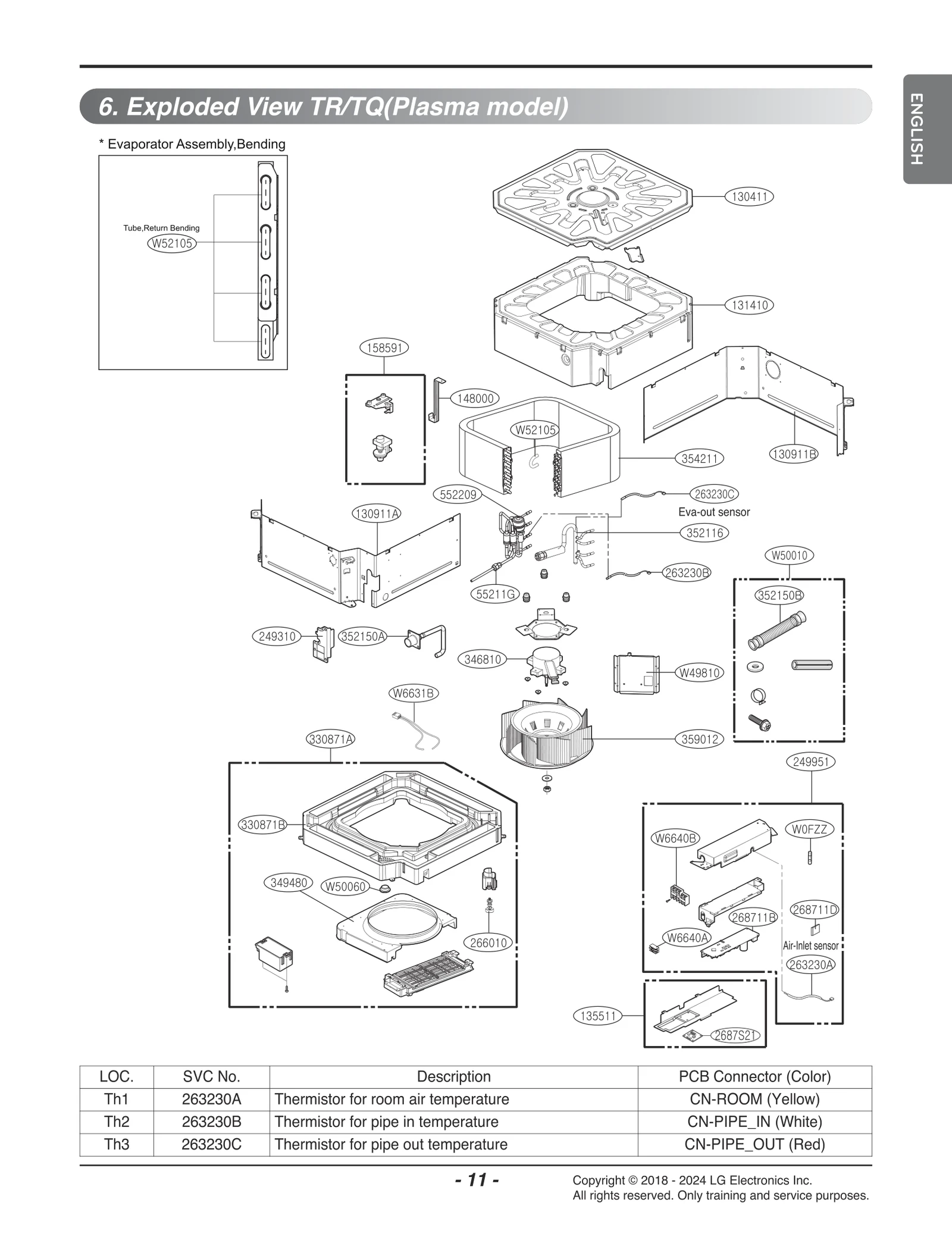

Diagram 0

Print

• This Diagram
• All Diagrams

55211G

Tube Assembly,Expansion LGE AJR56320901 Contact Us For Availability

View on Model

130411

Base Assembly,Indoor LGE AAN36760003 Contact Us For Availability

View on Model

130911A

Cabinet Assembly,Indoor LGE ABJ36864810 Contact Us For Availability

View on Model

130911B

Cabinet Assembly,Indoor LGE ABJ36864909 Contact Us For Availability

View on Model

131410

Cabinet Assembly Backorder LGE ABJ52692103 View Details $95.08

View on Model

135511

Cover Assembly,Control(Indoor) Backorder LGE ACQ59999216 View Details $181.30

View on Model

148000

Supporter Backorder LGE MJH62282301 View Details $8.99

View on Model

158591

Pump Assembly,Water(DC) LGE AHA75113330 Contact Us For Availability

View on Model

249310

Holder Assembly LGE AEJ36877601 Contact Us For Availability

View on Model

249951

ABQ76160809 LG Case Assembly,Control(Indoor) Backorder LGE ABQ76160809 View Details $615.75

View on Model

263230A

EBG61106804 LG Thermistor Temperature Sensor Backorder LGE EBG61106804 View Details $13.52

View on Model

263230B

EBG61287708 LG Thermistor Temperature Sensor In Stock LGE EBG61287708 View Details $23.97

View on Model

263230C

EBG61325804 LG Temperature Sensor Thermistor Backorder LGE EBG61325804 View Details $23.97

View on Model

266010

Switch Assembly Backorder LGE 6601A20013R View Details $49.19

View on Model

268711B

PCB ASSEMBLY,MAIN Backorder LGE EBR81767906 View Details $256.68

View on Model

268711D

PCB Assembly,Sub LGE EBR78895218 Contact Us For Availability

View on Model

330871A

Pan Assembly,Drain Backorder LGE AGK36759846 View Details $231.49

View on Model

330871B

Pan Assembly,Drain LGE AGK73110501 Contact Us For Availability

View on Model

346810

EAU63363301 LG Motor Assembly,Dc,Indoor Backorder LGE EAU63363301 View Details $300.89

View on Model

349480

Orifice LGE MFX42382102 Contact Us For Availability

View on Model

352116

Tube Assembly,Evaporator(Out) Backorder LGE AJR53980902 View Details $95.08

View on Model

352150A

Hose Assembly,Drain Backorder LGE AEM36871901 View Details $19.42

View on Model

352150B

5251AP2984C LG Drain Hose Assembly Backorder LGE 5251AP2984C View Details $19.42

View on Model

354211

Evaporator Assembly,Bending LGE ADL55996002 Contact Us For Availability

View on Model

359012

MDG42451401 LG Fan,Turbo Backorder LGE MDG42451401 View Details $25.18

View on Model

552209

VALVE MODULE,GEAR EXPANSION Backorder LGE MJX65072205 View Details $205.43

View on Model

W0FZZ

Fuse,Time Delay LGE EAF60673101 Contact Us For Availability

View on Model

W6631B

Harness,Single Backorder LGE EAD63468111 View Details $8.99

View on Model

W6640A

Connector,Terminal Block LGE EAG38884426 Contact Us For Availability

View on Model

W6640B

Connector,Terminal Block LGE EAG63452303 Contact Us For Availability

View on Model

W49810

SUPPORTER ASSEMBLY Backorder LGE AJJ36865004 View Details $15.76

View on Model

W50010

Accessory Assembly,Final(Indoo Backorder LGE AAA56892903 View Details $75.86

View on Model

W50060

MBL36236701 LG Cap Backorder LGE MBL36236701 View Details $3.00

View on Model

W52105

4H02273Q LG Bending Tube Backorder LGE 4H02273Q View Details $3.40

View on Model

×
