Model Whirlpool ARH6700E ELECTRIC RANGE – Common Parts & Diagrams
06 - MISCELLAEOUS INFORMATION

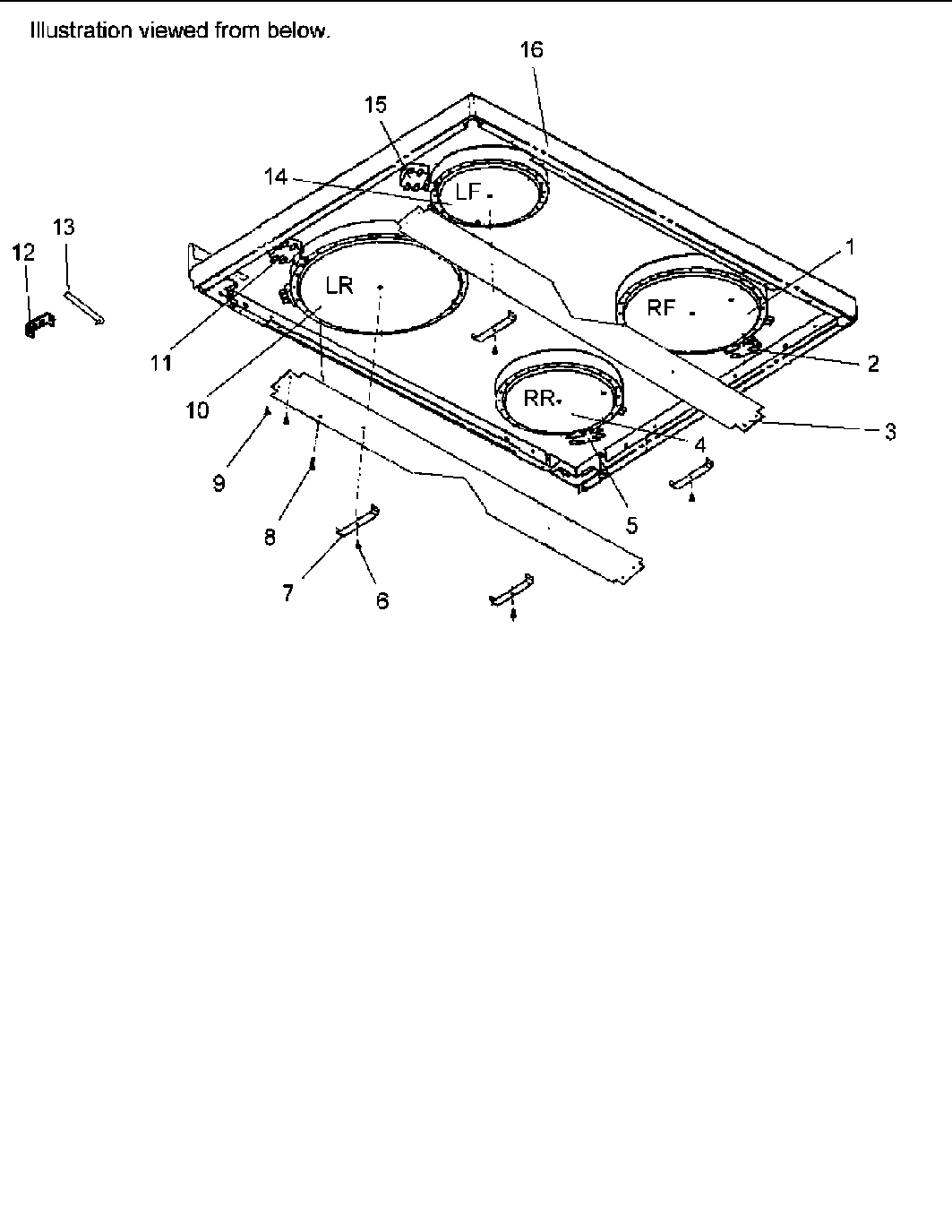

05 - MAIN TOP ASSY

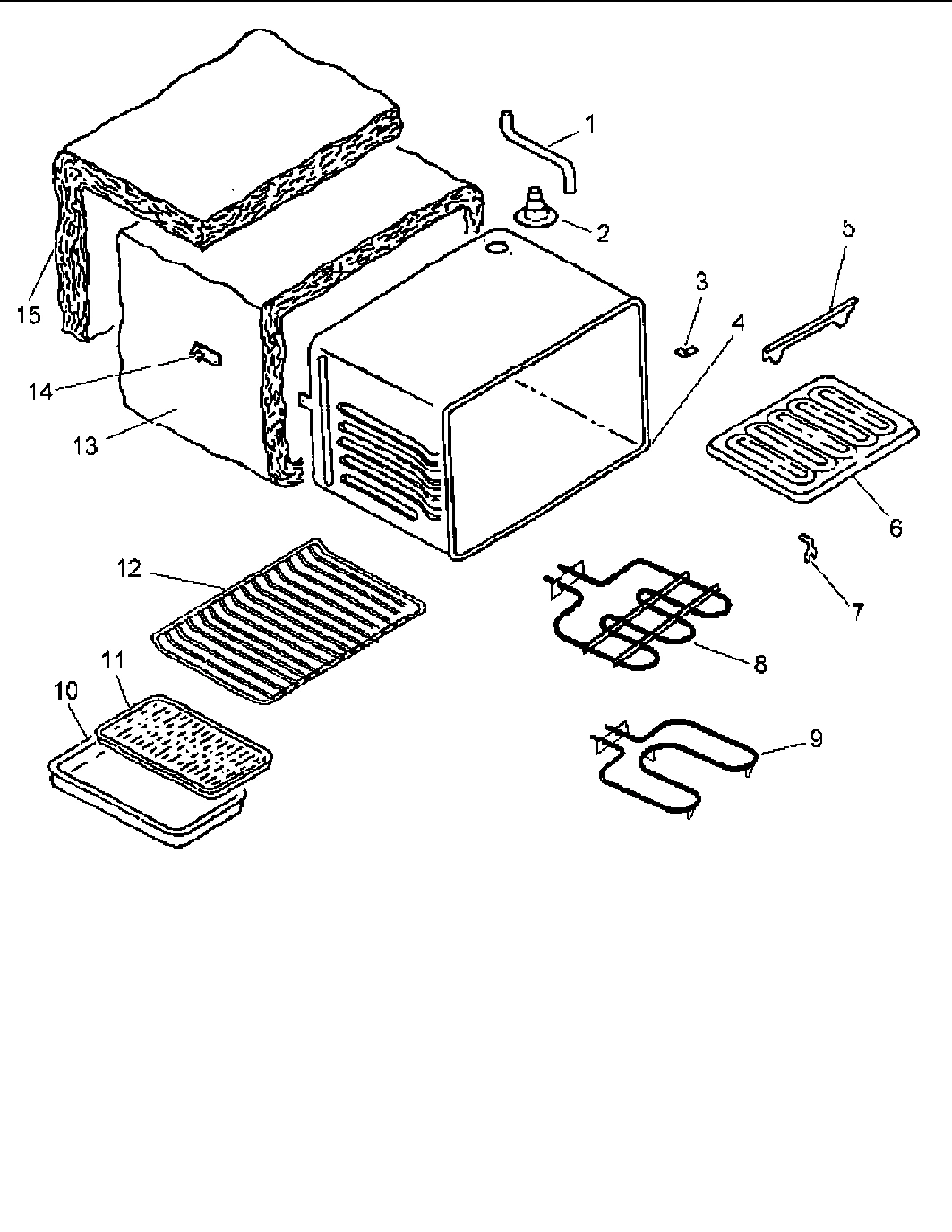

07 - OVEN ASSY

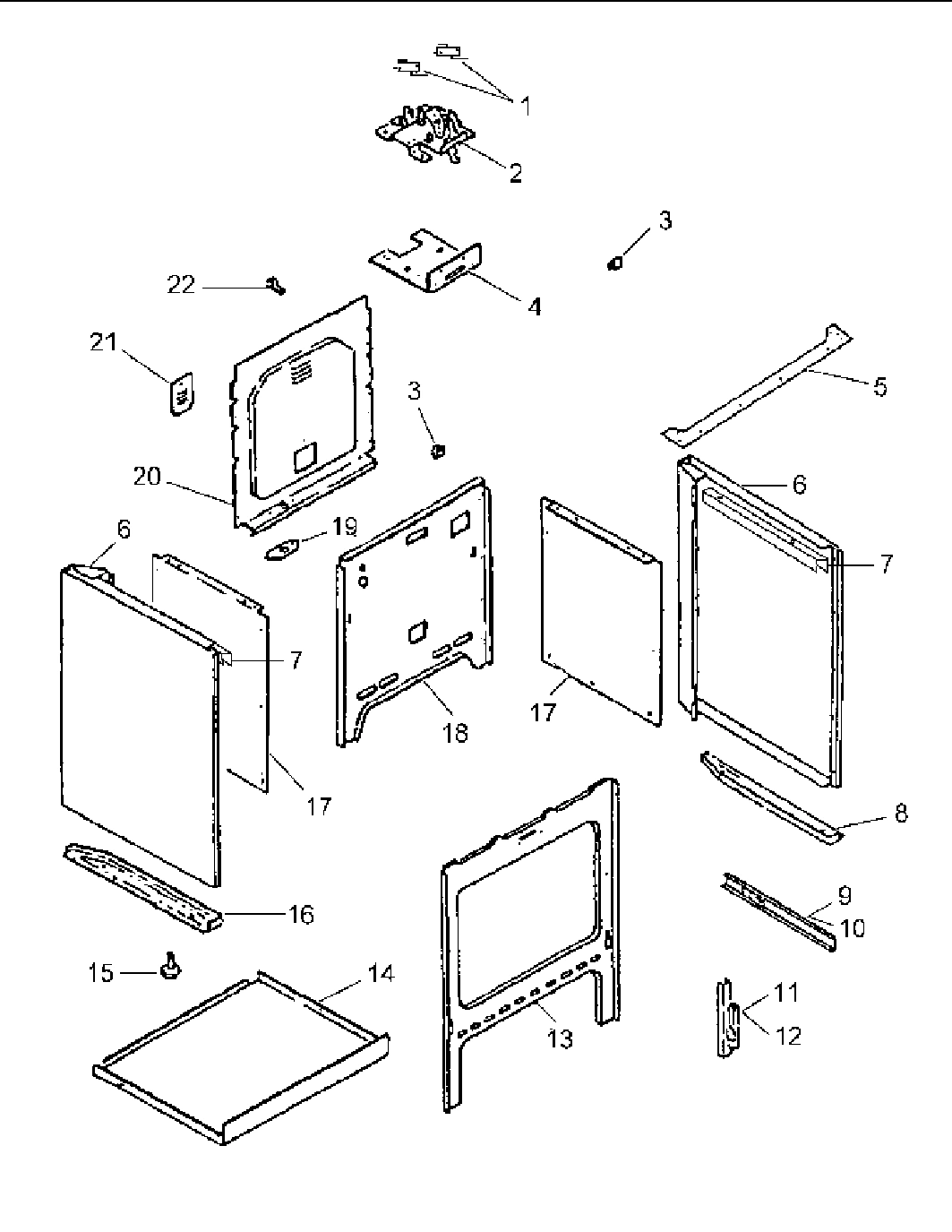

02 - CABINET

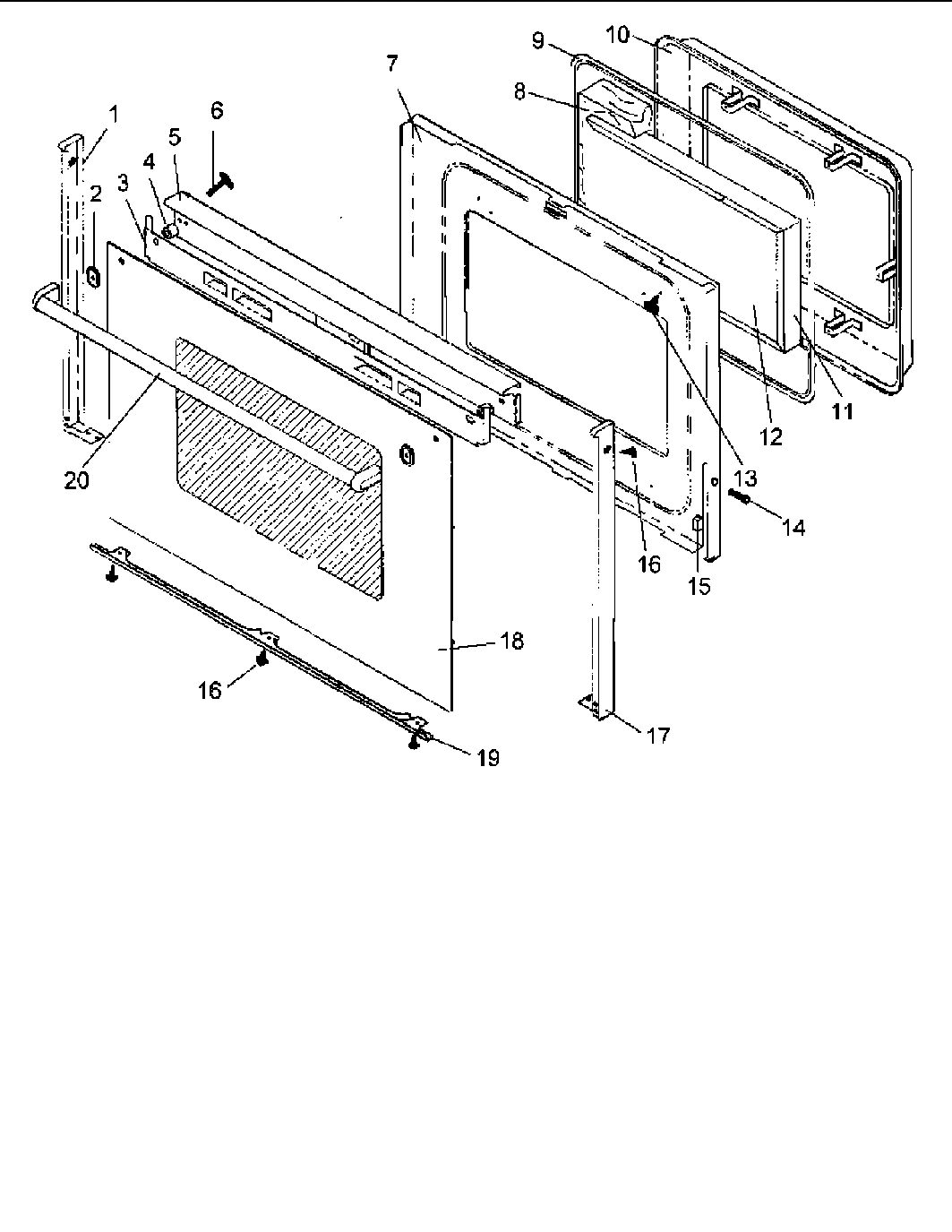

03 - DOOR ASSY

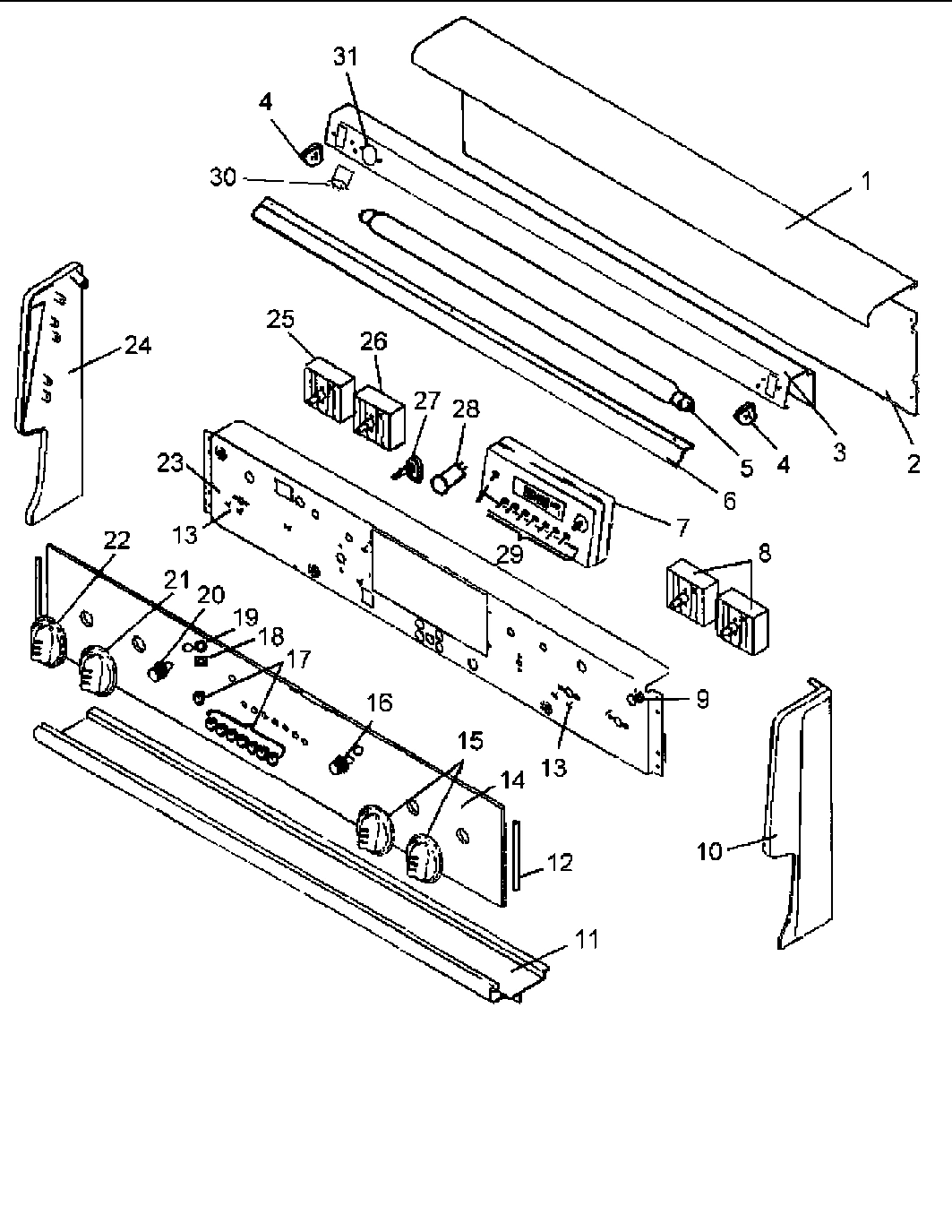

01 - BACKGUARD ASSY

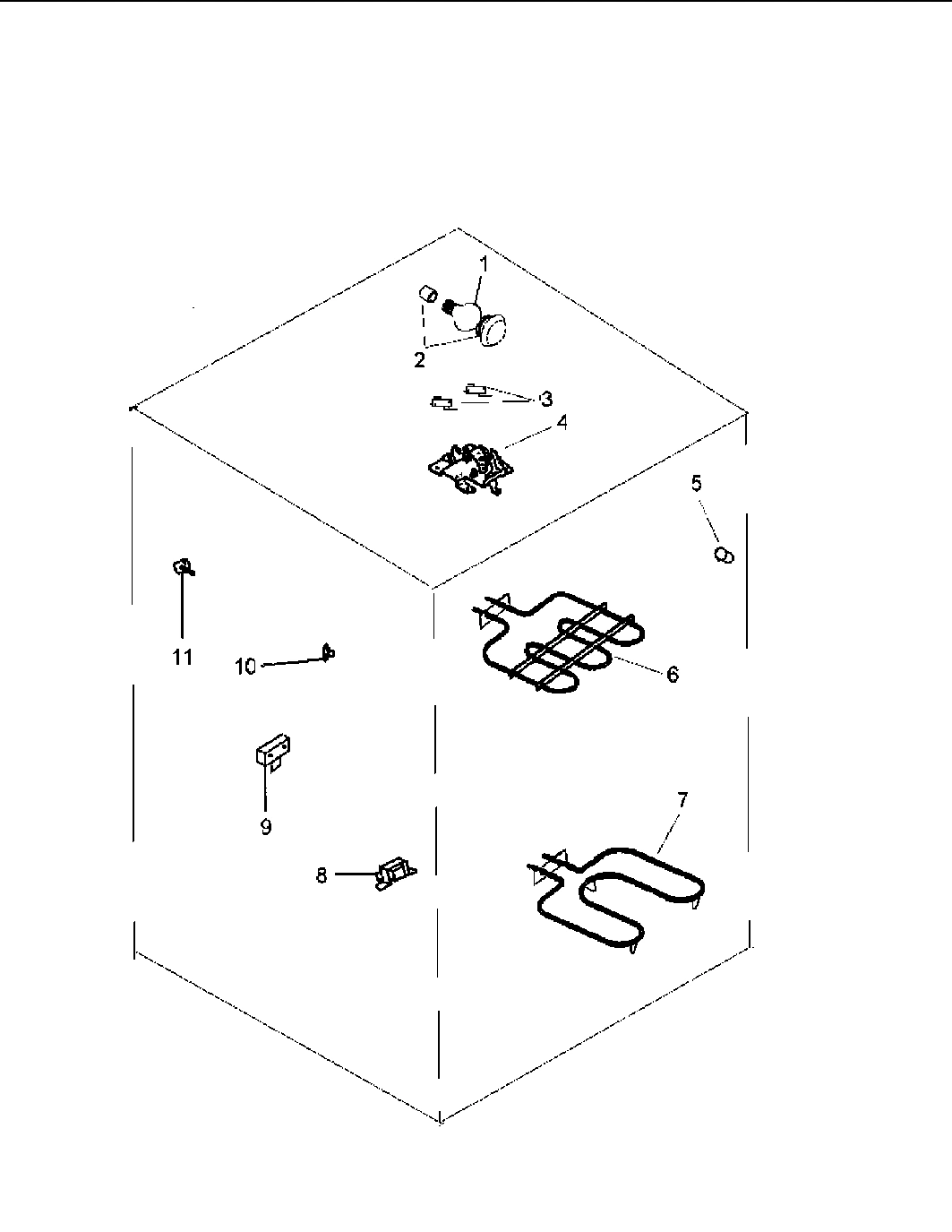

04 - ELECTRIC COMPONENTS

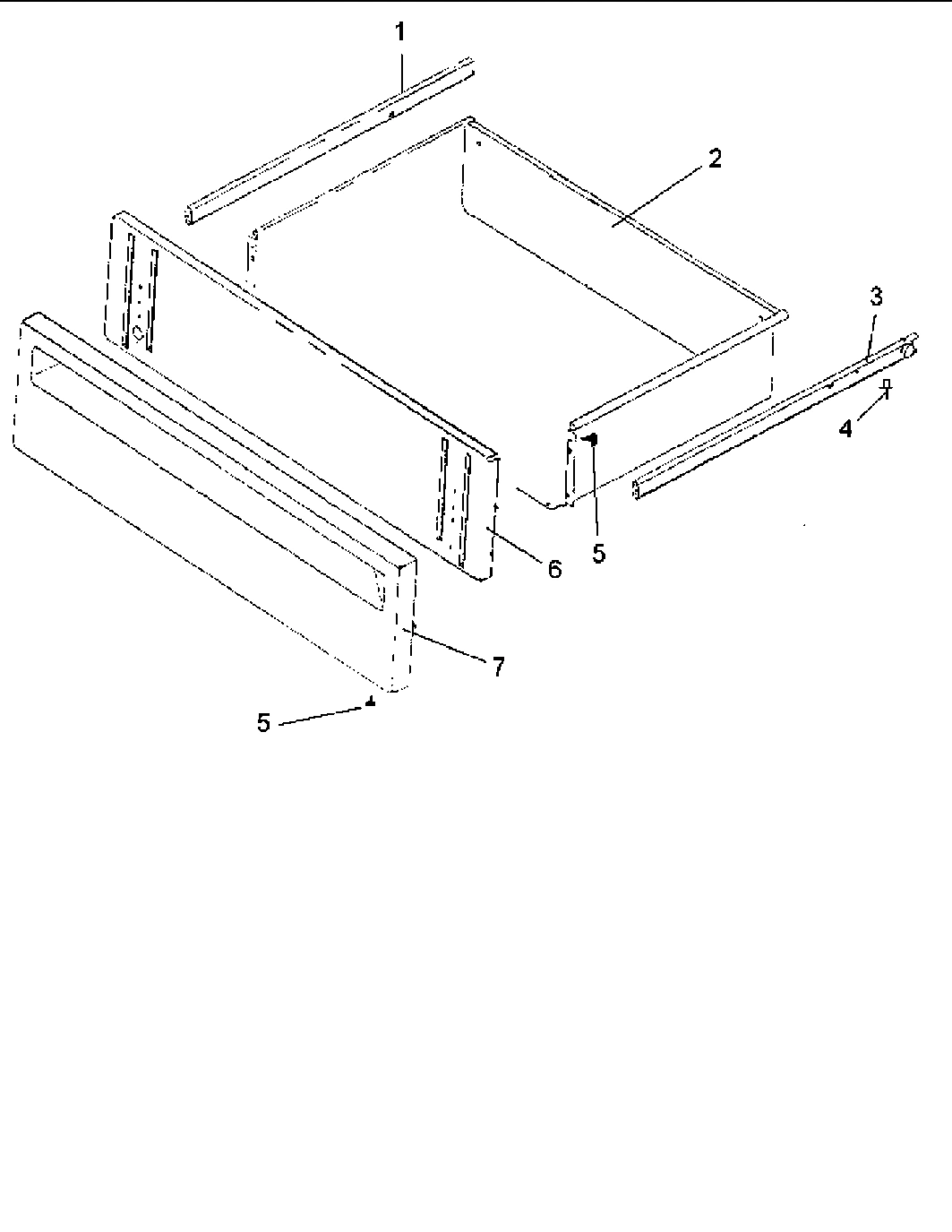

08 - STORAGE DOOR ASSY
Common parts from model Whirlpool ARH6700E ELECTRIC RANGE
0
OWNERS MANUAL (ARF6700) WPL 0315011 Contact Us For Availability
0
MNL-PARTS ELCT RNG WPL RP2320002 Contact Us For Availability
0
MNL, SVC-ART(RANGE) WPL RS2320002 Contact Us For Availability
1
TUBE, VENT WPL Y0314605 Contact Us For Availability
1
END CAP, LT (BLK) WPL 309458B Contact Us For Availability
1
TRIM, TOP BACKGUARD (BLK) WPL 304955B Contact Us For Availability
1
BULB, LIGHT WPL Y0042175 Contact Us For Availability
1
RUNNER STORAGE DWR-LH WPL 0314664 Contact Us For Availability
2
LIMITER, TEMP, LARGE WPL 10061003 Contact Us For Availability
2
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
2
SPACER, HANDLE (BLK) WPL 309882B Contact Us For Availability
2
COVER, BACKGUARD WPL 0309137 Contact Us For Availability
2
DRAWER, STORAGE (WHT) WPL 309622W Contact Us For Availability
3
BRKT, ELEMENT WPL Y0315354 Contact Us For Availability
3
COVER, CHIP WPL Y0315022 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL Y0314277 Contact Us For Availability
3
ASSY, GLASS HEAT SHIELD (BLK) WPL 309642B Contact Us For Availability
3
BRACKET, LIGHT WPL 307211B Contact Us For Availability
3
RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability
4
OVEN SHELL (EL. W/LT) WPL 58788CG Contact Us For Availability
4
LATCH, OVEN DOOR WPL Y0309430 Contact Us For Availability
4
BRACKET, LATCH MTG. WPL Y0309428 Contact Us For Availability
4
BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability
4
LAMP HOLDER-FLOURES WPL Y0304559 Contact Us For Availability
4
RIVET, POP WPL Y0076357 Contact Us For Availability
5
ELEMENT, HALORING-1500 W WPL 10061005 Contact Us For Availability
5
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
5
BRKT, MAINTOP (PAINTED) WPL Y0314891 Contact Us For Availability
5
TRIM, UPPER DOOR WPL 309456B Contact Us For Availability
5
SWITCH, OVEN DOOR WPL Y0305797 Contact Us For Availability
6
REFLECTOR, BROIL ELEMENT WPL Y0308294 Contact Us For Availability
6
PANEL, SIDE (BLK) WPL 306081B Contact Us For Availability
6
SCREW, No.10-24X11/4 (TRS PH HD) WPL Y0309973 Contact Us For Availability
6
LIGHT DIFFUSER BACKGUARD-CLEAR WPL 0304977 Contact Us For Availability
6
SHIELD, LIGHT (BLK) WPL 314934B Contact Us For Availability
6
LINER, DRAWER PANEL (WHT) WPL 309179W Contact Us For Availability
7
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
7
BRACKET, MOUNTING WPL 0061556 Contact Us For Availability
7
CHANNEL, BROIL BURNER WPL Y0304019 Contact Us For Availability
7
LINER, OVEN DOOR (ELEC) WPL 314563CG Contact Us For Availability
7
ERC 3, ELEC. AUTO LATCH WPL Y0309441 Contact Us For Availability
7
PANEL, DRAWER (BLK) WPL 309177B Contact Us For Availability
8
SCREW, SHOULDER WPL 0306212 Contact Us For Availability
8
BRACE, LEVELING LEG (RT) WPL 314885B Contact Us For Availability
8
INSULATION,OVEN DOOR WPL Y0309772 Contact Us For Availability
8
SWITCH, SURFACE EL. 10 POS. WPL Y0309399 Contact Us For Availability
8
BALLAST WPL Y0071869 Contact Us For Availability
9
TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability
9
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
9
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
10
TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability
10
PAD, OVEN DOOR WPL 309781CG Contact Us For Availability
10
END CAP-BKGD LT/RT (BLK) WPL 304928B Contact Us For Availability
10
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
11
KIT, DOOR HINGE(LH-HS) WPL Y0314572 Contact Us For Availability
11
FRAME, WINDOW PACK WPL Y0309071 Contact Us For Availability
11
TRIM, LOWER BKGD (BLK) WPL 314603B Contact Us For Availability
12
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
12
KIT, DOOR HINGE(RH-SS) WPL Y0314575 Contact Us For Availability
12
GLASS WINDOW 18`` X 11`` X 3/16`` WPL Y0309074 Contact Us For Availability
12
CHANNEL GLASS (BLK) WPL 0305309 Contact Us For Availability
13
HINGE, STRAP WPL 0314373 Contact Us For Availability
13
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
14
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
14
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
14
RIVET, POP WPL Y0302648 Contact Us For Availability
14
GLASS, CONTROL PANEL (BLK) WPL 308056B Contact Us For Availability
15
LIMITER WPL 10061016 Contact Us For Availability
15
INSULATION, REAR WPL Y0300974 Contact Us For Availability
15
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
15
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
15
KNOB, CONTROL-10 POSITION-BLK WPL 309506B Contact Us For Availability
16
ASSY, MAINTOP & GLASS (BLK) WPL 315209B Contact Us For Availability
16
BRACE, LEVELING LEG (LT) WPL 314884B Contact Us For Availability
17
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
17
END CAP, RT (BLK) WPL 309457B Contact Us For Availability
17
KNOB, CLOCK (BLK) WPL 308956B Contact Us For Availability
18
RETAINER, REAR INSUL. WPL 0309081 Contact Us For Availability
18
PANEL, GLASS OVEN DOOR (BLK) WPL 314818B Contact Us For Availability
18
SPEEDNUT WPL Y0065052 Contact Us For Availability
19
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
19
SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability
19
BEZEL, PANEL SWITCH WPL 0065051 Contact Us For Availability
20
COVER, REAR WPL Y0307342 Contact Us For Availability
20
HANDLE, OVEN DOOR (BLK) WPL 309624B Contact Us For Availability
20
KNOB, LIGHT SWITCH (BLK) WPL 306674B Contact Us For Availability
21
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
21
KNOB, DUAL INF SWITCH (BLK) WPL 0306233 Contact Us For Availability
22
KNOB, INFINITE SWITCH (BLK) WPL 0306671 Contact Us For Availability
22
KNOB, INFINITE SWITCH (BLK) WPL 309870B Contact Us For Availability
23
PANEL, CONTROL WPL Y0309723 Contact Us For Availability
24
END CAP-BKGD LT/RT (BLK) WPL 304927B Contact Us For Availability
26
SWITCH, DUAL INFINITE (WHT) WPL 0309549 Contact Us For Availability
27
SWITCH, OVEN LIGHT, ROTARY WPL Y0306673 Contact Us For Availability
28
LIGHT, INDICATOR (RED) WPL Y0305660 Contact Us For Availability
29
PIN, ACTUATOR WPL 0309888 Contact Us For Availability
30
STARTER, FLOURESCENT WPL 0071920 Contact Us For Availability
31
START HOLDR-FLOUR.LMP WPL Y0304560 Contact Us For Availability
NI
ELEMENT, HALORING-1800 W WPL Y0307433 Contact Us For Availability
NI
ELEMENT, HALORING-1500 W WPL Y0307432 Contact Us For Availability
NI
ELEMENT, RIBBON (1200 WATTS) WPL Y0314909 Contact Us For Availability
NI
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
NI
SCREW, No.8-18 X 7/8 PPH WPL Y0076035 Contact Us For Availability
NI
CLAMP, TUBE (1/2``) WPL Y0307456 Contact Us For Availability
NI
RIVET, POP WPL Y0097822 Contact Us For Availability
NI
SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability
NI
BRACKET WPL Y0301028 Contact Us For Availability
NI
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
NI
SPACER, NYLON (.14``) WPL Y0062445 Contact Us For Availability
NI
SUPPORT, BKGD (LH) WPL 0306589 Contact Us For Availability
NI
SUPPORT, BKGD (RH) WPL 0306590 Contact Us For Availability
NI
FLUE CAP WPL 0314604 Contact Us For Availability
NI
COLLAR, STARTER SOCKET WPL Y0305391 Contact Us For Availability
NI
HEX NUT No.10-32 NICKEL WPL 0306381 Contact Us For Availability
NI
HARNESS, WIRE (MAIN) WPL 0315181 Contact Us For Availability
× ![]()
