Model Whirlpool ARDS801E ELECTRIC RANGE – Common Parts & Diagrams

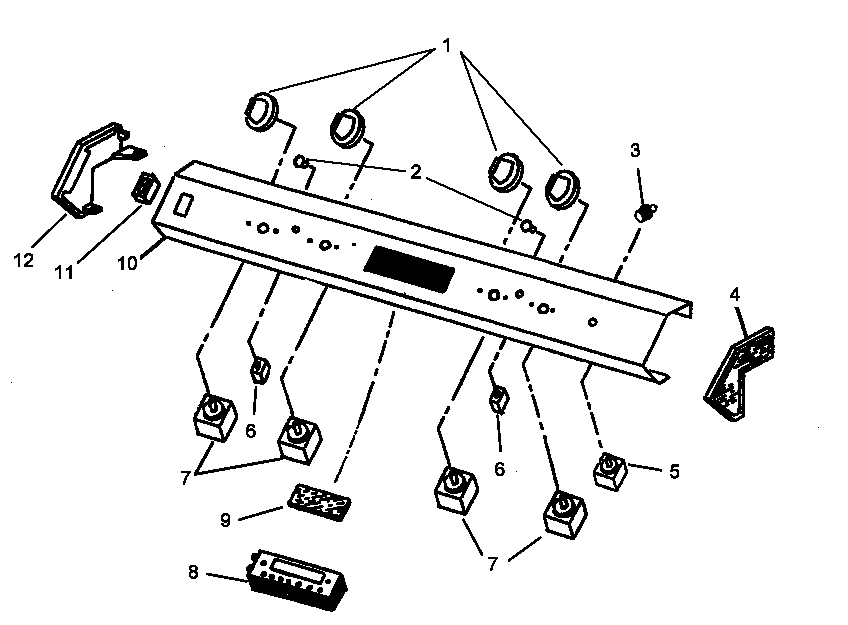

02 - CONTROL PANEL PARTS

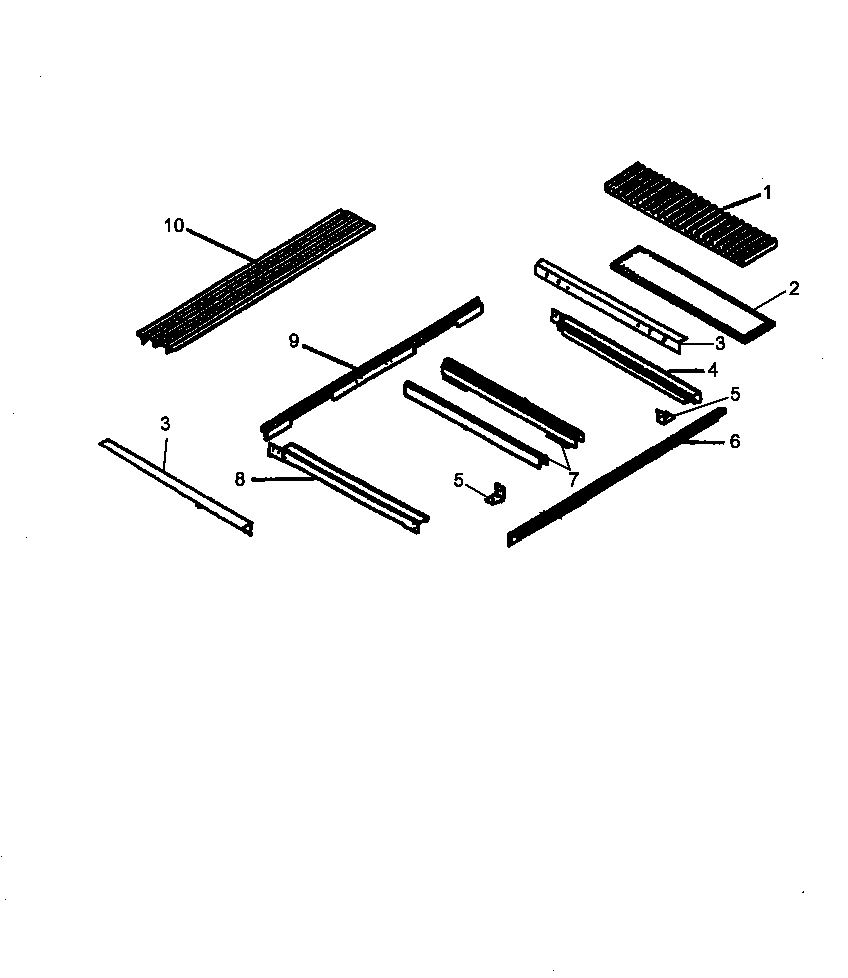

04 - MAIN TOP ASSY

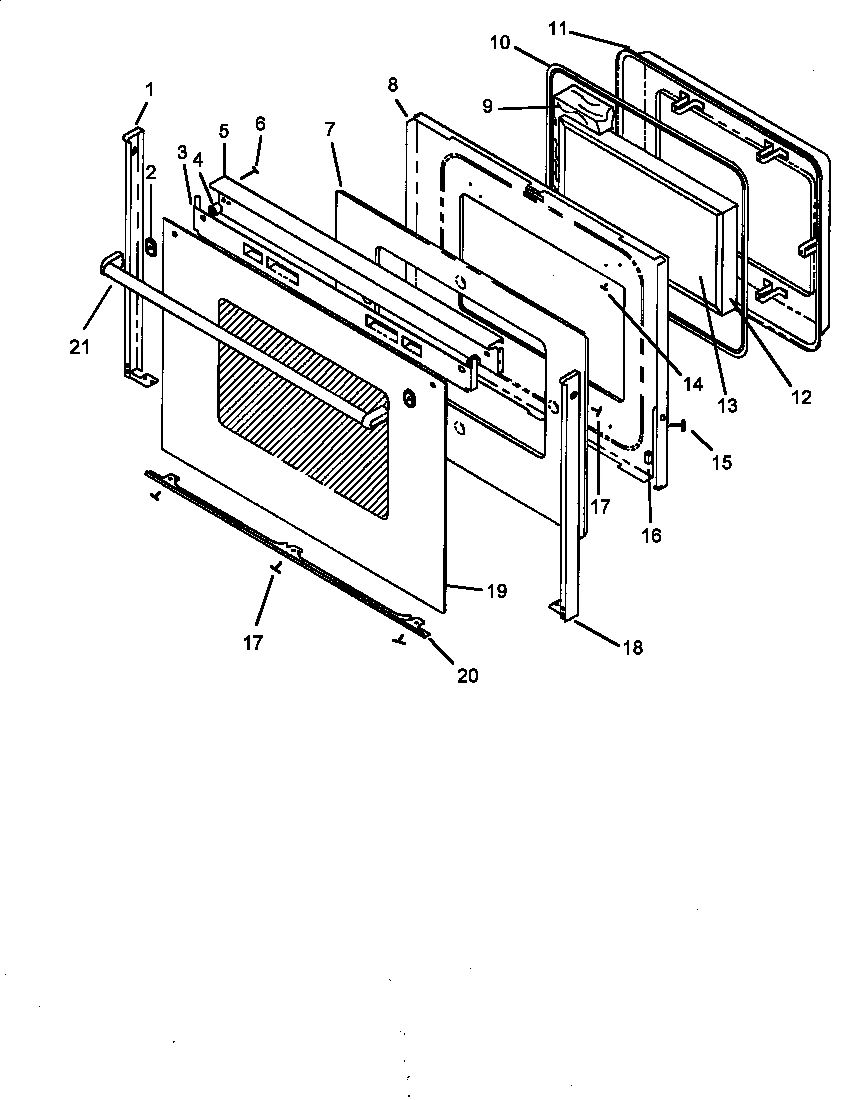

06 - OVEN DOOR ASSY

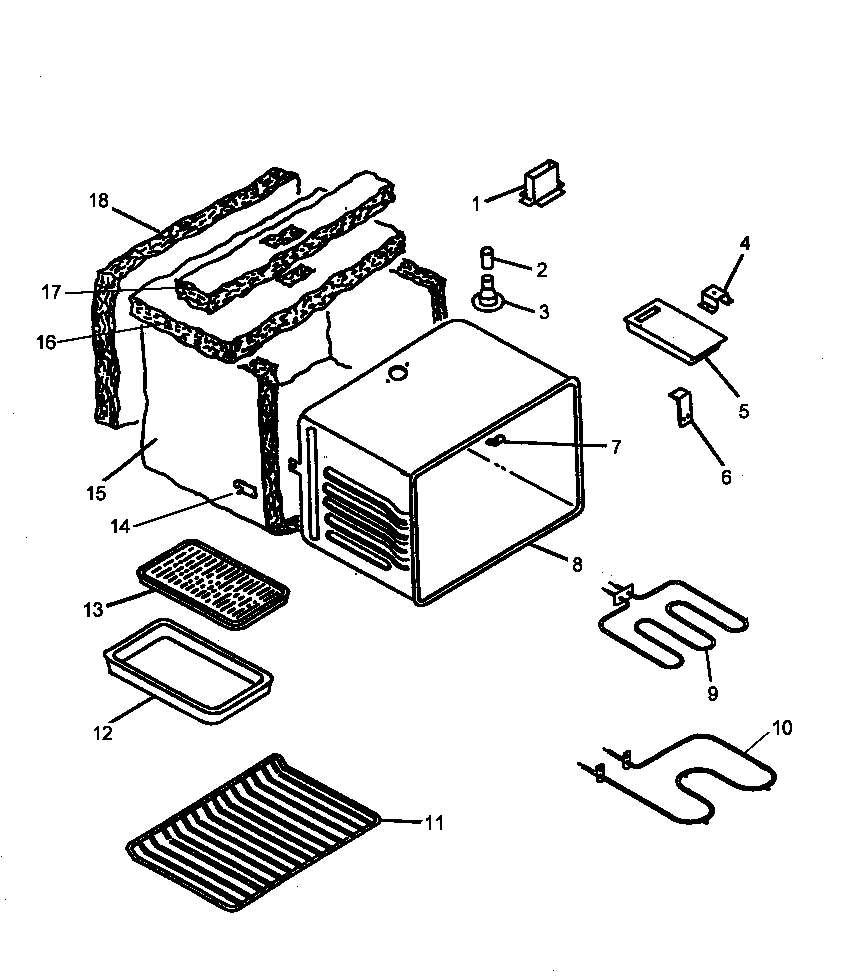

01 - CABINET ASSY

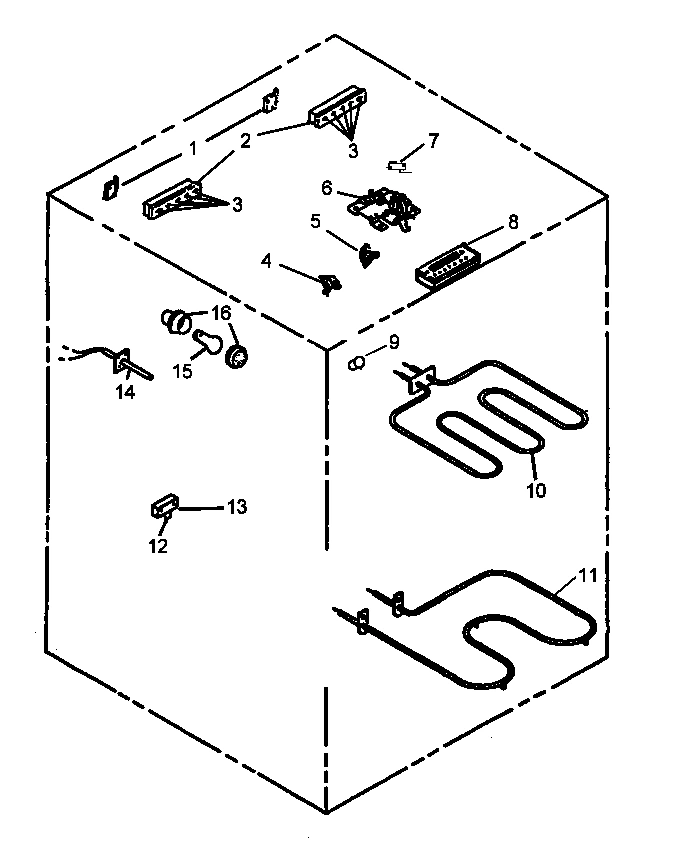

03 - ELECTRICAL COMPONENTS

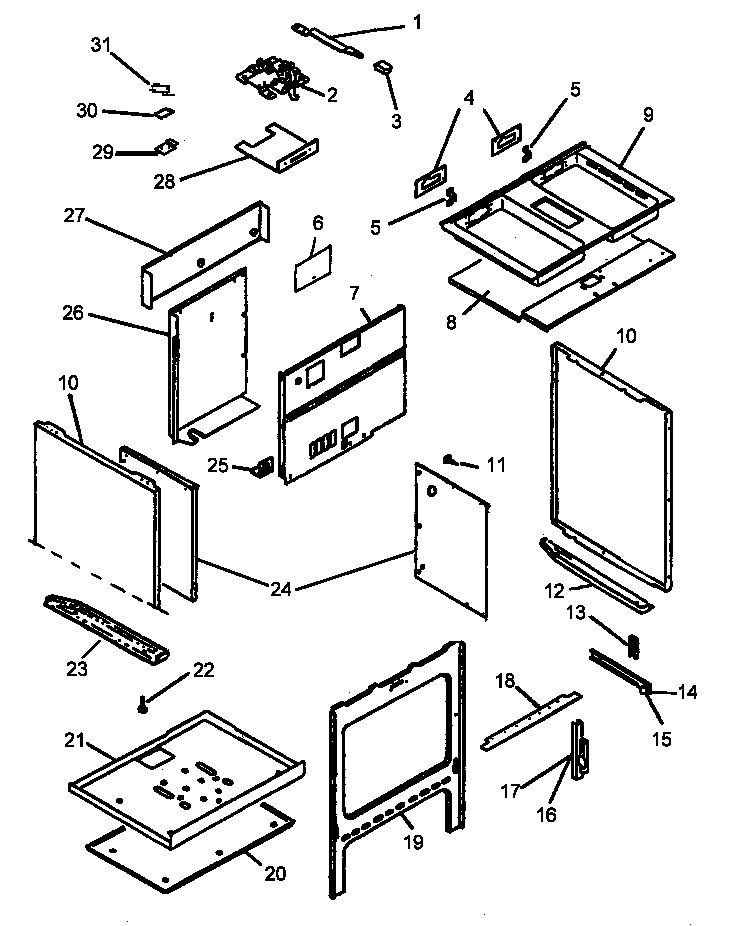

05 - OVEN ASSY

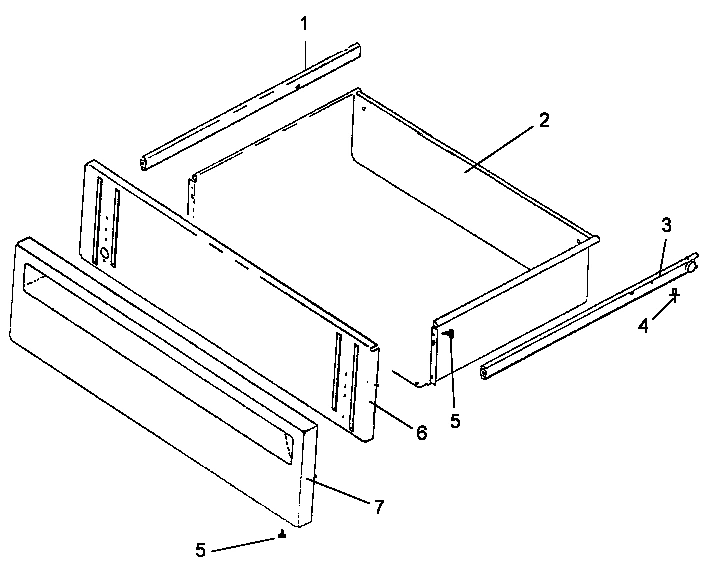

07 - STORAGE DRAWER ASSY

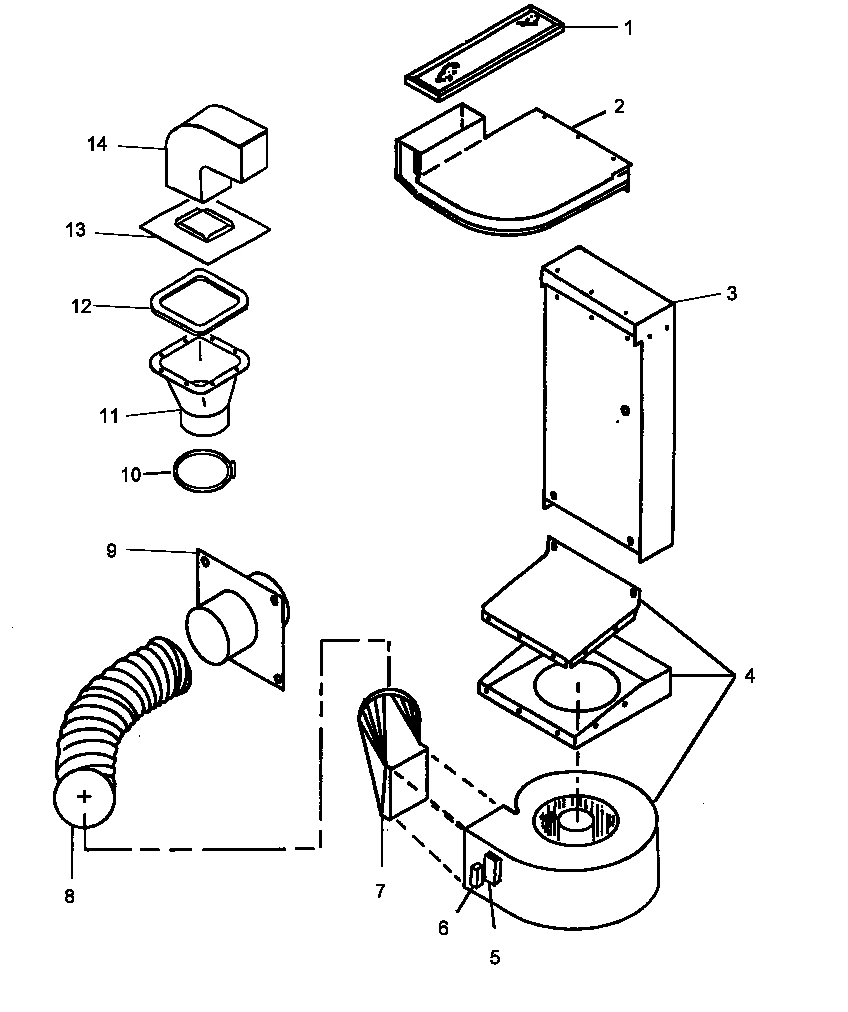

08 - VENTILATION PARTS
Common parts from model Whirlpool ARDS801E ELECTRIC RANGE
1
COVER, VENT-CASTING WPL Y058902G Contact Us For Availability
1
FILTER (17.75``X4.0``X.375``) WPL Y0307363 Contact Us For Availability
1
END CAP, DOOR (LT-BLK) WPL 309523B Contact Us For Availability
1
FLUE BOX, REAR WPL Y0059431 Contact Us For Availability
1
SWITCH, FAN WPL Y0054254 Contact Us For Availability
1
HANDLE, DOOR LATCH (BLK) WPL 303040B Contact Us For Availability
1
RUNNER, STORAGE DRAWER LT WPL Y0314668 Contact Us For Availability
2
LENS, INDICATOR LIGHT, RED WPL Y0301209 Contact Us For Availability
2
SPACER, HANDLE (BLK) WPL 309882B Contact Us For Availability
2
TUBE, VENT EXTENSION WPL 0060633 Contact Us For Availability
2
PLUG BLOCK MODULAR TOP WPL Y0042210 Contact Us For Availability
2
LATCH, ELECT. SI WPL 0314960 Contact Us For Availability
2
WRAPPER, STORAGE DRAWER (WHT) WPL 314674W Contact Us For Availability
2
W/A TOP PLENUM WPL 314755CG Contact Us For Availability
3
KNOB, FAN SWITCH (BLK) WPL 308682B Contact Us For Availability
3
TRIM, COUNTERTOP (BLK) WPL 305204B Contact Us For Availability
3
ASSY, GLASS HEAT SHIELD (BLK) WPL 309642B Contact Us For Availability
3
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
3
ELEMENT, CONTACT-MODULE TOP WPL Y0042123 Contact Us For Availability
3
KNOB, LATCH HANDLE (BLK) WPL 0302300 Contact Us For Availability
3
RUNNER, STORAGE DRAWER RT WPL Y0314669 Contact Us For Availability
3
W/A REAR PLENUM WPL Y0314779 Contact Us For Availability
4
END CAP, RT (BLK) WPL 308172B Contact Us For Availability
4
FRAME SIDE, RH WPL 303133B Contact Us For Availability
4
BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability
4
MTG. BRACKET, VENT WPL Y0300632 Contact Us For Availability
4
LIMIT CONTROL-UPPER OVEN-200 WPL Y0042045 Contact Us For Availability
4
PLATE MTG. PLUG BLOCK WPL Y0300498 Contact Us For Availability
4
RIVET, POP WPL Y0076357 Contact Us For Availability
4
ASSY, BLWR BOX W/CAPACITOR WPL Y0314676 Contact Us For Availability
5
SWITCH, FAN WPL Y0300574 Contact Us For Availability
5
BRACKET, FRAME TRIM WPL Y0301154 Contact Us For Availability
5
TRIM, UPPER DOOR WPL 309456B Contact Us For Availability
5
SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability
5
FLUE BOX WPL Y0300641 Contact Us For Availability
5
CONTROL, FAN WPL Y0308417 Contact Us For Availability
5
PLUG BLOCK MTG BRKT ET590 595 WPL Y0040965 Contact Us For Availability
5
CAPACITOR WPL D6711804 Contact Us For Availability
6
LIGHT INDICATOR WPL 0306895 Contact Us For Availability
6
FRAME, FRONT-MAIN TOP WPL Y058528B Contact Us For Availability
6
SCREW, No.10-24X11/4 (TRS PH HD) WPL Y0309973 Contact Us For Availability
6
BRACKET, VENT SUPPORT WPL Y0300943 Contact Us For Availability
6
PLATE, ACCESS WPL Y0091308 Contact Us For Availability
6
LINER, DRAWER PANEL (BLK) WPL 309179B Contact Us For Availability
6
RELAY WPL Y0054074 Contact Us For Availability
7
SWITCH,INF(240TP-1244) WPL Y0307359 Contact Us For Availability
7
FRAME, CENTER MAIN TOP (BLK) WPL 300384B Contact Us For Availability
7
SHIELD, HEAT WPL Y0309068 Contact Us For Availability
7
COVER, CHIP WPL Y0315022 Contact Us For Availability
7
INSULATION RETAINER (REAR) WPL Y0314682 Contact Us For Availability
7
PANEL, DRAWER (BLK) WPL 309177B Contact Us For Availability
7
DUCT, BLOWER WPL Y0307508 Contact Us For Availability
8
ERC2C-ELECTRIC WPL Y0315030 Contact Us For Availability
8
FRAME SIDE, LH WPL 303132B Contact Us For Availability
8
LINER, OVEN DOOR WPL 314561CG Contact Us For Availability
8
OVEN SHELL, ELECTRIC DD WPL 314698CG Contact Us For Availability
8
RETAINER, INSULATION TOP WPL Y0315622 Contact Us For Availability
8
DUCT, FLEX WPL Y0307945 Contact Us For Availability
9
OVERLAY, MYLAR AMANA (BLACK) WPL 315596B Contact Us For Availability
9
FRAME, REAR-ELECTRIC (BLK) WPL 315083B Contact Us For Availability
9
INSULATION,WRAPPER WPL Y0041966 Contact Us For Availability
9
SWITCH, OVEN LIGHT WPL Y0314367 Contact Us For Availability
9
BOX, BURNER WPL 315149CG Contact Us For Availability
9
THIMBLE, 6`` DUCT WPL Y0307592 Contact Us For Availability
10
CONTROL PANEL-ELEC WPL 314697B Contact Us For Availability
10
LO-BACKRAIL, ELECTRIC (BLK) WPL 315081B Contact Us For Availability
10
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
10
ELEMENT, BROIL (240V-3000W) WPL Y0060241 Contact Us For Availability
10
PANEL, SIDE (BLK) WPL 317036B Contact Us For Availability
10
CLAMP, WORM GEAR WPL Y0307680 Contact Us For Availability
11
SWITCH,OVEN LIGHT xx BLK WPL Y0300570 Contact Us For Availability
11
PAD, OVEN DOOR WPL 309781CG Contact Us For Availability
11
TRANSITION,WALL/FLOOR/SIDE CAB WPL Y0310943 Contact Us For Availability
12
END CAP, LT (BLK) WPL 308171B Contact Us For Availability
12
FRAME, WINDOW PACK WPL Y0309071 Contact Us For Availability
12
BRACE, LEVELING LEG (RT) WPL 314885B Contact Us For Availability
12
GASKET, BONDED WPL Y0301343 Contact Us For Availability
13
GLASS WINDOW 18`` X 11`` X 3/16`` WPL Y0309074 Contact Us For Availability
13
SUPPORT, STG DWR TRK WPL Y0315150 Contact Us For Availability
13
PLATE, DUCT WPL Y0315330 Contact Us For Availability
14
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
14
TRACK, STORAGE DRAWER LT WPL Y0314666 Contact Us For Availability
14
FLOOR DUCT, ELBOW WPL Y0315331 Contact Us For Availability
15
RIVET, POP WPL Y0302648 Contact Us For Availability
15
INSULATION, WRAPPER WPL Y0301713 Contact Us For Availability
15
BULB, LIGHT WPL Y0042175 Contact Us For Availability
15
TRACK, STORAGE DRAWER RT WPL Y0314667 Contact Us For Availability
16
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
16
INSULATION, TOP WPL 0301711 Contact Us For Availability
16
KIT, DOOR HINGE(LH-HS) WPL Y0314572 Contact Us For Availability
17
INSULATION, LATCH WPL 0058319 Contact Us For Availability
17
KIT, DOOR HINGE(RH-SS) WPL Y0314573 Contact Us For Availability
18
END CAP, DOOR (RT-BLK) WPL 309522B Contact Us For Availability
18
INSULATION, BACK WPL 0301712 Contact Us For Availability
18
FILLER, FRONT FRAME WPL Y0315148 Contact Us For Availability
19
PANEL, GLASS OVEN DOOR (BLK) WPL 314819B Contact Us For Availability
19
SEE NOTE FRONT FRAME -- (NOT FIELD REPLACEABL WPL Y00000000 Contact Us For Availability
20
SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability
20
SHIELD, HEAT WPL Y0315146 Contact Us For Availability
21
HANDLE, OVEN DOOR (BLK) WPL 309624B Contact Us For Availability
21
INSULATION RETAINER (BOTTOM) WPL Y0315147 Contact Us For Availability
22
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
23
BRACE, LEVELING LEG (LT) WPL 314884B Contact Us For Availability
24
INSULATION RETAINER, (SIDE) WPL Y0314680 Contact Us For Availability
25
BRACKER, CONDUIT WPL Y0058556 Contact Us For Availability
26
COVER, REAR WIRE WPL Y0314672 Contact Us For Availability
27
SHIELD, REAR WPL 0314785 Contact Us For Availability
28
BRACKET, LATCH MTG. WPL Y0058918 Contact Us For Availability
29
BRACKET, SWITCH WPL Y0302316 Contact Us For Availability
30
INSULATION, ESM WPL Y0091523 Contact Us For Availability
31
SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability
NI
SCREW 6-32X3/16 SLO COOK SW WPL Y0041778 Contact Us For Availability
NI
SCREW 23 6X5/16 PH HD WPL Y0075316 Contact Us For Availability
NI
SLEEVING, FIBREGLASS WPL Y0315227 Contact Us For Availability
NI
HARNESS, INPUT WPL Y0315583 Contact Us For Availability
NI
SCREW WPL 0303209 Contact Us For Availability
NI
SPACER, NYLON (.14``) WPL Y0062445 Contact Us For Availability
NI
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
NI
SCREW, No.8-18 X .500 AB (BLK) WPL Y0305004 Contact Us For Availability
NI
SUPPORT WPL Y0091546 Contact Us For Availability
NI
HEX NUT No.10-32 NICKEL WPL 0306381 Contact Us For Availability
NI
NUT WPL 0041845 Contact Us For Availability
NI
SPEED NUT (TWIN TYPE) WPL 0041902 Contact Us For Availability
NI
COVER PLATE, LATCH WPL 0302483 Contact Us For Availability
NI
SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability
NI
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
NI
SCREW 6-32 X 3/8 WPL Y0066765 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PAN HD PH WPL Y0073657 Contact Us For Availability
NI
SCREW LATCH ARM MOUNTING WPL Y0078780 Contact Us For Availability
NI
SCREW 4-40X1 WPL Y0092365 Contact Us For Availability
NI
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
NI
BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability
NI
SCREW, TT AB No.8 X 3/8`` WPL Y0071914 Contact Us For Availability
NI
SCREW No.6-32 X 3/8 WPL Y0072230 Contact Us For Availability
NI
SHIELD, RELAY WPL Y0315556 Contact Us For Availability
× ![]()
