Model Maytag ARB220RCC REFRIGERATOR – Common Parts & Diagrams
01 - CABINET BACK
02 - COMPRESSOR
03 - CONTROLS

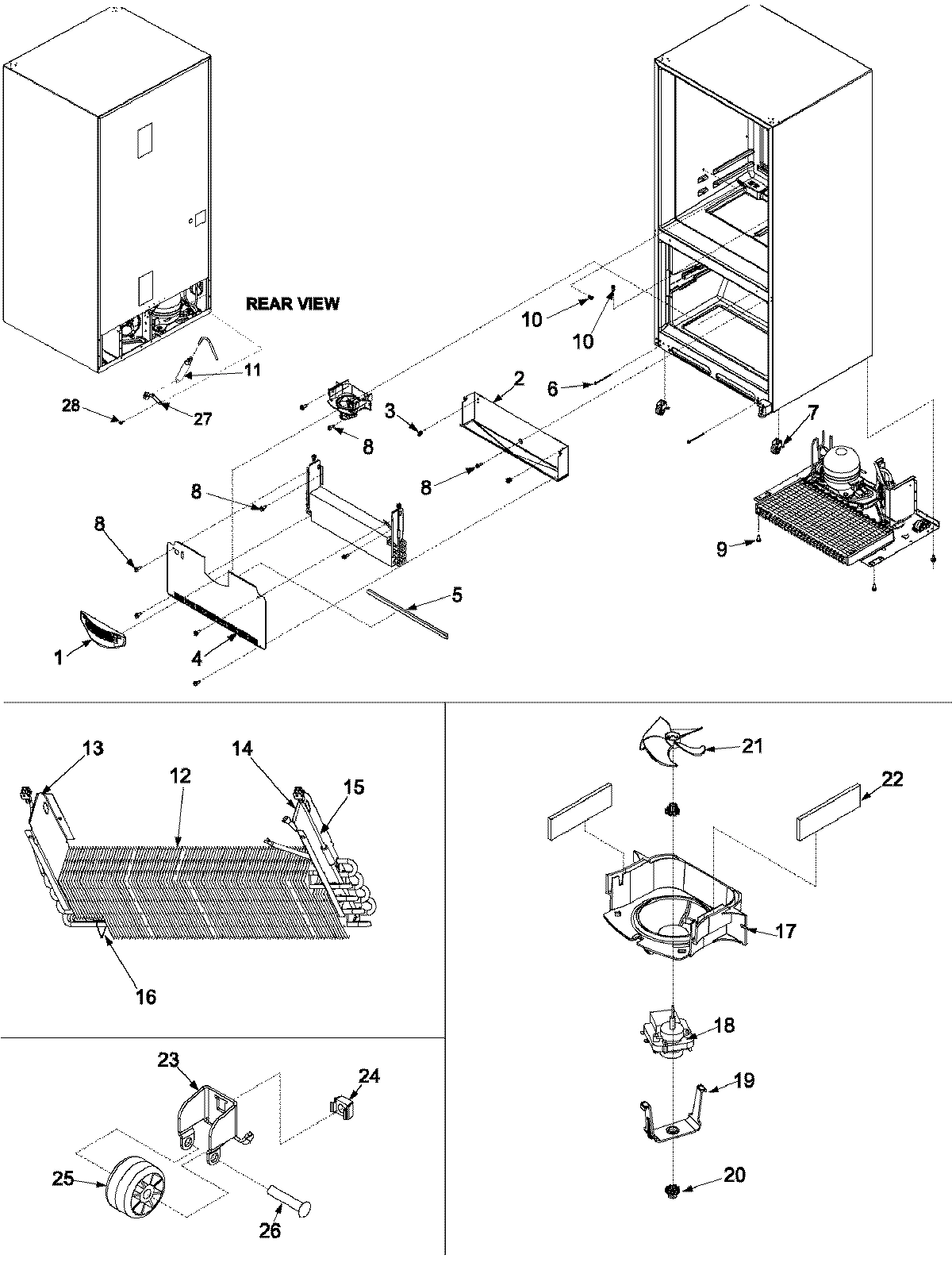

04 - EVAPORATOR AREA & ROLLERS

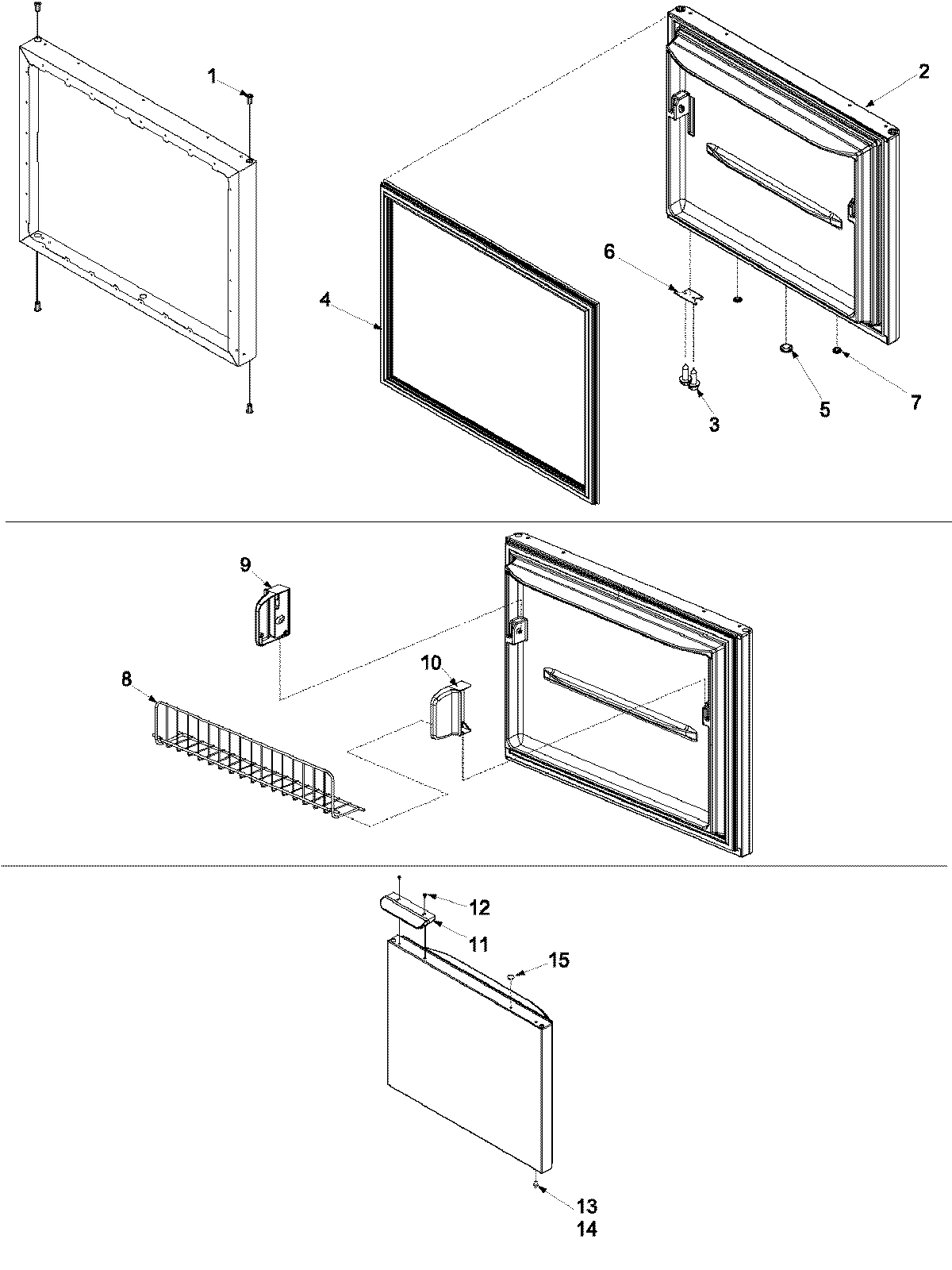

05 - FREEZER DOOR

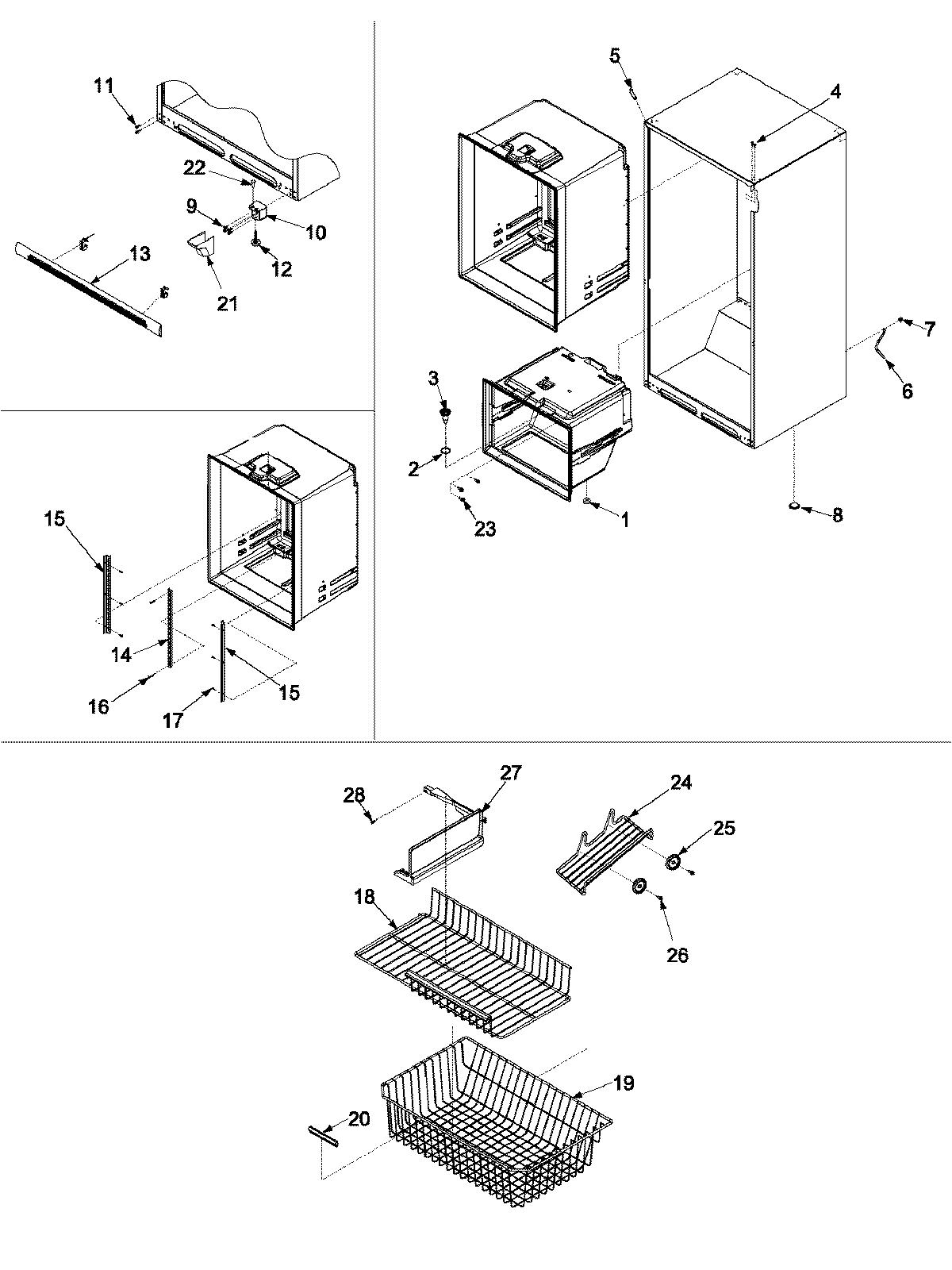

06 - INTERIOR CABINET & FREEZER SHELVING
07 - OPTIONAL ICE MAKER KIT-IC11B P1328003W

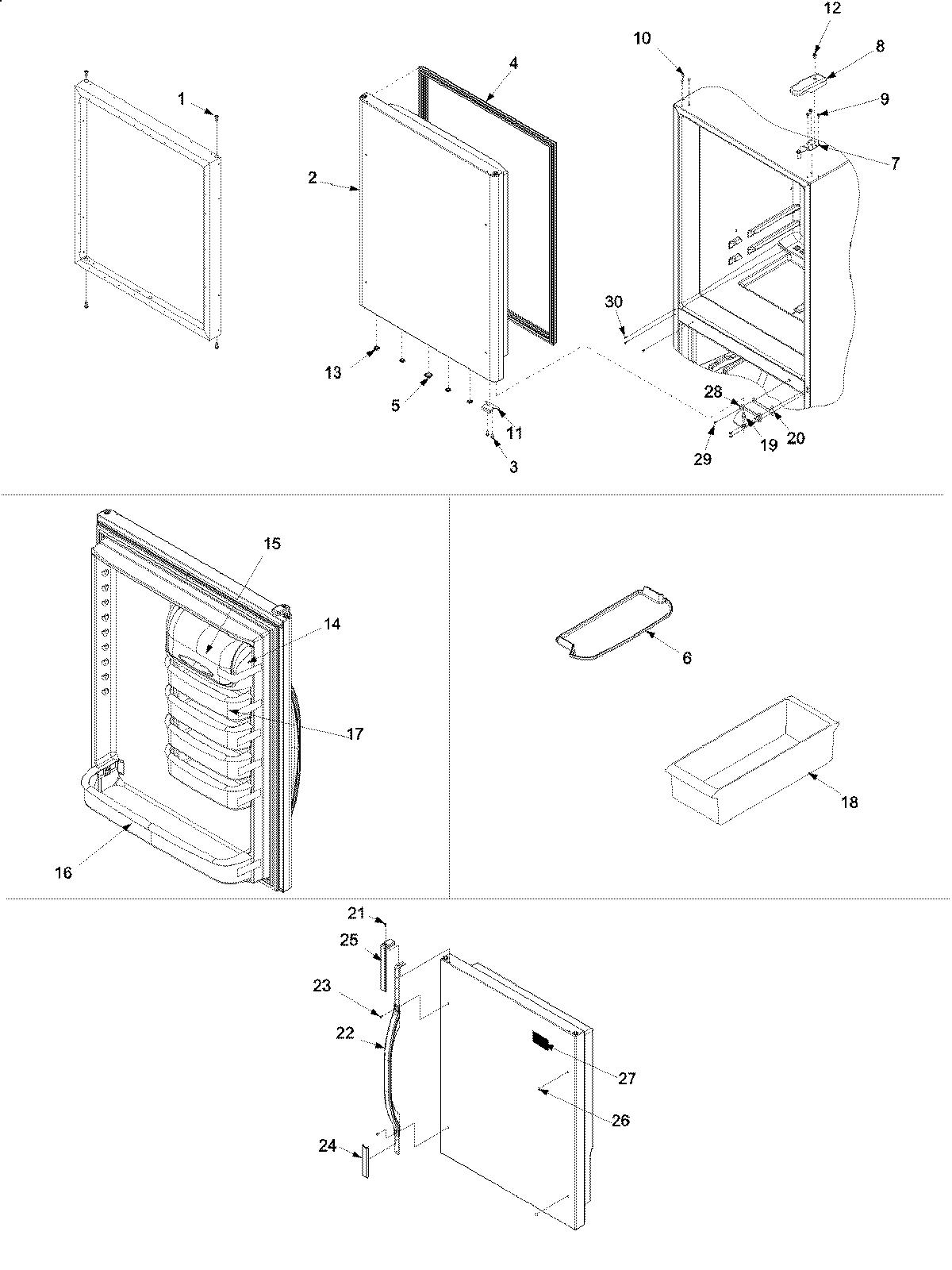

08 - REFRIGERATOR DOOR

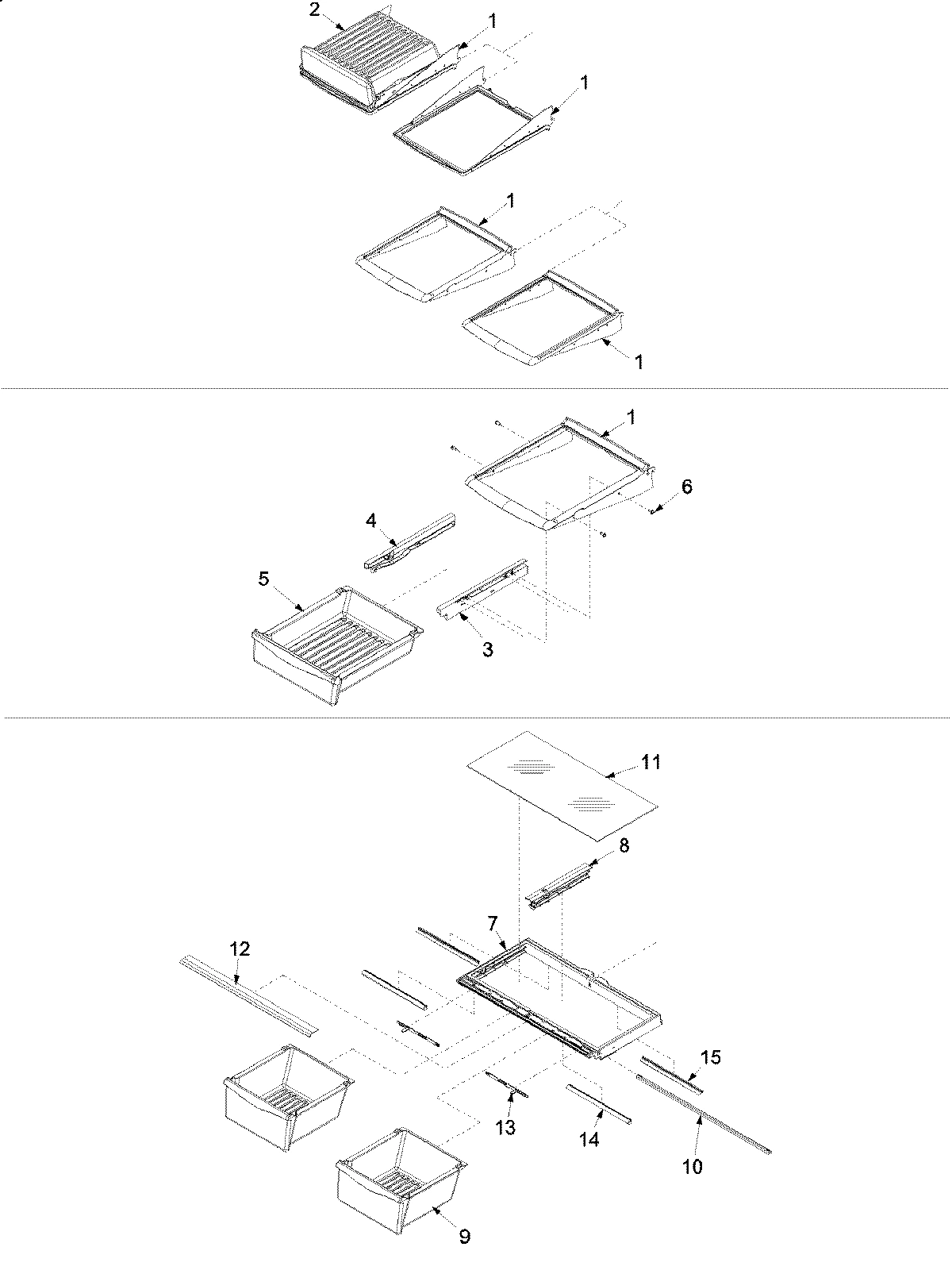

09 - REFRIGERATOR SHELVING
10 - SUPPLIMENTAL INFORMATION

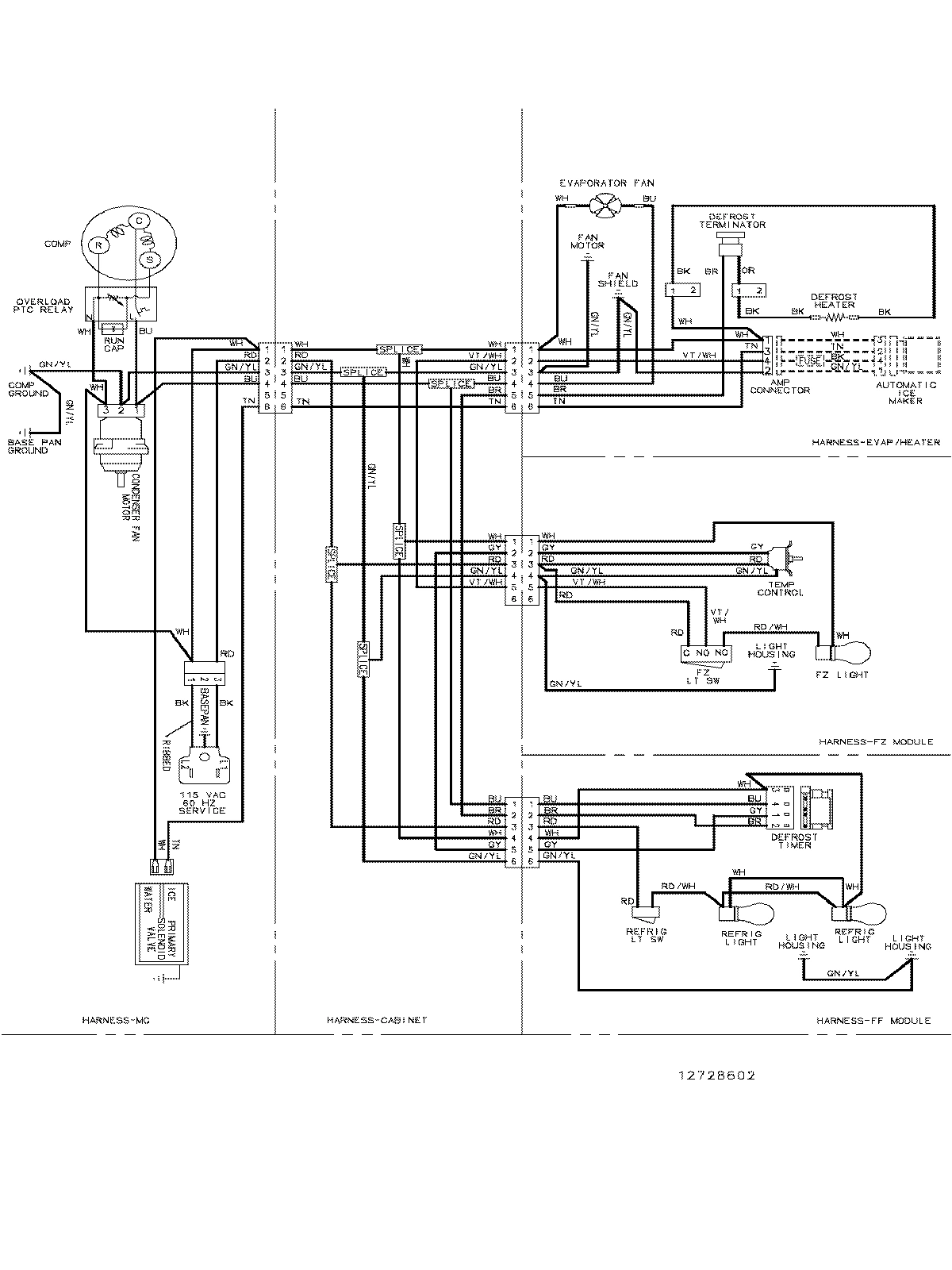

11 - WIRING INFORMATION
Common parts from model Maytag ARB220RCC REFRIGERATOR
1
MAY C3680310 MAY C3680310 Contact Us For Availability
1
MAY 10961001 MAY 10961001 Contact Us For Availability
1
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
1
MAY 67001956 MAY 67001956 Contact Us For Availability
1
MAY 67002057 MAY 67002057 Contact Us For Availability
2
MAY 67001028 MAY 67001028 Contact Us For Availability
2
TRAY, DRIP E-CT MAY 67001080 Contact Us For Availability
2
MAY 67001023 MAY 67001023 Contact Us For Availability
2
SEAL, O RING MAY M0500703 Contact Us For Availability
2
REF DR FOAM ASSY (BSQ) MAY 67001010 Contact Us For Availability
2
MAY 67002055 MAY 67002055 Contact Us For Availability
2
MAY 16021755 MAY 16021755 Contact Us For Availability
3
MAY 67001029 MAY 67001029 Contact Us For Availability
3
MAY 10623002 MAY 10623002 Contact Us For Availability
3
MAY M0211533 MAY M0211533 Contact Us For Availability
3
MAY D7753903 MAY D7753903 Contact Us For Availability
3
MAY 67002009 MAY 67002009 Contact Us For Availability
4
MAY 67001999 MAY 67001999 Contact Us For Availability
4
MAY 67001081 MAY 67001081 Contact Us For Availability
4
MAY A4539607 MAY A4539607 Contact Us For Availability
4
MAY 12683803W MAY 12683803W Contact Us For Availability
5
MAY 67001031 MAY 67001031 Contact Us For Availability
5
GASKET, FOAM MAY A3189320 Contact Us For Availability
5
MAY A3080002 MAY A3080002 Contact Us For Availability
5
MAY 12587702C MAY 12587702C Contact Us For Availability
5
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
5
MAY 67002058 MAY 67002058 Contact Us For Availability
6
MAY 67001066 MAY 67001066 Contact Us For Availability
6
MAY 67001032 MAY 67001032 Contact Us For Availability
6
MAY 67001655 MAY 67001655 Contact Us For Availability
6
MAY M0214931 MAY M0214931 Contact Us For Availability
7
MAY 67001082 MAY 67001082 Contact Us For Availability
7
SCREW MAY 95106-1 Contact Us For Availability
8
MAY M0238616 MAY M0238616 Contact Us For Availability
8
MAY 67002051 MAY 67002051 Contact Us For Availability
8
SPRING, ANTI KINK MAY A1055105 Contact Us For Availability
8
COVER, TOP HINGE (BSQ) MAY 67001013 Contact Us For Availability
9
MAY 67001510 MAY 67001510 Contact Us For Availability
9
END CAP, FZ DR BSKT MAY 67001026 Contact Us For Availability
9
MAY M0241508 MAY M0241508 Contact Us For Availability
9
MAY M0238731 MAY M0238731 Contact Us For Availability
10
GROMMET, SCREW MAY M0580205 Contact Us For Availability
10
END CAP, FZ DR BSKT MAY 67001027 Contact Us For Availability
10
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
10
PLUG, TOP HINGE BUTTON (BSQ) MAY M0310738 Contact Us For Availability
11
DRIER MAY B2150504 Contact Us For Availability
11
MAY 10447110 MAY 10447110 Contact Us For Availability
11
MAY M0233847 MAY M0233847 Contact Us For Availability
11
MAY B5705323 MAY B5705323 Contact Us For Availability
12
MAY 12576801 MAY 12576801 Contact Us For Availability
12
MAY 10354001 MAY 10354001 Contact Us For Availability
12
MAY 67001737 MAY 67001737 Contact Us For Availability
13
MAY M0216705 MAY M0216705 Contact Us For Availability
13
DAM, LEFT RETURN MAY 67001083 Contact Us For Availability
13
MAY 10200801 MAY 10200801 Contact Us For Availability
13
MAY 67001071 MAY 67001071 Contact Us For Availability
14
MAY 67001037 MAY 67001037 Contact Us For Availability
14
DAM, RIGHT RETURN MAY 67001084 Contact Us For Availability
14
MAY D7824706 MAY D7824706 Contact Us For Availability
14
MAY 67001017 MAY 67001017 Contact Us For Availability
14
MAY 67001063 MAY 67001063 Contact Us For Availability
15
MAY 67001038 MAY 67001038 Contact Us For Availability
15
MAY 12246604 MAY 12246604 Contact Us For Availability
15
LADDER, SIDES MAY 67001317 Contact Us For Availability
15
MAY 67001256 MAY 67001256 Contact Us For Availability
16
MAY 67002000 MAY 67002000 Contact Us For Availability
16
MAY M0231425 MAY M0231425 Contact Us For Availability
17
MAY 67001040 MAY 67001040 Contact Us For Availability
17
SHROUD, EVAP FAN MAY 67001086 Contact Us For Availability
17
SCREW, SM MAY M0238642 Contact Us For Availability
18
MAY 67001041 MAY 67001041 Contact Us For Availability
18
NUT, SLEEVE MAY M0753001 Contact Us For Availability
18
MAY 10423131 MAY 10423131 Contact Us For Availability
19
MAY 67001093 MAY 67001093 Contact Us For Availability
19
MAY 67001042 MAY 67001042 Contact Us For Availability
19
MAY 12217805 MAY 12217805 Contact Us For Availability
19
MAY 67001077 MAY 67001077 Contact Us For Availability
19
MAY 10351001 MAY 10351001 Contact Us For Availability
20
MAY M0211018 MAY M0211018 Contact Us For Availability
20
MAY 12619301 MAY 12619301 Contact Us For Availability
20
SHIM, NON METAL (WHT) MAY M0274057 Contact Us For Availability
20
HANDLE, BASKET/SHELF MAY 10508506 Contact Us For Availability
21
COVER, FZ LIGHT MAY 67001285 Contact Us For Availability
21
MAY 12217201 MAY 12217201 Contact Us For Availability
21
MAY 12561901C MAY 12561901C Contact Us For Availability
21
SCREW, HNDL CONE MAY 12248201 Contact Us For Availability
22
MAY 67001096 MAY 67001096 Contact Us For Availability
22
MAY 67001044 MAY 67001044 Contact Us For Availability
22
PLUG, BUTTON (WHT) MAY M0310343 Contact Us For Availability
22
MAY 67001122 MAY 67001122 Contact Us For Availability
23
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
23
PANEL, FZ CONTROL MOUNTING MAY 67001045 Contact Us For Availability
23
MAY M0223230 MAY M0223230 Contact Us For Availability
24
MAY M0286708 MAY M0286708 Contact Us For Availability
24
MAY 12646501 MAY 12646501 Contact Us For Availability
24
MAY 67001125 MAY 67001125 Contact Us For Availability
25
MAY 67001321 MAY 67001321 Contact Us For Availability
25
MAY 10450602 MAY 10450602 Contact Us For Availability
25
MAY 10972101 MAY 10972101 Contact Us For Availability
25
MAY 67001128 MAY 67001128 Contact Us For Availability
26
MAY 67001035 MAY 67001035 Contact Us For Availability
26
MAY M1205302 MAY M1205302 Contact Us For Availability
26
MAY M0230919 MAY M0230919 Contact Us For Availability
27
MAY Y12570701 MAY Y12570701 Contact Us For Availability
27
MAY 10547002 MAY 10547002 Contact Us For Availability
27
MAY 67001723 MAY 67001723 Contact Us For Availability
28
MAY A0282803 MAY A0282803 Contact Us For Availability
28
MAY 67001310 MAY 67001310 Contact Us For Availability
29
MAY 12466101 MAY 12466101 Contact Us For Availability
29
MAY M0226233 MAY M0226233 Contact Us For Availability
NI
MAY M0104102 MAY M0104102 Contact Us For Availability
NI
MAY 67001312 MAY 67001312 Contact Us For Availability
NI
HARNESS, FF MODULE MAY 67001043 Contact Us For Availability
NI
MAY 67001049 MAY 67001049 Contact Us For Availability
NI
MAY 67001135 MAY 67001135 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
MAY 10549601 MAY 10549601 Contact Us For Availability
NI
MAY 67001258 MAY 67001258 Contact Us For Availability
NI
MAY 95108-1 MAY 95108-1 Contact Us For Availability
NI
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
NI
MAY M0114003 MAY M0114003 Contact Us For Availability
NI
MAY 67002054 MAY 67002054 Contact Us For Availability
NI
MAY 15003035 MAY 15003035 Contact Us For Availability
× ![]()
