Model Maytag ARB2117AB REFRIGERATOR – Common Parts & Diagrams

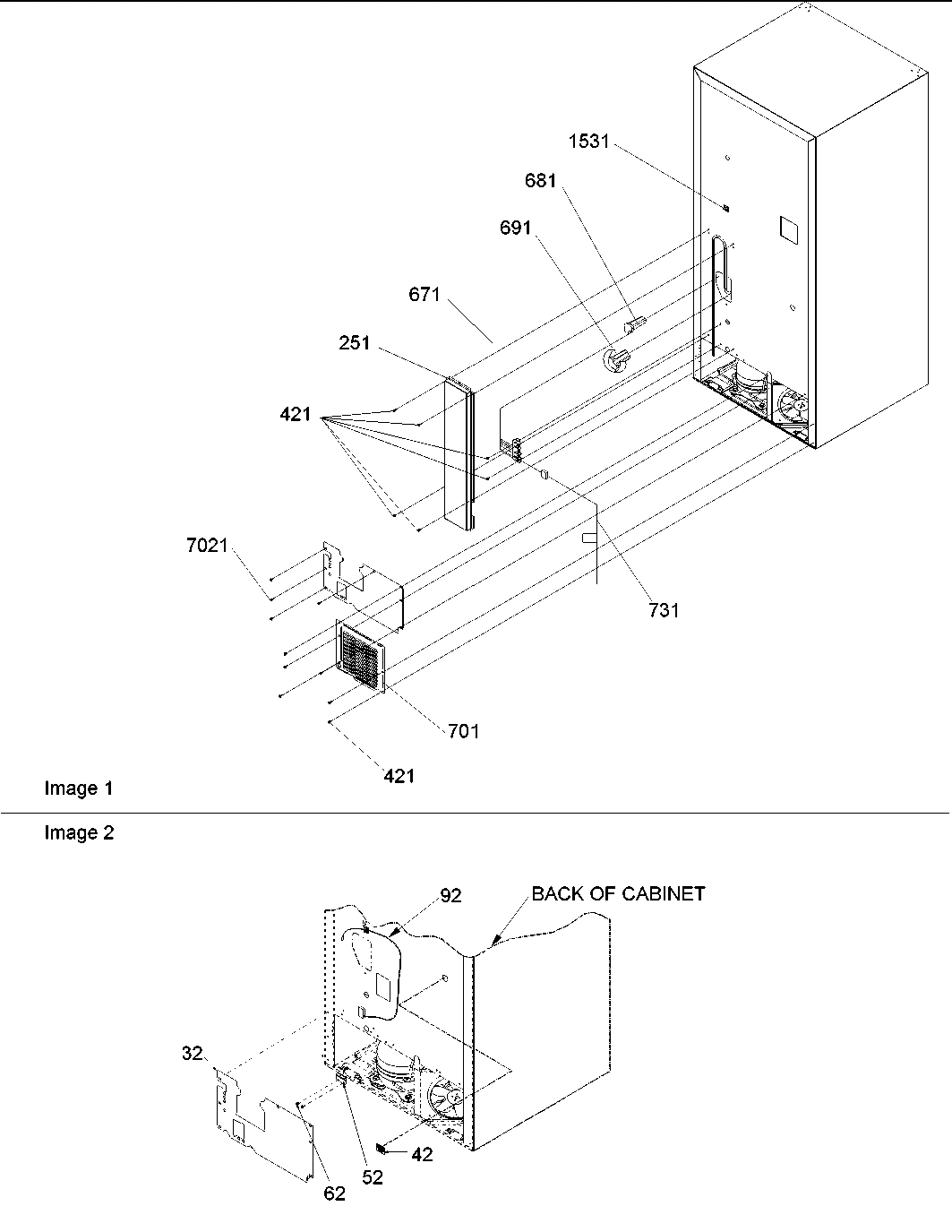

01 - Cabinet Back & Water Valve

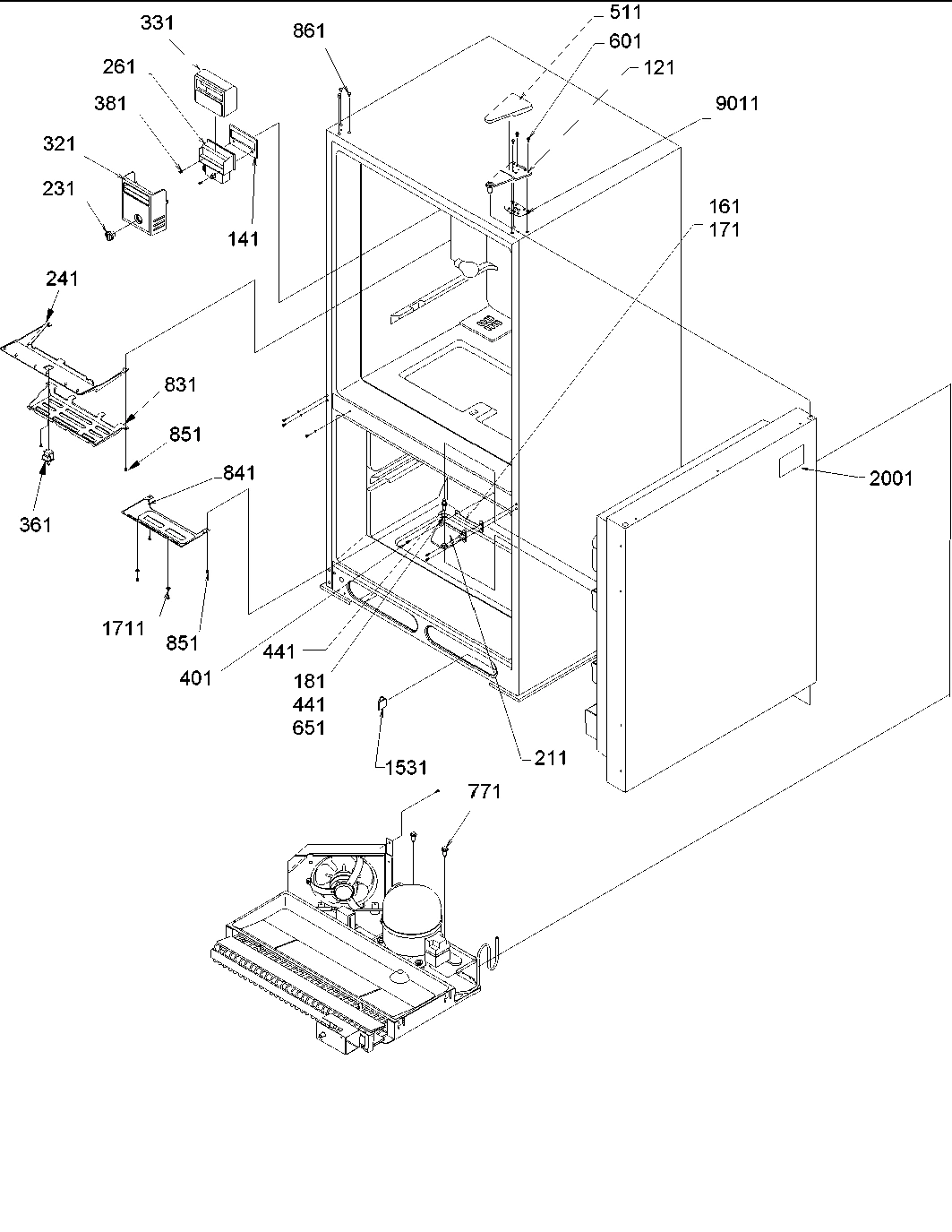

02 - Controls & Light Covers

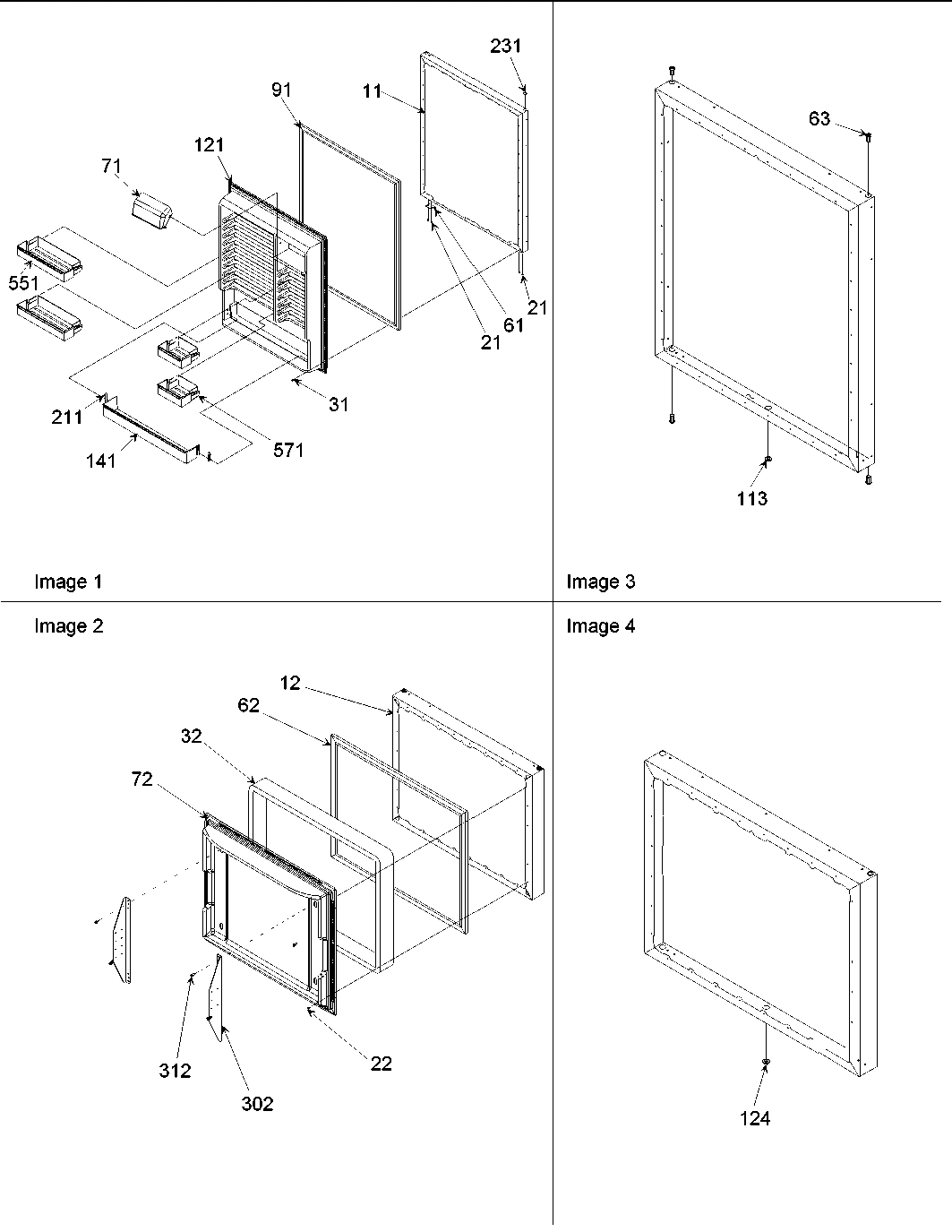

03 - Door Assy

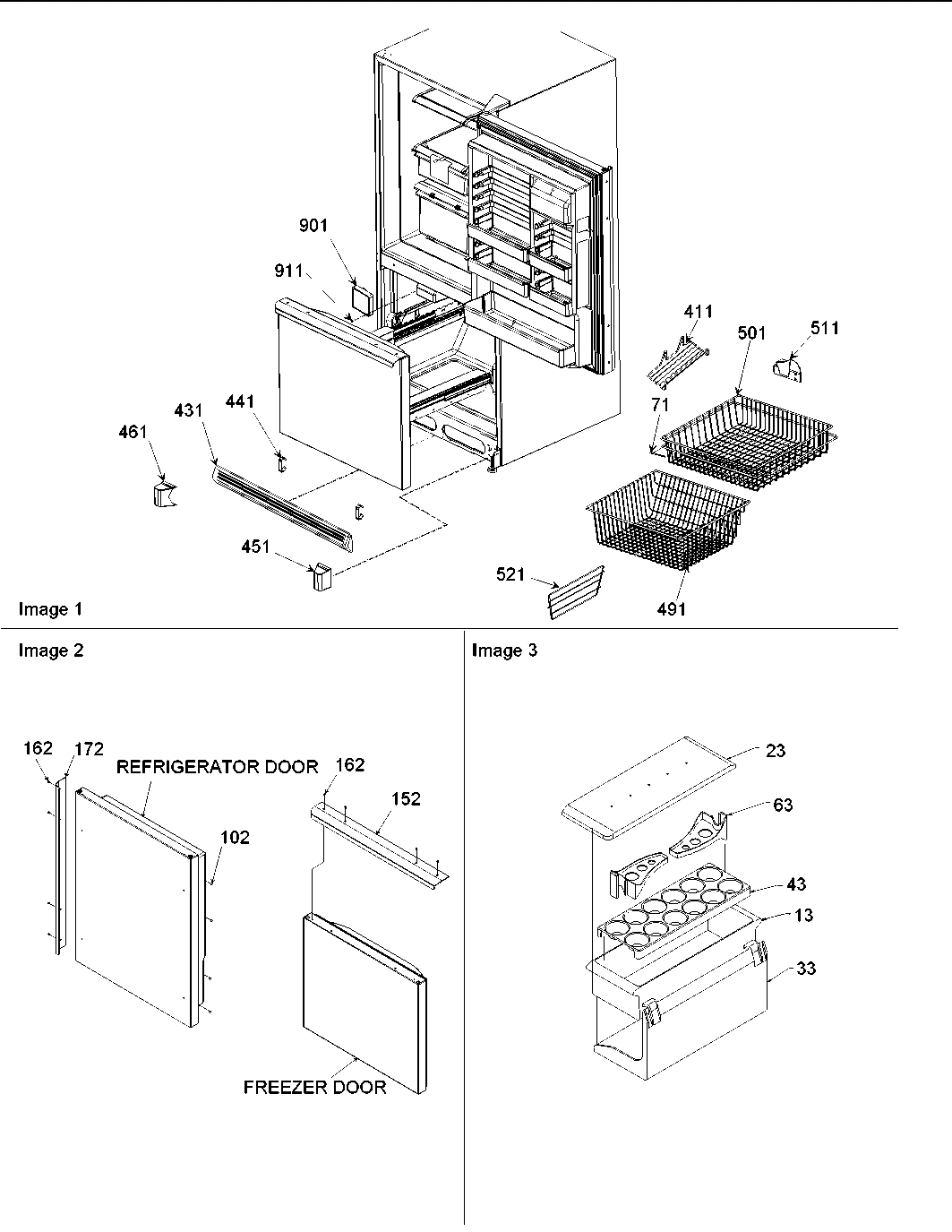

04 - Door Handles & Accessories

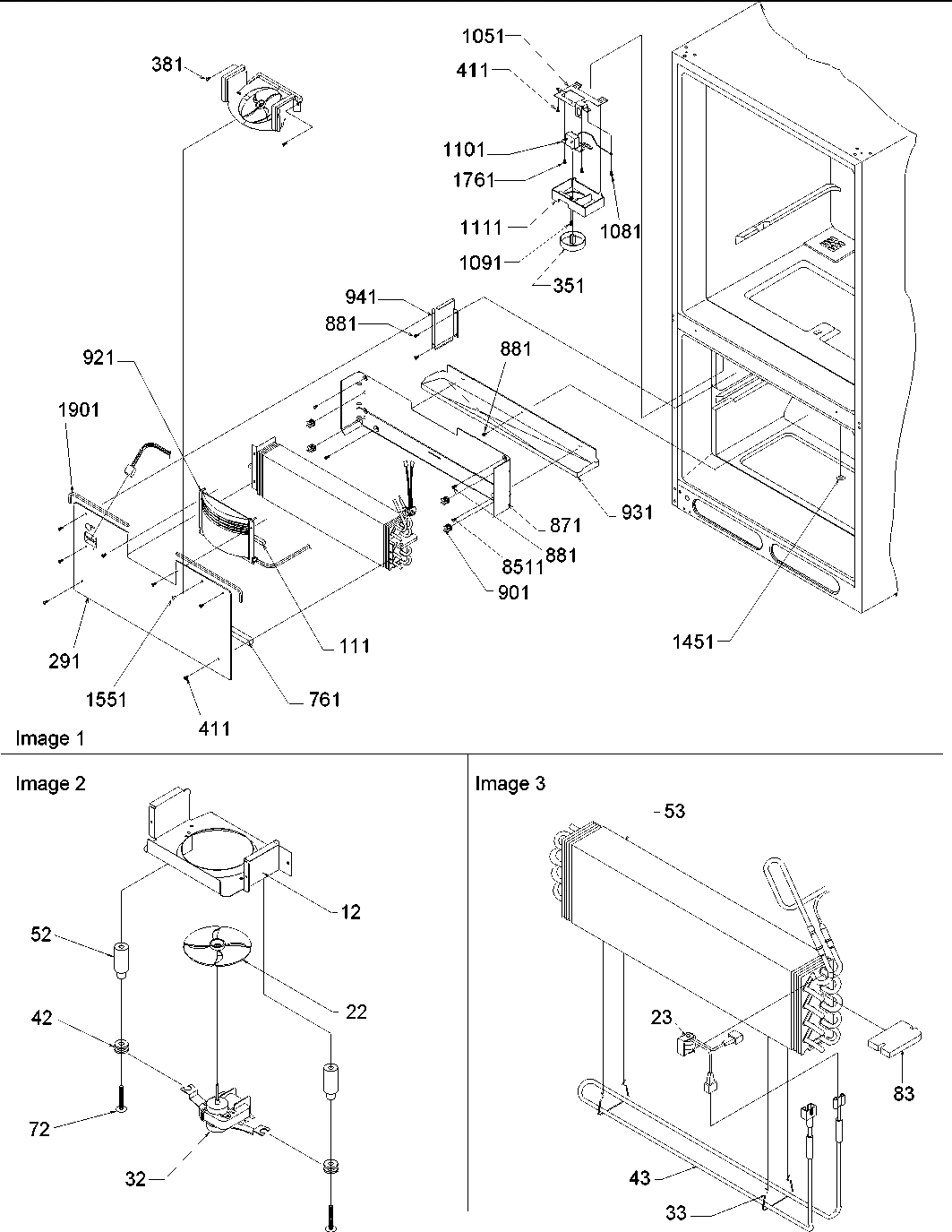

05 - Evaporator & Freezer Control Assy

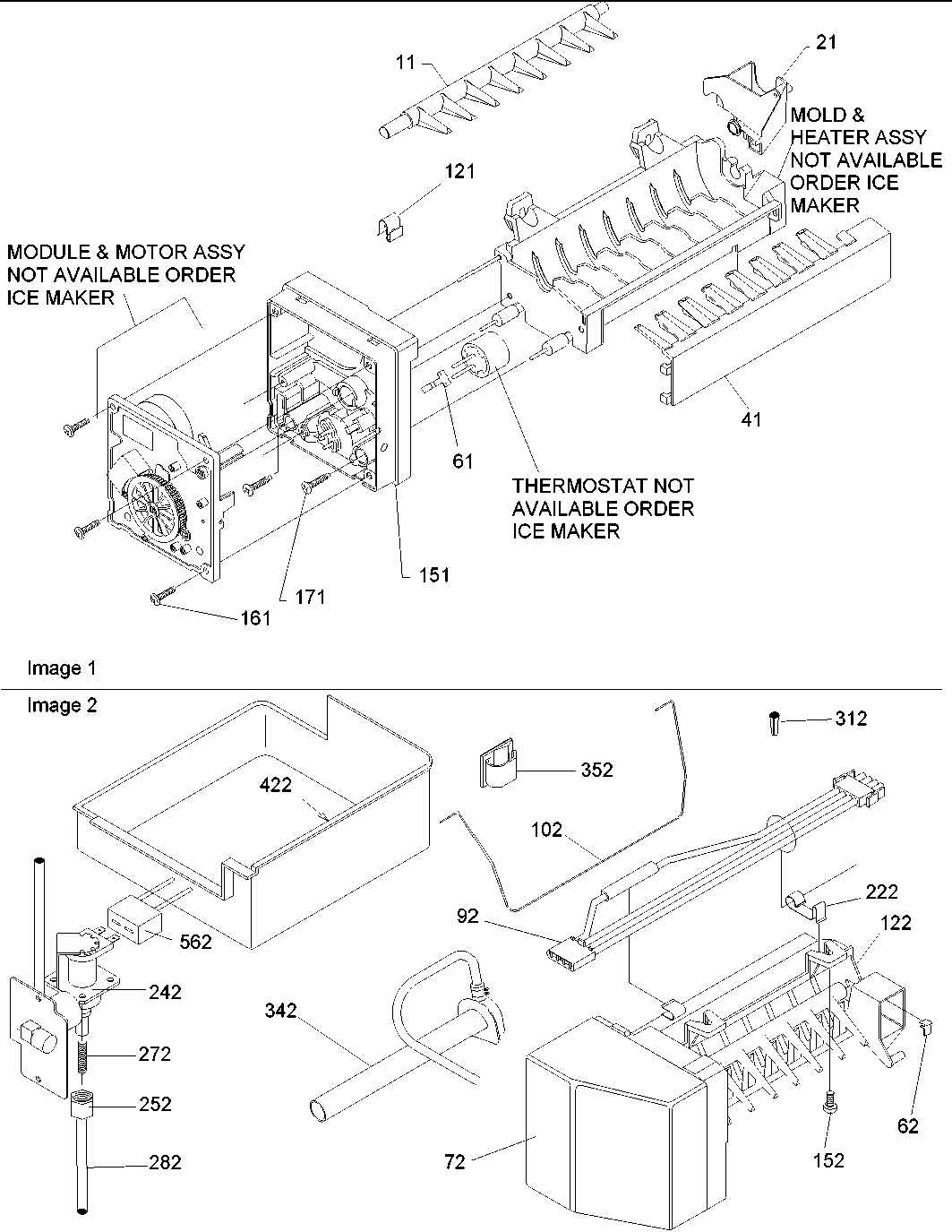

06 - Ice Maker Assy & Parts

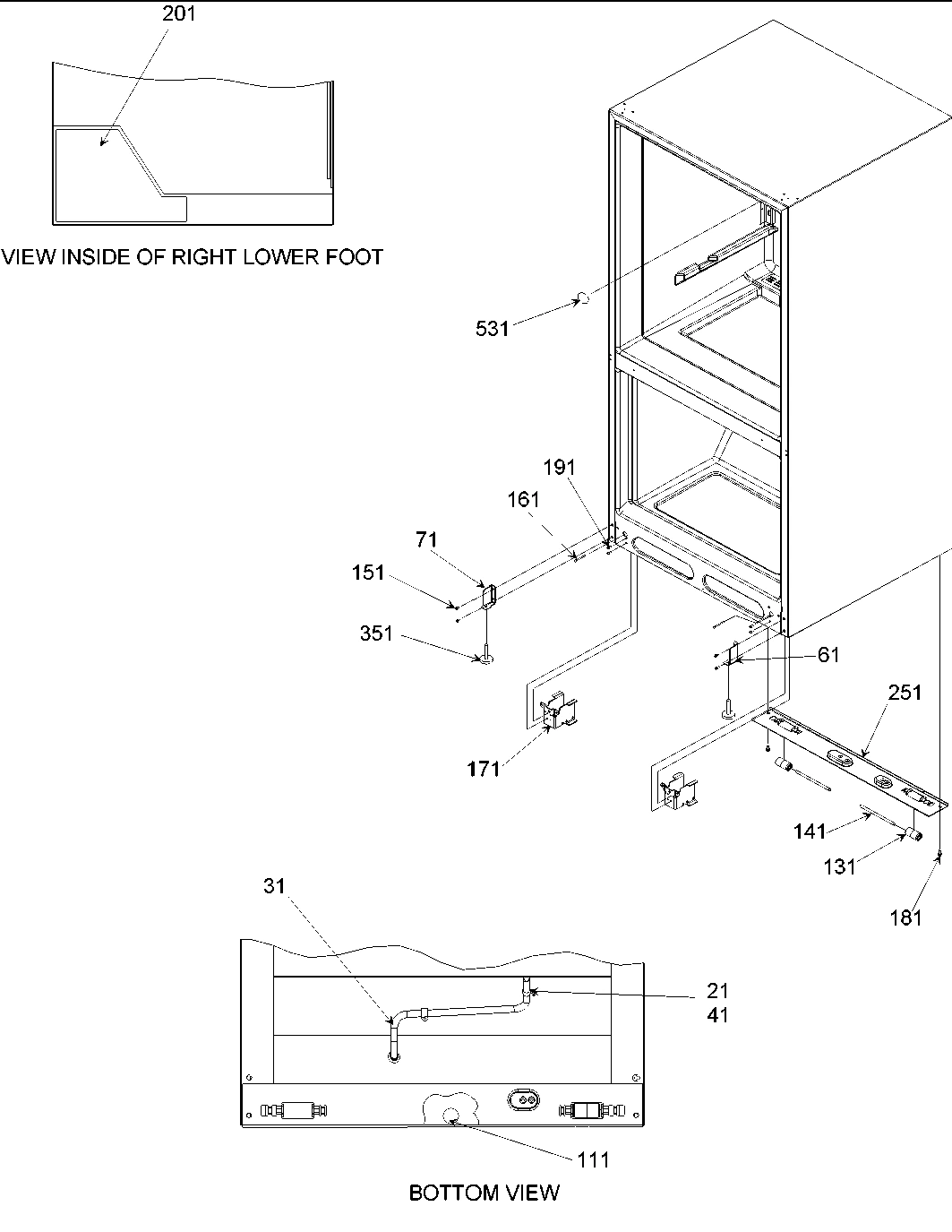

07 - Insulation & Roller Assy

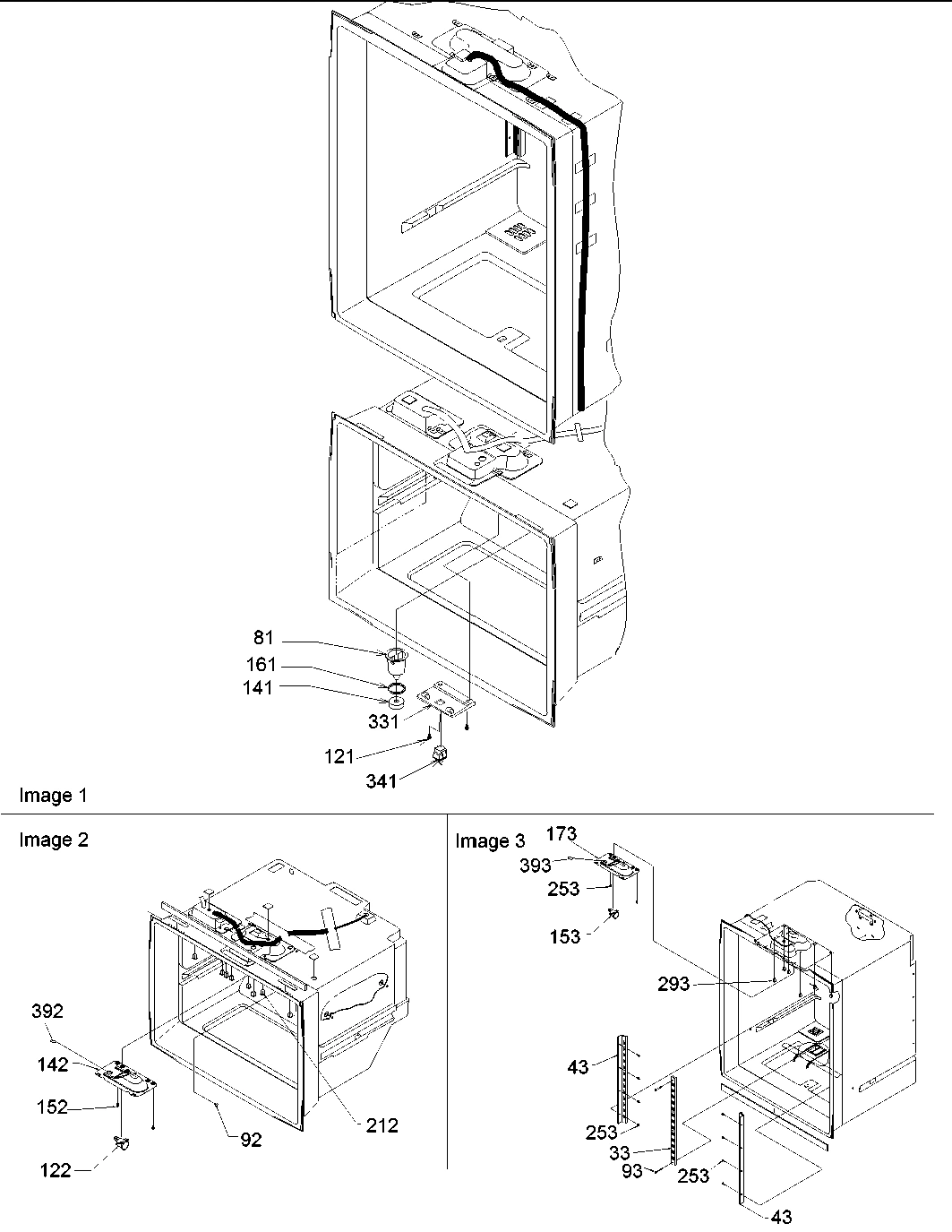

08 - Light Switches & Drain Funnel

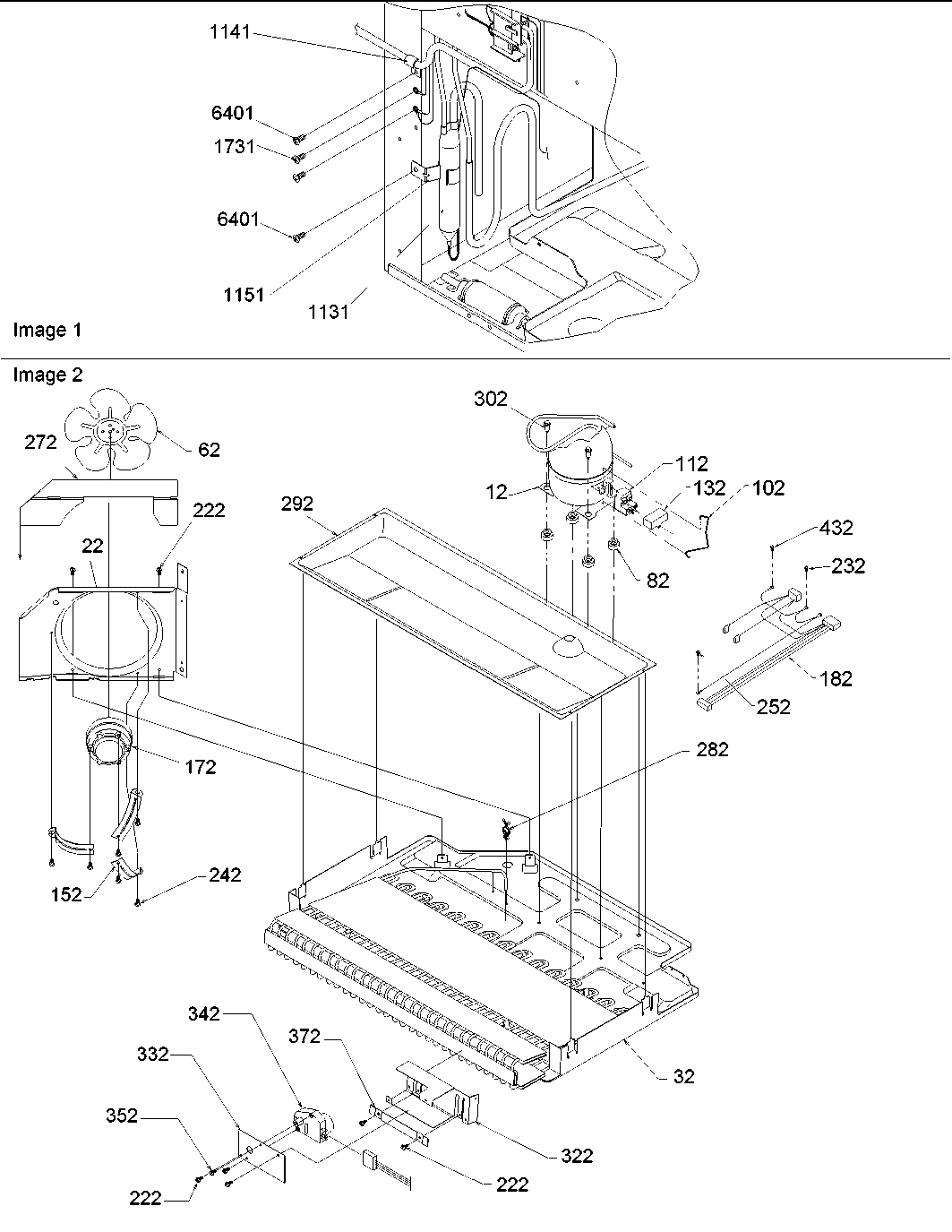

09 - Machine Compartment

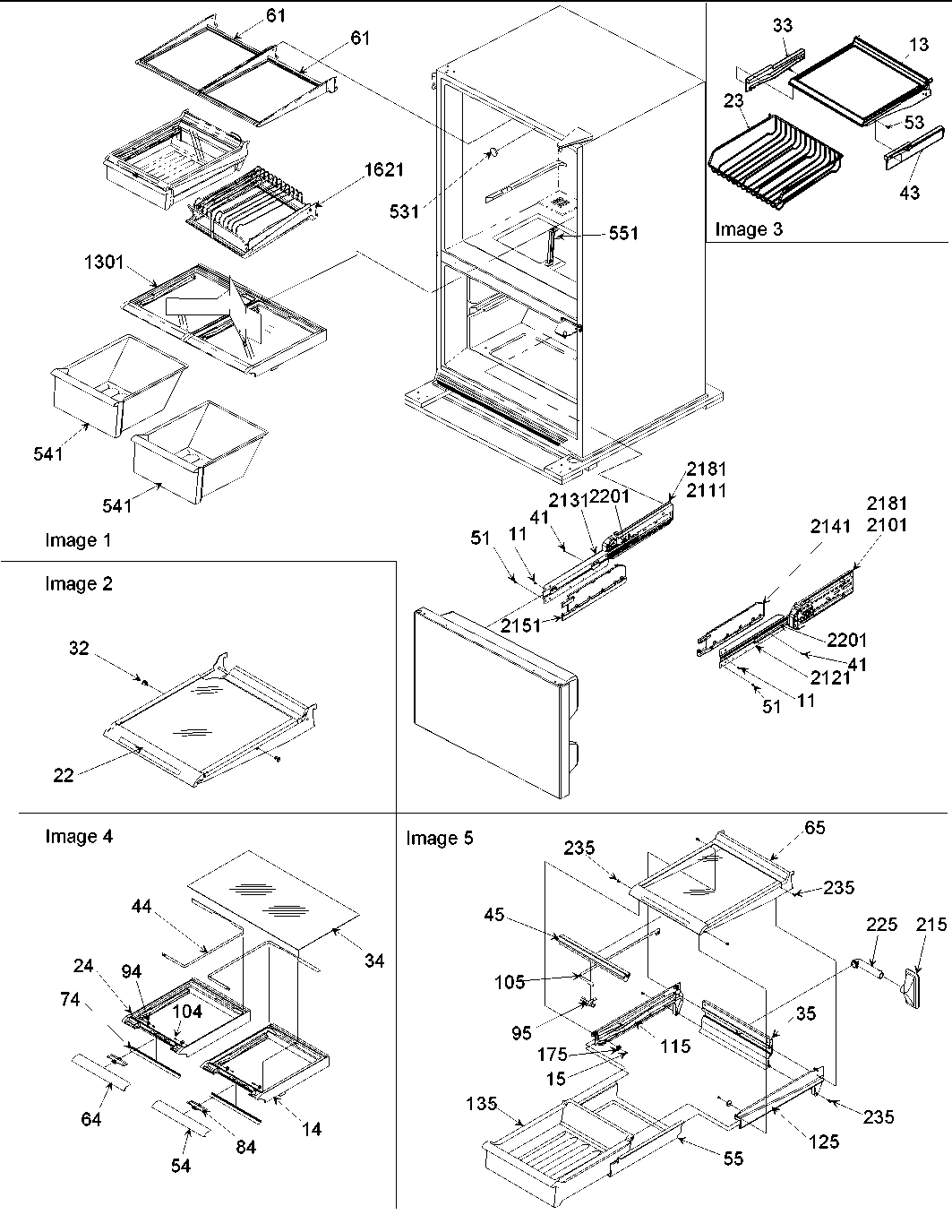

10 - Shelving Assy
Common parts from model Maytag ARB2117AB REFRIGERATOR
11
MAY 12258311B MAY 12258311B Contact Us For Availability
11
MAY R0183119 MAY R0183119 Contact Us For Availability
12
MAY 12565101B MAY 12565101B Contact Us For Availability
12
MAY 10619310 MAY 10619310 Contact Us For Availability
13
MAY 10423131 MAY 10423131 Contact Us For Availability
14
MAY 10485901 MAY 10485901 Contact Us For Availability
21
MAY R0156839 MAY R0156839 Contact Us For Availability
21
MAY M0227217 MAY M0227217 Contact Us For Availability
22
MAY 12217201 MAY 12217201 Contact Us For Availability
22
MAY 10426911 MAY 10426911 Contact Us For Availability
22
MAY 10895818 MAY 10895818 Contact Us For Availability
23
MAY 10436404 MAY 10436404 Contact Us For Availability
23
MAY 10442411 MAY 10442411 Contact Us For Availability
23
MAY 12503801 MAY 12503801 Contact Us For Availability
24
MAY 10485902 MAY 10485902 Contact Us For Availability
31
MAY M0219730 MAY M0219730 Contact Us For Availability
31
MAY 10513302 MAY 10513302 Contact Us For Availability
32
MAY 12442205 MAY 12442205 Contact Us For Availability
32
MAY 10481220 MAY 10481220 Contact Us For Availability
32
MAY 10875101 MAY 10875101 Contact Us For Availability
33
MAY 10448903S MAY 10448903S Contact Us For Availability
33
MAY 12614202 MAY 12614202 Contact Us For Availability
33
MAY 12528201 MAY 12528201 Contact Us For Availability
34
MAY 10370035 MAY 10370035 Contact Us For Availability
35
MAY 10934903 MAY 10934903 Contact Us For Availability
41
MAY R0183120 MAY R0183120 Contact Us For Availability
41
MAY M0102303 MAY M0102303 Contact Us For Availability
41
MAY M0211016 MAY M0211016 Contact Us For Availability
42
MAY 12442501 MAY 12442501 Contact Us For Availability
43
MAY 10436506 MAY 10436506 Contact Us For Availability
43
MAY 10428409 MAY 10428409 Contact Us For Availability
43
MAY 12614201 MAY 12614201 Contact Us For Availability
43
MAY 12528202 MAY 12528202 Contact Us For Availability
44
MAY 10514002 MAY 10514002 Contact Us For Availability
45
MAY 10920303 MAY 10920303 Contact Us For Availability
51
MAY M0239229 MAY M0239229 Contact Us For Availability
52
MAY 12442401 MAY 12442401 Contact Us For Availability
53
MAY R0170047 MAY R0170047 Contact Us For Availability
53
MAY M0214931 MAY M0214931 Contact Us For Availability
54
MAY 10530332 MAY 10530332 Contact Us For Availability
55
MAY 10437306 MAY 10437306 Contact Us For Availability
61
MAY 10447109 MAY 10447109 Contact Us For Availability
61
MAY R0191094 MAY R0191094 Contact Us For Availability
61
MAY 12525403BD MAY 12525403BD Contact Us For Availability
61
MAY 10926207Q MAY 10926207Q Contact Us For Availability
62
MAY 12550101 MAY 12550101 Contact Us For Availability
62
MAY B5720302 MAY B5720302 Contact Us For Availability
62
MAY B5742604 MAY B5742604 Contact Us For Availability
63
MAY 10961002 MAY 10961002 Contact Us For Availability
63
MAY 12103905 MAY 12103905 Contact Us For Availability
64
MAY 10530333 MAY 10530333 Contact Us For Availability
65
MAY 10895714 MAY 10895714 Contact Us For Availability
71
MAY 10423422 MAY 10423422 Contact Us For Availability
71
HANDLE, BASKET/SHELF MAY 10508506 Contact Us For Availability
71
MAY 12525404BD MAY 12525404BD Contact Us For Availability
72
MAY 12563901 MAY 12563901 Contact Us For Availability
72
MAY M0219711 MAY M0219711 Contact Us For Availability
74
MAY 10530204 MAY 10530204 Contact Us For Availability
81
MAY D7753903 MAY D7753903 Contact Us For Availability
82
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
83
MAY 10519101 MAY 10519101 Contact Us For Availability
84
MAY 10797501 MAY 10797501 Contact Us For Availability
91
MAY 12550108 MAY 12550108 Contact Us For Availability
92
MAY D7813004 MAY D7813004 Contact Us For Availability
93
MAY M0231426 MAY M0231426 Contact Us For Availability
95
MAY 10920401 MAY 10920401 Contact Us For Availability
102
MAY 10884401 MAY 10884401 Contact Us For Availability
102
MAY 12604101 MAY 12604101 Contact Us For Availability
104
MAY M0238105 MAY M0238105 Contact Us For Availability
105
MAY 10935002 MAY 10935002 Contact Us For Availability
111
MAY B5759611 MAY B5759611 Contact Us For Availability
112
MAY 12555901 MAY 12555901 Contact Us For Availability
115
MAY 10880202 MAY 10880202 Contact Us For Availability
121
MAY 12077316 MAY 12077316 Contact Us For Availability
121
MAY 10462502 MAY 10462502 Contact Us For Availability
121
MAY M0238616 MAY M0238616 Contact Us For Availability
121
MAY 10319801 MAY 10319801 Contact Us For Availability
122
MAY D7824705 MAY D7824705 Contact Us For Availability
124
MAY M0310336 MAY M0310336 Contact Us For Availability
125
MAY 10897102 MAY 10897102 Contact Us For Availability
131
MAY 10450701 MAY 10450701 Contact Us For Availability
132
CAPACITOR MAY C8931612 Contact Us For Availability
135
MAY 10417018 MAY 10417018 Contact Us For Availability
141
MAY B8345401 MAY B8345401 Contact Us For Availability
141
MAY 10183126 MAY 10183126 Contact Us For Availability
141
MAY 10450901 MAY 10450901 Contact Us For Availability
141
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
151
MAY R0183121 MAY R0183121 Contact Us For Availability
151
MAY M0233847 MAY M0233847 Contact Us For Availability
152
MAY M0211018 MAY M0211018 Contact Us For Availability
152
MAY 12572602B MAY 12572602B Contact Us For Availability
152
MAY 10582501 MAY 10582501 Contact Us For Availability
153
MAY D7714408 MAY D7714408 Contact Us For Availability
161
MAY 10562211 MAY 10562211 Contact Us For Availability
161
MAY R0186041 MAY R0186041 Contact Us For Availability
161
MAY M0204336 MAY M0204336 Contact Us For Availability
161
MAY M0501601 MAY M0501601 Contact Us For Availability
162
MAY M0239654 MAY M0239654 Contact Us For Availability
171
MAY 10562203 MAY 10562203 Contact Us For Availability
171
MAY R0186040 MAY R0186040 Contact Us For Availability
171
MAY 12452601Q MAY 12452601Q Contact Us For Availability
172
MAY 12572601B MAY 12572601B Contact Us For Availability
173
MAY 12427502 MAY 12427502 Contact Us For Availability
175
ROLLER, PAN MAY 10481001 Contact Us For Availability
181
MAY M0260242 MAY M0260242 Contact Us For Availability
182
MAY 12556101 MAY 12556101 Contact Us For Availability
191
MAY M0211031 MAY M0211031 Contact Us For Availability
201
MAY 12403608 MAY 12403608 Contact Us For Availability
211
MAY 12446514 MAY 12446514 Contact Us For Availability
211
MAY 10202001 MAY 10202001 Contact Us For Availability
215
MAY 10501901 MAY 10501901 Contact Us For Availability
222
MAY 10526701 MAY 10526701 Contact Us For Availability
222
MAY M0224416 MAY M0224416 Contact Us For Availability
225
MAY 10486401 MAY 10486401 Contact Us For Availability
231
MAY 12500101 MAY 12500101 Contact Us For Availability
231
MAY 10686404 MAY 10686404 Contact Us For Availability
232
MAY M0232903 MAY M0232903 Contact Us For Availability
235
MAY M0211533 MAY M0211533 Contact Us For Availability
241
MAY 12056201 MAY 12056201 Contact Us For Availability
242
MAY 12490801 MAY 12490801 Contact Us For Availability
242
MAY M0223816 MAY M0223816 Contact Us For Availability
251
MAY 10427112 MAY 10427112 Contact Us For Availability
252
MAY M0253916 MAY M0253916 Contact Us For Availability
252
NUT, SLEEVE MAY M0753001 Contact Us For Availability
253
SCREW, SM MAY M0238642 Contact Us For Availability
261
MAY R0161050 MAY R0161050 Contact Us For Availability
272
MAY A1055101 MAY A1055101 Contact Us For Availability
272
MAY 10442702 MAY 10442702 Contact Us For Availability
282
MAY B5705308 MAY B5705308 Contact Us For Availability
282
MAY B5667304 MAY B5667304 Contact Us For Availability
291
MAY 10485406 MAY 10485406 Contact Us For Availability
292
MAY 10427405 MAY 10427405 Contact Us For Availability
293
MAY M0581001 MAY M0581001 Contact Us For Availability
302
MAY M0221523 MAY M0221523 Contact Us For Availability
302
MAY 12564201WD MAY 12564201WD Contact Us For Availability
312
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
321
MAY D7687536 MAY D7687536 Contact Us For Availability
322
MAY 10503201 MAY 10503201 Contact Us For Availability
331
MAY 12607401 MAY 12607401 Contact Us For Availability
331
MAY D7297604 MAY D7297604 Contact Us For Availability
332
MAY 12515801 MAY 12515801 Contact Us For Availability
341
MAY 12466101 MAY 12466101 Contact Us For Availability
342
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
342
MAY 10530703 MAY 10530703 Contact Us For Availability
351
MAY D7689905 MAY D7689905 Contact Us For Availability
351
MAY 10354001 MAY 10354001 Contact Us For Availability
352
MAY M0216705 MAY M0216705 Contact Us For Availability
361
MAY C3680310 MAY C3680310 Contact Us For Availability
372
MAY 10542701 MAY 10542701 Contact Us For Availability
393
MAY B5733302 MAY B5733302 Contact Us For Availability
401
MAY M0226233 MAY M0226233 Contact Us For Availability
411
MAY 12228201 MAY 12228201 Contact Us For Availability
422
MAY 10476207 MAY 10476207 Contact Us For Availability
431
MAY 10474801 MAY 10474801 Contact Us For Availability
441
SHIM, NON METAL (BLK) MAY M0274062 Contact Us For Availability
441
MAY 12582301 MAY 12582301 Contact Us For Availability
451
MAY 12596701B MAY 12596701B Contact Us For Availability
461
MAY 12596702B MAY 12596702B Contact Us For Availability
491
MAY 12564301 MAY 12564301 Contact Us For Availability
501
MAY 12564401 MAY 12564401 Contact Us For Availability
511
MAY 12076301 MAY 12076301 Contact Us For Availability
511
MAY 12351101 MAY 12351101 Contact Us For Availability
521
MAY 12525301 MAY 12525301 Contact Us For Availability
531
MAY M0310342 MAY M0310342 Contact Us For Availability
531
PLUG, BUTTON (WHT) MAY M0310343 Contact Us For Availability
541
MAY 10432015 MAY 10432015 Contact Us For Availability
551
MAY 10416916 MAY 10416916 Contact Us For Availability
551
MAY 10461901 MAY 10461901 Contact Us For Availability
562
MAY 10525901 MAY 10525901 Contact Us For Availability
571
MAY 10502916 MAY 10502916 Contact Us For Availability
601
MAY M0238731 MAY M0238731 Contact Us For Availability
651
MAY M0274063 MAY M0274063 Contact Us For Availability
691
MAY 10428001 MAY 10428001 Contact Us For Availability
701
MAY 12039807 MAY 12039807 Contact Us For Availability
731
MAY 10916502 MAY 10916502 Contact Us For Availability
761
GASKET, FOAM MAY A3189320 Contact Us For Availability
831
MAY 12056301 MAY 12056301 Contact Us For Availability
841
MAY 10493302 MAY 10493302 Contact Us For Availability
851
MAY M0238846 MAY M0238846 Contact Us For Availability
861
PLUG, TOP HINGE BUTTON (BLK) MAY M0310731 Contact Us For Availability
871
MAY 10427716 MAY 10427716 Contact Us For Availability
901
MAY D7874403 MAY D7874403 Contact Us For Availability
901
MAY 10623002 MAY 10623002 Contact Us For Availability
921
MAY 10502401 MAY 10502401 Contact Us For Availability
931
MAY 10486104 MAY 10486104 Contact Us For Availability
941
MAY 10638601 MAY 10638601 Contact Us For Availability
1051
MAY 12271401 MAY 12271401 Contact Us For Availability
1091
MAY M0216531 MAY M0216531 Contact Us For Availability
1101
MAY C8946703 MAY C8946703 Contact Us For Availability
1111
MAY D7878825 MAY D7878825 Contact Us For Availability
1131
DRIER MAY B2150504 Contact Us For Availability
1141
MAY M0103904 MAY M0103904 Contact Us For Availability
1151
MAY 10547001 MAY 10547001 Contact Us For Availability
1301
MAY 12431808Q MAY 12431808Q Contact Us For Availability
1451
MAY M0310308 MAY M0310308 Contact Us For Availability
1551
MAY M0310305 MAY M0310305 Contact Us For Availability
1621
MAY 12224201Q MAY 12224201Q Contact Us For Availability
1711
MAY M0270538 MAY M0270538 Contact Us For Availability
1731
MAY M0239216 MAY M0239216 Contact Us For Availability
1761
MAY M0216716 MAY M0216716 Contact Us For Availability
1901
MAY A3030353 MAY A3030353 Contact Us For Availability
2101
MAY 12563801 MAY 12563801 Contact Us For Availability
2111
MAY 12563802 MAY 12563802 Contact Us For Availability
2121
MAY 12564501WD MAY 12564501WD Contact Us For Availability
2131
MAY 12564502WD MAY 12564502WD Contact Us For Availability
2141
MAY 12564101 MAY 12564101 Contact Us For Availability
2151
MAY 12564102 MAY 12564102 Contact Us For Availability
2181
SCREW 1`` MAY M0211021 Contact Us For Availability
2201
MAY 12525501 MAY 12525501 Contact Us For Availability
9011
MAY 12545201 MAY 12545201 Contact Us For Availability
NI
MAY 10972101 MAY 10972101 Contact Us For Availability
NI
MAY M0321202 MAY M0321202 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
MAY 10527047 MAY 10527047 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY A3036901 MAY A3036901 Contact Us For Availability
NI
MAY M0114003 MAY M0114003 Contact Us For Availability
NI
MAY M0311301 MAY M0311301 Contact Us For Availability
× ![]()
