Model Electrolux AR28NS5F1 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

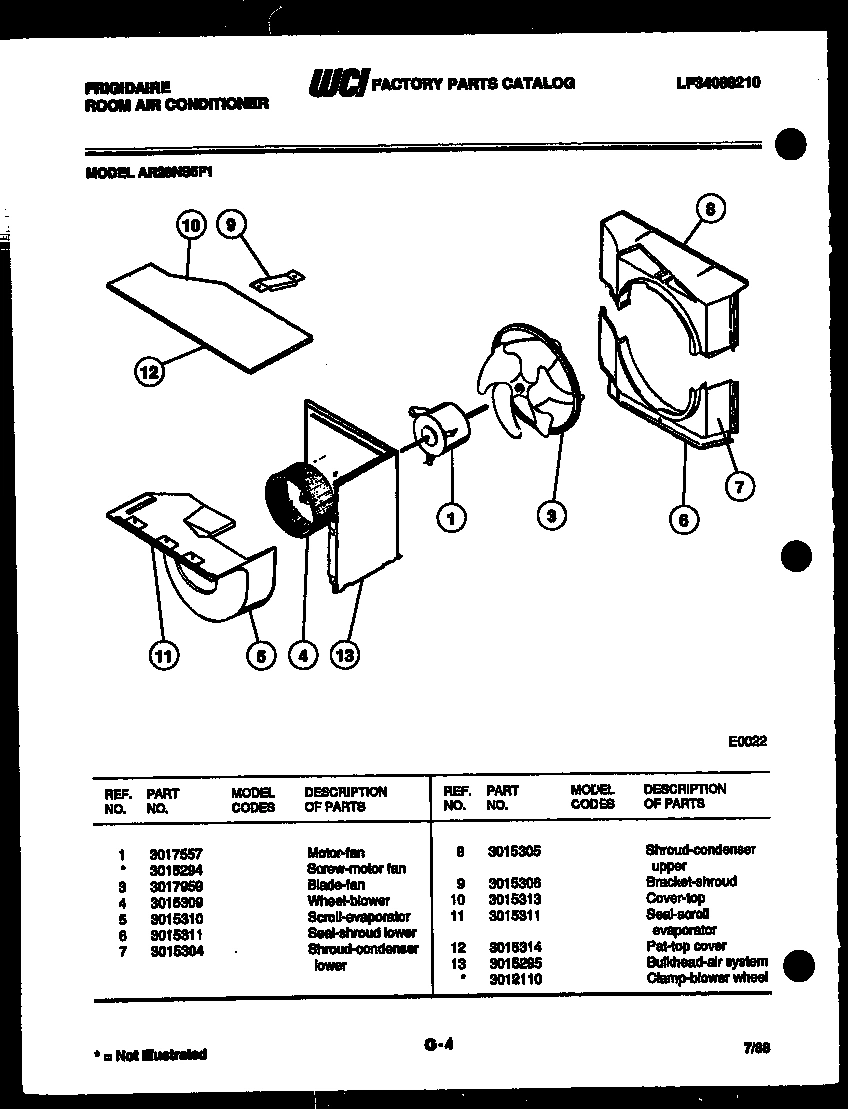

04 - AIR HANDLING PARTS

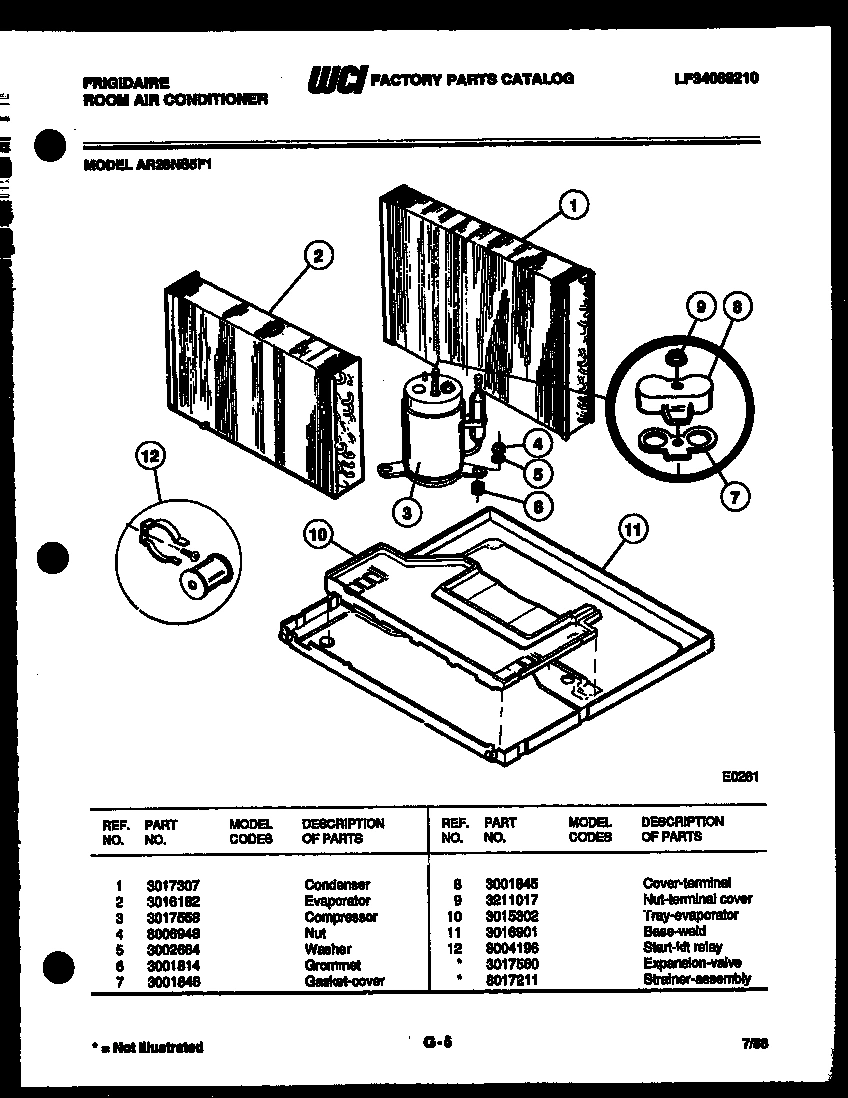

05 - SYSTEM PARTS

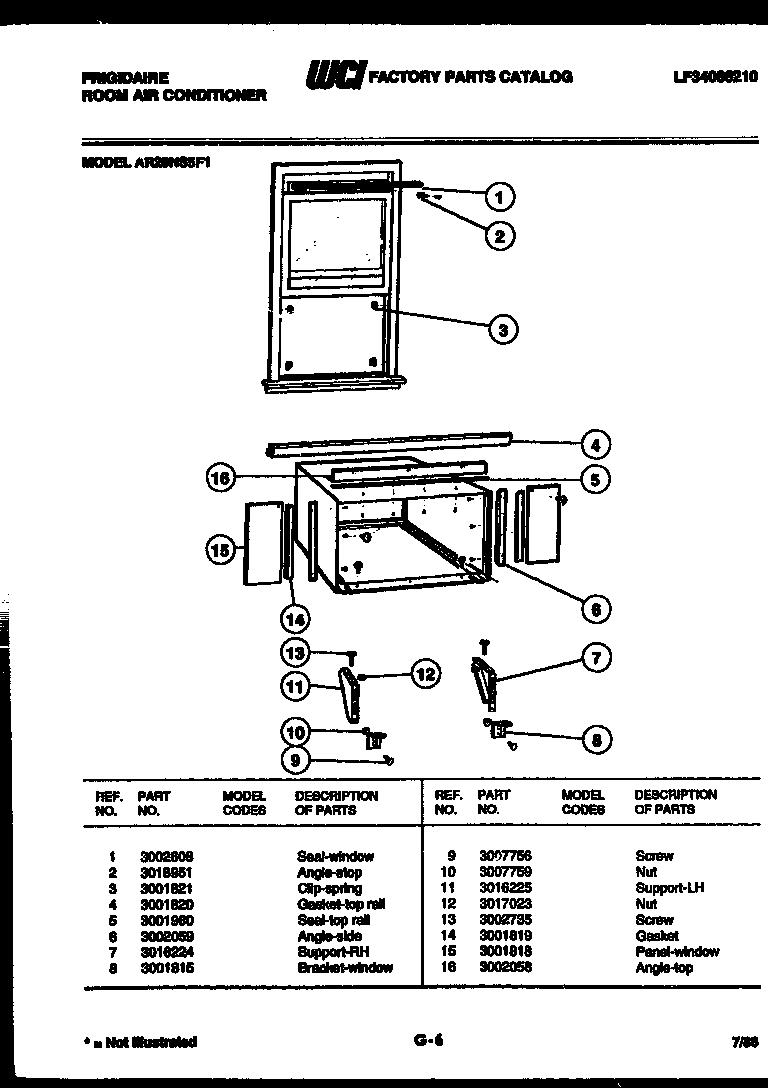

06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux AR28NS5F1 ROOM AIR CONDITIONER
*17290
BRACKET-FRAME FRONT WCI 3016223 Contact Us For Availability
*17292
WCI 3012110 WCI 3012110 Contact Us For Availability
*17293
EXPANSION-VALVE WCI 3017560 Contact Us For Availability
*17293
STRAINER-ASSEMBLY WCI 8017211 Contact Us For Availability
1
SHELL-CABINET WCI 3200337 Contact Us For Availability
1
WCI 3015296 WCI 3015296 Contact Us For Availability
1
WCI 3017557 WCI 3017557 Contact Us For Availability
1
WCI 3017307 WCI 3017307 Contact Us For Availability
1
SEAL - WINDOW WCI 3002608 Contact Us For Availability
1A
SCREW-MOTOR FAN (NON-ILLUSTRATED) WCI 3015294 Contact Us For Availability
2
CLIP-FRONT TO BASE WCI 8010914 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
WCI 3016182 WCI 3016182 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
3
SPACER - ESCUTCHEON WCI 3001775 Contact Us For Availability
3
WCI 3015298 WCI 3015298 Contact Us For Availability
3
WCI 3017959 WCI 3017959 Contact Us For Availability
3
WCI 3017558 WCI 3017558 Contact Us For Availability
3
CLIP - SPRING WCI 3001821 Contact Us For Availability
4
SEAL - ESCUTCHEON WCI 3001984 Contact Us For Availability
4
WCI 3001848 WCI 3001848 Contact Us For Availability
4
WCI 3015309 WCI 3015309 Contact Us For Availability
4
NUT WCI 8006948 Contact Us For Availability
4
WCI 3001820 WCI 3001820 Contact Us For Availability
4A
WCI 3015299 WCI 3015299 Contact Us For Availability
5
WCI 3016762 WCI 3016762 Contact Us For Availability
5
SCROLL - EVAPORATOR WCI 3015310 Contact Us For Availability
5
WCI 3002664 WCI 3002664 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 3002189 WCI 3002189 Contact Us For Availability
6
WCI 3016763 WCI 3016763 Contact Us For Availability
6
WCI 3001814 WCI 3001814 Contact Us For Availability
6
WCI 3002059 WCI 3002059 Contact Us For Availability
7
WCI 8016109 WCI 8016109 Contact Us For Availability
7
WCI 3001996 WCI 3001996 Contact Us For Availability
7
WCI 3015304 WCI 3015304 Contact Us For Availability
7
WCI 3001846 WCI 3001846 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
WCI 3200338 WCI 3200338 Contact Us For Availability
8
WCI 3017564 WCI 3017564 Contact Us For Availability
8
WCI 3015305 WCI 3015305 Contact Us For Availability
8
COVER-TERMINAL WCI 3001845 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
WCI 8017171 WCI 8017171 Contact Us For Availability
9
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
9
BRACKET-SHROUD WCI 3015306 Contact Us For Availability
9
NUT - TERMINAL COVER WCI 3211017 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
9A
INSULATION-VERTICAL DIVIDER (NON-ILLUSTRATED) WCI 3015425 Contact Us For Availability
10
FRAME-HORIZONTAL LOUVER WCI 8017160 Contact Us For Availability
10
WCI 3002363 WCI 3002363 Contact Us For Availability
10
WCI 3015313 WCI 3015313 Contact Us For Availability
10
WCI 3015302 WCI 3015302 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
LOUVER-VERTICAL & LINK ASSEMBLY WCI 3002459 Contact Us For Availability
11
CAPACITOR WCI 3017308 Contact Us For Availability
11
SEAL-SCROLL EVAPORATOR WCI 3015311 Contact Us For Availability
11
BASE-WELD WCI 3016901 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
WCI 3002162 WCI 3002162 Contact Us For Availability
12
PAT - TOP COVER WCI 3015314 Contact Us For Availability
12
START-KIT RELAY WCI 8004196 Contact Us For Availability
13
WCI 3015323 WCI 3015323 Contact Us For Availability
13
WCI 3015295 WCI 3015295 Contact Us For Availability
13
WCI 3002735 WCI 3002735 Contact Us For Availability
13A
WCI 3002163 WCI 3002163 Contact Us For Availability
14
WCI 3001844 WCI 3001844 Contact Us For Availability
14
SPACER - CONTROL BULB WCI 3017914 Contact Us For Availability
14
WCI 3001819 WCI 3001819 Contact Us For Availability
15
WCI 8017353 WCI 8017353 Contact Us For Availability
15
WIRE-HARNESS WCI 3018334 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
15A
INSERT-MULLION (NON-ILLUSTRATED) WCI 8016174 Contact Us For Availability
16
SCREW WCI 3017342 Contact Us For Availability
16
WCI 3002058 WCI 3002058 Contact Us For Availability
17
SCREW-FRONT WCI 8008175 Contact Us For Availability
17
SCREW-CONTROL MOUNTING WCI 3007754 Contact Us For Availability
18
WCI 8017172 WCI 8017172 Contact Us For Availability
19
DOOR-FRONT WCI 8016196 Contact Us For Availability
20
TRACK - FILTER WCI 8017138 Contact Us For Availability
21
FILTER-AIR FRAMED WCI 8017190 Contact Us For Availability
22
WCI 8017179 WCI 8017179 Contact Us For Availability
23
PLATE-NAME WCI 8017126 Contact Us For Availability
24
FRAME-LOUVER VERTICAL WCI 3002435 Contact Us For Availability
× ![]()
