Model Electrolux AR27NS5L1 ROOM AIR CONDITIONER – Common Parts & Diagrams

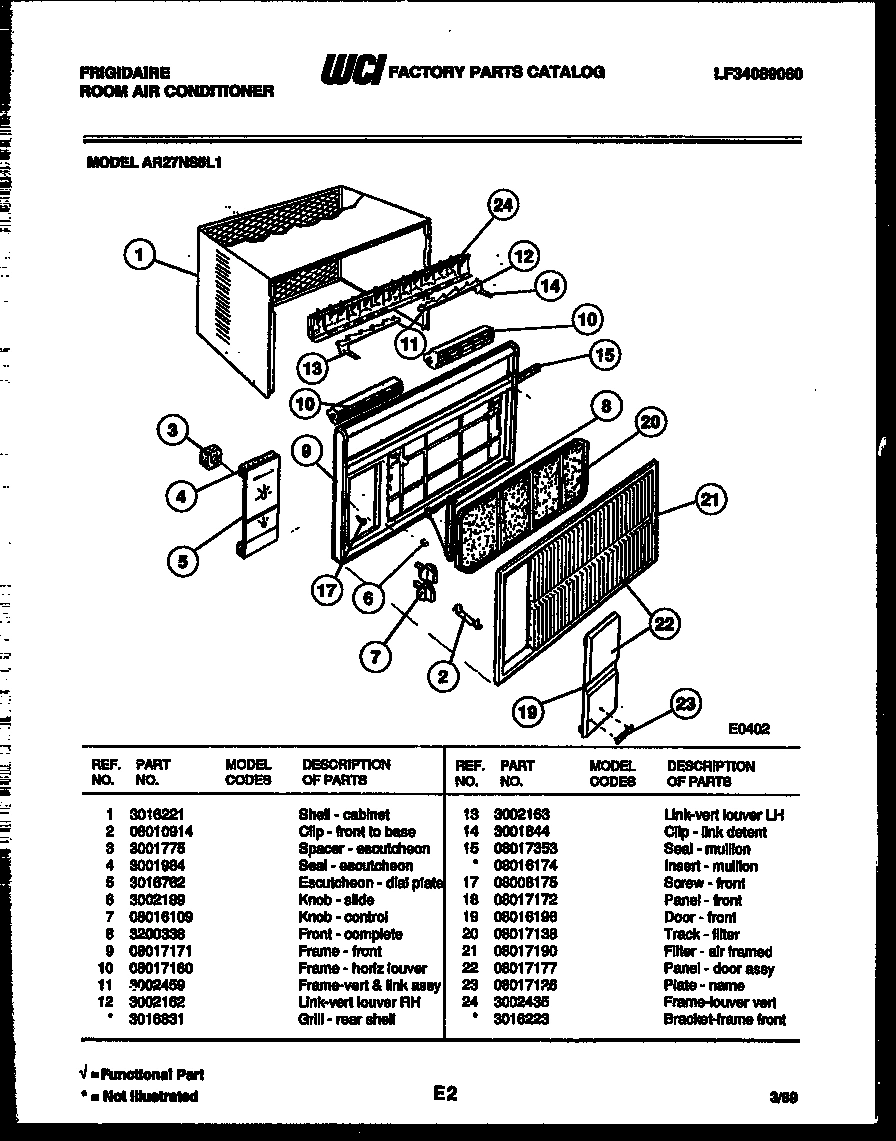

02 - CABINET PARTS

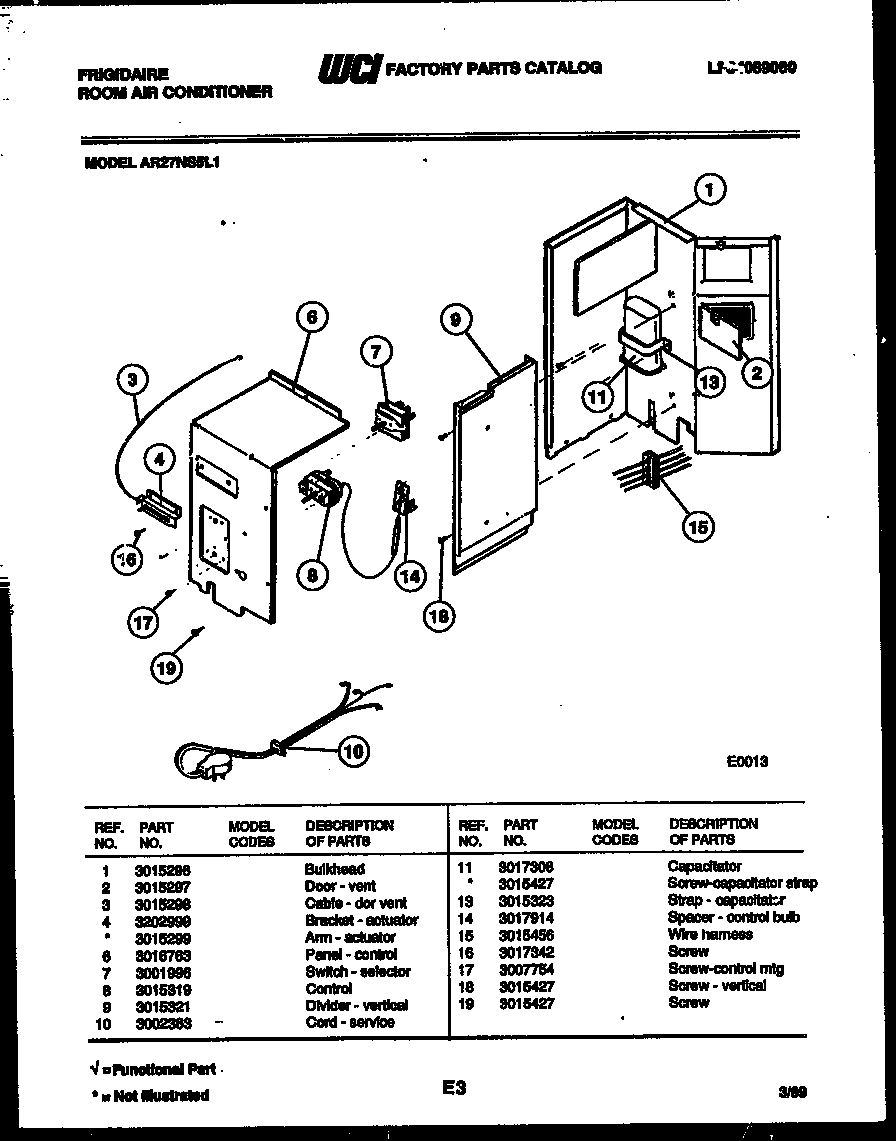

03 - ELECTRICAL PARTS

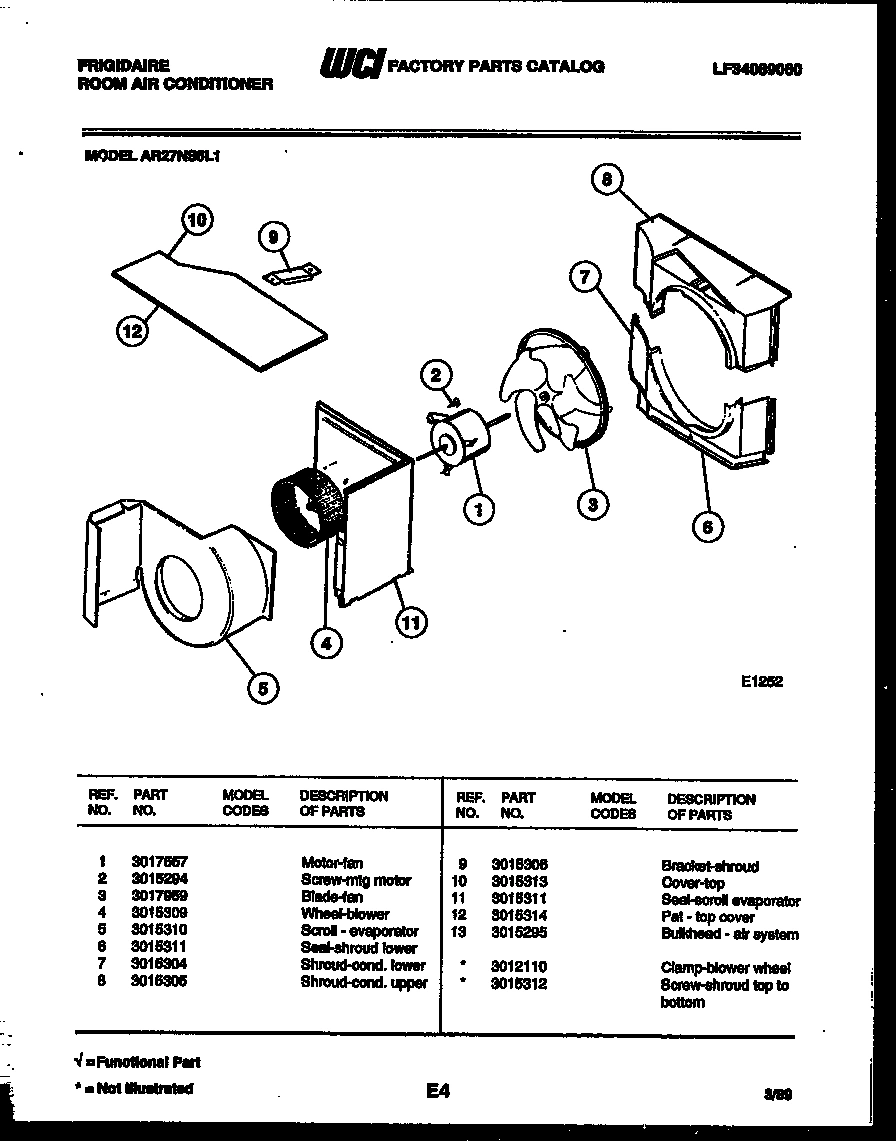

04 - AIR HANDLING PARTS

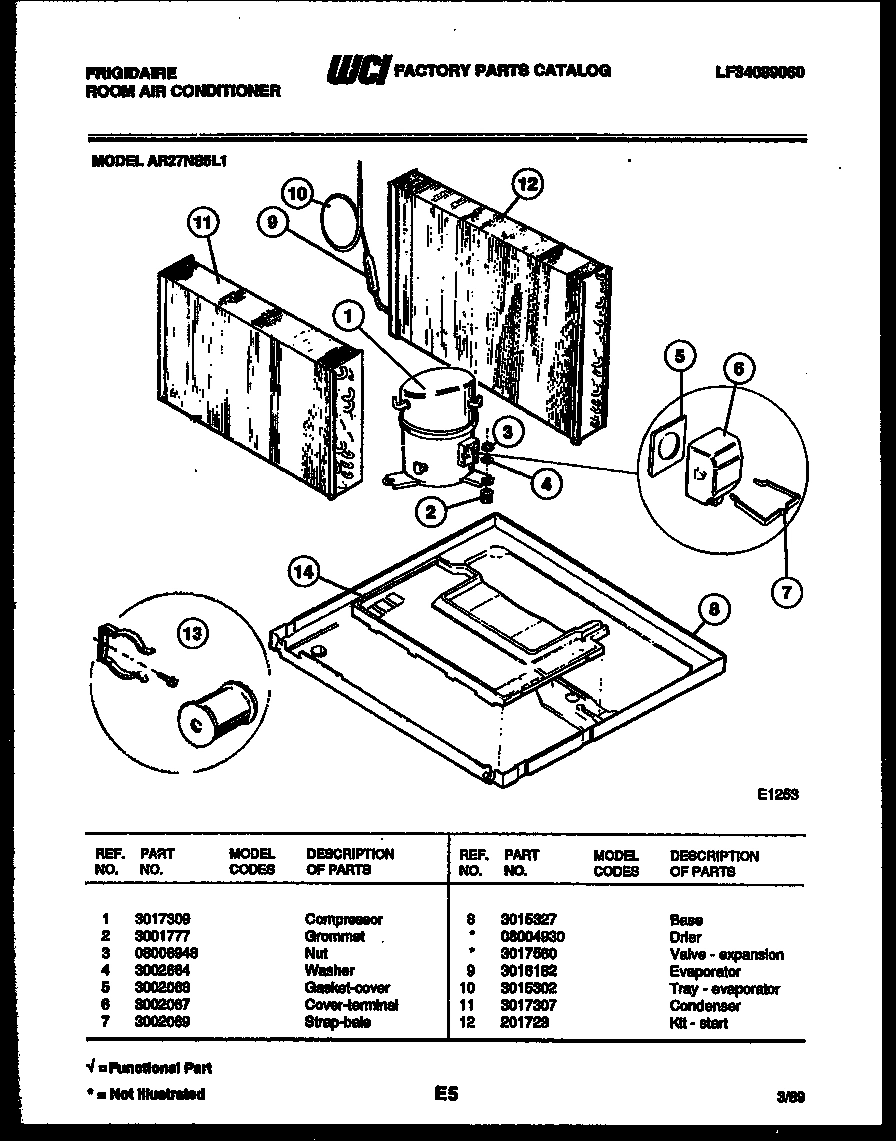

05 - SYSTEM PARTS

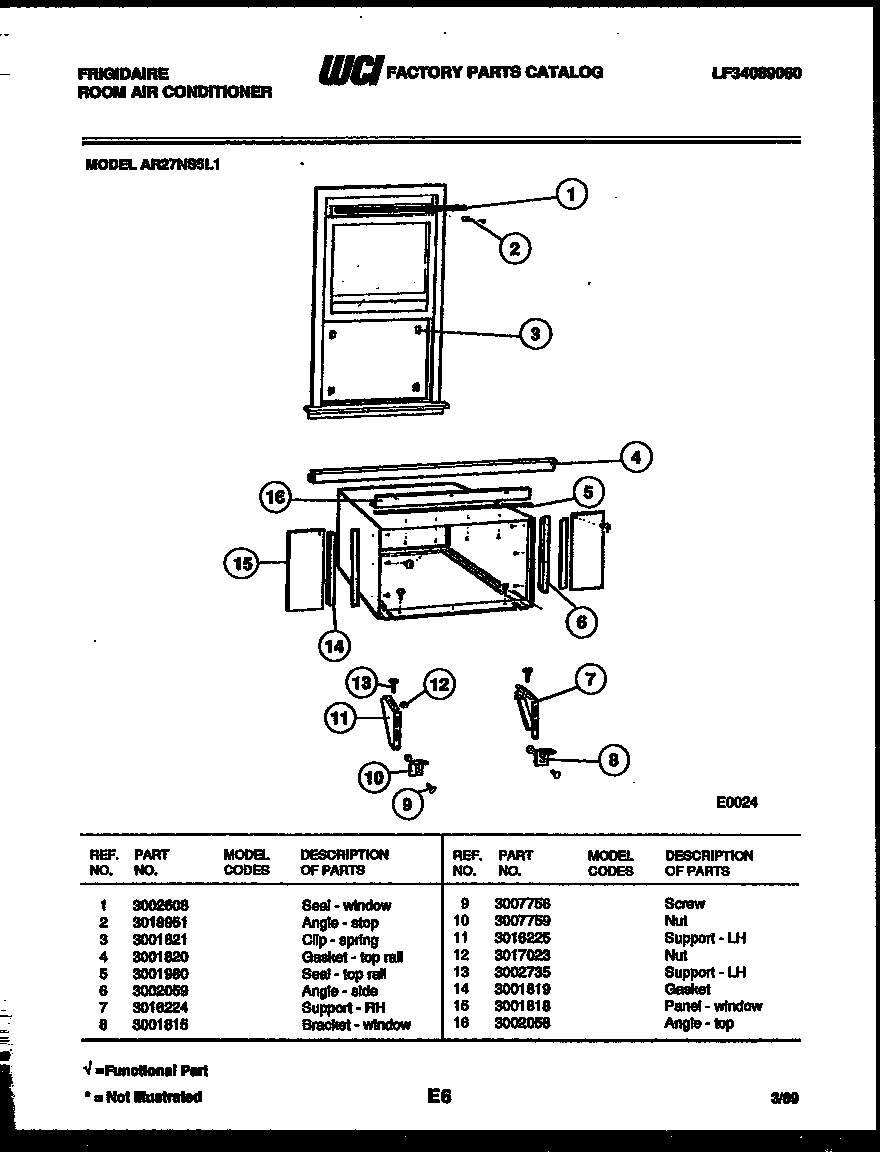

06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux AR27NS5L1 ROOM AIR CONDITIONER
*15825
BRACKET-FRAME FRONT WCI 3016223 Contact Us For Availability
*15839
WCI 3012110 WCI 3012110 Contact Us For Availability
1
WCI 3016221 WCI 3016221 Contact Us For Availability
1
WCI 3015296 WCI 3015296 Contact Us For Availability
1
WCI 3017557 WCI 3017557 Contact Us For Availability
1
COMPRESSOR WCI 3017309 Contact Us For Availability
1
SEAL - WINDOW WCI 3002608 Contact Us For Availability
2
CLIP-FRONT TO BASE WCI 08010914 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
SCREW-MTG MOTOR WCI 3015294 Contact Us For Availability
2
WCI 3001777 WCI 3001777 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
3
SPACER - ESCUTCHEON WCI 3001775 Contact Us For Availability
3
CABLE - DOR VENT WCI 3015298 Contact Us For Availability
3
WCI 3017959 WCI 3017959 Contact Us For Availability
3
WCI 08006948 WCI 08006948 Contact Us For Availability
3
CLIP - SPRING WCI 3001821 Contact Us For Availability
4
SEAL - ESCUTCHEON WCI 3001984 Contact Us For Availability
4
WCI 3202999 WCI 3202999 Contact Us For Availability
4
WCI 3015309 WCI 3015309 Contact Us For Availability
4
WCI 3002664 WCI 3002664 Contact Us For Availability
4
WCI 3001820 WCI 3001820 Contact Us For Availability
4A
ARM - ACTUATOR WCI 3015299 Contact Us For Availability
5
WCI 3016762 WCI 3016762 Contact Us For Availability
5
SCROLL - EVAPORATOR WCI 3015310 Contact Us For Availability
5
WCI 3002068 WCI 3002068 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 3002189 WCI 3002189 Contact Us For Availability
6
WCI 3016763 WCI 3016763 Contact Us For Availability
6
WCI 3002067 WCI 3002067 Contact Us For Availability
6
WCI 3002059 WCI 3002059 Contact Us For Availability
7
WCI 08016109 WCI 08016109 Contact Us For Availability
7
WCI 3001996 WCI 3001996 Contact Us For Availability
7
SHROUD-COND. LOWER WCI 3015304 Contact Us For Availability
7
WCI 3002069 WCI 3002069 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
WCI 3200338 WCI 3200338 Contact Us For Availability
8
WCI 3015319 WCI 3015319 Contact Us For Availability
8
SHROUD-COND. UPPER WCI 3015305 Contact Us For Availability
8
WCI 3015327 WCI 3015327 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
8B
VALVE - EXPANSION (NON-ILLUSTRATED) WCI 3017560 Contact Us For Availability
9
WCI 08017171 WCI 08017171 Contact Us For Availability
9
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
9
BRACKET-SHROUD WCI 3015306 Contact Us For Availability
9
WCI 3016182 WCI 3016182 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
WCI 08017160 WCI 08017160 Contact Us For Availability
10
WCI 3002363 WCI 3002363 Contact Us For Availability
10
WCI 3015313 WCI 3015313 Contact Us For Availability
10
WCI 3015302 WCI 3015302 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
FRAME-VERT & LINK ASSY WCI 3002459 Contact Us For Availability
11
CAPACITATOR WCI 3017308 Contact Us For Availability
11
SEAL-SCROLL EVAPORATOR WCI 3015311 Contact Us For Availability
11
WCI 3017307 WCI 3017307 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
LINK-VERT LOUVER RH WCI 3002162 Contact Us For Availability
12
PAT - TOP COVER WCI 3015314 Contact Us For Availability
12
WCI 201723 WCI 201723 Contact Us For Availability
12A
GRILL - REAR SHELL (NON-ILLUSTRATED) WCI 3016831 Contact Us For Availability
13
LINK-VERT LOUVER LH WCI 3002163 Contact Us For Availability
13
STRAP - CAPACITATOR WCI 3015323 Contact Us For Availability
13
WCI 3015295 WCI 3015295 Contact Us For Availability
13
SUPPORT - LH WCI 3002735 Contact Us For Availability
14
WCI 3001844 WCI 3001844 Contact Us For Availability
14
SPACER - CONTROL BULB WCI 3017914 Contact Us For Availability
14
WCI 3001819 WCI 3001819 Contact Us For Availability
15
WCI 08017353 WCI 08017353 Contact Us For Availability
15
WIRE HARNESS WCI 3015456 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
15A
WCI 08016174 WCI 08016174 Contact Us For Availability
16
SCREW WCI 3017342 Contact Us For Availability
16
WCI 3002058 WCI 3002058 Contact Us For Availability
17
SCREW-FRONT WCI 08008175 Contact Us For Availability
17
SCREW-CONTROL MTG WCI 3007754 Contact Us For Availability
18
WCI 08017172 WCI 08017172 Contact Us For Availability
19
WCI 08016196 WCI 08016196 Contact Us For Availability
20
WCI 08017138 WCI 08017138 Contact Us For Availability
21
WCI 08017190 WCI 08017190 Contact Us For Availability
22
WCI 08017177 WCI 08017177 Contact Us For Availability
23
PLATE-NAME WCI 08017126 Contact Us For Availability
24
WCI 3002435 WCI 3002435 Contact Us For Availability
× ![]()
