Model Electrolux AR24NS8F7 ROOM AIR CONDITIONER – Common Parts & Diagrams

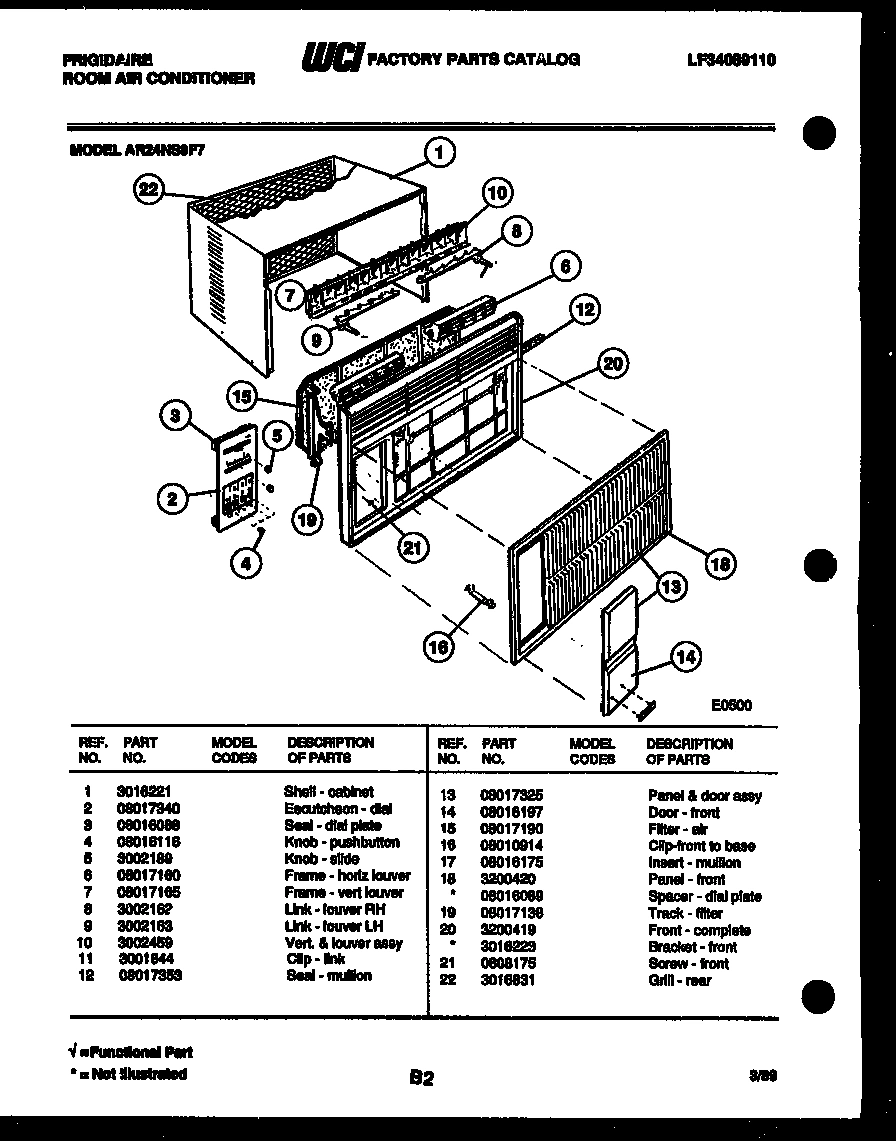

02 - CABINET PARTS

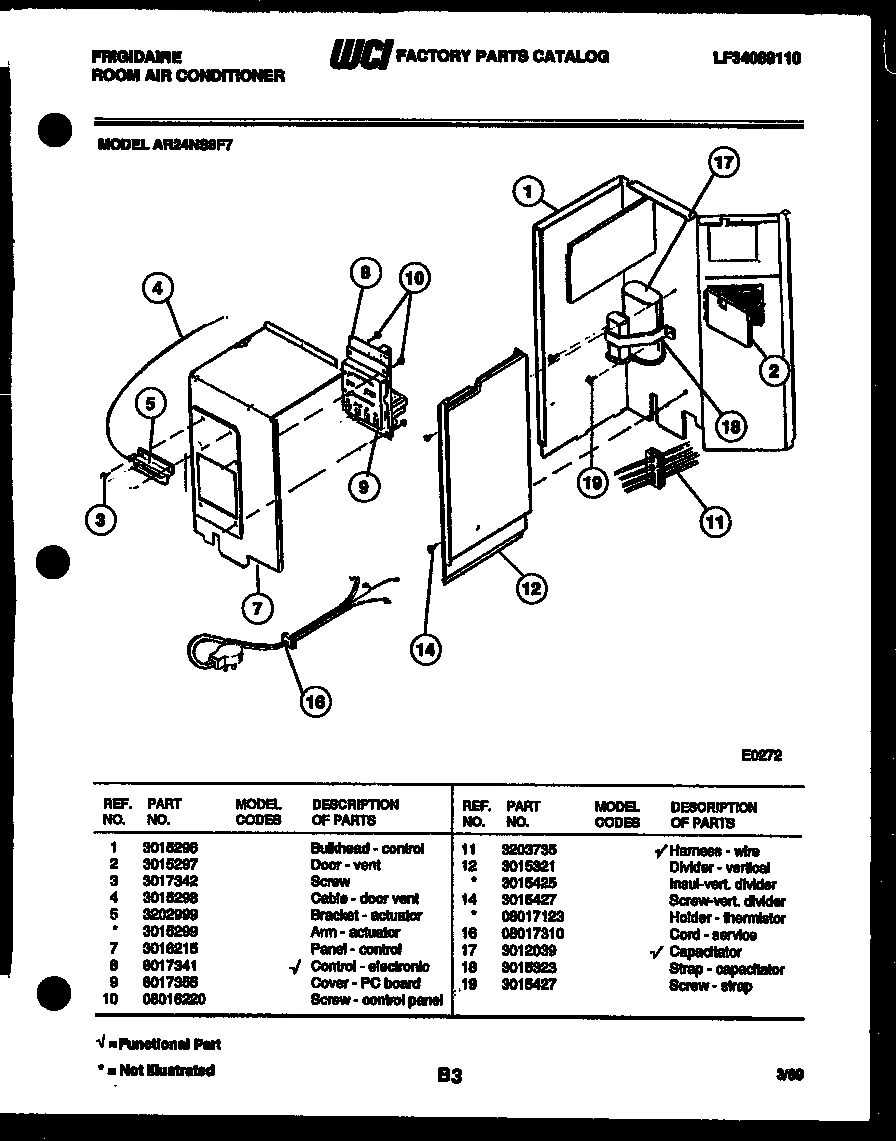

03 - ELECTRICAL PARTS

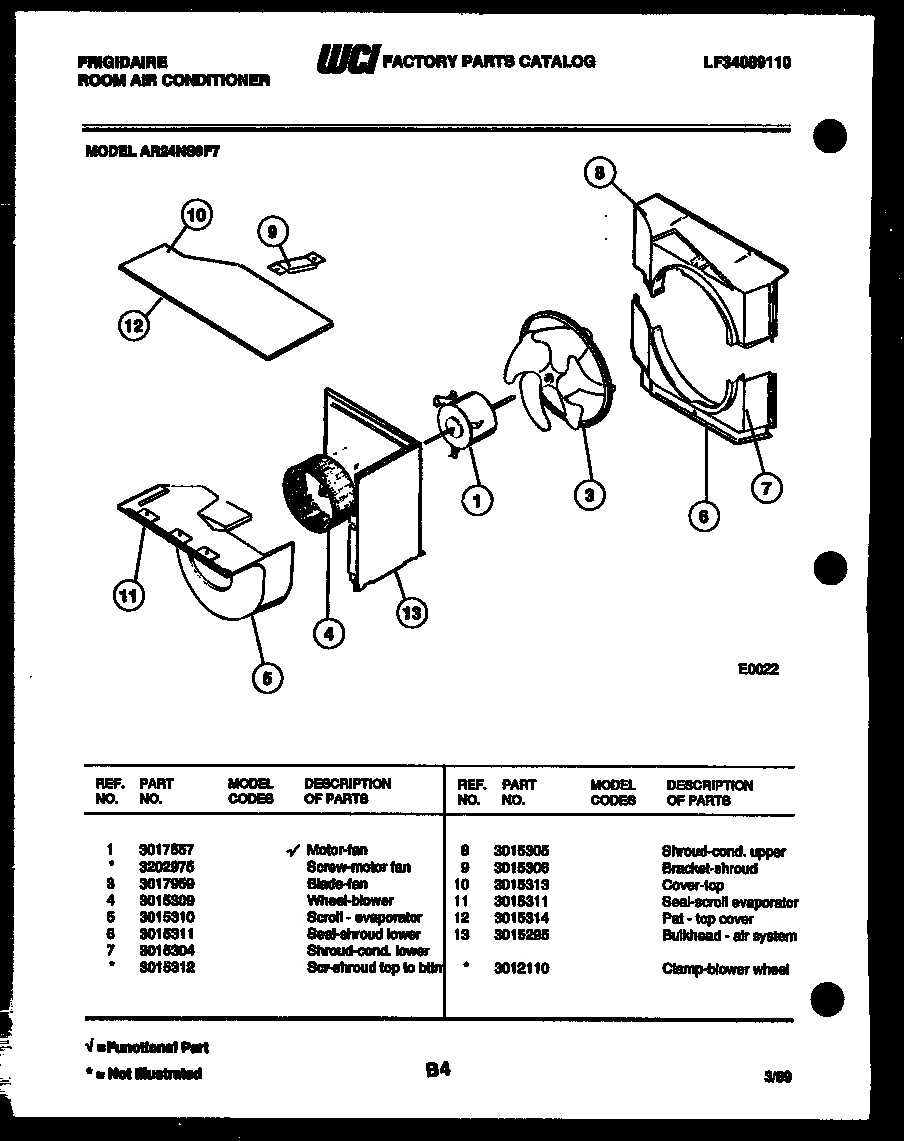

04 - AIR HANDLING PARTS

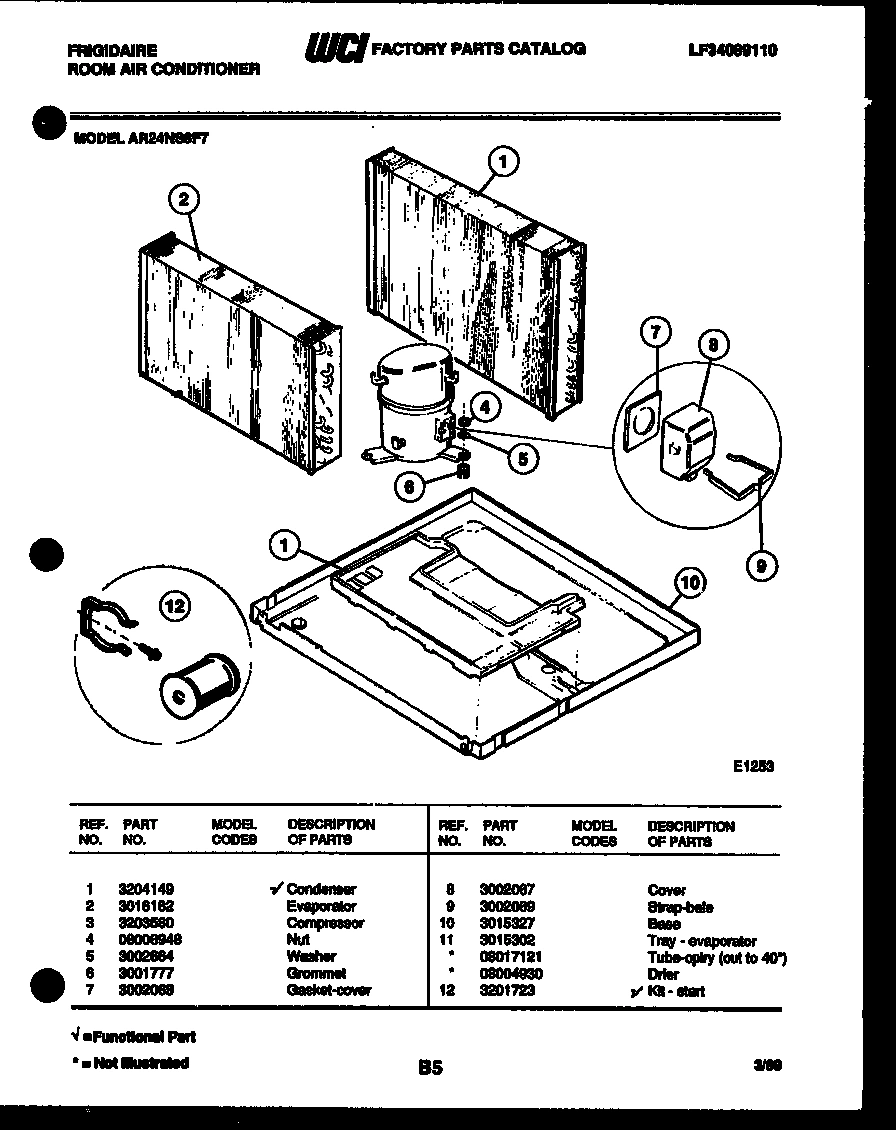

05 - SYSTEM PARTS

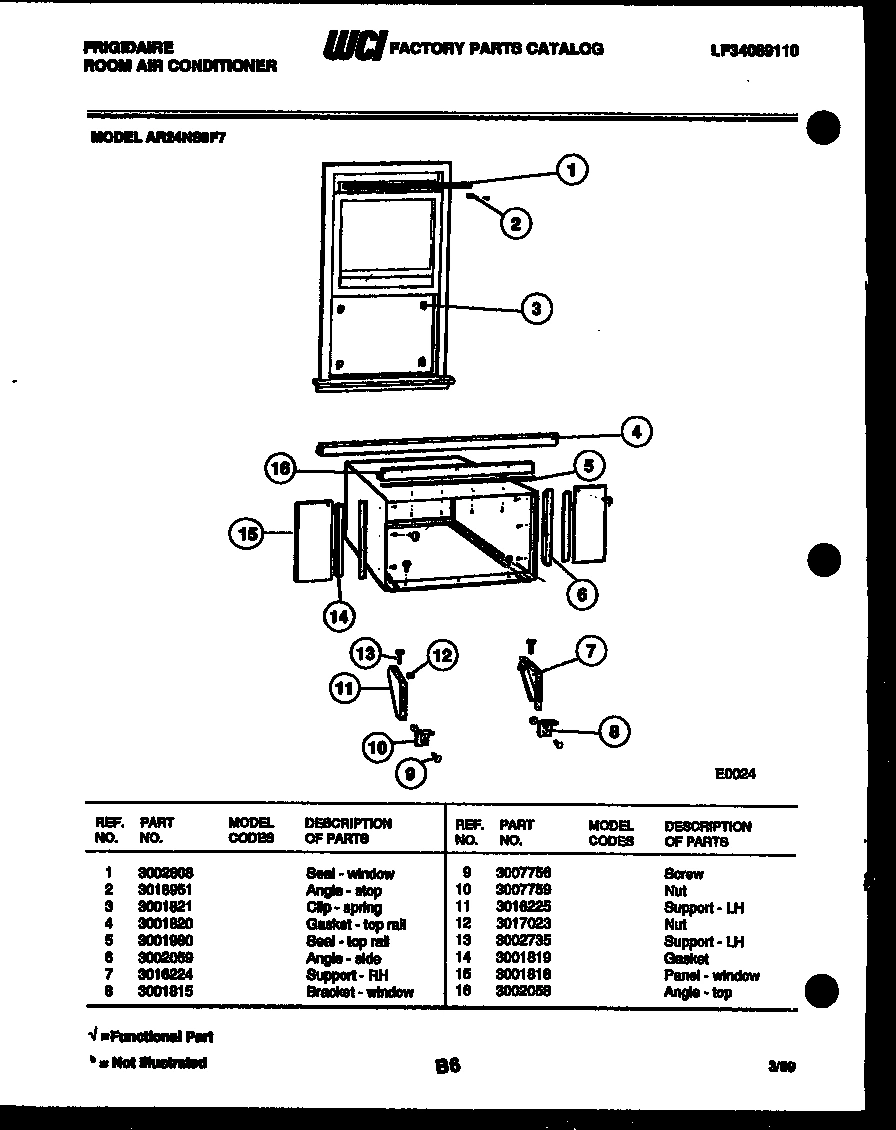

06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux AR24NS8F7 ROOM AIR CONDITIONER
*55969
WCI 3012110 WCI 3012110 Contact Us For Availability
1
WCI 3016221 WCI 3016221 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 3017557 WCI 3017557 Contact Us For Availability
1
WCI 3204149 WCI 3204149 Contact Us For Availability
1
SEAL - WINDOW WCI 3002608 Contact Us For Availability
2
WCI 08017340 WCI 08017340 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
WCI 3016182 WCI 3016182 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
3
SEAL - DIAL PLATE WCI 08016088 Contact Us For Availability
3
SCREW WCI 3017342 Contact Us For Availability
3
WCI 3017959 WCI 3017959 Contact Us For Availability
3
WCI 3203580 WCI 3203580 Contact Us For Availability
3
CLIP - SPRING WCI 3001821 Contact Us For Availability
4
WCI 08016116 WCI 08016116 Contact Us For Availability
4
WCI 3015298 WCI 3015298 Contact Us For Availability
4
WCI 3015309 WCI 3015309 Contact Us For Availability
4
WCI 08006948 WCI 08006948 Contact Us For Availability
4
WCI 3001820 WCI 3001820 Contact Us For Availability
5
WCI 3002189 WCI 3002189 Contact Us For Availability
5
WCI 3202999 WCI 3202999 Contact Us For Availability
5
SCROLL - EVAPORATOR WCI 3015310 Contact Us For Availability
5
WCI 3002664 WCI 3002664 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
5A
WCI 3015299 WCI 3015299 Contact Us For Availability
6
WCI 08017160 WCI 08017160 Contact Us For Availability
6
WCI 3001777 WCI 3001777 Contact Us For Availability
6
WCI 3002059 WCI 3002059 Contact Us For Availability
7
WCI 08017165 WCI 08017165 Contact Us For Availability
7
WCI 3016215 WCI 3016215 Contact Us For Availability
7
SHROUD-COND. LOWER WCI 3015304 Contact Us For Availability
7
WCI 3002068 WCI 3002068 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
LINK - LOUVER RH WCI 3002162 Contact Us For Availability
8
CONTROL - ELECTRONIC WCI 8017341 Contact Us For Availability
8
SHROUD-COND. UPPER WCI 3015305 Contact Us For Availability
8
COVER WCI 3002067 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
LINK - LOUVER LH WCI 3002163 Contact Us For Availability
9
WCI 8017355 WCI 8017355 Contact Us For Availability
9
BRACKET-SHROUD WCI 3015306 Contact Us For Availability
9
WCI 3002069 WCI 3002069 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
VERT. & LOUVER ASSY WCI 3002459 Contact Us For Availability
10
SCREW - CONTROL PANEL WCI 08016220 Contact Us For Availability
10
WCI 3015313 WCI 3015313 Contact Us For Availability
10
WCI 3015327 WCI 3015327 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
CLIP - LINK WCI 3001844 Contact Us For Availability
11
WCI 3203735 WCI 3203735 Contact Us For Availability
11
SEAL-SCROLL EVAPORATOR WCI 3015311 Contact Us For Availability
11
WCI 3015302 WCI 3015302 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
11A
TUBE-CPLRY (CUT TO 40``) (NON-ILLUSTRATED) WCI 08017121 Contact Us For Availability
12
WCI 08017353 WCI 08017353 Contact Us For Availability
12
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
12
PAT - TOP COVER WCI 3015314 Contact Us For Availability
12
KIT-START WCI 3201723 Contact Us For Availability
12A
INSUL-VERT. DIVIDER (NON-ILLUSTRATED) WCI 3015425 Contact Us For Availability
13
WCI 08017325 WCI 08017325 Contact Us For Availability
13
WCI 3015295 WCI 3015295 Contact Us For Availability
13
SUPPORT - LH WCI 3002735 Contact Us For Availability
14
WCI 08016197 WCI 08016197 Contact Us For Availability
14
WCI 3001819 WCI 3001819 Contact Us For Availability
14A
HOLDER - THERMISTOR (NON-ILLUSTRATED) WCI 08017123 Contact Us For Availability
15
FILTER - AIR WCI 08017190 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
CLIP-FRONT TO BASE WCI 08010914 Contact Us For Availability
16
WCI 08017310 WCI 08017310 Contact Us For Availability
16
WCI 3002058 WCI 3002058 Contact Us For Availability
17
WCI 08016175 WCI 08016175 Contact Us For Availability
17
WCI 3012039 WCI 3012039 Contact Us For Availability
18
WCI 3200420 WCI 3200420 Contact Us For Availability
18
WCI 3015323 WCI 3015323 Contact Us For Availability
18A
WCI 08016089 WCI 08016089 Contact Us For Availability
19
WCI 08017138 WCI 08017138 Contact Us For Availability
20
WCI 3200419 WCI 3200419 Contact Us For Availability
20A
BRACKET - FRONT (NON-ILLUSTRATED) WCI 3016223 Contact Us For Availability
21
WCI 0808175 WCI 0808175 Contact Us For Availability
22
GRILL - REAR WCI 3016831 Contact Us For Availability
× ![]()
