Model Electrolux AR24NS8F3 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

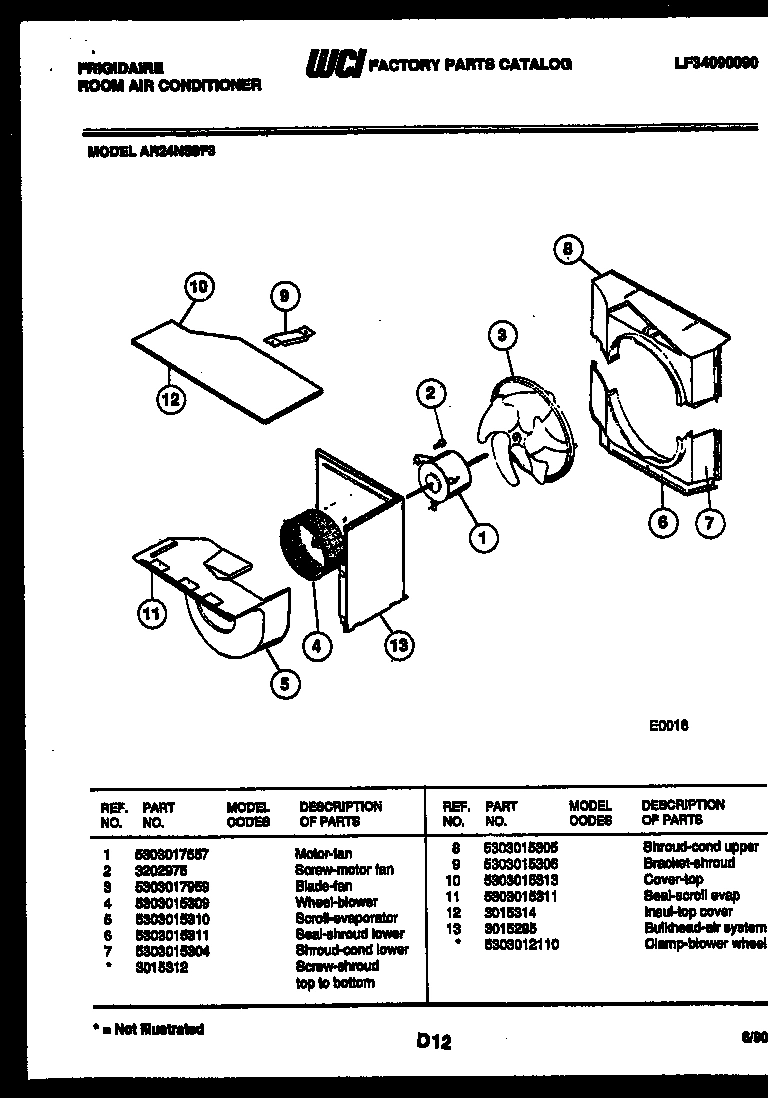

04 - AIR HANDLING PARTS

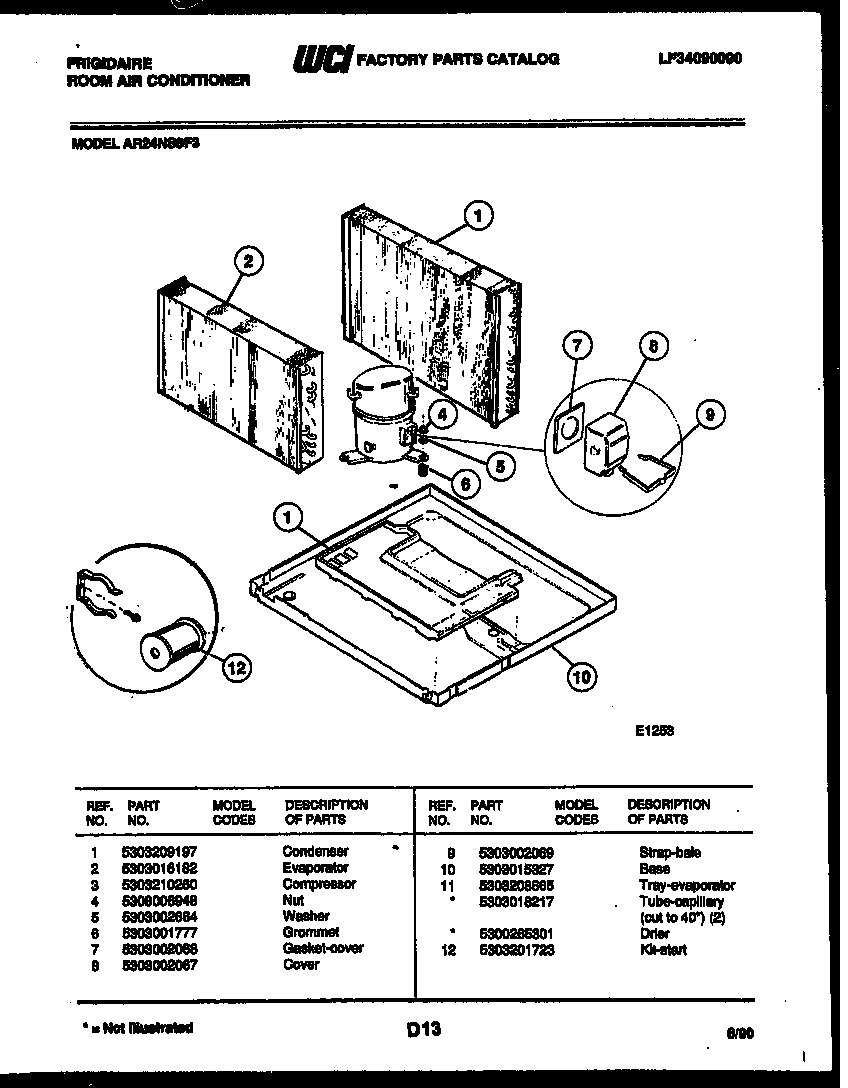

05 - SYSTEM PARTS

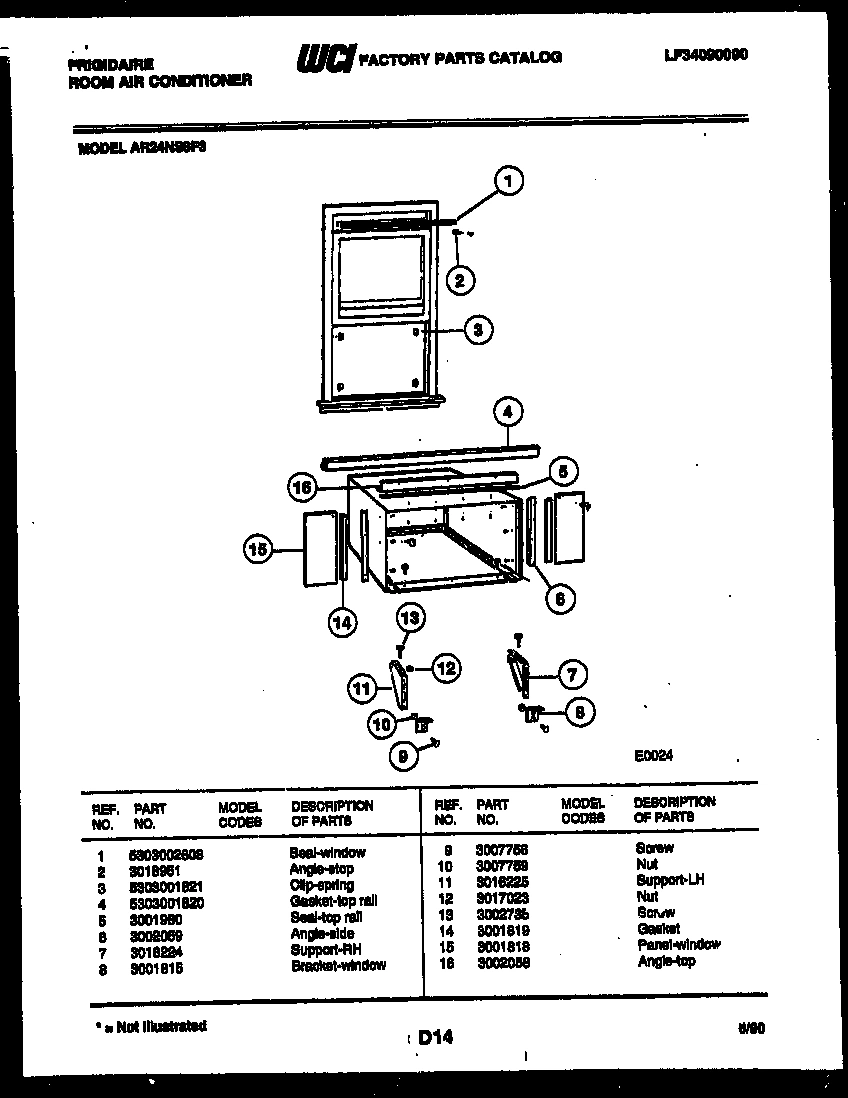

06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux AR24NS8F3 ROOM AIR CONDITIONER
*32454
WCI 3015325 WCI 3015325 Contact Us For Availability
*32455
CLIP-SENSING WCI 5303017914 Contact Us For Availability
*32456
WCI 5303012110 WCI 5303012110 Contact Us For Availability
1
SHELL-CABINET WCI 5303015315 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 5303017557 WCI 5303017557 Contact Us For Availability
1
WCI 5303209197 WCI 5303209197 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
WCI 5308017340 WCI 5308017340 Contact Us For Availability
2
WCI 5303015297 WCI 5303015297 Contact Us For Availability
2
WCI 5303016182 WCI 5303016182 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
3
SEAL-DIAL PLATE WCI 5308016088 Contact Us For Availability
3
WCI 5303017342 WCI 5303017342 Contact Us For Availability
3
WCI 5303017959 WCI 5303017959 Contact Us For Availability
3
WCI 5303210260 WCI 5303210260 Contact Us For Availability
3
CLIP-SPRING WCI 5303001821 Contact Us For Availability
4
WCI 5308016116 WCI 5308016116 Contact Us For Availability
4
CABLE-DOOR VENT WCI 5303015298 Contact Us For Availability
4
WCI 5303015309 WCI 5303015309 Contact Us For Availability
4
WCI 5308006948 WCI 5308006948 Contact Us For Availability
4
WCI 5303001820 WCI 5303001820 Contact Us For Availability
5
WCI 5303002189 WCI 5303002189 Contact Us For Availability
5
BRACKET-ACTUATOR WCI 5303202999 Contact Us For Availability
5
SCROLL-EVAPORATOR WCI 5303015310 Contact Us For Availability
5
WCI 5303002664 WCI 5303002664 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
5A
ARM-ACTUATOR (NON-ILLUSTRATED) WCI 5303015299 Contact Us For Availability
6
FRAME-HORIZ. LOUVER WCI 5308017160 Contact Us For Availability
6
GROMMET WCI 5303001777 Contact Us For Availability
6
WCI 3002059 WCI 3002059 Contact Us For Availability
7
FRAME-VERT LOUVER WCI 3002435 Contact Us For Availability
7
WCI 3016215 WCI 3016215 Contact Us For Availability
7
SHROUD-COND. LOWER WCI 5303015304 Contact Us For Availability
7
WCI 5303002068 WCI 5303002068 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
LINK-LOUVER RH WCI 5303002162 Contact Us For Availability
8
WCI 5308017341 WCI 5308017341 Contact Us For Availability
8
SHROUD-COND. UPPER WCI 5303015305 Contact Us For Availability
8
WCI 5303002067 WCI 5303002067 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
LINK-LOUVER LH WCI 5303002163 Contact Us For Availability
9
WCI 08017355 WCI 08017355 Contact Us For Availability
9
WCI 5303015306 WCI 5303015306 Contact Us For Availability
9
WCI 5303002069 WCI 5303002069 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
VERT & LOUVER ASSY WCI 5303002459 Contact Us For Availability
10
SCREW - CONTROL PANEL WCI 08016220 Contact Us For Availability
10
WCI 5303015313 WCI 5303015313 Contact Us For Availability
10
WCI 5303015327 WCI 5303015327 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
WCI 5303001844 WCI 5303001844 Contact Us For Availability
11
WCI 3203735 WCI 3203735 Contact Us For Availability
11
SEAL-SCROLL EVAP. WCI 5303015311 Contact Us For Availability
11
WCI 5303208665 WCI 5303208665 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
11A
TUBE-CAPILLARY (CUT TO 40``) (2) (NON-ILLUSTR WCI 5303018217 Contact Us For Availability
12
WCI 08017353 WCI 08017353 Contact Us For Availability
12
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
12
INSUL - TOP COVER WCI 3015314 Contact Us For Availability
12
KIT-START WCI 5303201723 Contact Us For Availability
12A
INSULATION-VERT DIVIDER (NON-ILLUSTRATED) WCI 3015425 Contact Us For Availability
13
WCI 5308017325 WCI 5308017325 Contact Us For Availability
13
WCI 3015295 WCI 3015295 Contact Us For Availability
13
WCI 3002735 WCI 3002735 Contact Us For Availability
14
WCI 5308016197 WCI 5308016197 Contact Us For Availability
14
WCI 3001819 WCI 3001819 Contact Us For Availability
14A
HOLDER - THERMISTOR (NON-ILLUSTRATED) WCI 08017123 Contact Us For Availability
15
FILTER-AIR WCI 5308017190 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
16
WCI 08017310 WCI 08017310 Contact Us For Availability
16
WCI 3002058 WCI 3002058 Contact Us For Availability
17
WCI 08016175 WCI 08016175 Contact Us For Availability
17
WCI 5303012039 WCI 5303012039 Contact Us For Availability
18
WCI 5303200420 WCI 5303200420 Contact Us For Availability
18
WCI 5303015323 WCI 5303015323 Contact Us For Availability
18A
WCI 08016089 WCI 08016089 Contact Us For Availability
19
WCI 5308017138 WCI 5308017138 Contact Us For Availability
20
WCI 5303200419 WCI 5303200419 Contact Us For Availability
20A
BRACKET-FRONT (NON-ILLUSTRATED) WCI 5303016223 Contact Us For Availability
21
SCREW-FRONT WCI 5308008175 Contact Us For Availability
22
GRILL-REAR WCI 5303016831 Contact Us For Availability
× ![]()
