Model Whirlpool AR2400XA0 AIR CONDITIONER – Common Parts & Diagrams

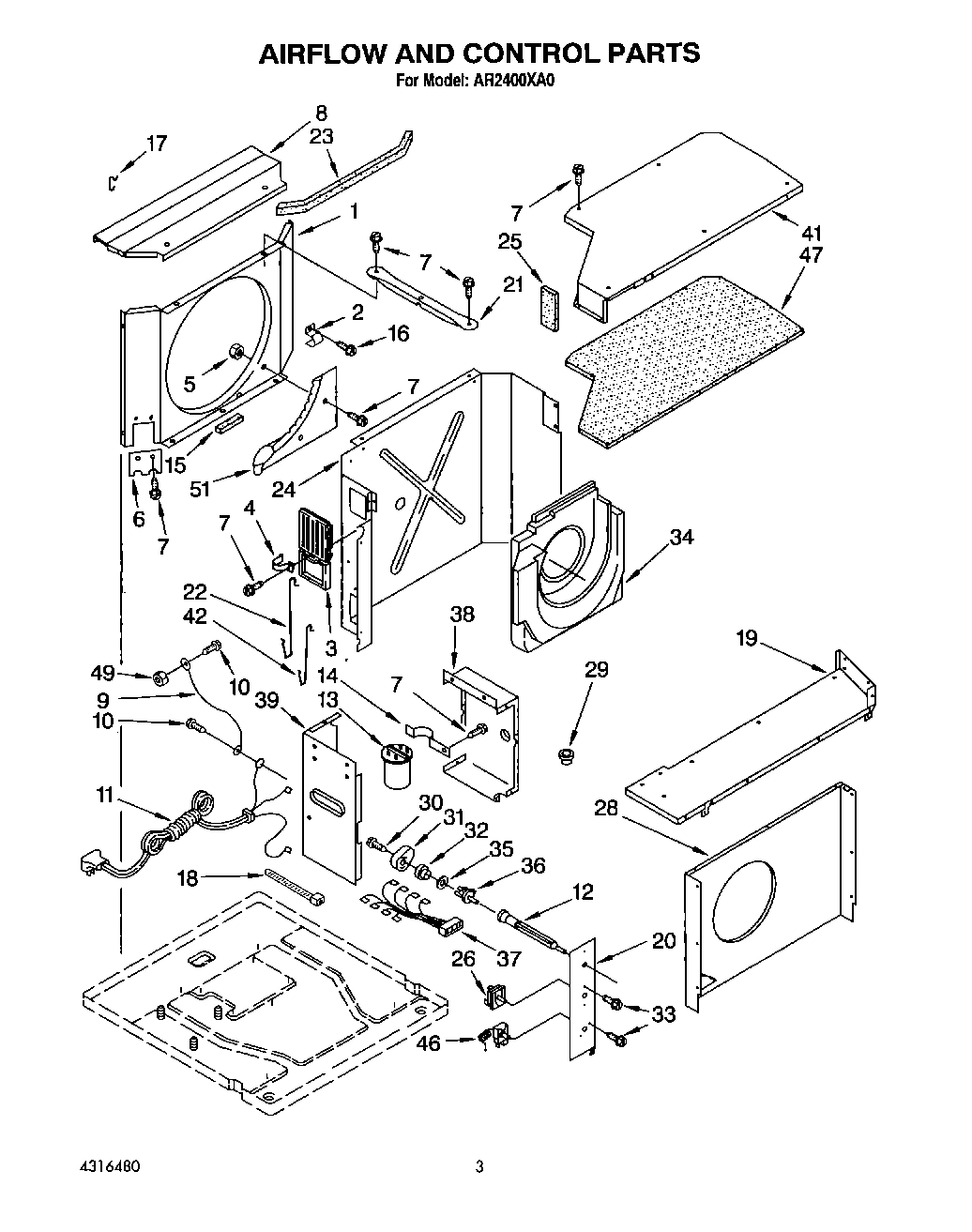

02 - AIR FLOW AND CONTROL

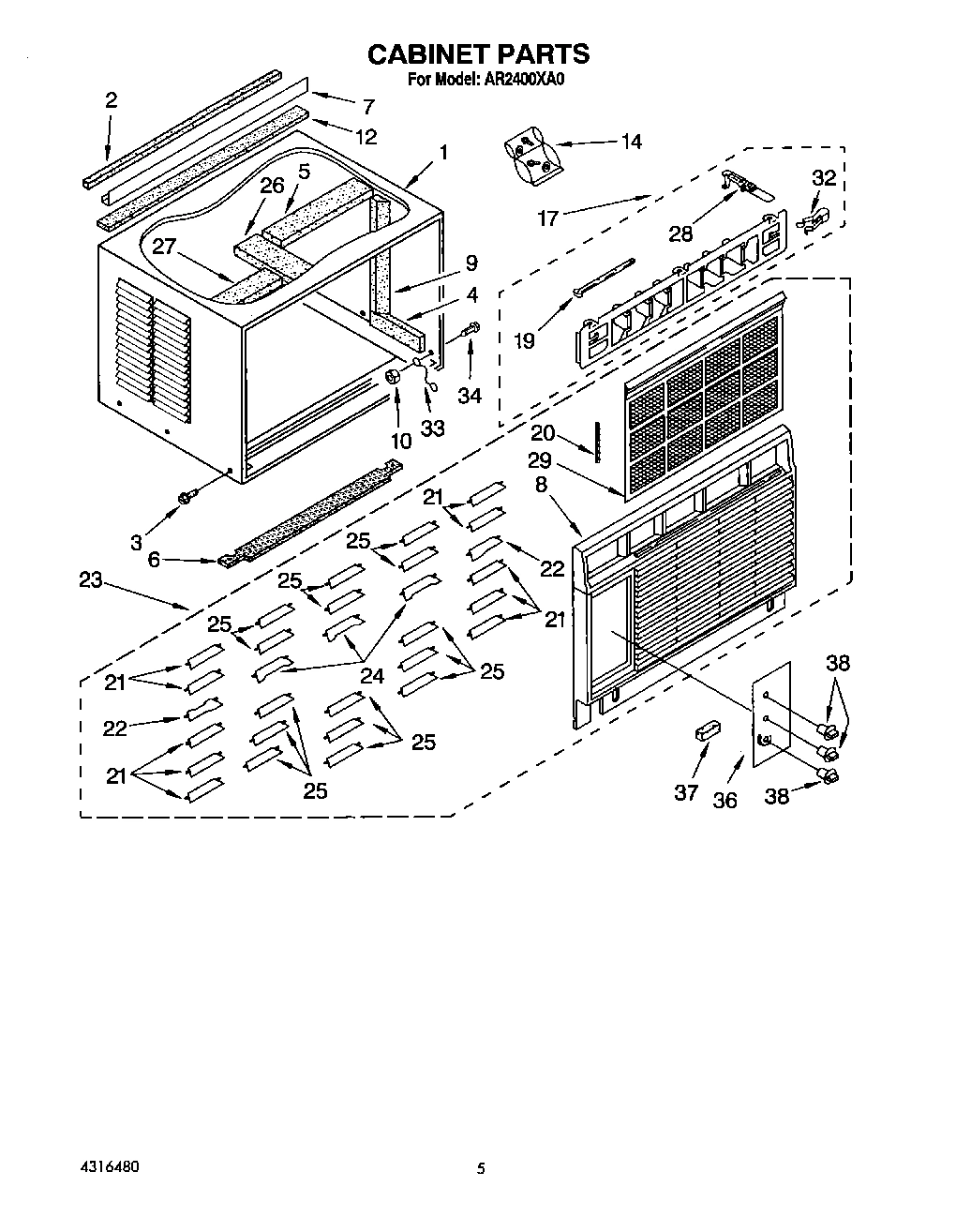

03 - CABINET

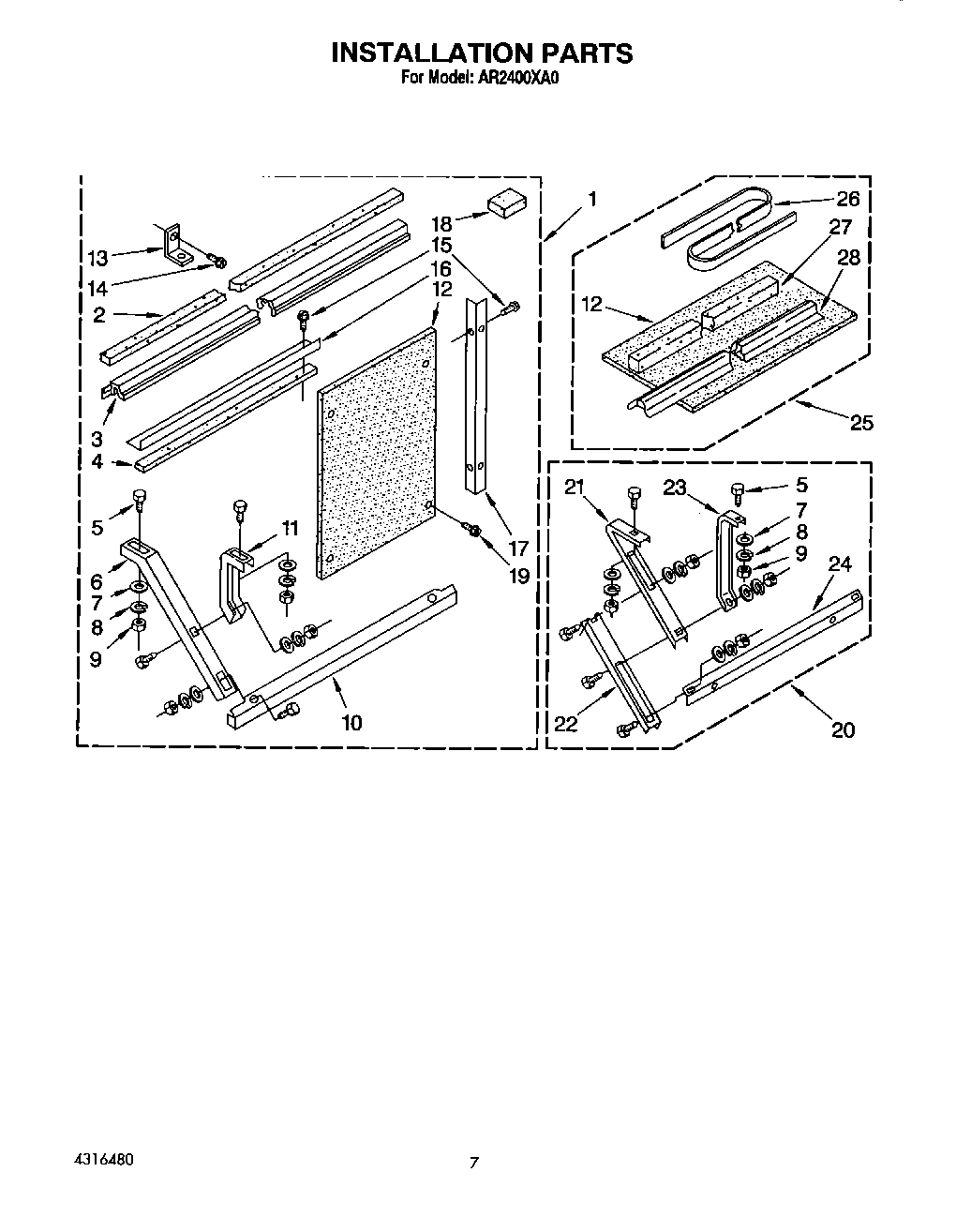

05 - INSTALLATION

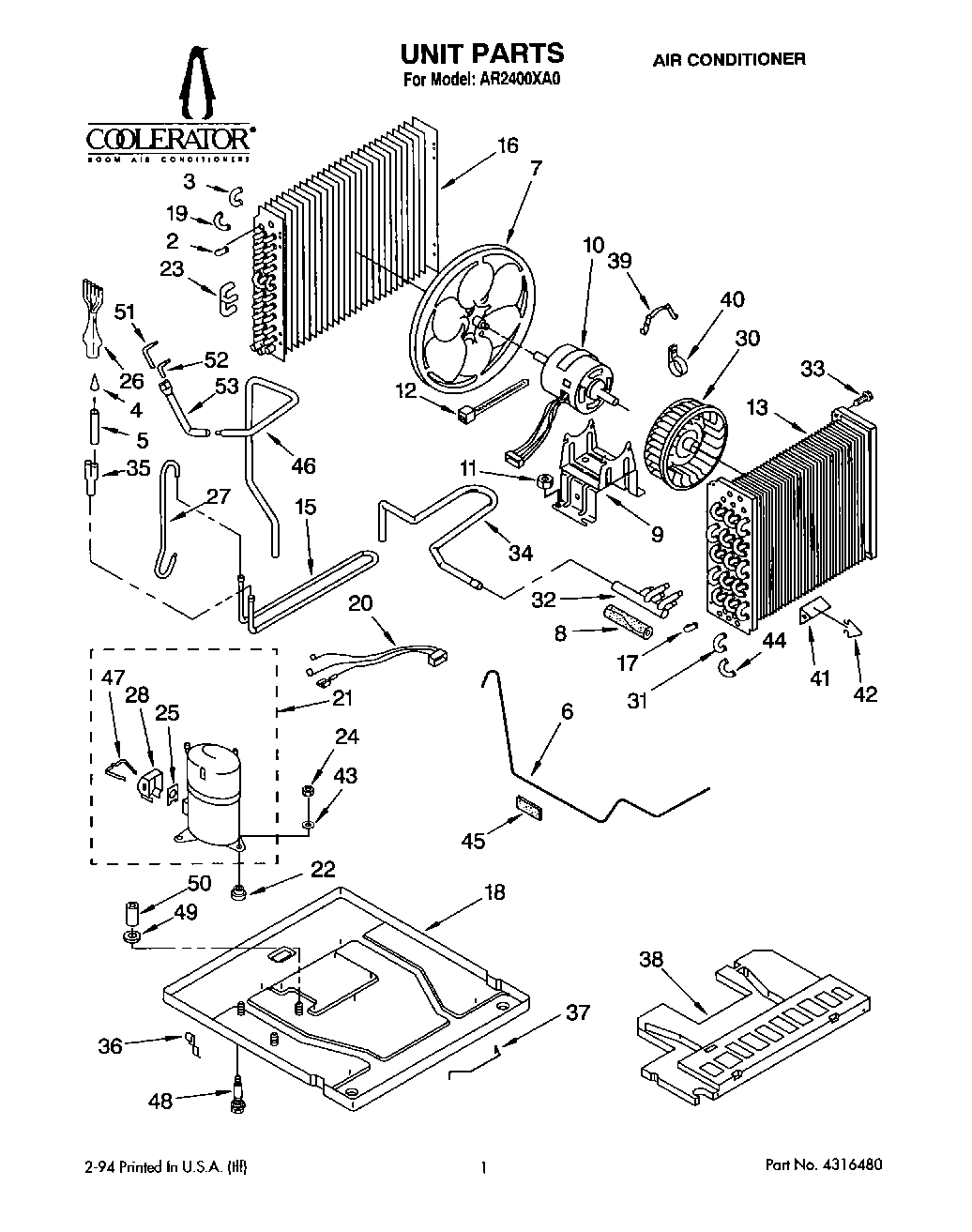

01 - UNIT, LITERATURE

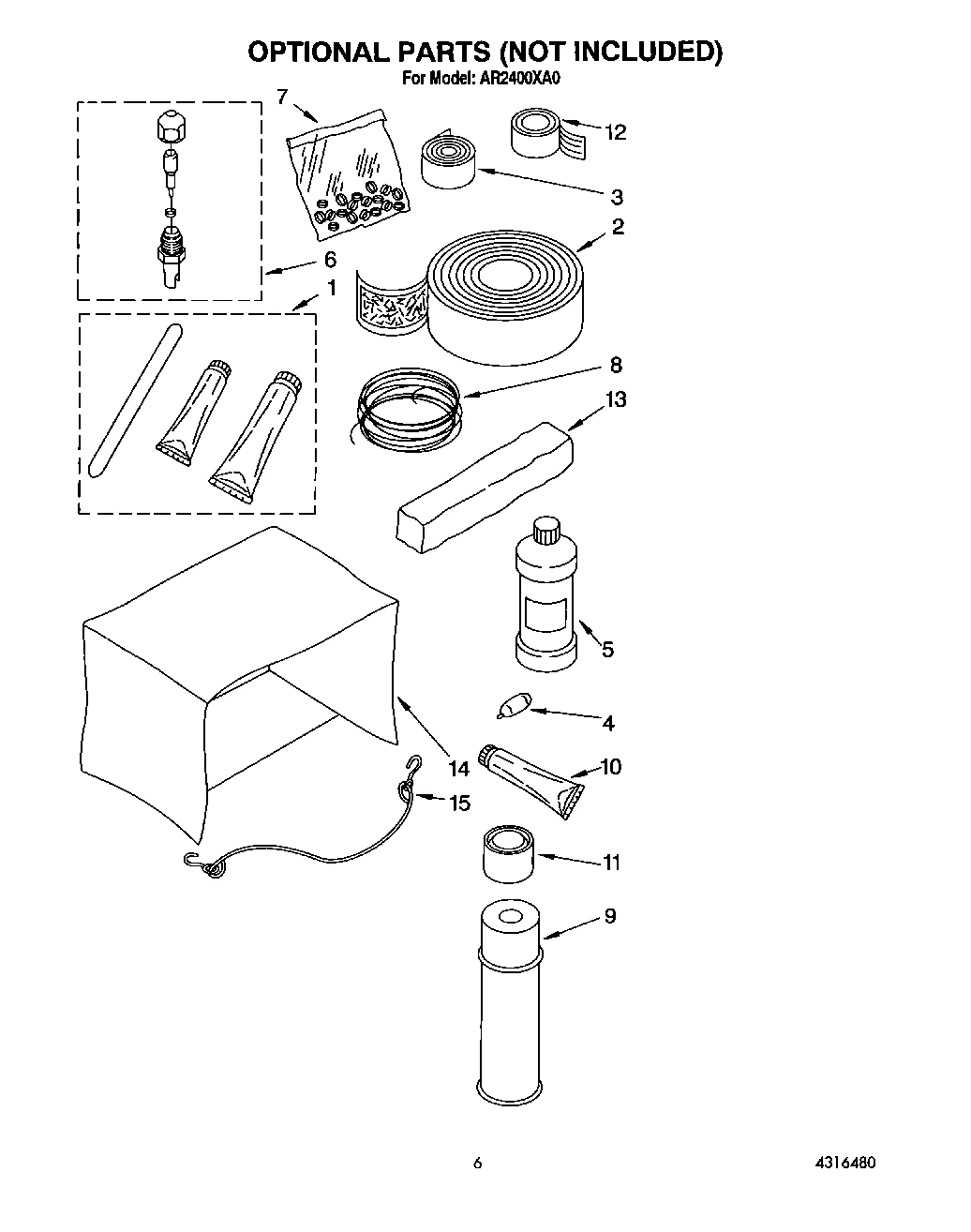

04 - OPTIONAL
Common parts from model Whirlpool AR2400XA0 AIR CONDITIONER
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
Wiring Diagram WPL LIT1161093 Contact Us For Availability
Manual, Owners WPL LIT1164939 Contact Us For Availability
Tech Sheet WPL LIT1165606 Contact Us For Availability
1
Cabinet (Includes Insulation) WPL 1161335 Contact Us For Availability
1
Kit, Standard Installation WPL 1163842 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal WPL 469877 Contact Us For Availability
2
Bend, Return Condenser (30) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Bend, Return Condenser (2) WPL 708531 Contact Us For Availability
4
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Insulation, Cabinet WPL 1162100 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Tube, Restrictor (5) WPL 1165955 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Cabinet Front WPL 1165012 Contact Us For Availability
8
Seal, Suction Tube WPL 1161240 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1162099 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
10
Motor, Fan WPL 1164160 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Seal, Top Mounting Angle WPL 1163784 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Evaporator WPL 1164507 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bag, Accessory WPL 1158746 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Wet, Loop WPL 1161247 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Condenser WPL 1160100 Contact Us For Availability
17
Vertical, Louver WPL 1162079 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Bend, Return Evaporator (10) WPL 854624 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base WPL 1162105 Contact Us For Availability
19
Top, Evaporator Shroud WPL 1160709 Contact Us For Availability
19
Link, Vertical Louver (2) WPL 1162077 Contact Us For Availability
19
Return Bend Condenser (1) WPL 1156329 Contact Us For Availability
20
Panel, Control WPL 1165611 Contact Us For Availability
20
Link, Horizontal Louver (5) WPL 1164167 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Harness, Wiring WPL 1164482 Contact Us For Availability
21
Support, Unit (2) WPL 1160708 Contact Us For Availability
21
Louver, Horizontal (10) WPL 1165014 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Compressor WPL 1165913 Contact Us For Availability
22
Wire, Control Fresh Air WPL 1162063 Contact Us For Availability
22
Louver, Horizontal W/ Handle (2) WPL 1165013 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Grommet (3) WPL 1162080 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Front, Complete WPL 1165008 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
24
Dividing Wall WPL 1164483 Contact Us For Availability
24
Louver, Horizontal W/ Handles (3) WPL 1165015 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1165016 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
25
Gasket, Terminal Cover (Production) WPL 1161082 Contact Us For Availability
26
Switch, Rotary WPL 1157650 Contact Us For Availability
26
Insulation, Cabinet WPL 1162101 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Distributor WPL 1163760 Contact Us For Availability
27
Insulation, Cabinet WPL 1162102 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Tube, Wet Loop Connect WPL 1161277 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1160666 Contact Us For Availability
28
Louver, Actuator WPL 1162078 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Cover, Terminal (Production) WPL 1161076 Contact Us For Availability
29
Cup, Condensate Drain WPL 997285 Contact Us For Availability
29
Filter WPL 1165018 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1162528 Contact Us For Availability
31
Cam, Exhaust WPL 647882 Contact Us For Availability
31
Return Bend Evaporator (7) WPL 855199 Contact Us For Availability
32
Bushing, Shaft WPL 647879 Contact Us For Availability
32
Spring, Detent WPL 641484 Contact Us For Availability
32
Manifold, Suction WPL 1164563 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
34
Tube, Suction WPL 1165917 Contact Us For Availability
35
Washer WPL 1161313 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Shaft, Control Exhaust WPL 993262 Contact Us For Availability
36
Plate, Escutcheon WPL 1164930 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1165936 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Control Box (R.S.) WPL 1161704 Contact Us For Availability
38
Knobs, (3) WPL 1165603 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
39
Control Box (L.S.) WPL 1160683 Contact Us For Availability
40
Clamp, Wiring WPL 1163775 Contact Us For Availability
41
Cover, Top WPL 1160710 Contact Us For Availability
41
Anticipator WPL 484238 Contact Us For Availability
42
Wire, Control Exhaust WPL 1161333 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
44
Bend, Return Evaporator (10) WPL 855644 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Control, Temperature WPL 1160325 Contact Us For Availability
46
Tube, Discharge WPL 1164476 Contact Us For Availability
47
Insul. Top Cover WPL 1160671 Contact Us For Availability
47
Retainer, Terminal Cover WPL 1161083 Contact Us For Availability
48
Bolt, Compressor WPL 1158668 Contact Us For Availability
49
Spacer, Grommet WPL 1160654 Contact Us For Availability
50
Ext. Shoulder WPL 1160655 Contact Us For Availability
51
Cup, Condensate WPL 1160684 Contact Us For Availability
51
Tube, Feeder WPL 1161217 Contact Us For Availability
52
Tube, Feeder WPL 1161216 Contact Us For Availability
53
Tube, Discharge Assembly (Includes 51, 52) WPL 1164479 Contact Us For Availability
× ![]()
