Model Electrolux AR22NS5F1 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

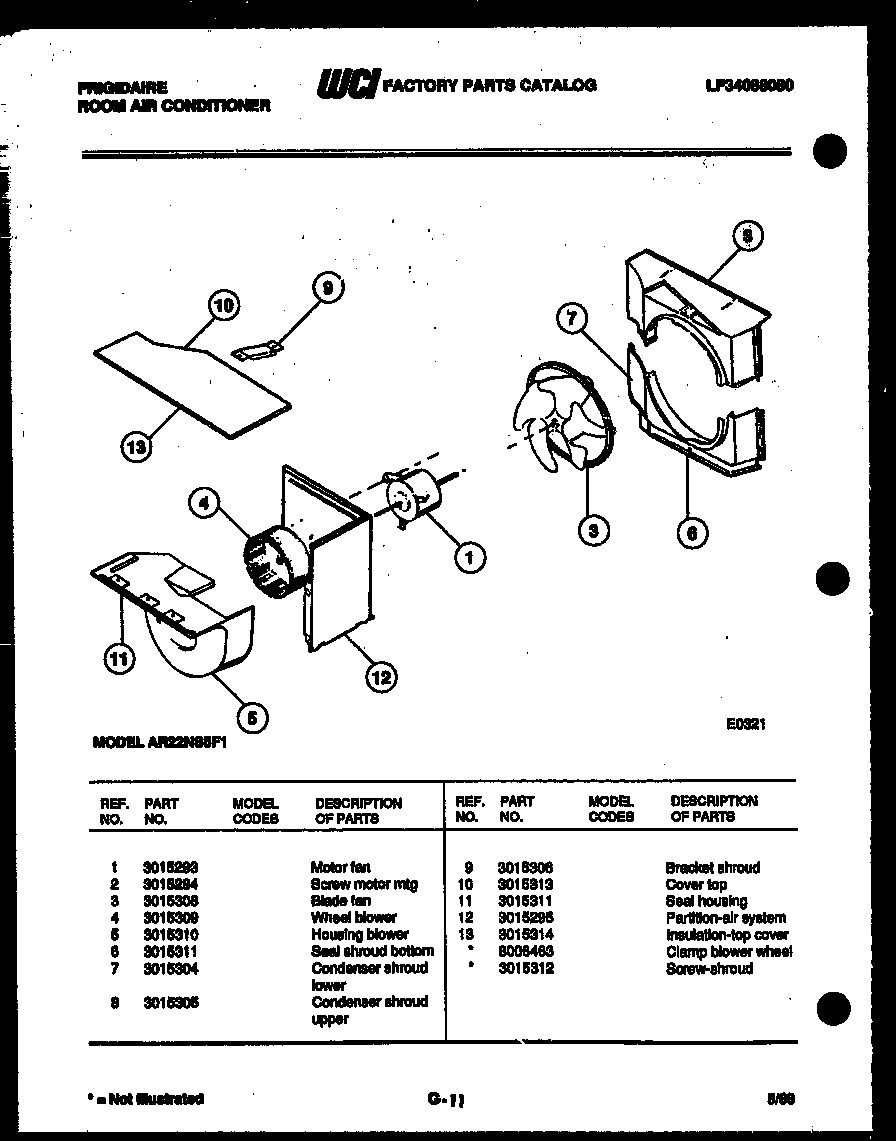

04 - AIR HANDLING PARTS

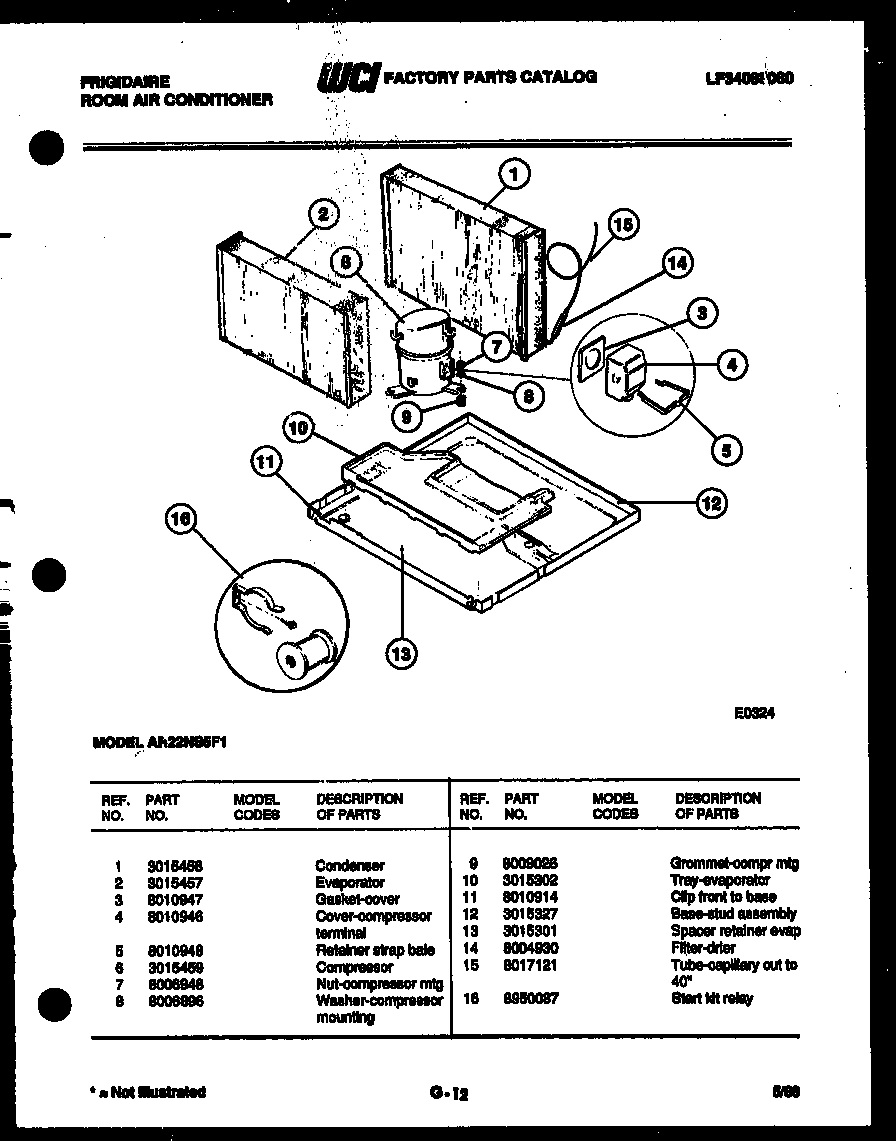

05 - SYSTEM PARTS

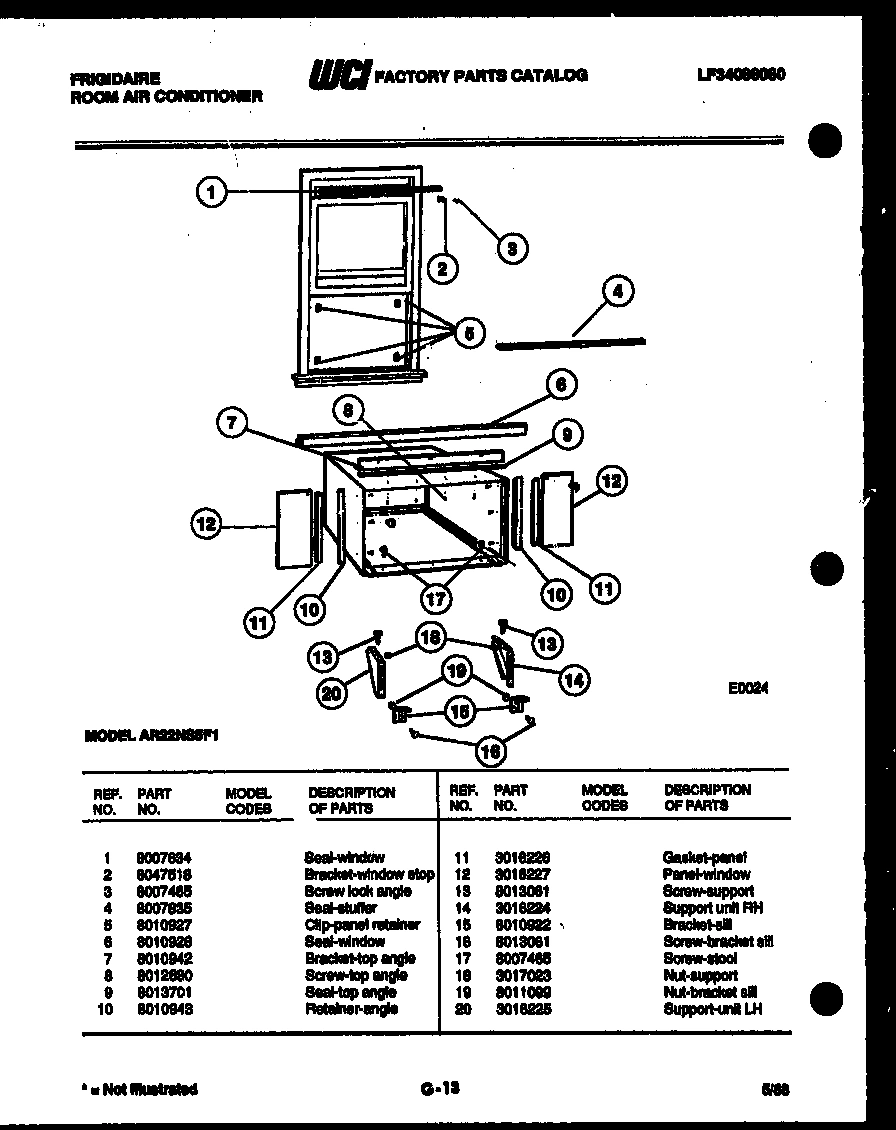

06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux AR22NS5F1 ROOM AIR CONDITIONER
*23604
BRACKET-FRAME FRONT WCI 3016223 Contact Us For Availability
*23604
PANEL AND DOOR INCLUDED FILTER, TRACK AND NAM WCI 8017177 Contact Us For Availability
*23604
LOUVERS-VERTICAL AND LINK ASSEMBLY WCI 8017321 Contact Us For Availability
*23607
CLAMP-BLOWER WHEEL WCI 8006463 Contact Us For Availability
1
WCI 3016184 WCI 3016184 Contact Us For Availability
1
PARTITION CONTROL COMPARTMENT WCI 3015296 Contact Us For Availability
1
WCI 3015293 WCI 3015293 Contact Us For Availability
1
WCI 3015458 WCI 3015458 Contact Us For Availability
1
WCI 8007634 WCI 8007634 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
SCREW-MOTOR MTG WCI 3015294 Contact Us For Availability
2
WCI 3015457 WCI 3015457 Contact Us For Availability
2
BRACKET-WINDOW STOP WCI 8047518 Contact Us For Availability
3
SPACER-DIAL PLATE WCI 8016081 Contact Us For Availability
3
WCI 3015298 WCI 3015298 Contact Us For Availability
3
WCI 3015308 WCI 3015308 Contact Us For Availability
3
GASKET-COVER WCI 8010947 Contact Us For Availability
4
SEAL-DIAL PLATE WCI 8017133 Contact Us For Availability
4
BRACKET-ACTUATOR WCI 8017351 Contact Us For Availability
4
WCI 3015309 WCI 3015309 Contact Us For Availability
4
COVER-COMPRESSOR TERMINAL WCI 8010946 Contact Us For Availability
4
SEAL-STUFFER WCI 8007835 Contact Us For Availability
5
WCI 3016762 WCI 3016762 Contact Us For Availability
5
ARM - ACTUATOR WCI 3015299 Contact Us For Availability
5
HOUSING-BLOWER WCI 3015310 Contact Us For Availability
5
RETAINER STRAP BALE WCI 8010948 Contact Us For Availability
5
CLIP-PANEL RETAINER WCI 8010927 Contact Us For Availability
6
WCI 8017356 WCI 8017356 Contact Us For Availability
6
WCI 3016763 WCI 3016763 Contact Us For Availability
6
WCI 3015459 WCI 3015459 Contact Us For Availability
6
WCI 8010926 WCI 8010926 Contact Us For Availability
7
WCI 8016109 WCI 8016109 Contact Us For Availability
7
CONDENSER SHROUD LOWER WCI 3015304 Contact Us For Availability
7
NUT-COMPRESSOR MTG WCI 8006948 Contact Us For Availability
7
BRACKET-TOP ANGLE WCI 8010942 Contact Us For Availability
8
WCI 8017188 WCI 8017188 Contact Us For Availability
8
CONDENSER SHROUD UPPER WCI 3015305 Contact Us For Availability
8
WASHER-COMPRESSOR MOUNTING WCI 8006896 Contact Us For Availability
8
SCREW-TOP ANGLE WCI 8012680 Contact Us For Availability
9
WCI 8017171 WCI 8017171 Contact Us For Availability
9
BRACKET-SHROUD WCI 3015306 Contact Us For Availability
9
GROMMET-COMPR MTG WCI 8009026 Contact Us For Availability
9
SEAL-TOP ANGLE WCI 8013701 Contact Us For Availability
10
FRAME-HORIZONTAL LOUVER WCI 8017160 Contact Us For Availability
10
SWITCH-SELECTOR WCI 8007146 Contact Us For Availability
10
WCI 3015313 WCI 3015313 Contact Us For Availability
10
WCI 3015302 WCI 3015302 Contact Us For Availability
10
RETAINER-ANGLE WCI 8010943 Contact Us For Availability
11
CLIP-FRONT TO BASE WCI 8010914 Contact Us For Availability
11
FRAME-VERTICAL LOUVER WCI 8017165 Contact Us For Availability
11
CONTROL-AIR TEMP WCI 3015319 Contact Us For Availability
11
SEAL-HOUSING WCI 3015311 Contact Us For Availability
11
GASKET-PANEL WCI 3016226 Contact Us For Availability
12
LINK-VERTICAL LOUVER RH WCI 8017147 Contact Us For Availability
12
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
12
PARTITION-AIR SYSTEM WCI 3015295 Contact Us For Availability
12
BASE-STUD ASSEMBLY WCI 3015327 Contact Us For Availability
12
WCI 3016227 WCI 3016227 Contact Us For Availability
13
LINK-VERTICAL LOUVER LH WCI 8017148 Contact Us For Availability
13
INSULATION - VERTICAL DIVIDER WCI 3015425 Contact Us For Availability
13
INSULATION - TOP COVER WCI 3015314 Contact Us For Availability
13
SPACER RETAINER EVAP WCI 3015301 Contact Us For Availability
14
CLIP-LINK WCI 8017127 Contact Us For Availability
14
WCI 3017021 WCI 3017021 Contact Us For Availability
14
WCI 8004930 WCI 8004930 Contact Us For Availability
14
SUPPORT UNIT RH WCI 3016224 Contact Us For Availability
15
WCI 8017353 WCI 8017353 Contact Us For Availability
15
TUBE-CAPILLARY CUT TO 40`` WCI 8017121 Contact Us For Availability
15
WCI 8010922 WCI 8010922 Contact Us For Availability
16
WCI 8016174 WCI 8016174 Contact Us For Availability
16
WCI 8003016 WCI 8003016 Contact Us For Availability
16
START KIT-RELAY WCI 8950087 Contact Us For Availability
16
SCREW-BRACKET SILL WCI 8013061 Contact Us For Availability
17
SCREW-FRONT RETAINER WCI 8001076 Contact Us For Availability
17
WCI 3015323 WCI 3015323 Contact Us For Availability
17
SCREW-STOOL WCI 8007465 Contact Us For Availability
18
WCI 8017172 WCI 8017172 Contact Us For Availability
19
DOOR-FRONT WCI 8016196 Contact Us For Availability
19
SPACER CONTROL BULB MOUNTING WCI 8047554 Contact Us For Availability
19
NUT-BRACKET SILL WCI 8011099 Contact Us For Availability
20
TRACK - FILTER WCI 8017138 Contact Us For Availability
20
WCI 3015456 WCI 3015456 Contact Us For Availability
20
SUPPORT-UNIT LH WCI 3016225 Contact Us For Availability
21
FILTER-AIR FRAMED WCI 8017190 Contact Us For Availability
21
SCREW ACTUATOR WCI 8002968 Contact Us For Availability
22
WCI 3016831 WCI 3016831 Contact Us For Availability
22
SCREW-CONTROL MTG WCI 8011111 Contact Us For Availability
23
PLATE-NAME WCI 8017126 Contact Us For Availability
25
INSULATION-PANEL CNTRL WCI 3017022 Contact Us For Availability
× ![]()
