Model Electrolux AR18NS8F1 ROOM AIR CONDITIONER – Common Parts & Diagrams

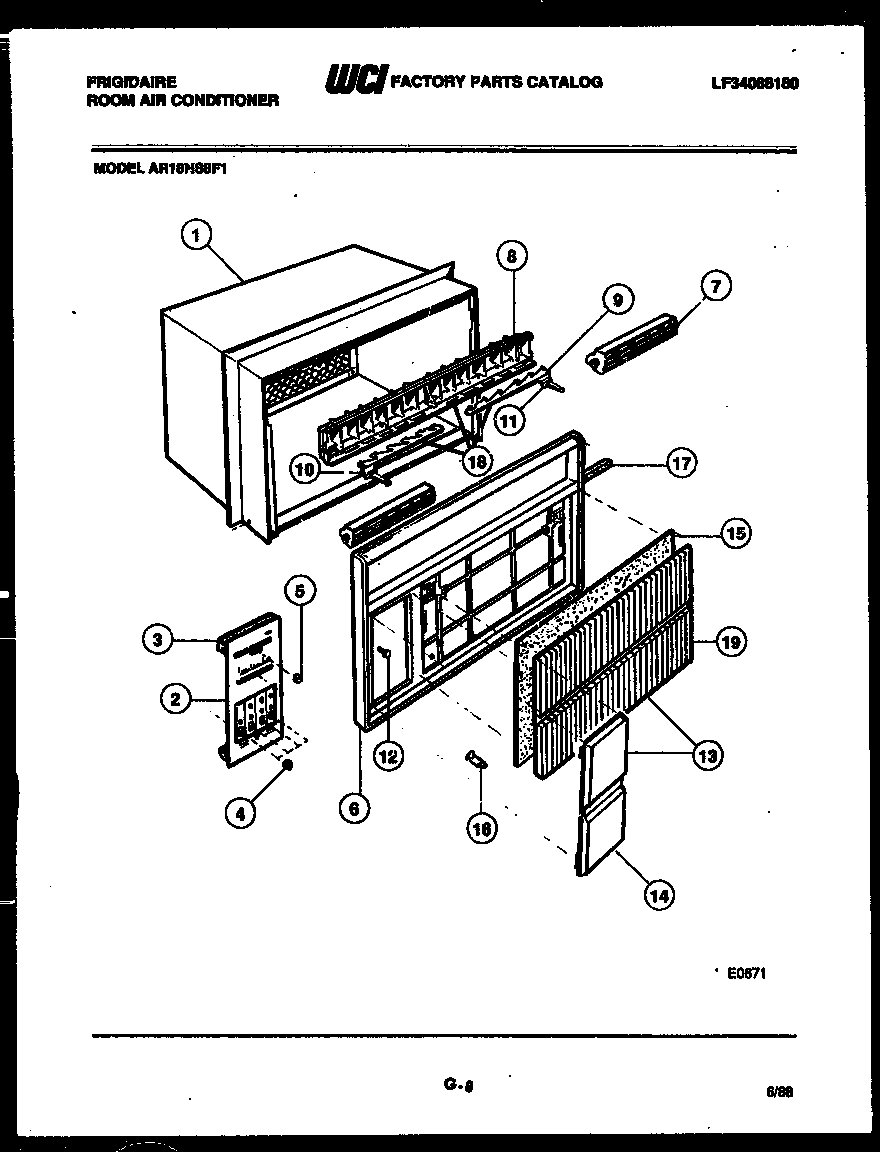

02 - CABINET PARTS

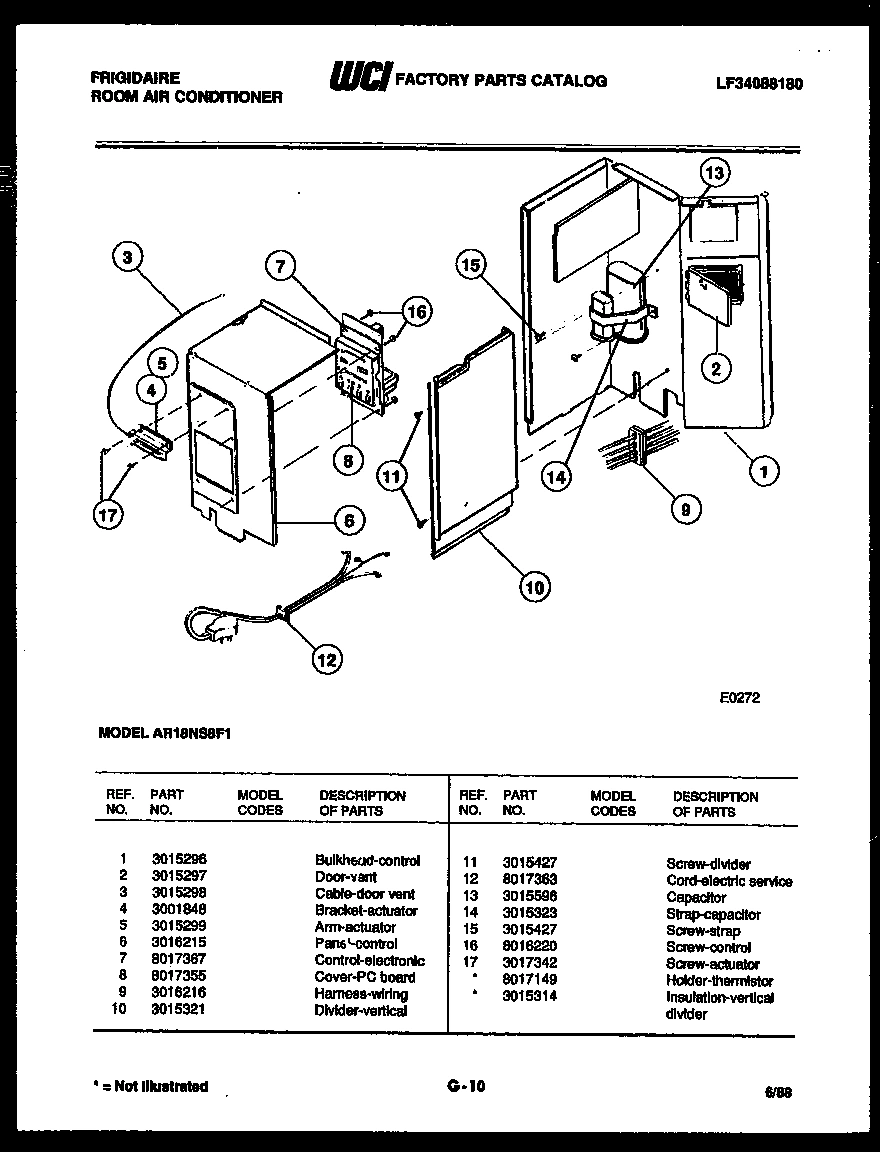

03 - ELECTRICAL PARTS

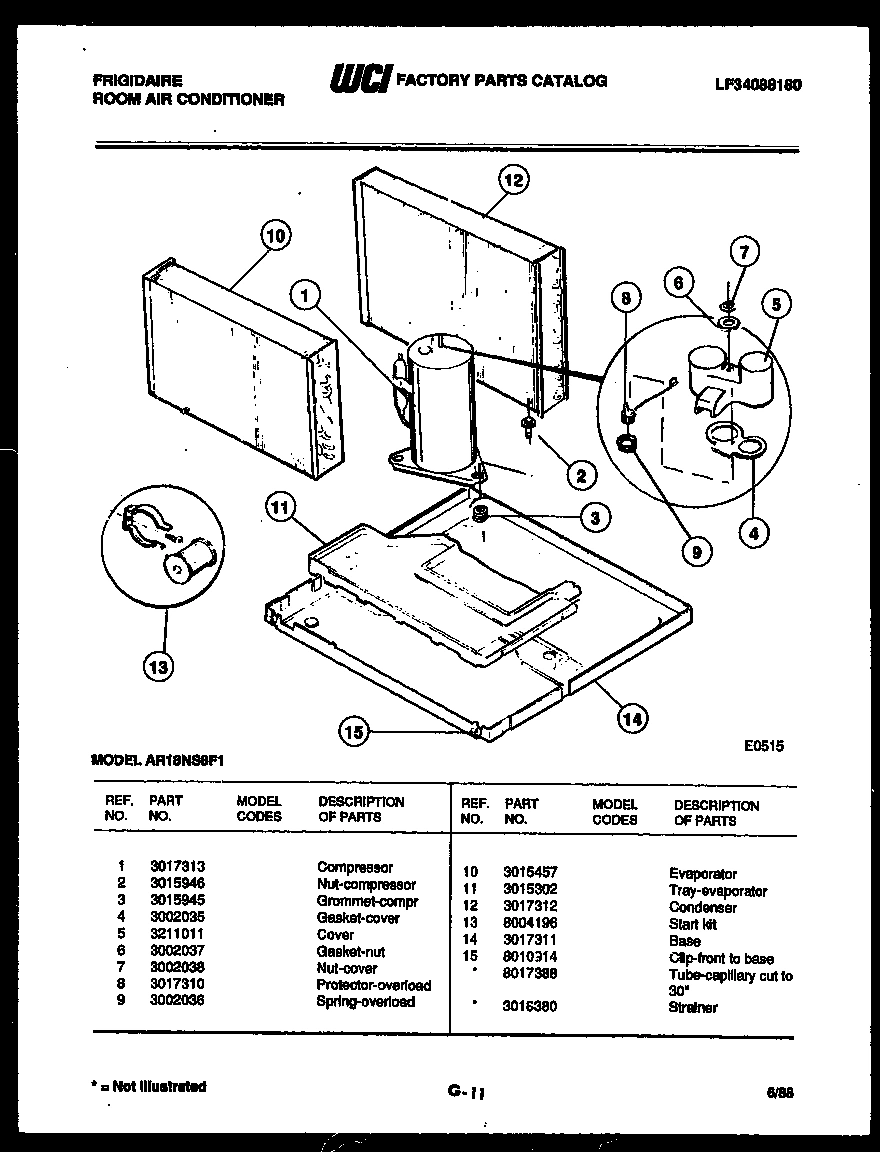

04 - SYSTEM PARTS

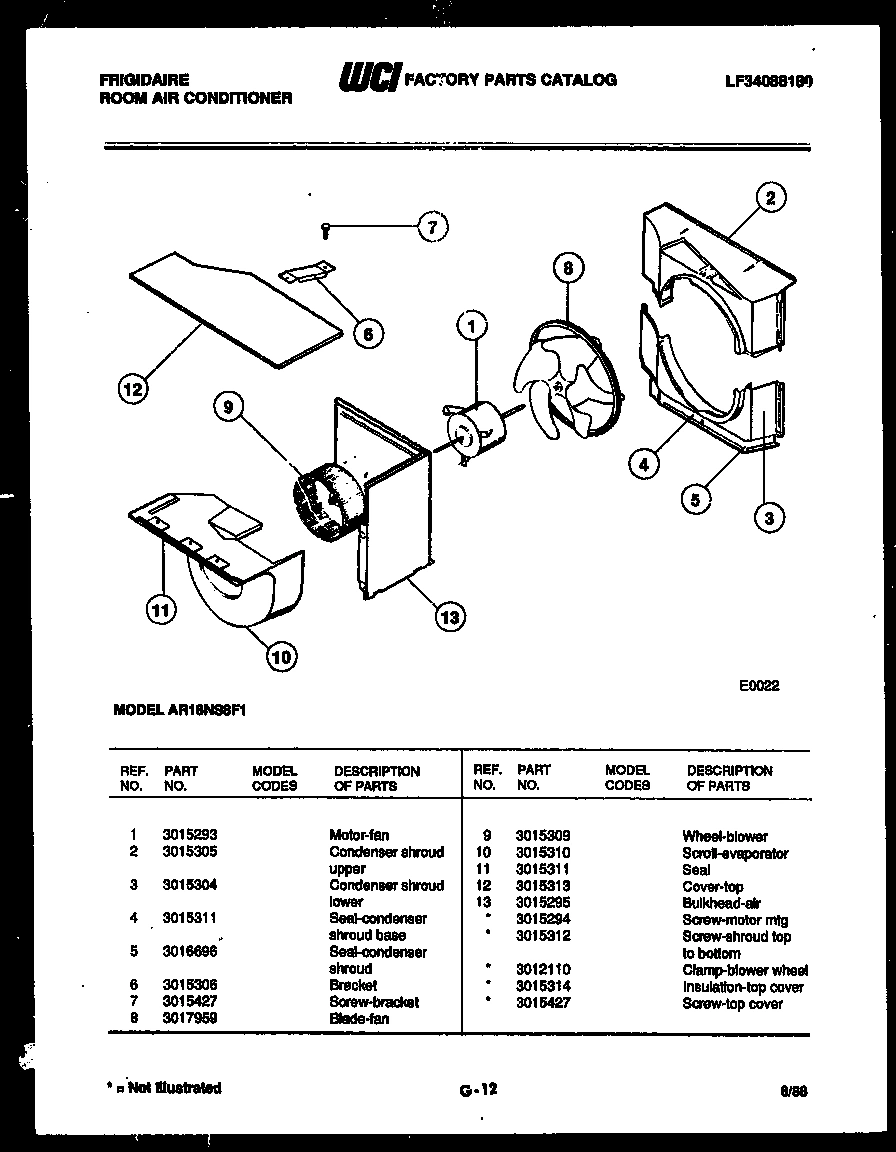

05 - AIR HANDLING PARTS

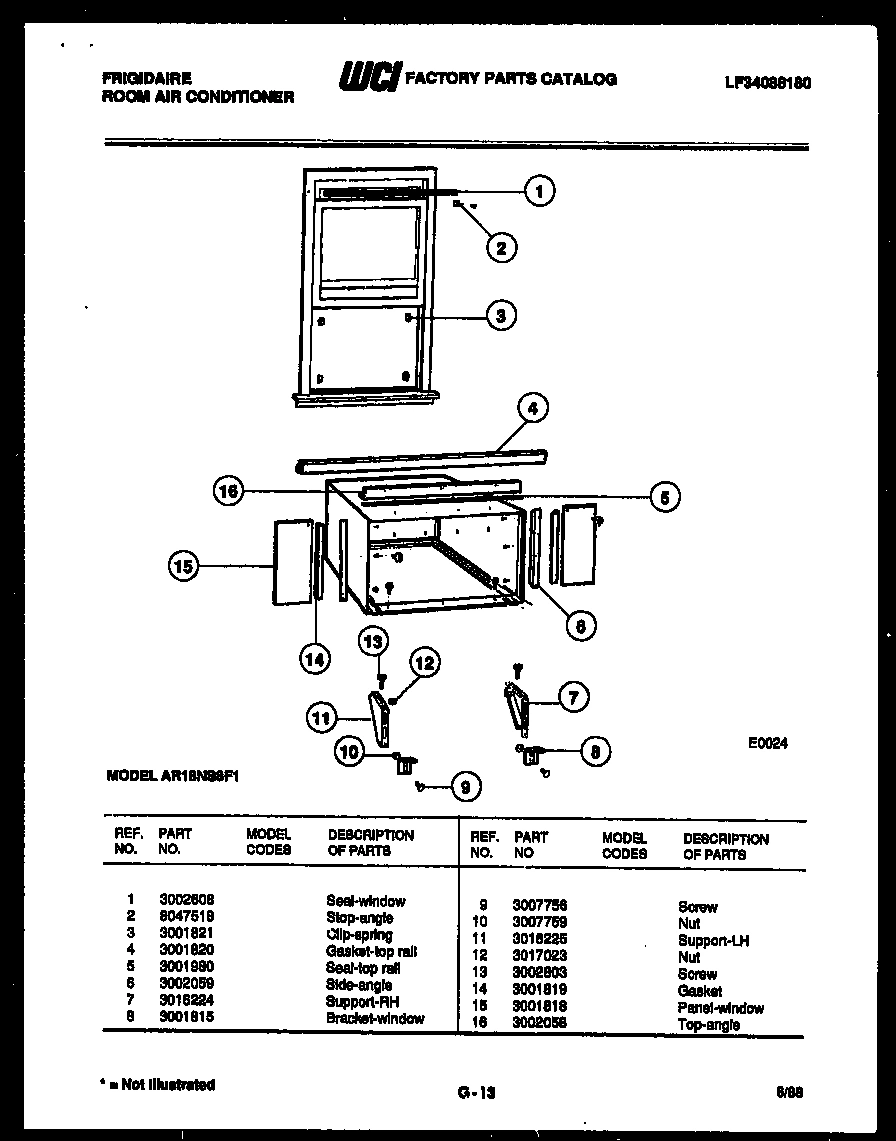

06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux AR18NS8F1 ROOM AIR CONDITIONER
*13581
SPACER-DIAL PLATE WCI 8016088 Contact Us For Availability
*13581
WCI 8016175 WCI 8016175 Contact Us For Availability
*13581
NAMEPLATE WCI 8017126 Contact Us For Availability
*13581
TRACK - FILTER WCI 8017138 Contact Us For Availability
*13582
WCI 8017149 WCI 8017149 Contact Us For Availability
*13583
WCI 8017388 WCI 8017388 Contact Us For Availability
*13584
INSULATION - TOP COVER WCI 3015314 Contact Us For Availability
*13584
WCI 3012110 WCI 3012110 Contact Us For Availability
*13584
SCREW-MOTOR MTG WCI 3015294 Contact Us For Availability
1
WCI 3016184 WCI 3016184 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 3017313 WCI 3017313 Contact Us For Availability
1
WCI 3015293 WCI 3015293 Contact Us For Availability
1
SEAL - WINDOW WCI 3002608 Contact Us For Availability
2
ESCUTCHEON - DIAL WCI 8017340 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
WCI 3015946 WCI 3015946 Contact Us For Availability
2
CONDENSER SHROUD UPPER WCI 3015305 Contact Us For Availability
2
STOP-ANGLE WCI 8047518 Contact Us For Availability
3
SEAL-DIAL PLATE WCI 8016089 Contact Us For Availability
3
WCI 3015298 WCI 3015298 Contact Us For Availability
3
WCI 3015945 WCI 3015945 Contact Us For Availability
3
CONDENSER SHROUD LOWER WCI 3015304 Contact Us For Availability
3
CLIP - SPRING WCI 3001821 Contact Us For Availability
4
WCI 8016116 WCI 8016116 Contact Us For Availability
4
WCI 3001848 WCI 3001848 Contact Us For Availability
4
GASKET-COVER WCI 3002035 Contact Us For Availability
4
WCI 3001820 WCI 3001820 Contact Us For Availability
5
WCI 3002189 WCI 3002189 Contact Us For Availability
5
ARM - ACTUATOR WCI 3015299 Contact Us For Availability
5
COVER WCI 3211011 Contact Us For Availability
5
SEAL - CONDENSER SHROUD WCI 3016696 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
FRONT-COMPLETE WCI 8017334 Contact Us For Availability
6
WCI 3016215 WCI 3016215 Contact Us For Availability
6
GASKET-NUT WCI 3002037 Contact Us For Availability
6
WCI 3015306 WCI 3015306 Contact Us For Availability
6
SIDE - ANGLE WCI 3002059 Contact Us For Availability
7
FRAME-HORIZONTAL LOUVER WCI 8017160 Contact Us For Availability
7
CONTROL-ELECTRONIC WCI 8017367 Contact Us For Availability
7
WCI 3002038 WCI 3002038 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
FRAME-VERTICAL LOUVER WCI 8017165 Contact Us For Availability
8
WCI 8017355 WCI 8017355 Contact Us For Availability
8
PROTECTOR - OVERLOAD WCI 3017310 Contact Us For Availability
8
WCI 3017959 WCI 3017959 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
LINK - LOUVER RH WCI 3002162 Contact Us For Availability
9
WCI 3016216 WCI 3016216 Contact Us For Availability
9
WCI 3002036 WCI 3002036 Contact Us For Availability
9
WCI 3015309 WCI 3015309 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
LINK - LOUVER LH WCI 3002163 Contact Us For Availability
10
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
10
WCI 3015457 WCI 3015457 Contact Us For Availability
10
SCROLL - EVAPORATOR WCI 3015310 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
CLIP - LINK WCI 3001844 Contact Us For Availability
11
WCI 3015302 WCI 3015302 Contact Us For Availability
11
WCI 3015311 WCI 3015311 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
SCREW-FRONT WCI 8001076 Contact Us For Availability
12
CORD-ELECTRIC SERVICE WCI 8017363 Contact Us For Availability
12
WCI 3017312 WCI 3017312 Contact Us For Availability
12
WCI 3015313 WCI 3015313 Contact Us For Availability
13
PANEL AND DOOR ASSY WCI 8017325 Contact Us For Availability
13
CAPACITOR WCI 3015596 Contact Us For Availability
13
START KIT WCI 8004196 Contact Us For Availability
13
BULKHEAD - AIR WCI 3015295 Contact Us For Availability
13
WCI 3002803 WCI 3002803 Contact Us For Availability
14
DOOR - FRONT WCI 8016197 Contact Us For Availability
14
WCI 3015323 WCI 3015323 Contact Us For Availability
14
WCI 3017311 WCI 3017311 Contact Us For Availability
14
WCI 3001819 WCI 3001819 Contact Us For Availability
15
FILTER-AIR WITH FRAME WCI 8017190 Contact Us For Availability
15
CLIP-FRONT TO BASE WCI 8010914 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
SCREW-CONTROL WCI 8016220 Contact Us For Availability
16
TOP - ANGLE WCI 3002058 Contact Us For Availability
17
WCI 8017353 WCI 8017353 Contact Us For Availability
17
WCI 3017342 WCI 3017342 Contact Us For Availability
18
WCI 3002459 WCI 3002459 Contact Us For Availability
× ![]()
