Model Electrolux AR18NS2F1 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

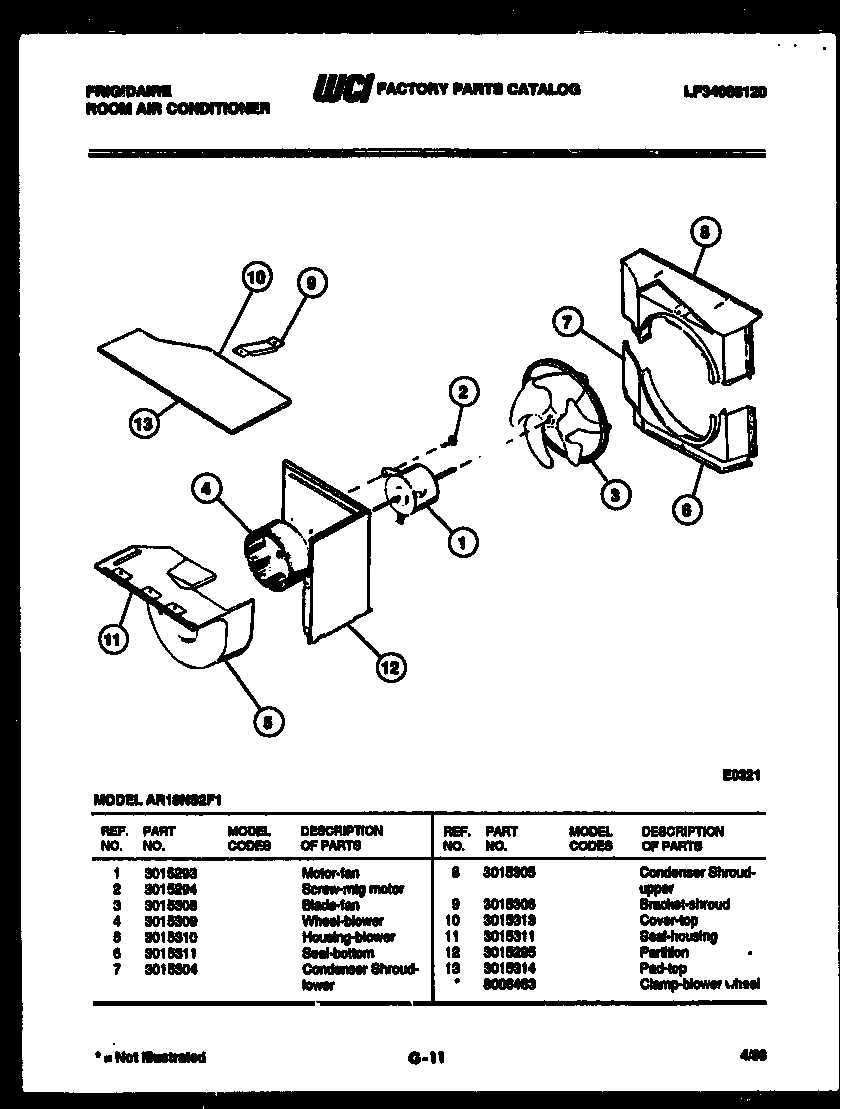

04 - AIR HANDLING PARTS

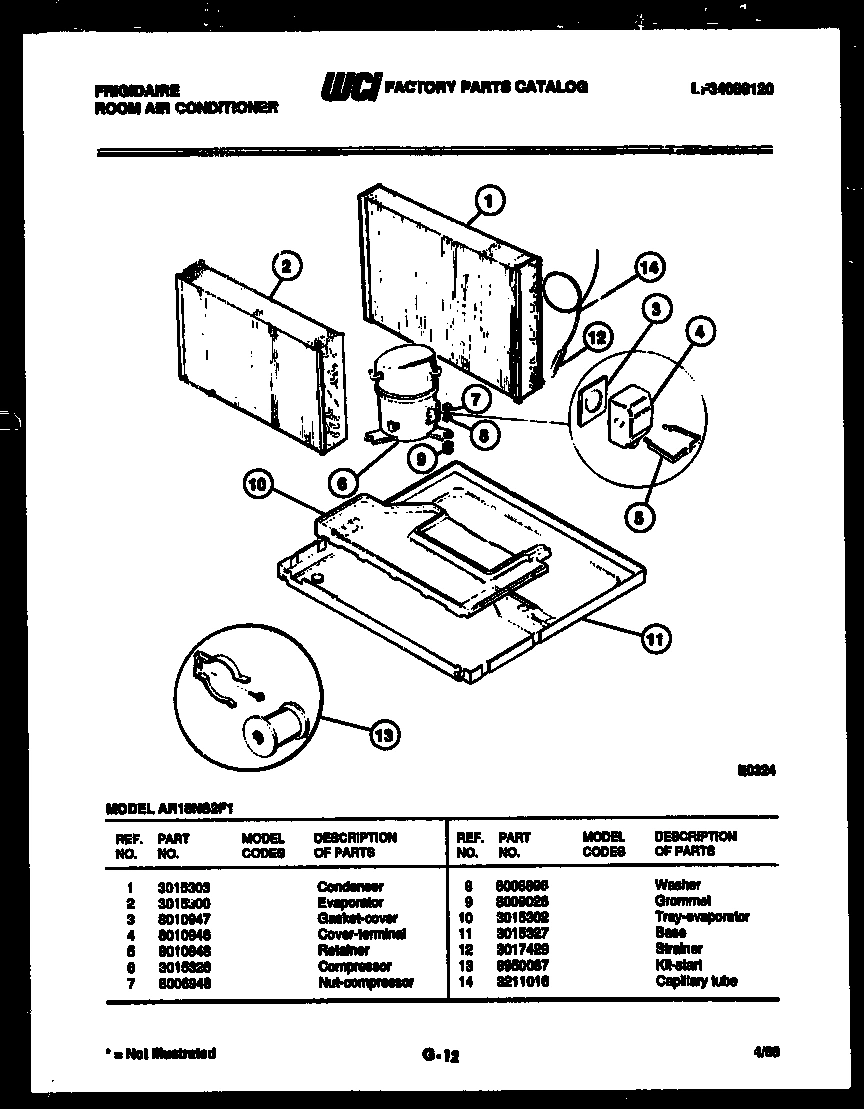

05 - SYSTEM PARTS

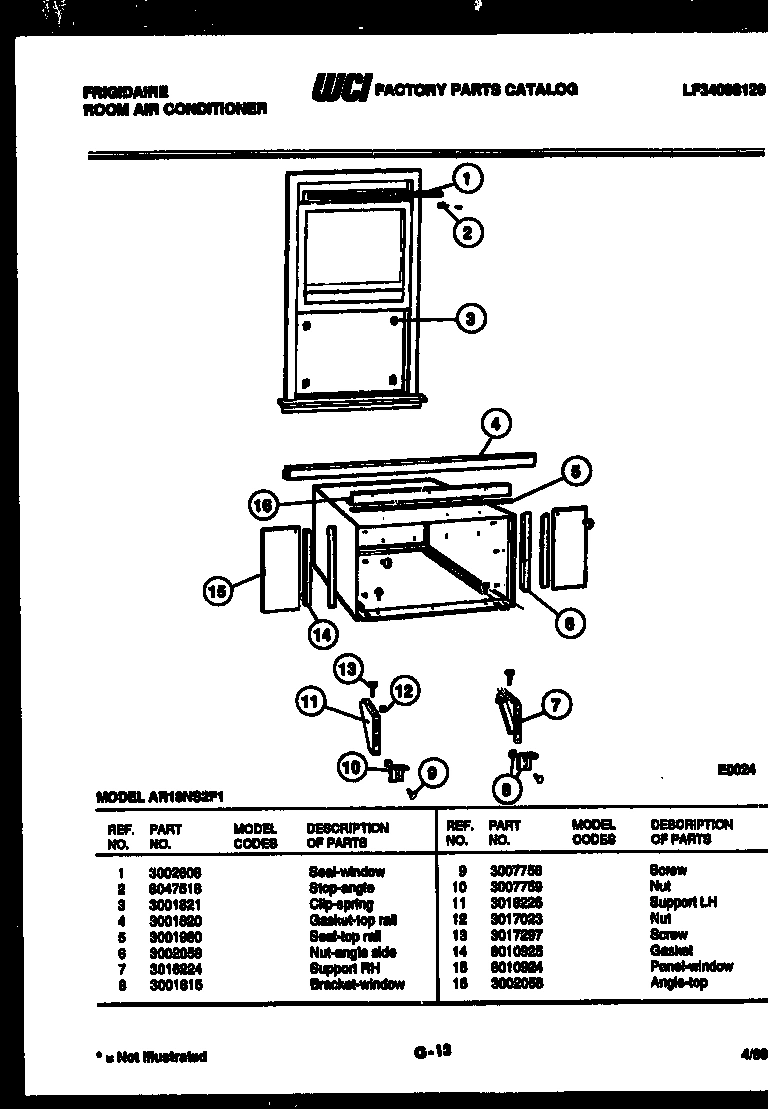

06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux AR18NS2F1 ROOM AIR CONDITIONER
*22286
CLAMP-BLOWER WHEEL WCI 8006463 Contact Us For Availability
1
SHELL-CABINET WCI 3015315 Contact Us For Availability
1
WCI 3016763 WCI 3016763 Contact Us For Availability
1
WCI 3015293 WCI 3015293 Contact Us For Availability
1
WCI 3015303 WCI 3015303 Contact Us For Availability
1
SEAL - WINDOW WCI 3002608 Contact Us For Availability
2
WCI 3016831 WCI 3016831 Contact Us For Availability
2
SWITCH, SELECTOR WCI 8006811 Contact Us For Availability
2
SCREW-MTG MOTOR WCI 3015294 Contact Us For Availability
2
WCI 3015300 WCI 3015300 Contact Us For Availability
2
STOP-ANGLE WCI 8047518 Contact Us For Availability
3
LOUVER-FRAME HORIZ WCI 8017160 Contact Us For Availability
3
CONTROL-THERMOSTAT WCI 3016764 Contact Us For Availability
3
WCI 3015308 WCI 3015308 Contact Us For Availability
3
GASKET-COVER WCI 8010947 Contact Us For Availability
3
CLIP - SPRING WCI 3001821 Contact Us For Availability
4
FILTER-AIR WCI 3014139 Contact Us For Availability
4
WCI 3015320 WCI 3015320 Contact Us For Availability
4
WCI 3015309 WCI 3015309 Contact Us For Availability
4
COVER-TERMINAL WCI 8010946 Contact Us For Availability
4
WCI 3001820 WCI 3001820 Contact Us For Availability
5
WCI 3002170 WCI 3002170 Contact Us For Availability
5
SCREW-CONTROL MTG WCI 8011111 Contact Us For Availability
5
HOUSING-BLOWER WCI 3015310 Contact Us For Availability
5
WCI 8010948 WCI 8010948 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
5A
WCI 8017263 WCI 8017263 Contact Us For Availability
6
WCI 8017260 WCI 8017260 Contact Us For Availability
6
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
6
WCI 3015326 WCI 3015326 Contact Us For Availability
6
NUT-ANGLE SIDE WCI 3002059 Contact Us For Availability
7
WCI 3017551 WCI 3017551 Contact Us For Availability
7
INSUL-VERTICAL DIVIDER WCI 3015425 Contact Us For Availability
7
CONDENSER SHROUD LOWER WCI 3015304 Contact Us For Availability
7
NUT, COMPRESSOR WCI 8006948 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
KNOB-TEMP CONTROL WCI 8016109 Contact Us For Availability
8
WCI 8009102 WCI 8009102 Contact Us For Availability
8
CONDENSER SHROUD UPPER WCI 3015305 Contact Us For Availability
8
WASHER WCI 8006896 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
WCI 3017552 WCI 3017552 Contact Us For Availability
9
CAPACITOR-DUAL WCI 5303012043 Contact Us For Availability
9
BRACKET-SHROUD WCI 3015306 Contact Us For Availability
9
GROMMET WCI 8009026 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
SEAL-DIAL PLATE WCI 8017133 Contact Us For Availability
10
WCI 3015323 WCI 3015323 Contact Us For Availability
10
WCI 3015313 WCI 3015313 Contact Us For Availability
10
WCI 3015302 WCI 3015302 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
10A
SPACER-DIAL PLATE, ( NON-ILLUSTRATED) WCI 3001775 Contact Us For Availability
11
SCREW-FRONT LOCKING WCI 8010919 Contact Us For Availability
11
SEAL-HOUSING WCI 3015311 Contact Us For Availability
11
WCI 3015327 WCI 3015327 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
CLIP-FRONT TO BASE WCI 8010914 Contact Us For Availability
12
PARTITION WCI 3017305 Contact Us For Availability
12
PARTITION WCI 3015295 Contact Us For Availability
13
SPACER - CONTROL BULB WCI 3211009 Contact Us For Availability
13
PAD-TOP WCI 3015314 Contact Us For Availability
13
KIT-START WCI 8950087 Contact Us For Availability
13
SCREW WCI 3017297 Contact Us For Availability
14
CAPILLARY TUBE WCI 3211016 Contact Us For Availability
14
WCI 8010925 WCI 8010925 Contact Us For Availability
15
PANEL-WINDOW WCI 8010924 Contact Us For Availability
16
WCI 3002058 WCI 3002058 Contact Us For Availability
× ![]()
