Model Whirlpool AR1800XW0 AIR CONDITIONER – Common Parts & Diagrams
06 - OPTIONAL
02 - UNIT, LIT/OPTIONAL

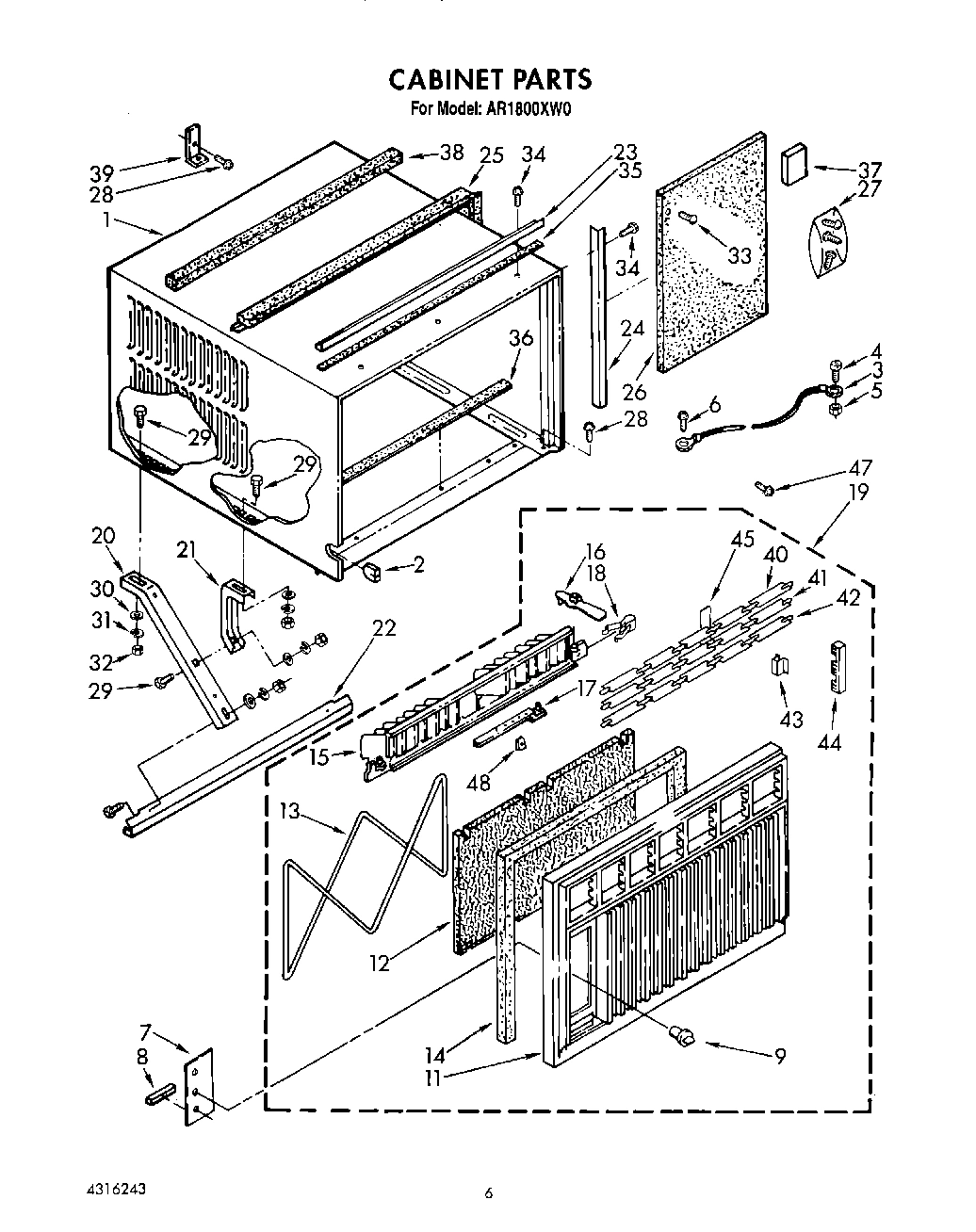

04 - CABINET

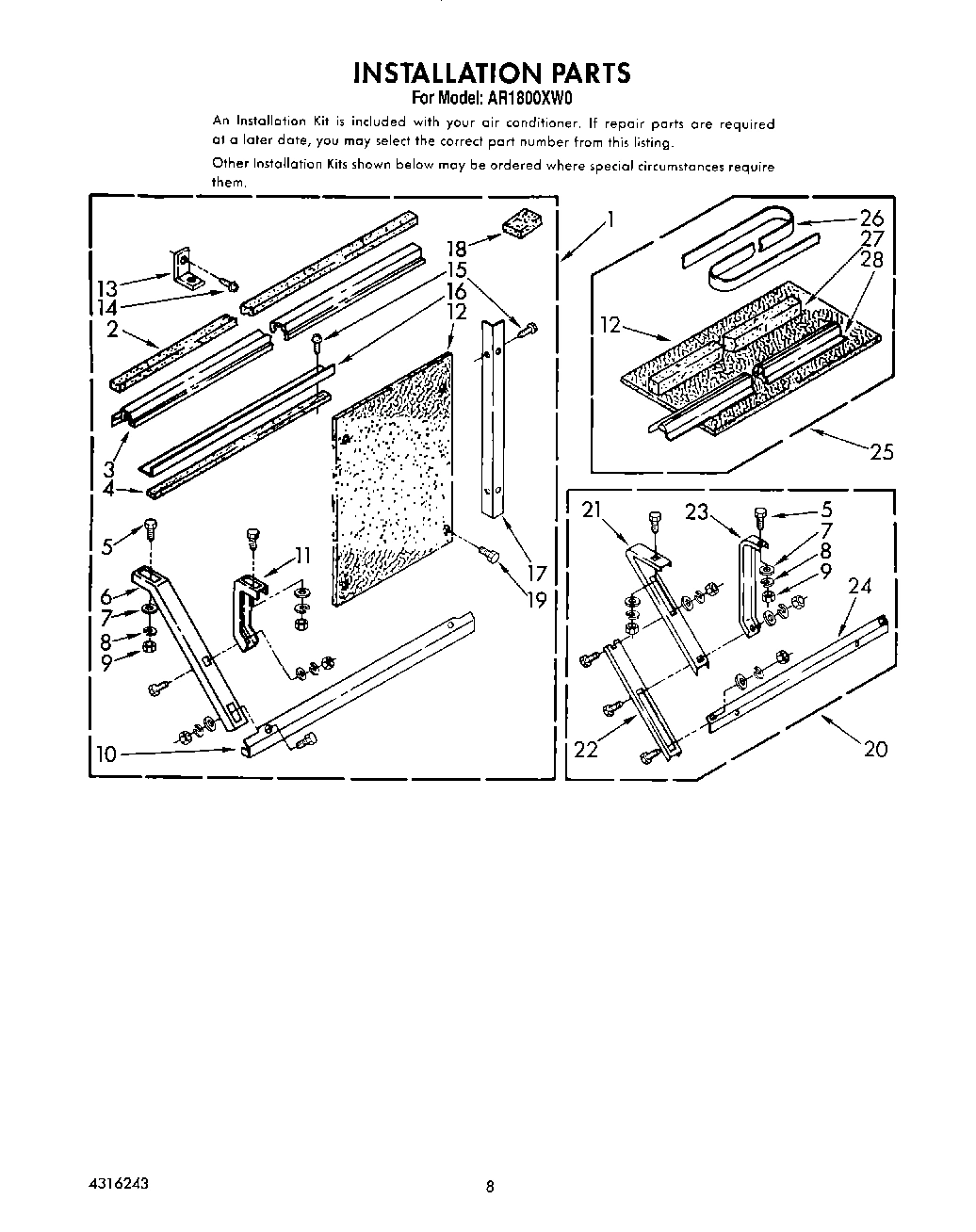

05 - INSTALLATION PARTS

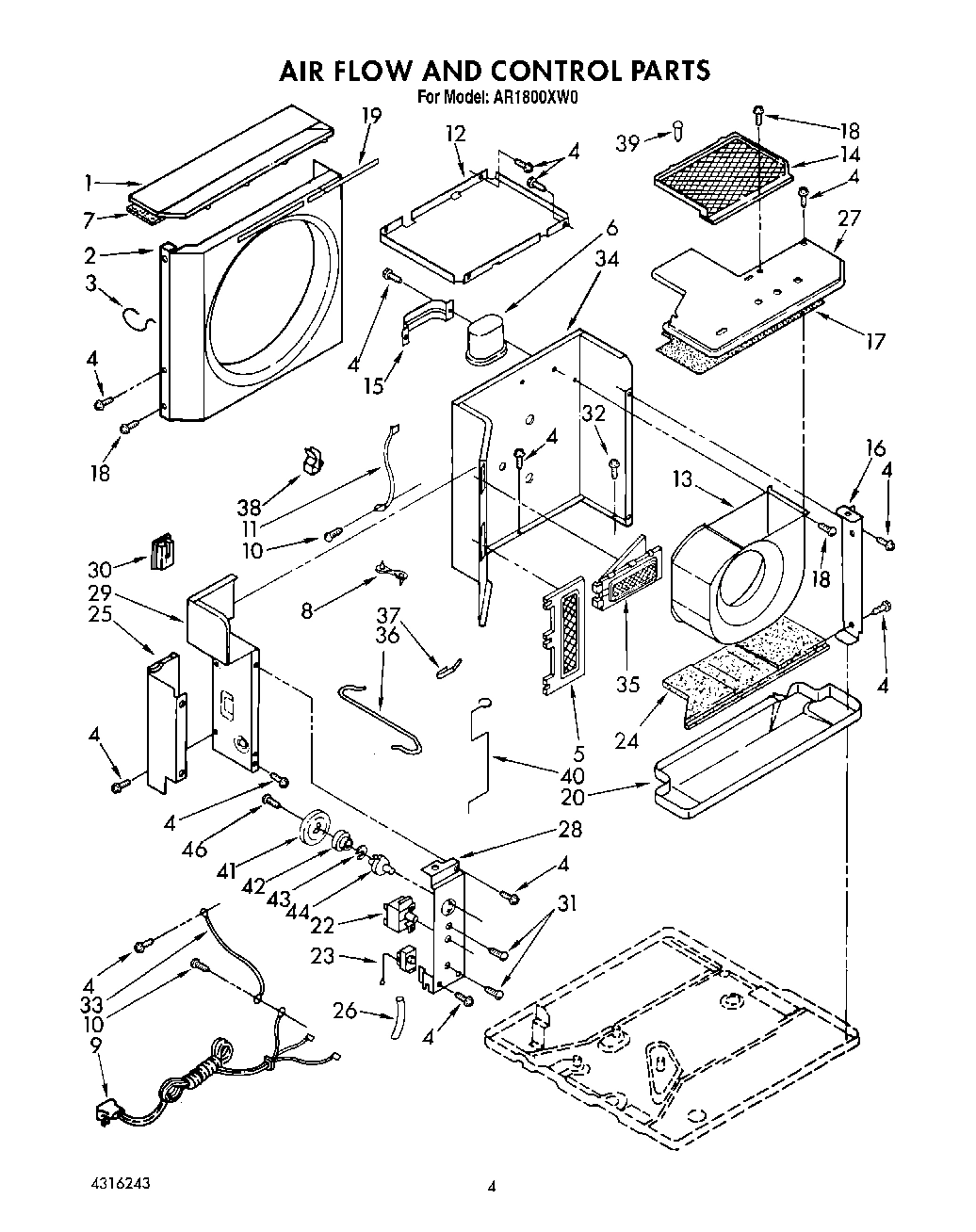

03 - AIR FLOW AND CONTROL
Common parts from model Whirlpool AR1800XW0 AIR CONDITIONER
Installation, Instructions WPL LIT1155965 Contact Us For Availability
Sheet, Tech WPL LIT1156807 Contact Us For Availability
Guide, Use And Care WPL LIT1158187 Contact Us For Availability
List, Repair Parts WPL LIT4316243 Contact Us For Availability
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
1
Condenser WPL 1156327 Contact Us For Availability
1
Insulation (3) WPL 1157053 Contact Us For Availability
1
Cabinet Also Oder: WPL 1157893 Contact Us For Availability
1
Kit, Standard Installation WPL 485854 Contact Us For Availability
1
Cover, Condenser Shroud WPL 997264 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return (8) WPL 855199 Contact Us For Availability
2
Grommet, Cable WPL 647849 Contact Us For Availability
2
Seal WPL 469877 Contact Us For Availability
2
Shroud, Condenser WPL 953028 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Wire, Ground WPL 857022 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Clip, Shroud (2) WPL 994686 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Screw, 8-32 x 3/8 (Machine) WPL 488853 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
5
Tube, Outlet (Includes No.4) WPL 1155598 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Door, Air WPL 997222 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Blade, Fan WPL 1158987 Contact Us For Availability
6
Screw, 8-32 x 3/8 (Standard) WPL 488854 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Capacitor, Running WPL 952739 Contact Us For Availability
7
Plate, Escutcheon WPL 953006 Contact Us For Availability
7
Seal, Condenser Fin WPL 948600 Contact Us For Availability
8
Spacer, Plate (3) WPL 469175 Contact Us For Availability
8
Clamp, Cable WPL 648791 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Knob, Control (3) WPL 953054 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Cable, Appliance WPL 649070 Contact Us For Availability
10
Harness, Wiring WPL 484136 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Clamp, Tube (2) WPL 642684 Contact Us For Availability
11
Front, Cabinet WPL 953018 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Wire, Ground WPL 998177 Contact Us For Availability
12
Bend, Return (7) WPL 708531 Contact Us For Availability
12
Filter, Air WPL 649958 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
12
Support, Unit WPL 1156536 Contact Us For Availability
13
Compressor WPL 819230 Contact Us For Availability
13
Retainer, Filter WPL 476707 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Housing, Blower Wheel WPL 997220 Contact Us For Availability
14
Cover, Winter WPL 484069 Contact Us For Availability
14
Locknut (4) WPL 858121 Contact Us For Availability
14
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
14
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Guard, Evaporator Impeller WPL 1160859 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, Connect WPL 1155580 Contact Us For Availability
15
Louver, Vertical WPL 953064 Contact Us For Availability
15
Bracket, Capacitor WPL 852992 Contact Us For Availability
16
Handle, Louver WPL 953062 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Adapter, Evaporator Header Plate WPL 1161423 Contact Us For Availability
17
Sleeve (3) WPL 950020 Contact Us For Availability
17
Link, Louver WPL 953063 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Insulation, Evaporator Cover WPL 948234 Contact Us For Availability
18
Spring, Louver WPL 641484 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Front, Assembly WPL 953025 Contact Us For Availability
19
Seal, Side Condenser WPL 997266 Contact Us For Availability
20
Clip, Mtg. (Base To Front) WPL 852272 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Pan, Condensate (Includes No.16) WPL 1159315 Contact Us For Availability
21
Base, Unit WPL 950364 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
22
Tube Restrictor (3) WPL 1156440 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Switch, Rotary WPL 950519 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Control, Temperature WPL 1155799 Contact Us For Availability
24
Motor, Fan WPL 952072 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Insulation, Base WPL 997236 Contact Us For Availability
25
Plate, Mounting WPL 998024 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
25
Cover, Control Access WPL 952208 Contact Us For Availability
26
Wheel, Blower WPL 1158443 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Sleeve, Insulation WPL 475841 Contact Us For Availability
27
Bag, Accessory WPL 993848 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Cover, Evaporator WPL 997269 Contact Us For Availability
28
Bend, Return (12) WPL 708532 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Panel, Control WPL 852217 Contact Us For Availability
29
Tube, Maniflod WPL 1155510 Contact Us For Availability
29
Extension, Dividing Wall WPL 1155423 Contact Us For Availability
30
Tube Riser WPL 1156531 Contact Us For Availability
30
Seal, Tube WPL 1162510 Contact Us For Availability
31
Washer, Lock (6) WPL 486009 No Longer Available
31
Locknut WPL 858122 Contact Us For Availability
31
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
32
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
33
Anticipator WPL 472046 Contact Us For Availability
33
Ground Wire WPL 997388 Contact Us For Availability
34
Clip WPL 472047 Contact Us For Availability
34
Wall, Dividing WPL 953040 Contact Us For Availability
35
Gasket, Nut WPL 950037 Contact Us For Availability
35
Door, Exhaust WPL 997221 Contact Us For Availability
36
Tube, Suction WPL 1155593 Contact Us For Availability
36
Seal, Cabinet Bottom WPL 852220 Contact Us For Availability
36
Wire, Control (Red) WPL 1162615 Contact Us For Availability
36
wire, control (blue) WPL 647883 Contact Us For Availability
37
Seal WPL 1162509 Contact Us For Availability
37
Spring, Door (Exhaust Door) WPL 859369 Contact Us For Availability
37
Spring, Door (Fresh Air) WPL 998178 Contact Us For Availability
38
Handle, Base WPL 647971 Contact Us For Availability
38
Clamp, Cable (2) WPL 947072 Contact Us For Availability
39
Evaporator WPL 1156493 Contact Us For Availability
39
Clip (2) WPL 1161162 Contact Us For Availability
40
Bend, Return WPL 1156329 Contact Us For Availability
40
Louver, Horizontal (4) WPL 953061 Contact Us For Availability
40
Actuator, Door WPL 997223 Contact Us For Availability
41
Spring WPL 950032 Contact Us For Availability
41
Louver, Notched WPL 953060 Contact Us For Availability
41
Cam WPL 647882 Contact Us For Availability
42
Louver, Handle WPL 953059 Contact Us For Availability
42
Bushing WPL 647879 Contact Us For Availability
43
Tube, Manifold WPL 1156330 Contact Us For Availability
43
Clip, Louver (4) WPL 855999 Contact Us For Availability
43
Washer WPL 647881 Contact Us For Availability
44
Tube, Divider WPL 947364 Contact Us For Availability
44
Rack, Louver (2) WPL 649955 Contact Us For Availability
44
Shaft WPL 852669 Contact Us For Availability
45
Bend, 3-Way WPL 1156107 Contact Us For Availability
45
Retainer (4) WPL 855998 Contact Us For Availability
46
Bushing, Base To Condenser WPL 948130 Contact Us For Availability
46
Screw WPL 489092 Contact Us For Availability
47
Screw, Front (2) WPL 1157141 Contact Us For Availability
48
Clip, Front (2) WPL 1157140 Contact Us For Availability
× ![]()
