Model Electrolux AR12ME8N1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - CABINET FRONT & WRAPPER

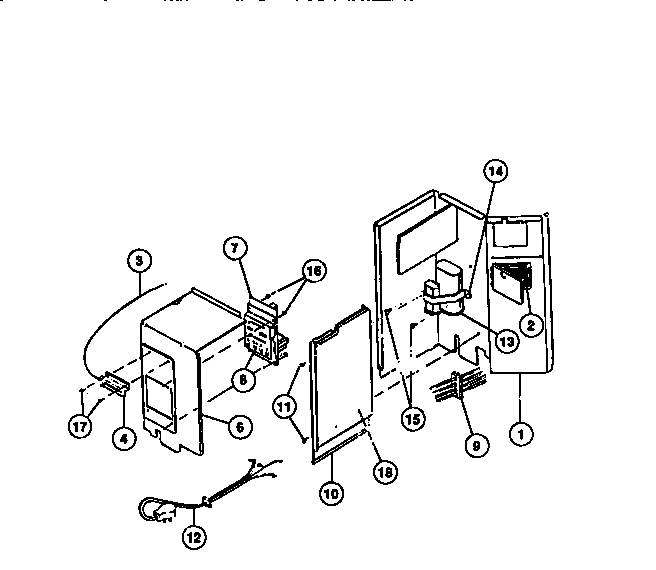

03 - CONTROL PARTS

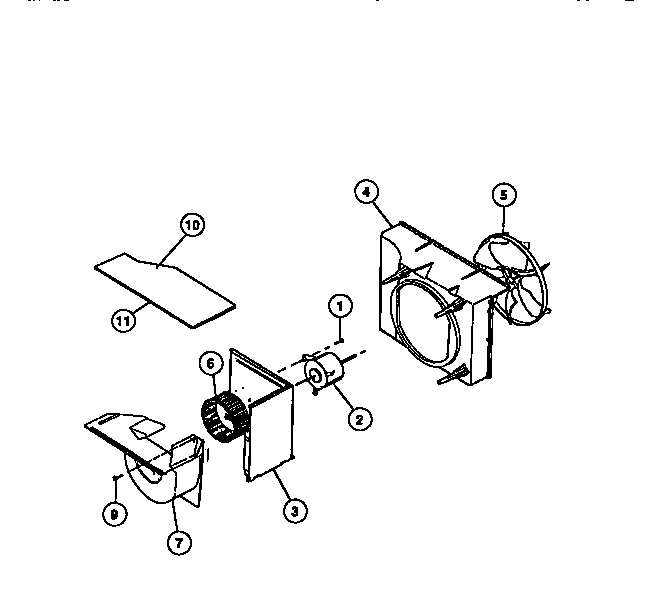

04 - AIR HANDLING PARTS

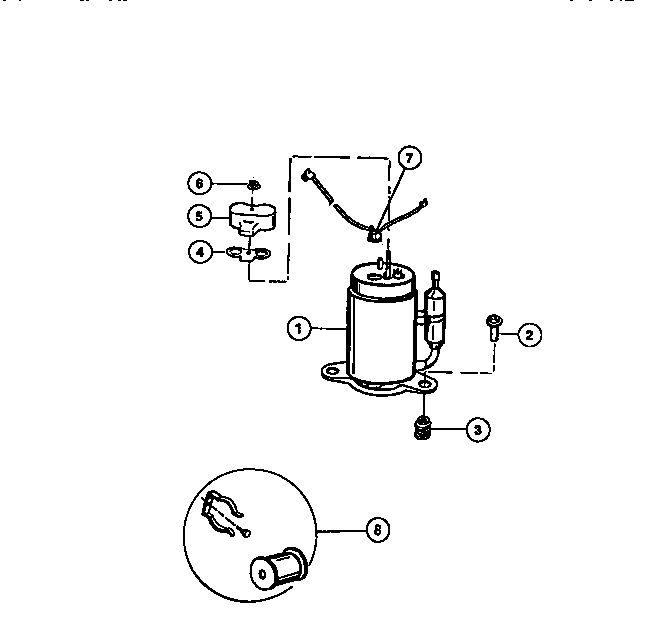

05 - COMPRESSOR

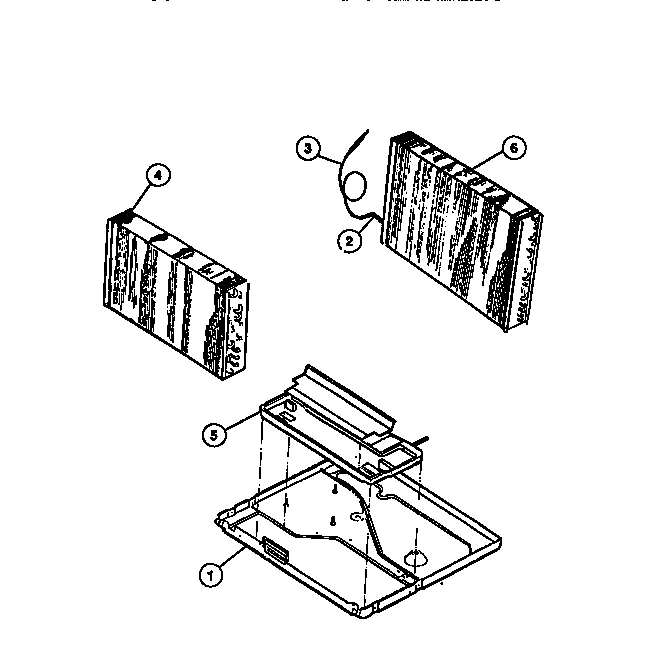

06 - EVAPORATOR, CONDENSER, BASE, EVAPOR

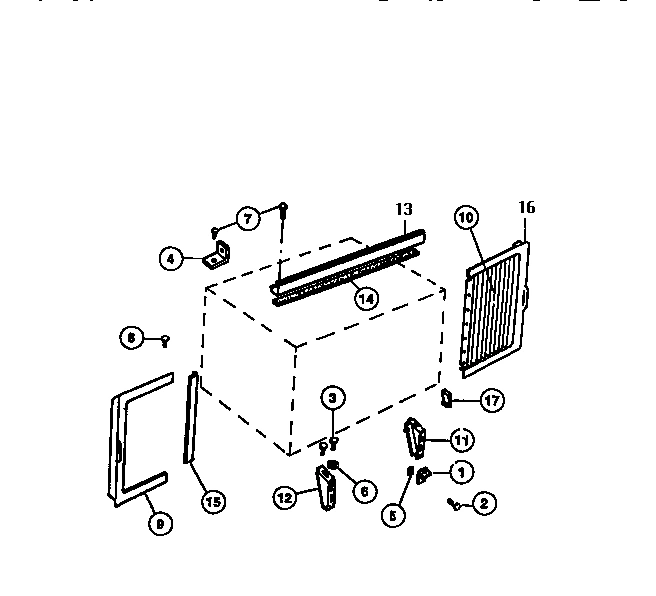

07 - WINDOW MOUNTING PARTS
Common parts from model Electrolux AR12ME8N1 ROOM AIR CONDITIONER
1
SHELL-CABINET WCI 5303207184 Contact Us For Availability
1
BULKHEAD-CONTROL WCI 5303209160 Contact Us For Availability
1
WCI 5303207198 WCI 5303207198 Contact Us For Availability
1
WCI 5303210378 WCI 5303210378 Contact Us For Availability
1
WCI 3001815 WCI 3001815 Contact Us For Availability
2
VERT. LOUVER & LINK ASSY. WCI 5303002458 Contact Us For Availability
2
WCI 3204944 WCI 3204944 Contact Us For Availability
2
WCI 5303202807 WCI 5303202807 Contact Us For Availability
2
NUT COMP MTG (3) WCI 5303015946 Contact Us For Availability
2
WCI 3002803 WCI 3002803 Contact Us For Availability
3
LINK-LOUVER RH WCI 5303002164 Contact Us For Availability
3
CABLE - VENT DOOR WCI 5303015298 Contact Us For Availability
3
WCI 3202938 WCI 3202938 Contact Us For Availability
3
GROMMET (3) WCI 5303015945 Contact Us For Availability
3
CAPILLARY TUBE-CUT TO 40`` (2) WCI 5303209546 Contact Us For Availability
3
WCI 3007756 WCI 3007756 Contact Us For Availability
4
WCI 5303001844 WCI 5303001844 Contact Us For Availability
4
SCREW, FRONT (NI) WCI 5308008175 Contact Us For Availability
4
ARM, ACTUATOR (NI) WCI 3202941 Contact Us For Availability
4
RETAINER - ACTUATOR WCI 5303202999 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
4
SEAL, SHROUD BASE (NI) WCI 3202951 Contact Us For Availability
4
SEAL, SHROUD COND (NI) WCI 3202953 Contact Us For Availability
4
WCI 3206231 WCI 3206231 Contact Us For Availability
4
WCI 3202947 WCI 3202947 Contact Us For Availability
4
WCI 3018951 WCI 3018951 Contact Us For Availability
5
BLADE-FAN WCI 5303202954 Contact Us For Availability
5
WCI 3206230 WCI 3206230 Contact Us For Availability
5
WCI 5303210203 WCI 5303210203 Contact Us For Availability
5
NUT LOCKING WCI 3007759 Contact Us For Availability
6
WCI 5308014101 WCI 5308014101 Contact Us For Availability
6
WCI 3203066 WCI 3203066 Contact Us For Availability
6
CLAMP, BLOWER WHEEL (NI) WCI 5303012110 Contact Us For Availability
6
WCI 5303201132 WCI 5303201132 Contact Us For Availability
6
Nut,terminal cover WCI 5303211017 Contact Us For Availability
6
WCI 5303207195 WCI 5303207195 Contact Us For Availability
7
FILTER, FRAMED WCI 5308017249 Contact Us For Availability
7
CONTROL-ELECTRIC WCI 5308017366 Contact Us For Availability
7
WCI 3202956 WCI 3202956 Contact Us For Availability
7
WCI 5303016697 WCI 5303016697 Contact Us For Availability
7
WCI 3002735 WCI 3002735 Contact Us For Availability
8
PANEL - FRONT WCI 5303016551 Contact Us For Availability
8
WCI 08017355 WCI 08017355 Contact Us For Availability
8
STARTER KIT WCI 5303201723 Contact Us For Availability
8
SCREW-FRAME WCI 3002801 Contact Us For Availability
9
WCI 5308016199 WCI 5308016199 Contact Us For Availability
9
WCI 3203067 WCI 3203067 Contact Us For Availability
9
WCI 3202964 WCI 3202964 Contact Us For Availability
10
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
10
WCI 3202962 WCI 3202962 Contact Us For Availability
10
WCI 3202957 WCI 3202957 Contact Us For Availability
10
ACCORDION WCI 3202965 Contact Us For Availability
11
WCI 5308017324 WCI 5308017324 Contact Us For Availability
11
WCI 3202958 WCI 3202958 Contact Us For Availability
11
WCI 3016224 WCI 3016224 Contact Us For Availability
12
WCI 5308016116 WCI 5308016116 Contact Us For Availability
12
CORD, ELECTRIC SERVICE WCI 5308017362 Contact Us For Availability
12
WCI 3016225 WCI 3016225 Contact Us For Availability
13
WCI 5303002189 WCI 5303002189 Contact Us For Availability
13
CAPACITOR WCI 5303012047 Contact Us For Availability
13
WCI 3001873 WCI 3001873 Contact Us For Availability
14
WCI 5308017339 WCI 5308017339 Contact Us For Availability
14
WCI 5303015323 WCI 5303015323 Contact Us For Availability
14
WCI 5303207200 WCI 5303207200 Contact Us For Availability
15
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
16
LINK-LOUVER LH WCI 5303002165 Contact Us For Availability
16
SPACER, DIAL PLATE (NI) WCI 5308016088 Contact Us For Availability
16
TRACK, FILTER (NI) WCI 5308017294 Contact Us For Availability
16
WCI 08016220 WCI 08016220 Contact Us For Availability
16
WCI 3203060 WCI 3203060 Contact Us For Availability
17
WCI 3202966 WCI 3202966 Contact Us For Availability
18
HOLDER, THERMOSTAT (NI) WCI 08017123 Contact Us For Availability
18
INSULATION WCI 3203068 Contact Us For Availability
× ![]()
