Model Electrolux AR12ME5L1 ROOM AIR CONDITIONER – Common Parts & Diagrams

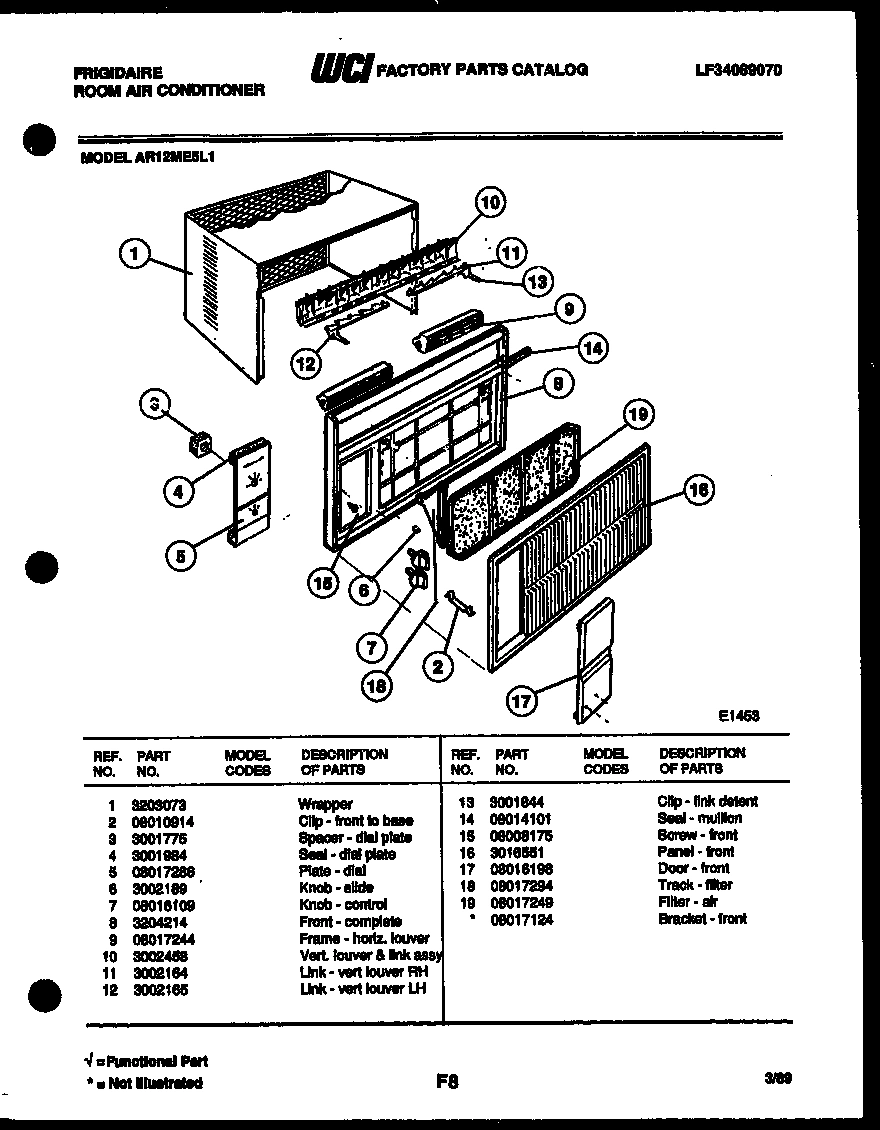

02 - CABINET PARTS
03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - UNIT PARTS
06 - COMPRESSOR PARTS
07 - WINDOW MOUNTING PARTS
Common parts from model Electrolux AR12ME5L1 ROOM AIR CONDITIONER
*47451
BRACKET - FRONT WCI 08017124 Contact Us For Availability
*47466
WCI 3012110 WCI 3012110 Contact Us For Availability
*47469
WCI 3201477 WCI 3201477 Contact Us For Availability
1
WCI 3203073 WCI 3203073 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3202939 Contact Us For Availability
1
WCI 3202807 WCI 3202807 Contact Us For Availability
1
WCI 3203230 WCI 3203230 Contact Us For Availability
1
NUT WCI 3211017 Contact Us For Availability
1
WCI 3001815 WCI 3001815 Contact Us For Availability
2
CLIP-FRONT TO BASE WCI 08010914 Contact Us For Availability
2
WCI 3202940 WCI 3202940 Contact Us For Availability
2
WCI A000265201 WCI A000265201 Contact Us For Availability
2
CAP WCI 3211014 Contact Us For Availability
2
WCI 3002803 WCI 3002803 Contact Us For Availability
3
WCI 3001775 WCI 3001775 Contact Us For Availability
3
CABLE - DOR VENT WCI 3015298 Contact Us For Availability
3
BULKHEAD-AIR SYSTEM WCI 3202938 Contact Us For Availability
3
CPLRY TUBE-(CUT TO 35``) WCI 08017120 Contact Us For Availability
3
GASKET WCI 3211012 Contact Us For Availability
3
WCI 3007756 WCI 3007756 Contact Us For Availability
4
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
4
WCI 3202999 WCI 3202999 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
4
WCI 3202947 WCI 3202947 Contact Us For Availability
4
COVER WCI 3211013 Contact Us For Availability
4
WCI 3018951 WCI 3018951 Contact Us For Availability
4A
ARM - ACTUATOR (NON-ILLUSTRATED) WCI 3202941 Contact Us For Availability
5
PLATE - DIAL WCI 08017286 Contact Us For Availability
5
WCI 3203109 WCI 3203109 Contact Us For Availability
5
WCI 3202954 WCI 3202954 Contact Us For Availability
5
WCI 3202948 WCI 3202948 Contact Us For Availability
5
GASKET WCI 3211018 Contact Us For Availability
5
NUT LOCKING WCI 3007759 Contact Us For Availability
6
WCI 3002189 WCI 3002189 Contact Us For Availability
6
WCI 3001870 WCI 3001870 Contact Us For Availability
6
WHEEL-BLOWER WCI 3201132 Contact Us For Availability
6
WCI 3203590 WCI 3203590 Contact Us For Availability
6
KIT-START WCI 3201723 Contact Us For Availability
7
WCI 08016109 WCI 08016109 Contact Us For Availability
7
WCI 3002079 WCI 3002079 Contact Us For Availability
7
WCI 3202956 WCI 3202956 Contact Us For Availability
7
WCI 3202808 WCI 3202808 Contact Us For Availability
7
WCI 3002735 WCI 3002735 Contact Us For Availability
8
WCI 3204214 WCI 3204214 Contact Us For Availability
8
SCREW-CONTROL MTG WCI 3007754 Contact Us For Availability
8
WCI 3202957 WCI 3202957 Contact Us For Availability
8
WCI 3016697 WCI 3016697 Contact Us For Availability
8
SCREW-FRAME WCI 3002801 Contact Us For Availability
9
WCI 08017244 WCI 08017244 Contact Us For Availability
9
WCI 3203112 WCI 3203112 Contact Us For Availability
9
PAD - COVER WCI 3202958 Contact Us For Availability
9
NUT WCI 3015946 Contact Us For Availability
9
WCI 3202964 WCI 3202964 Contact Us For Availability
10
VERT. LOUVER & LINK ASSY WCI 3002458 Contact Us For Availability
10
WCI 3202962 WCI 3202962 Contact Us For Availability
10
WCI 3202951 WCI 3202951 Contact Us For Availability
10
GROMMET WCI 3015945 Contact Us For Availability
10
ACCORDIAN WCI 3202965 Contact Us For Availability
11
LINK-VERT LOUVER RH WCI 3002164 Contact Us For Availability
11
WCI 3016224 WCI 3016224 Contact Us For Availability
12
LINK- VERT LOUVER LH WCI 3002165 Contact Us For Availability
12
WCI 3002169 WCI 3002169 Contact Us For Availability
12
WCI 3016225 WCI 3016225 Contact Us For Availability
13
WCI 3001844 WCI 3001844 Contact Us For Availability
13
WCI 3001873 WCI 3001873 Contact Us For Availability
14
WCI 08014101 WCI 08014101 Contact Us For Availability
14
WCI 3002367 WCI 3002367 Contact Us For Availability
14
SEAL-TOP RAIL WCI 3001855 Contact Us For Availability
15
SCREW-FRONT WCI 08008175 Contact Us For Availability
15
CAPACITOR-DUAL WCI 3012047 Contact Us For Availability
16
PANEL - FRONT WCI 3016551 Contact Us For Availability
16
WCI 3015323 WCI 3015323 Contact Us For Availability
16
WCI 3203060 WCI 3203060 Contact Us For Availability
17
WCI 08016198 WCI 08016198 Contact Us For Availability
17
WCI 3202966 WCI 3202966 Contact Us For Availability
18
TRACK-FILTER WCI 08017294 Contact Us For Availability
18
INSUL - VERT. DIVIDER WCI 3202963 Contact Us For Availability
19
WCI 08017249 WCI 08017249 Contact Us For Availability
× ![]()
