Model Whirlpool AR1000XW0 AIR CONDITIONER – Common Parts & Diagrams

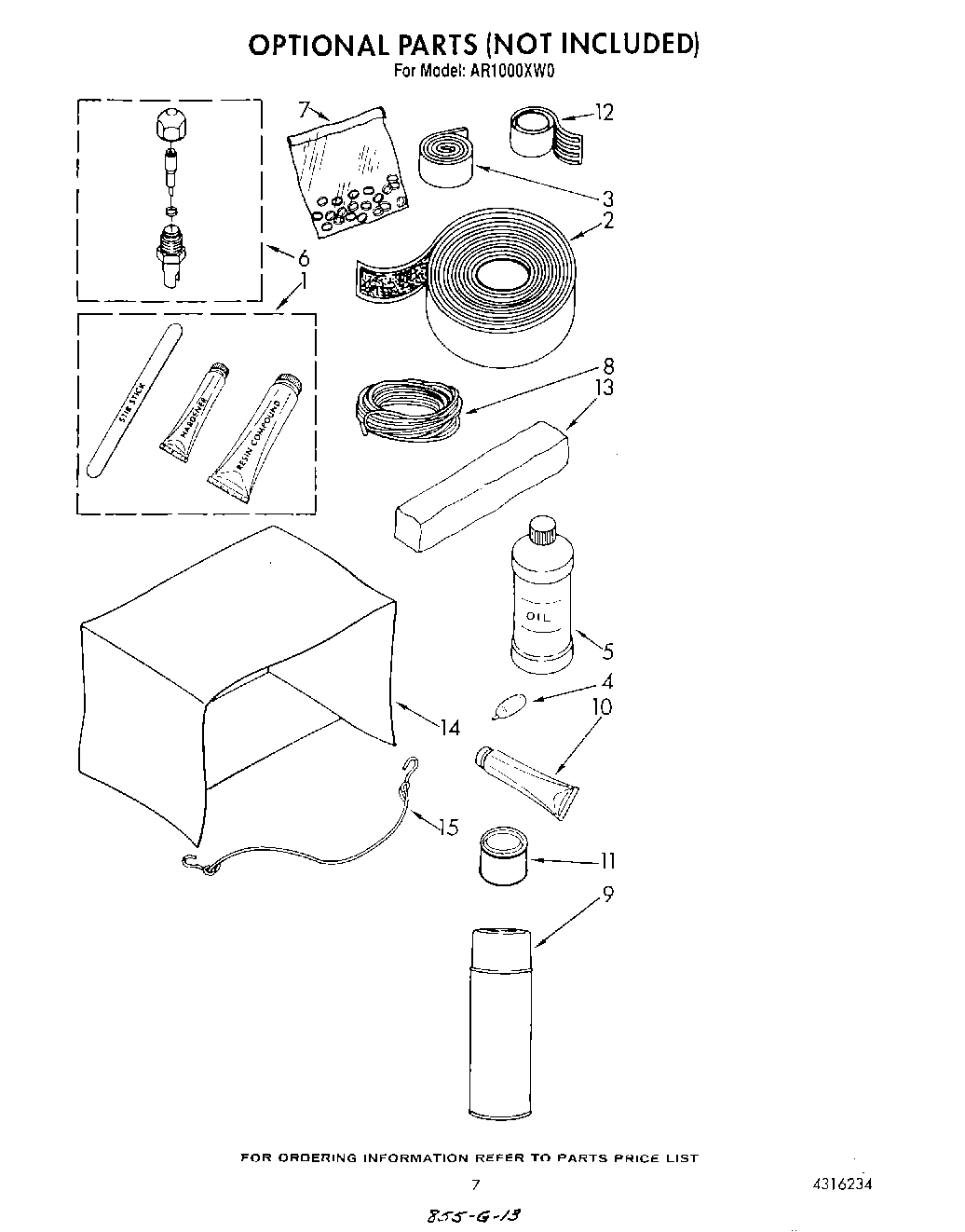

05 - LIT/OPTIONAL

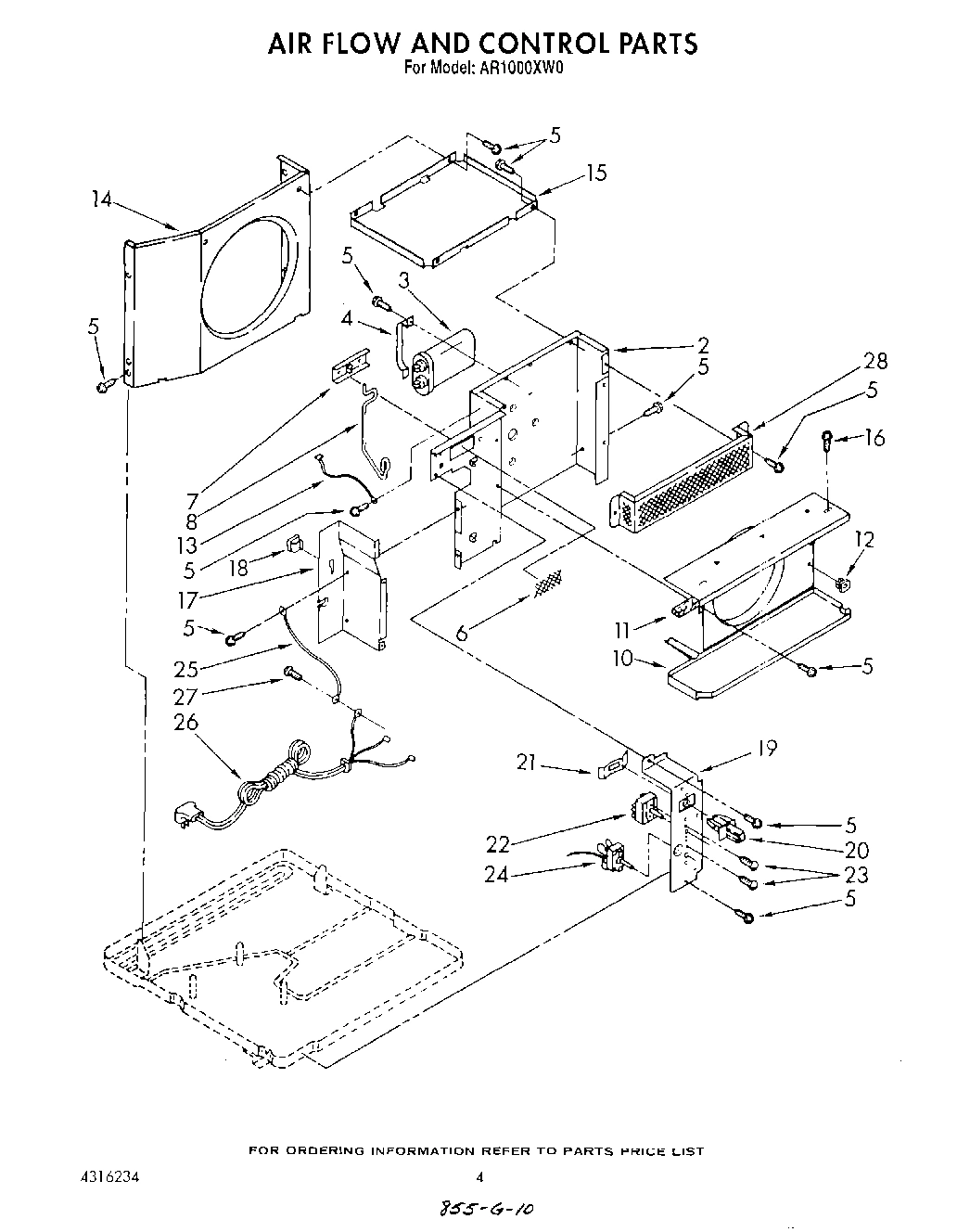

03 - AIR FLOW AND CONTROL

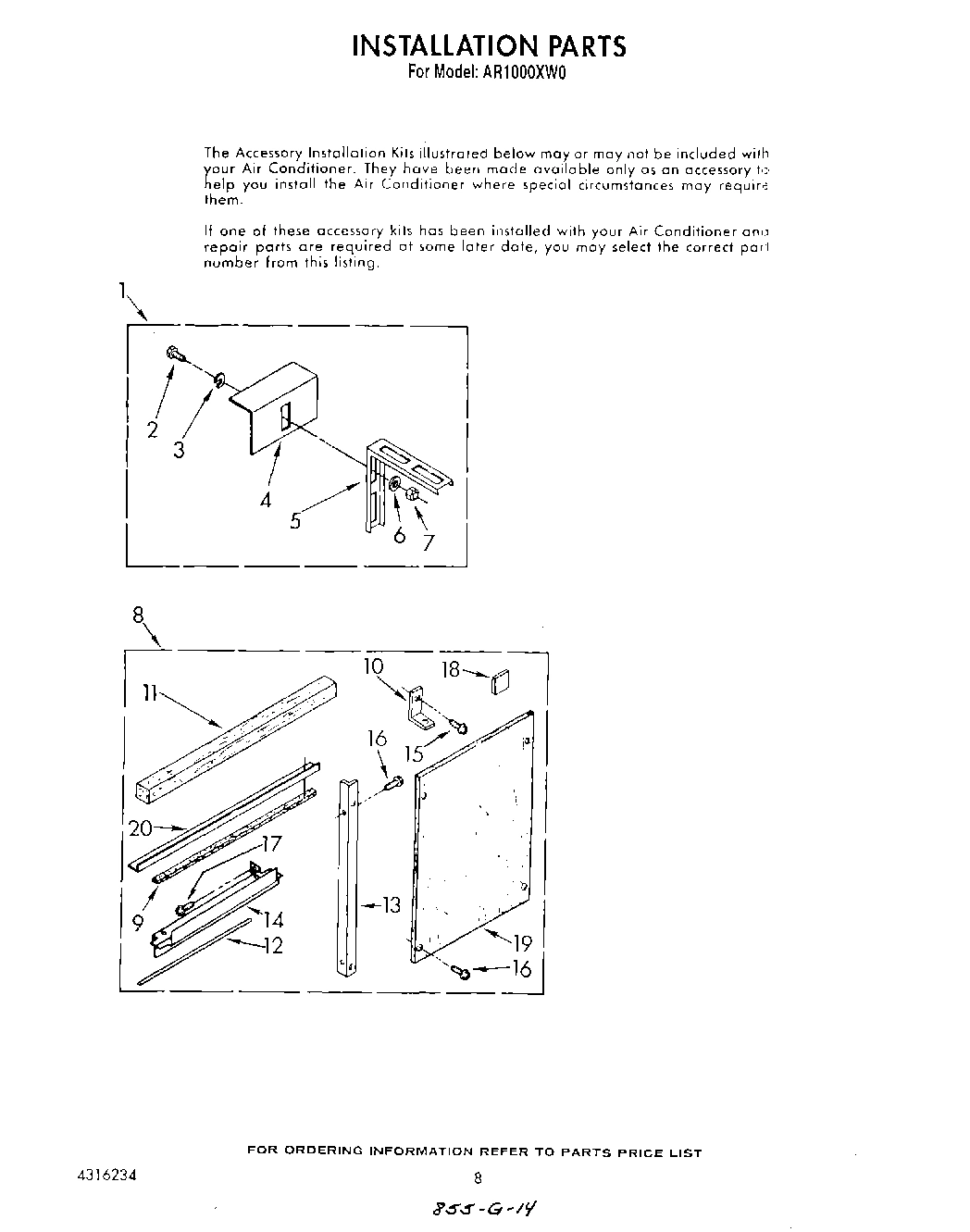

06 - INSTALLATION

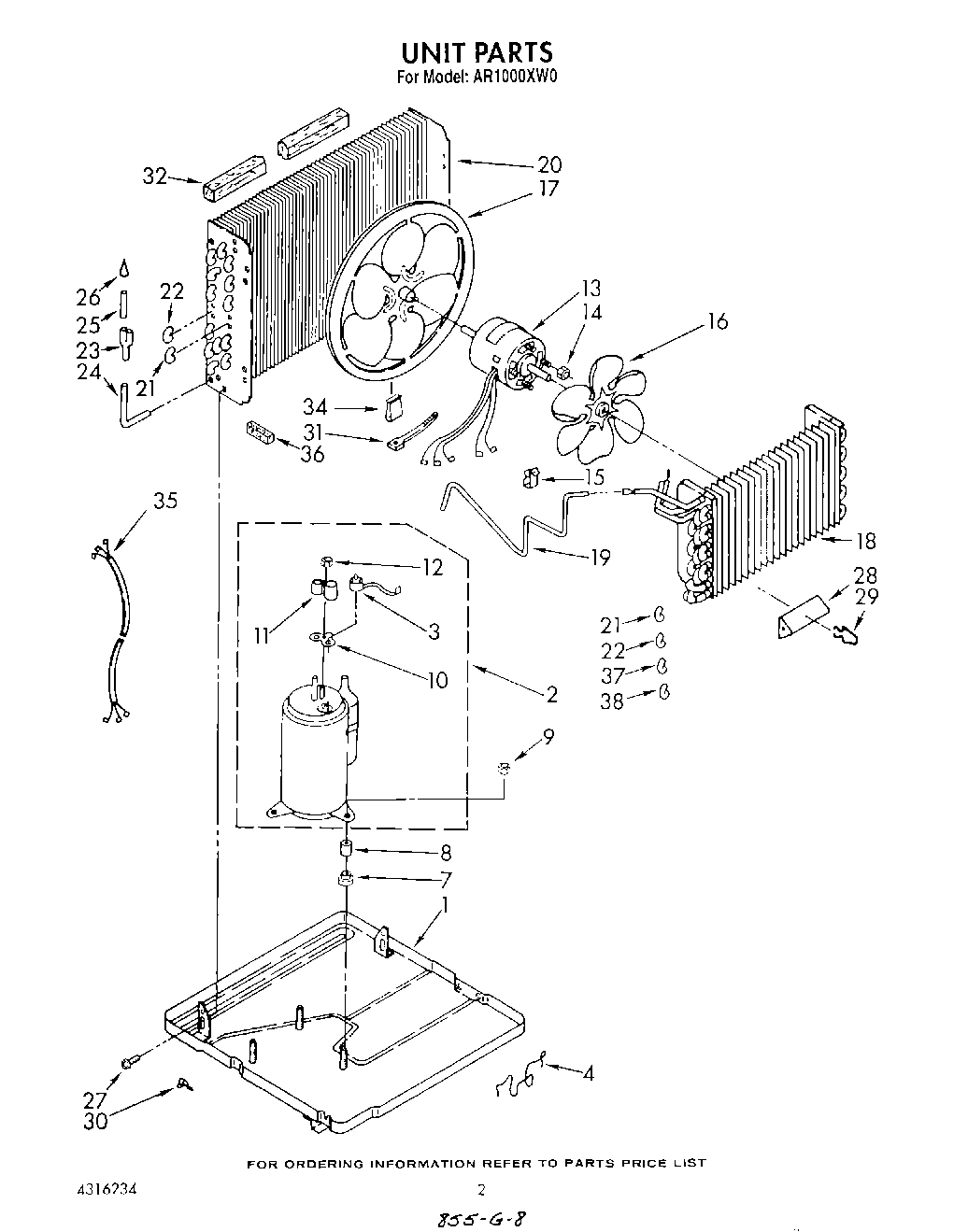

02 - UNIT

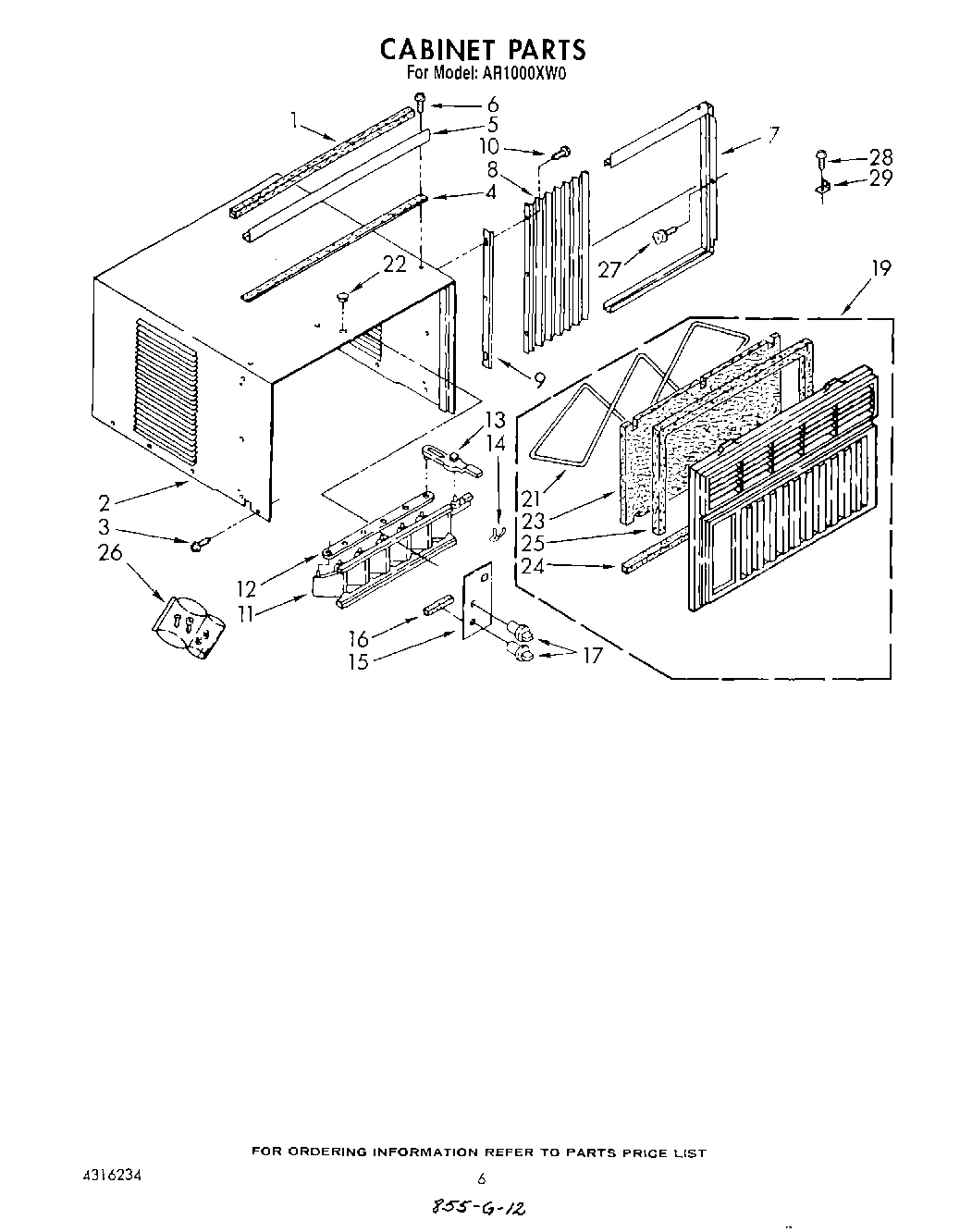

04 - CABINET
Common parts from model Whirlpool AR1000XW0 AIR CONDITIONER
Instructions Installation (Economy Mounting K WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
Instructions, Installation WPL LIT1155974 Contact Us For Availability
Guide, Use and Care WPL LIT1156767 Contact Us For Availability
List, Repair Parts WPL LIT4316234 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Seal, Meeting Rail WPL 469877 Contact Us For Availability
1
Base WPL 950019 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Wall, Dividing WPL 1156321 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Compressor WPL 1155370 Contact Us For Availability
2
Cabinet WPL 1157124 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 952090 Contact Us For Availability
3
Overload WPL 1156125 Contact Us For Availability
4
Bracket, Running Capacitor WPL 856105 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Clip, Cabinet Front Mtg (2) WPL 949634 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Screen, Exhaust Door WPL 856929 Contact Us For Availability
7
Door, Exhaust WPL 646134 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
8
Arm, Exhaust Door WPL 856042 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
8
Sleeve, Compressor Mounting (3) WPL 950020 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
9
Strip, Seal WPL 855266 Contact Us For Availability
9
Nut, Lock (3) WPL 858121 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
10
Shroud, Evaporator (Includes No.11) WPL 948219 Contact Us For Availability
10
Gasket, Terminal Cover WPL 952858 Contact Us For Availability
10
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
11
Insulation, Evaporator Cover WPL 948220 Contact Us For Availability
11
Cover, Terminal WPL 952859 Contact Us For Availability
11
Louver, Vertical WPL 641481 Contact Us For Availability
12
Fastener, snap WPL 487808 Contact Us For Availability
12
Nut, Hex 1/4-28 WPL 952860 Contact Us For Availability
12
Link, Vertical Louver WPL 641482 Contact Us For Availability
13
Wire, Capacitor Ground WPL 857568 Contact Us For Availability
13
Angle, Side Mounting (2) WPL 646233 Contact Us For Availability
13
Motor, Fan WPL 1156061 Contact Us For Availability
13
Handle, Vertical Louver WPL 645887 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
14
Bracket, Top Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Top Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Spring, Detent WPL 641484 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Support, Unit (2) WPL 1156536 Contact Us For Availability
15
Clamp, Cable WPL 852451 Contact Us For Availability
15
Plate, Escutcheon WPL 953001 Contact Us For Availability
16
Screw S.M. No.10 x 3/8 (6) WPL 488481 Contact Us For Availability
16
Blade, Fan (Evaporator) WPL 1157116 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 997904 Contact Us For Availability
17
Knob, Control (2) WPL 947264 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
18
Spacer, Filler Board (2) WPL 995274 Contact Us For Availability
18
Evaporator WPL 1156532 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
19
Board, Filler, (2) WPL 646237 Contact Us For Availability
19
Tube, Restrictor (Length 49.0``) WPL 1156455 Contact Us For Availability
19
Front, Cabinet WPL 953019 Contact Us For Availability
20
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
20
Condenser WPL 1155550 Contact Us For Availability
21
Retainer, Detent Spring WPL 858765 Contact Us For Availability
21
Bend, Return Condenser (16) Evaporator (12) WPL 708531 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
22
Switch, Rotary WPL 950283 Contact Us For Availability
22
Bend, Return Condenser (4) Evaporator (2) WPL 708532 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Filter, Air WPL 855246 Contact Us For Availability
24
Control, Tempetature WPL 949431 Contact Us For Availability
24
Tube, 90~ Connect WPL 1155580 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 484230 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
26
Cable, Appliance WPL 646139 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
27
Screw, Thumb (2) WPL 475581 Contact Us For Availability
28
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
28
Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
30
Clamp, Tube WPL 855930 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
34
Clip, Fan Balancing WPL 876034 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
37
Bend, Return (2) WPL 1158407 Contact Us For Availability
38
Bend, Return (2) WPL 1156533 Contact Us For Availability
× ![]()
