Model Whirlpool AR0600XV0 AIR CONDITIONER – Common Parts & Diagrams

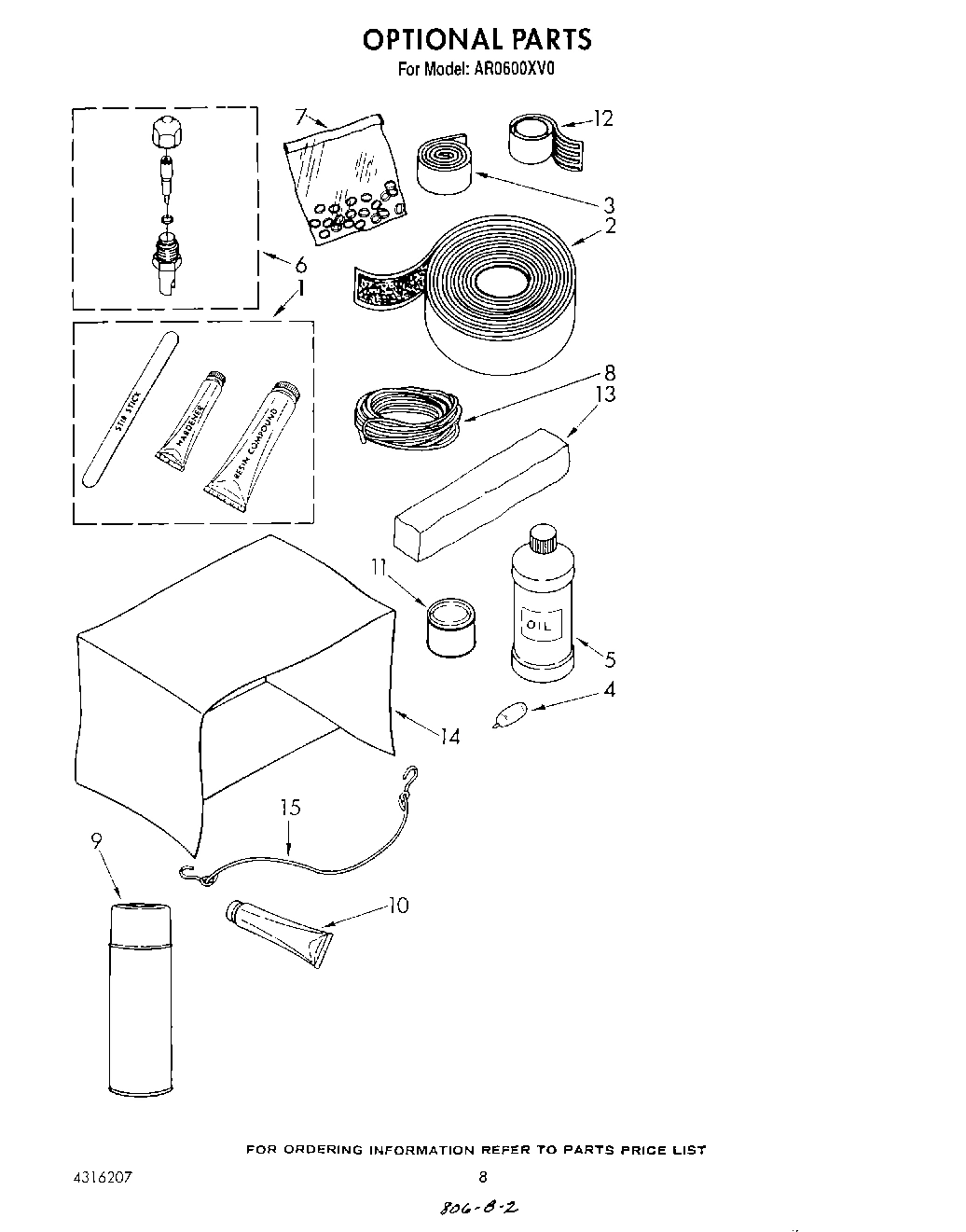

06 - LIT/OPTIONAL

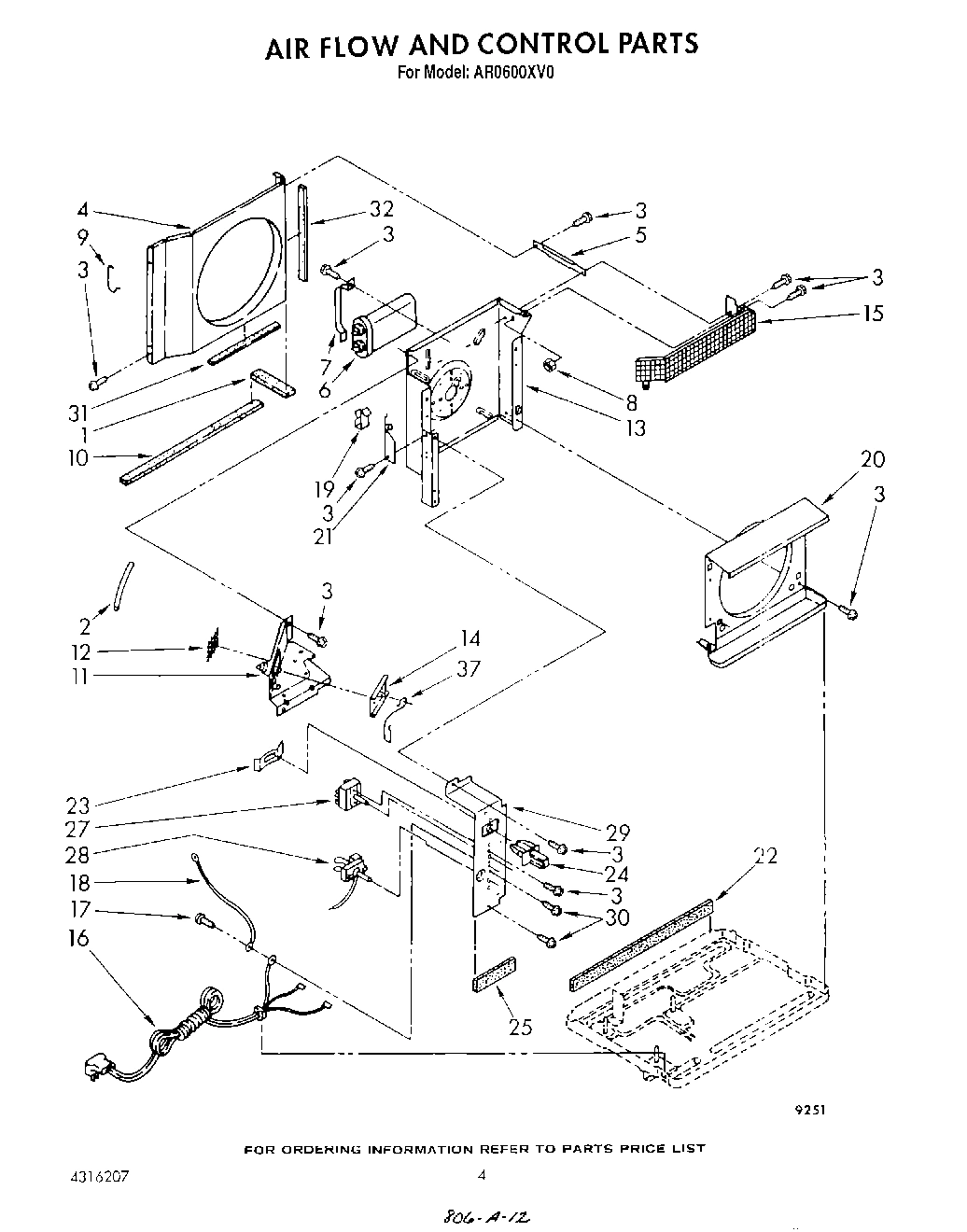

03 - AIRFLOW AND CONTROL

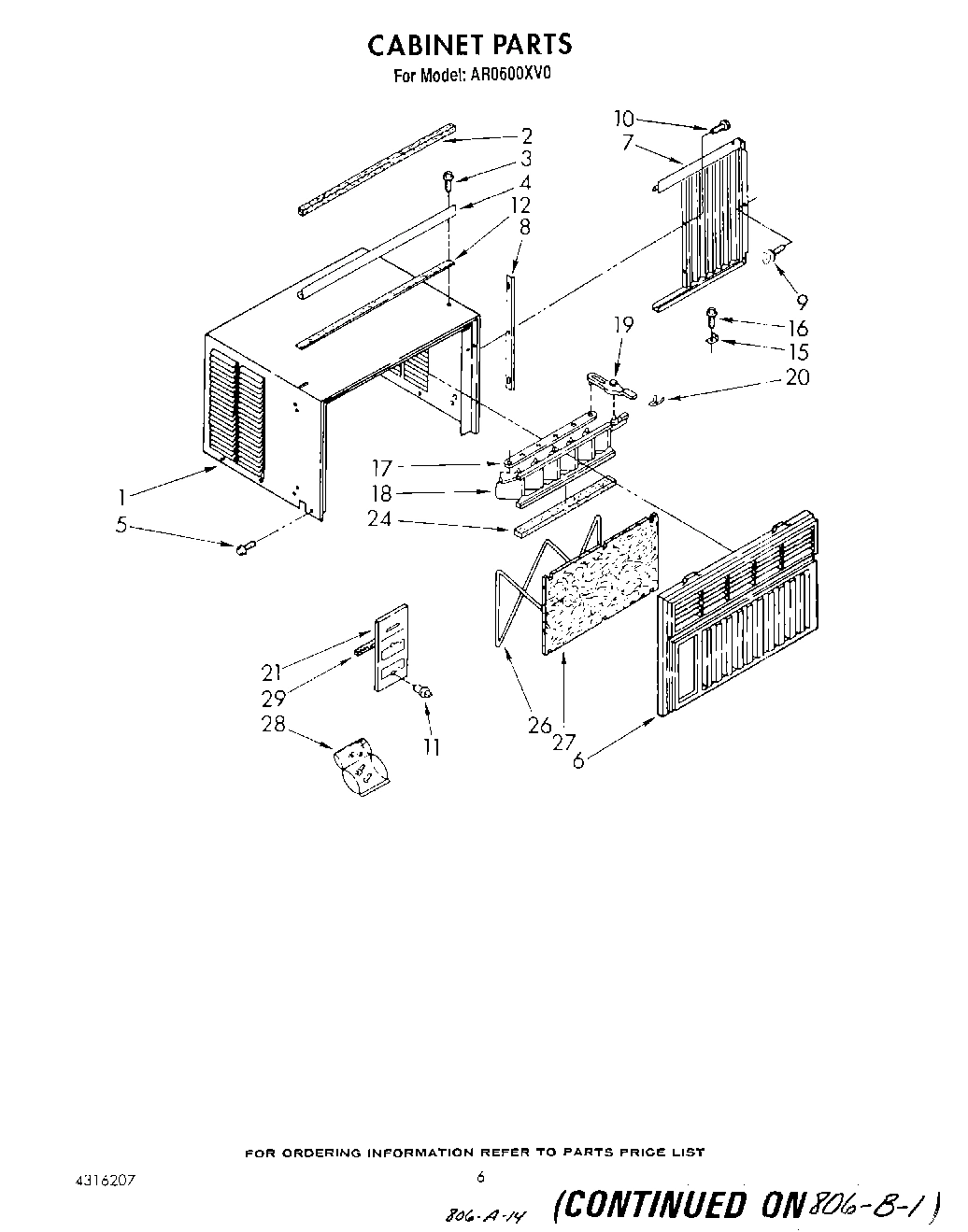

04 - CABINET

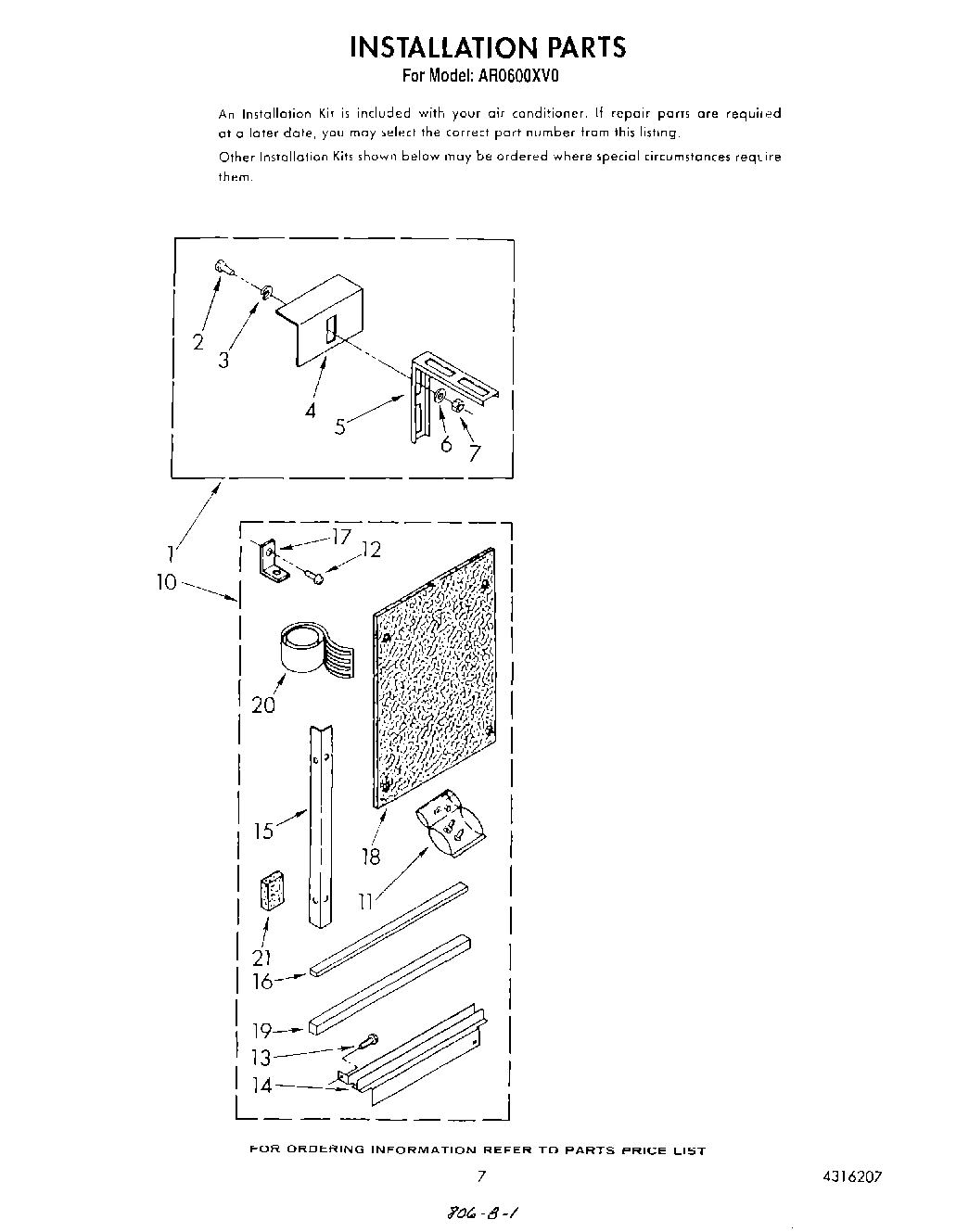

05 - INSTALLATION

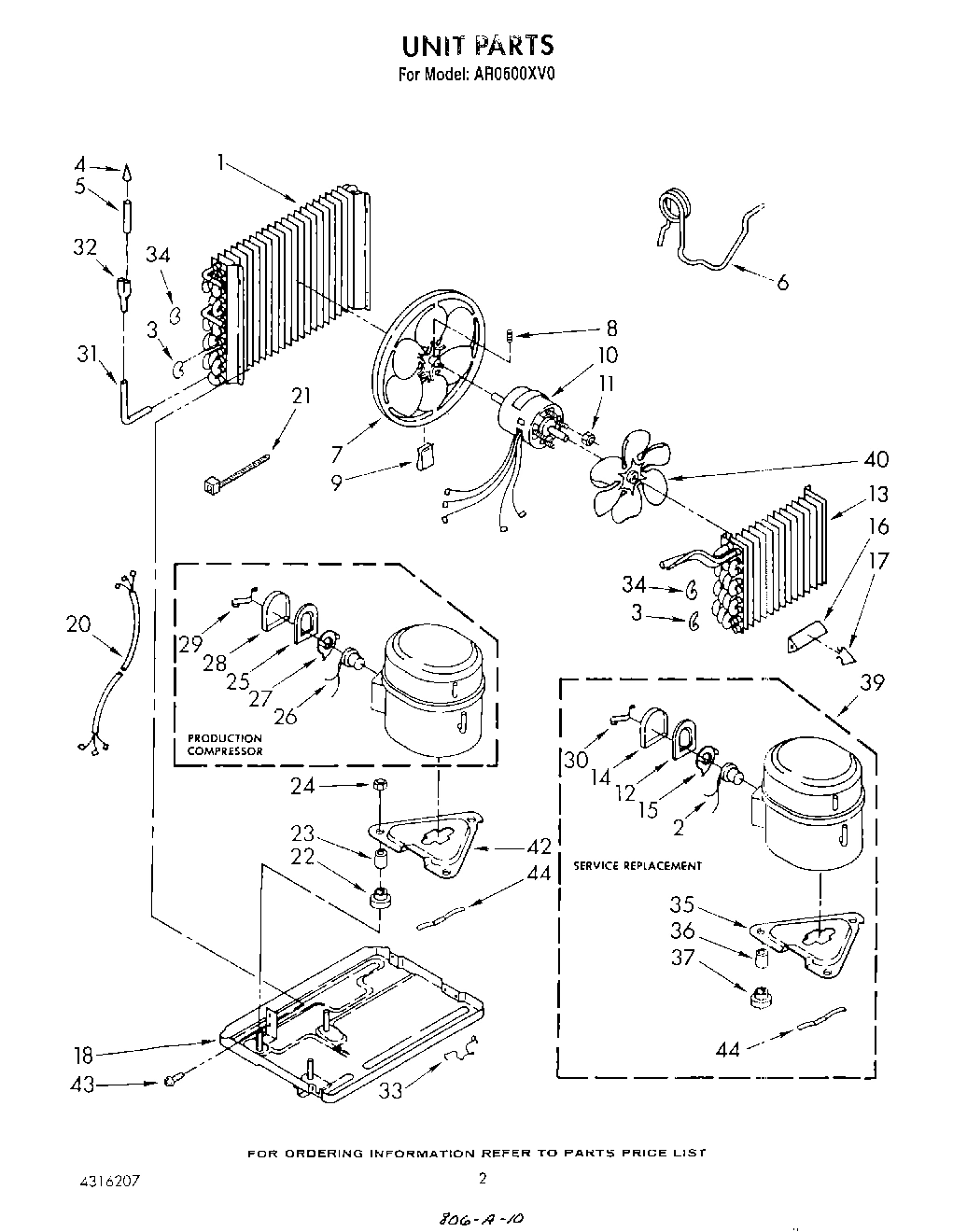

02 - UNIT
Common parts from model Whirlpool AR0600XV0 AIR CONDITIONER
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
1
Cabinet WPL 1157276 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Condenser WPL 952576 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Overload WPL 852945 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (15) Evapprator (5) WPL 855199 Contact Us For Availability
4
Shroud, Condenser WPL 646297 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 484230 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Capacitor, Running WPL 999792 Contact Us For Availability
6
Front, Cabinet WPL 953020 Contact Us For Availability
6
Tube, Restrictor WPL 952575 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 646154 Contact Us For Availability
7
Housing, Curtain (L.S.) WPL 646158 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Blade, Fan WPL 1155859 Contact Us For Availability
8
Nut, Speed No.8A WPL 486288 Contact Us For Availability
8
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
8
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Clip, Shroud WPL 994686 Contact Us For Availability
9
Thumbscrew (2) WPL 475581 Contact Us For Availability
9
Clip, Balancing WPL 485334 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
10
Motor, Fan WPL 1157802 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Extension, Dividing Wall WPL 646130 Contact Us For Availability
11
Knob, Control (2) WPL 953054 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Screw, Wood No.8 X 3/8 (3) WPL 488255 Contact Us For Availability
13
Wall, Dividing WPL 859822 Contact Us For Availability
13
Evaporator WPL 1157115 Contact Us For Availability
14
Cover, Winter WPL 484067 Contact Us For Availability
14
Door, Exhaust WPL 646134 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
15
Angle, Side (2) WPL 649988 Contact Us For Availability
15
Spring, Overload WPL 644362 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Louver, Vertical WPL 1157284 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Base WPL 950323 Contact Us For Availability
19
Clamp, Cable WPL 852451 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
20
Shroud, Evaporator WPL 646123 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Plate, Dividing Wall WPL 859890 Contact Us For Availability
21
Plate, Escutcheon WPL 1157119 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
22
Seal, Base, Flange WPL 854841 Contact Us For Availability
22
Grommet (3) WPL 646499 Contact Us For Availability
23
Retainer, Detent Spring WPL 853565 Contact Us For Availability
23
Sleeve (3) WPL 949990 Contact Us For Availability
24
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Seal, Control Panel WPL 857774 Contact Us For Availability
25
Gasket, Terminal Cover WPL 643296 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
26
Overload WPL 952569 Contact Us For Availability
27
Switch, Rotary WPL 950283 Contact Us For Availability
27
Filter WPL 852344 Contact Us For Availability
27
Spring, Overload WPL 949997 Contact Us For Availability
28
Control, Temperature WPL 949411 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Cover, Terminal WPL 949999 Contact Us For Availability
29
Panel, Control WPL 993398 Contact Us For Availability
29
Retainer, Terminal Cover WPL 950005 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Retainer, Cover WPL 643299 Contact Us For Availability
31
Seal, Condenser WPL 859931 Contact Us For Availability
31
Tube, 90~ Connect WPL 950814 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Clip, Front Mtg. (2) WPL 949634 Contact Us For Availability
34
Bend, Return Condenser (2) Evaporator (7) WPL 854624 Contact Us For Availability
35
Plate, Mtg WPL 484033 Contact Us For Availability
36
Sleeve, Mtg. WPL 798393 Contact Us For Availability
37
Arm, Exhaust Door WPL 950255 Contact Us For Availability
37
Grommet, Mtg. WPL 798392 Contact Us For Availability
39
Compressor Assembly WPL 484206 Contact Us For Availability
40
Fan, Blade Evaporator WPL 1156594 Contact Us For Availability
42
Plate, Mounting Compressor WPL 949975 Contact Us For Availability
43
Screw, Repair WPL 488481 Contact Us For Availability
44
Spring, Mounting WPL 643179 Contact Us For Availability
44
Sheet, Tech And Wiring Diagram WPL LIT1156495 Contact Us For Availability
44
Guide, Operation WPL LIT1156767 Contact Us For Availability
44
Guide, Energy WPL LIT1158206 Contact Us For Availability
44
Literature Parts (List, Repair Parts) WPL LIT4316207 Contact Us For Availability
× ![]()
