Model Whirlpool AR0500XW2 AIR CONDITIONER – Common Parts & Diagrams
05 - INSTALLATION
01 - UNIT, LITERATURE

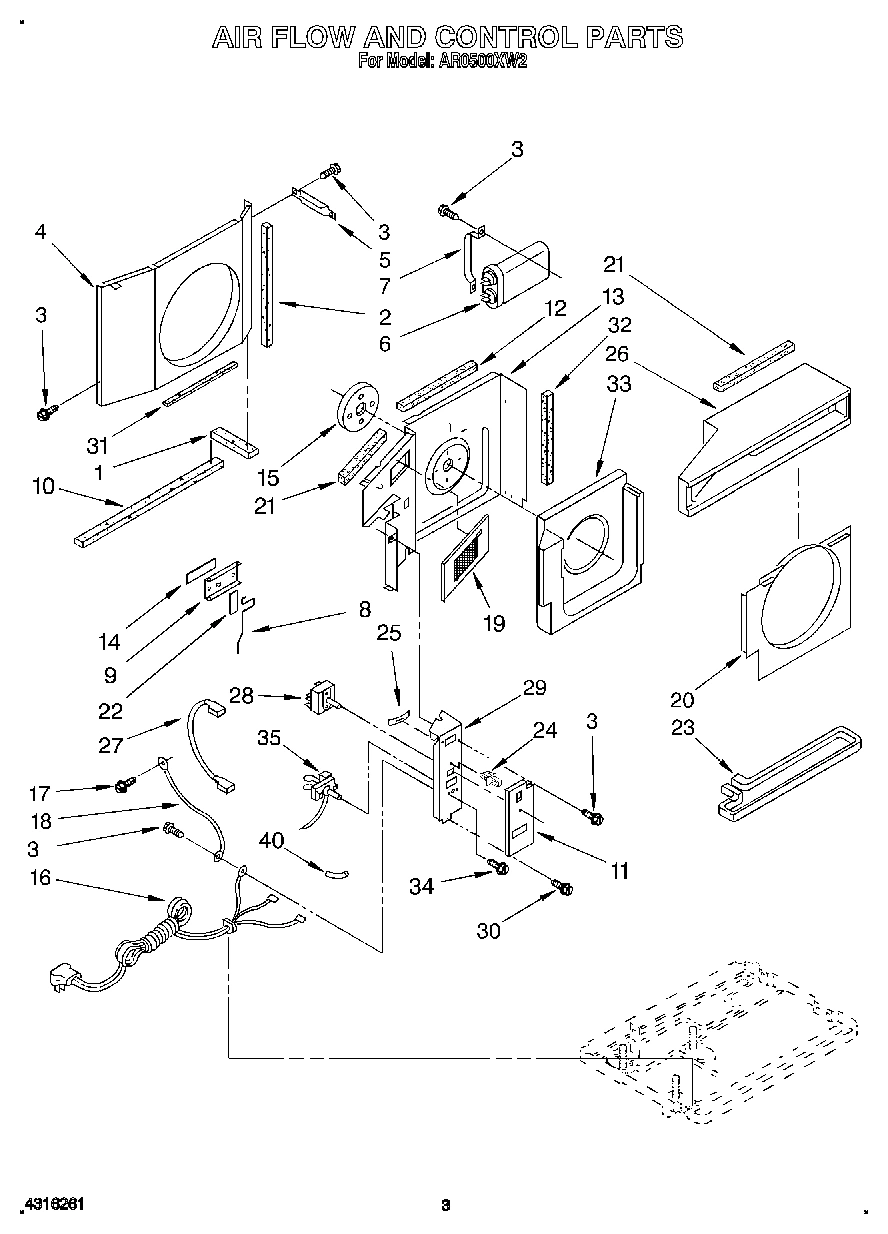

02 - AIR FLOW AND CONTROL

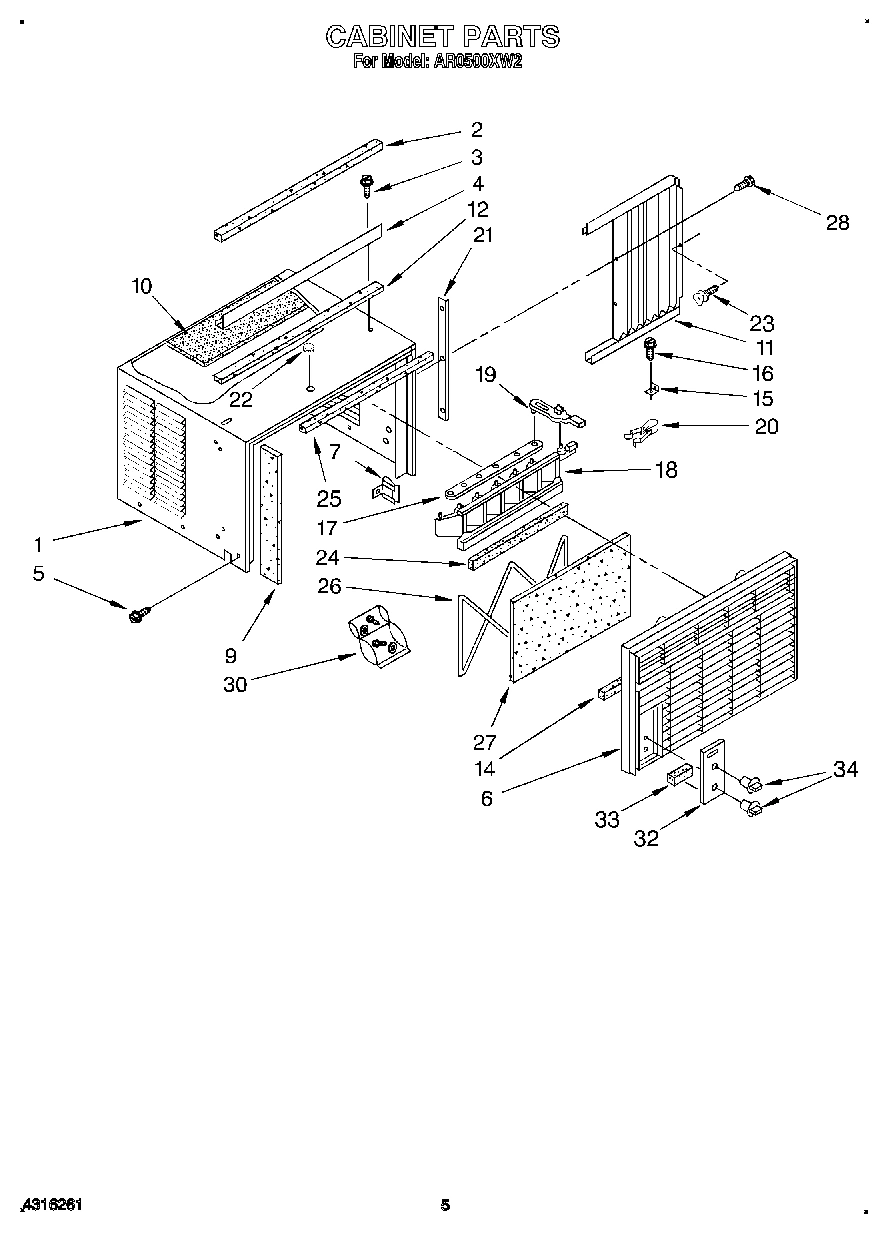

03 - CABINET

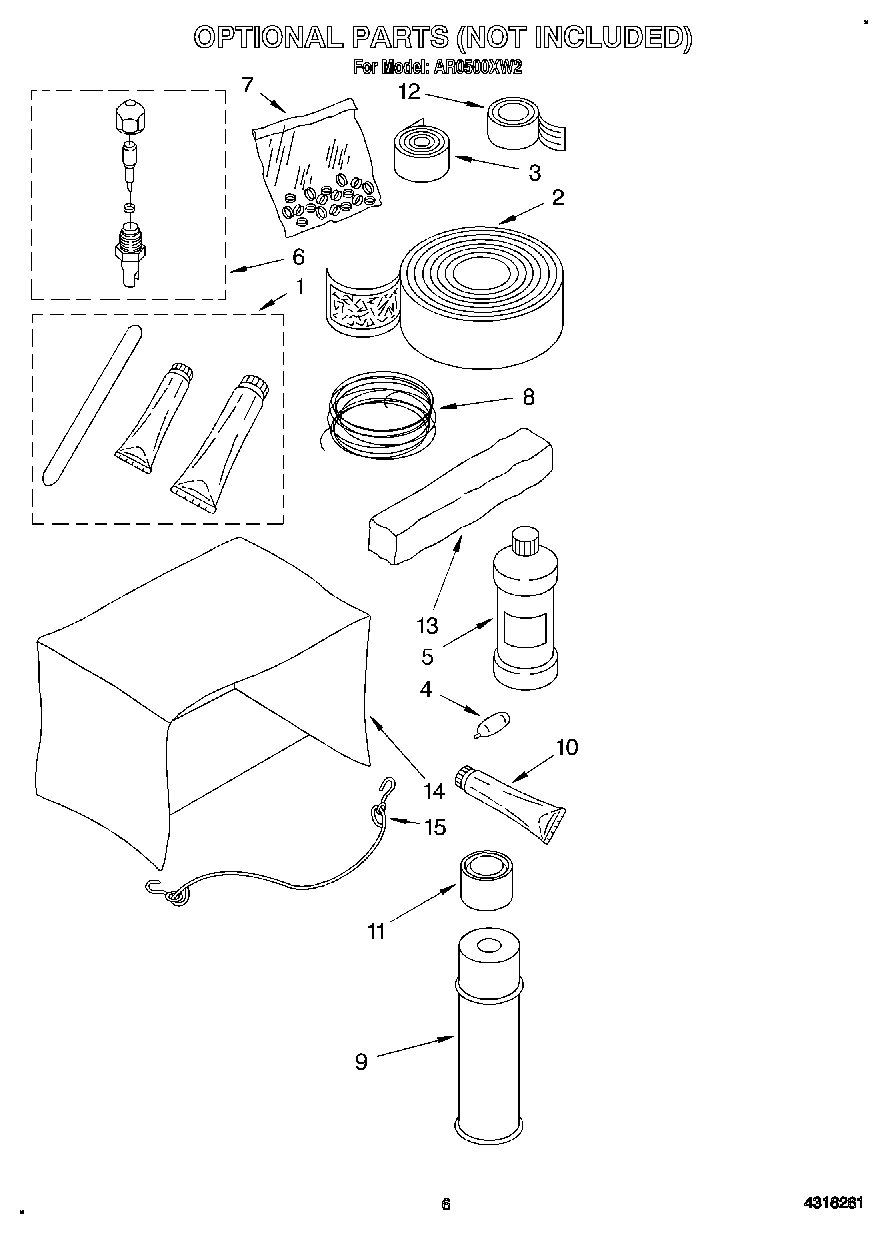

04 - OPTIONAL
Common parts from model Whirlpool AR0500XW2 AIR CONDITIONER
Tech Sheet WPL LIT1158310 Contact Us For Availability
Instructions, Installation WPL LIT1158928 Contact Us For Availability
Guide, Operation WPL LIT1158932 Contact Us For Availability
Wiring Diagram WPL LIT950222 Contact Us For Availability
1
Condenser WPL 1157934 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Seal, Condenser Shroud WPL 857923 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return WPL 708531 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Shroud, Condenser WPL 1157908 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950855 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor WPL 1159203 Contact Us For Availability
6
Capacitor, Running WPL 952086 Contact Us For Availability
6
Front, Cabinet Assembly WPL 953020 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Clip, Vertical Louver WPL 1158294 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Sleeve, Mounting (3) WPL 858148 Contact Us For Availability
8
Arm, Exhaust Door WPL 1157947 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Clamp, Tube WPL 855930 Contact Us For Availability
9
Door, Exhaust WPL 1158280 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Motor, Fan WPL 1159121 Contact Us For Availability
10
Seal, Strip WPL 1158295 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
11
Insulation, Control Panel WPL 1157945 Contact Us For Availability
11
Curtain (Right Side) WPL 1162961 Contact Us For Availability
11
Curtain (Left Side) WPL 1162963 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Tube, Suction WPL 1163995 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
13
Evaporator WPL 1157931 Contact Us For Availability
13
Wall, Dividing WPL 1158284 Contact Us For Availability
14
Cover, Winter (22``x15``x3 to 18``) WPL 484184 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Spacer, Door WPL 1159175 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Retainer WPL 1155568 Contact Us For Availability
15
Insulation, Motor WPL 1158469 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Screw, ST 8-32 x 3/8 WPL 488624 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
19
Connecting Tube WPL 1155580 Contact Us For Availability
19
Screen/Insul. Assembly WPL 1158283 Contact Us For Availability
19
Handle, Louver WPL 645683 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Orifice, Air Housing WPL 1157950 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
21
Spacer, Block Following Parts Not Illustrated WPL 995274 Contact Us For Availability
21
Retainer, Curtain WPL 646160 Contact Us For Availability
22
Grommet (3) WPL 475041 Contact Us For Availability
22
Seal, Barrier WPL 1158323 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
23
Pan, Evaporator WPL 1157948 Contact Us For Availability
23
Screw, Thumb WPL 475581 Contact Us For Availability
24
Locknut (3) WPL 1156715 Contact Us For Availability
24
Actuator, Door WPL 953066 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1155570 Contact Us For Availability
25
Spring, Detent WPL 858765 Contact Us For Availability
25
Seal WPL 1159283 Contact Us For Availability
26
Hood, Air Housing WPL 1158276 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Tube, Discharge WPL 1159180 Contact Us For Availability
27
Wire, Jumper WPL 1158937 Contact Us For Availability
27
Filter WPL 852344 Contact Us For Availability
28
Cover, Terminal WPL 1155569 Contact Us For Availability
28
Switch, Rocker WPL 950519 Contact Us For Availability
28
Screw (4) WPL 1161561 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
30
Screw WPL 1159222 Contact Us For Availability
30
Bag, Accessory WPL 476180 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
32
Plate, Escutcheon WPL 1158641 Contact Us For Availability
33
Anticipator, Temperature WPL 996773 Contact Us For Availability
33
Housing, Air WPL 1157949 Contact Us For Availability
34
Knob, Control WPL 1158639 Contact Us For Availability
34
Clip, Anticipator WPL 475577 Contact Us For Availability
34
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
35
Control, Temperature WPL 950403 Contact Us For Availability
36
Bend, Return Evaporator (8) Condenser (11) WPL 708532 Contact Us For Availability
39
Compressor Assembly WPL 1156439 Contact Us For Availability
40
Wheel, Blower WPL 1158986 Contact Us For Availability
40
Sleeve, Insulator Temp. Control WPL 475841 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
× ![]()
