Model Maytag AQU2024BRW03 FREEZER – Common Parts & Diagrams

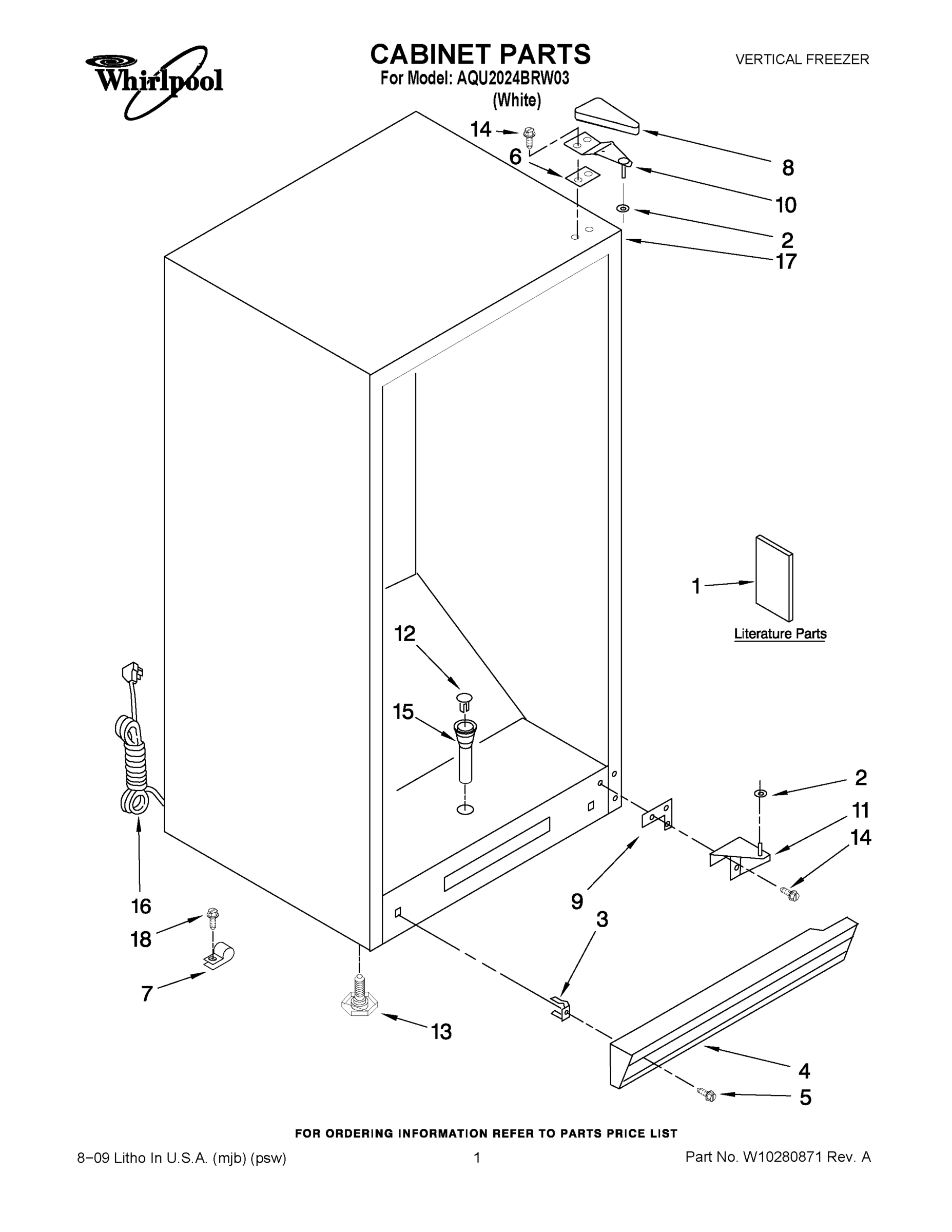

01 - CABINET PARTS

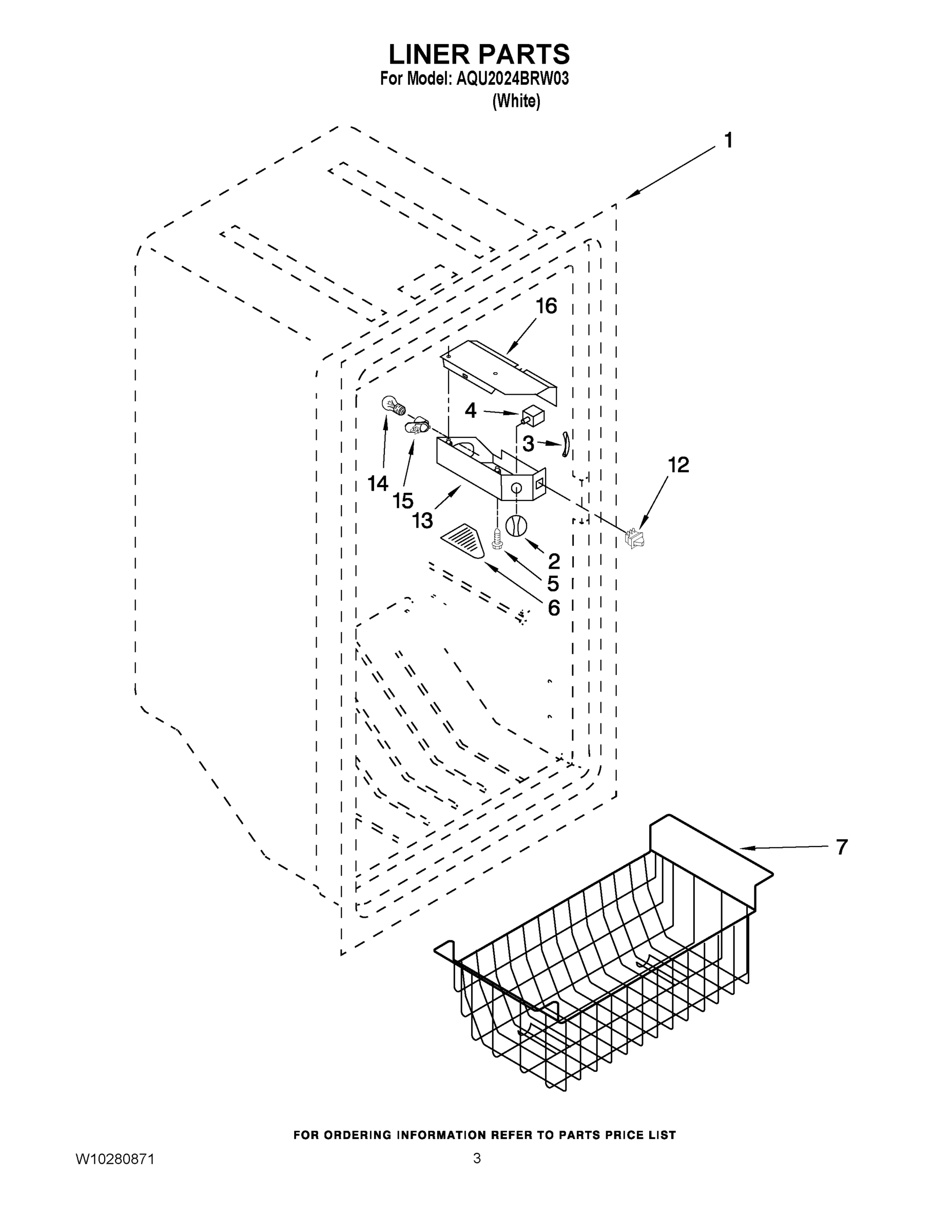

02 - LINER PARTS

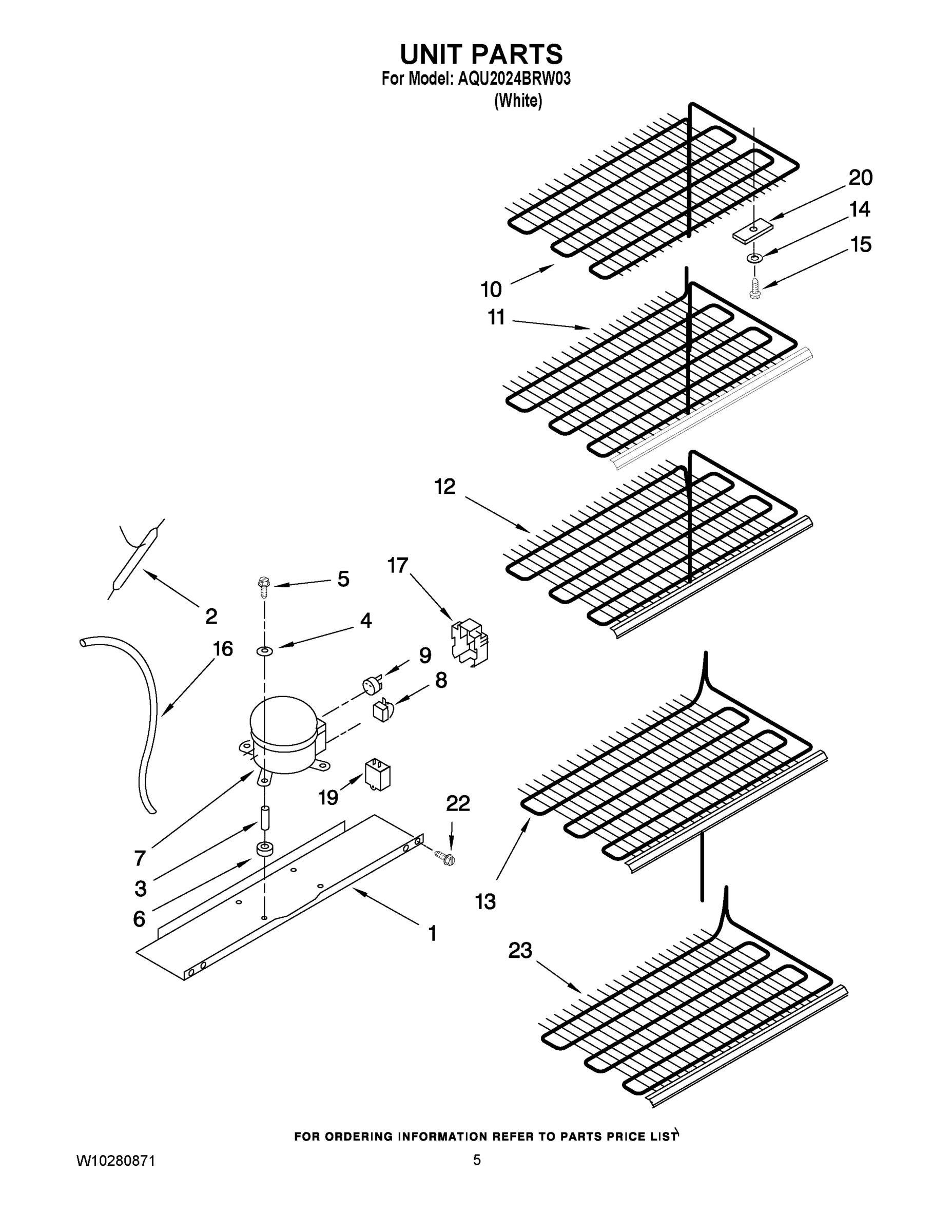

03 - UNIT PARTS

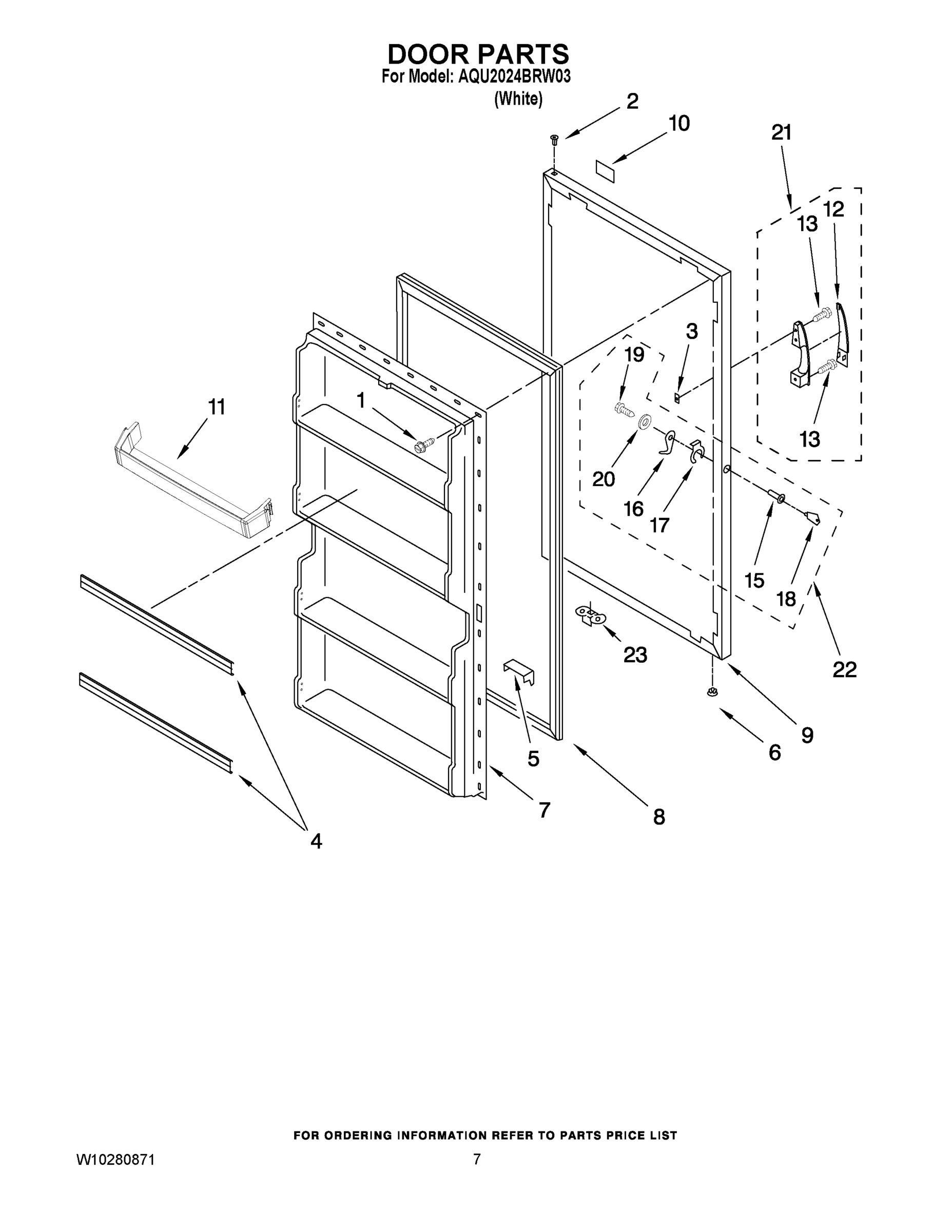

04 - DOOR PARTS
Common parts from model Maytag AQU2024BRW03 FREEZER
1
Owners Manual MAY W10279026 Contact Us For Availability
1
MAY W10294508 MAY W10294508 Contact Us For Availability
1
LINER (NOT A SERVICEABLE PART) MAY N\P Contact Us For Availability
1
MAY W10260291 MAY W10260291 Contact Us For Availability
1
SCREW MAY 4357290 Contact Us For Availability
2
WASHER, DOOR SPACER MAY 4390520 Contact Us For Availability
2
MAY 8210348 MAY 8210348 Contact Us For Availability
2
MAY 4357299 MAY 4357299 Contact Us For Availability
2
MAY 4390659 MAY 4390659 Contact Us For Availability
3
MAY 4356803 MAY 4356803 Contact Us For Availability
3
MAY 8210246 MAY 8210246 Contact Us For Availability
3
SLEEVE, GROMMET MAY 4356846 Contact Us For Availability
3
MAY 4390680 MAY 4390680 Contact Us For Availability
4
MAY 8210310 MAY 8210310 Contact Us For Availability
4
MAY 8210395 MAY 8210395 Contact Us For Availability
4
MAY 4356847 MAY 4356847 Contact Us For Availability
4
MAY 4390702 MAY 4390702 Contact Us For Availability
5
MAY 4356805 MAY 4356805 Contact Us For Availability
5
MAY 4357042 MAY 4357042 Contact Us For Availability
5
SCREW, COMPRESSOR MOUNTING MAY 8210220 Contact Us For Availability
5
FOAM-BLOCK MAY 4356893 Contact Us For Availability
6
MAY 8210349 MAY 8210349 Contact Us For Availability
6
GROMMET MAY 4356335 Contact Us For Availability
6
MAY 4357067 MAY 4357067 Contact Us For Availability
7
CLAMP MAY 4356643 Contact Us For Availability
7
MAY 4390698 MAY 4390698 Contact Us For Availability
7
COMPRESSOR (INCLUDES ITEMS 6, 8, 9, 17 & 18) MAY 4356775 Contact Us For Availability
7
MAY 4390718 MAY 4390718 Contact Us For Availability
8
COVER, HINGE MAY 4357279 Contact Us For Availability
8
MAY 4356738 MAY 4356738 Contact Us For Availability
8
MAY 8210341 MAY 8210341 Contact Us For Availability
9
MAY 4390489 MAY 4390489 Contact Us For Availability
9
MAY 4356776 MAY 4356776 Contact Us For Availability
9
MAY 68001746 MAY 68001746 Contact Us For Availability
10
MAY 8210222 MAY 8210222 Contact Us For Availability
10
EVAPORATOR, TOP MAY W10294512 Contact Us For Availability
10
MAY 68001748 MAY 68001748 Contact Us For Availability
11
MAY 8210223 MAY 8210223 Contact Us For Availability
11
EVAPORATOR, SHELF MAY W10294514 Contact Us For Availability
11
MAY 8210428 MAY 8210428 Contact Us For Availability
12
MAY 4357019 MAY 4357019 Contact Us For Availability
12
Switch, Light MAY 4390513 Contact Us For Availability
12
EVAPORATOR, SHELF MAY W10294515 Contact Us For Availability
12
MAY 4390668 MAY 4390668 Contact Us For Availability
13
MAY W10177675 MAY W10177675 Contact Us For Availability
13
MAY 8210406 MAY 8210406 Contact Us For Availability
13
EVAPORATOR, SHELF MAY W10294516 Contact Us For Availability
13
MAY 4390510 MAY 4390510 Contact Us For Availability
14
MAY 4356830 MAY 4356830 Contact Us For Availability
14
Bulb, Light MAY 4390465 Contact Us For Availability
14
MAY 4357057 MAY 4357057 Contact Us For Availability
15
MAY W10164544 MAY W10164544 Contact Us For Availability
15
Socket, Light MAY 8210350 Contact Us For Availability
15
MAY 4357223 MAY 4357223 Contact Us For Availability
15
MAY 4356839 MAY 4356839 Contact Us For Availability
16
MAY 8210375 MAY 8210375 Contact Us For Availability
16
MAY 8210351 MAY 8210351 Contact Us For Availability
16
MAY 4390809 MAY 4390809 Contact Us For Availability
16
LOCK-BOLT MAY 4357224 Contact Us For Availability
17
MAY 4356777 MAY 4356777 Contact Us For Availability
17
MAY 4356842 MAY 4356842 Contact Us For Availability
18
MAY 4356853 MAY 4356853 Contact Us For Availability
18
MAY 4356840 MAY 4356840 Contact Us For Availability
19
MAY 8210224 MAY 8210224 Contact Us For Availability
19
MAY 4356843 MAY 4356843 Contact Us For Availability
20
MAY 4356854 MAY 4356854 Contact Us For Availability
20
MAY 4356992 MAY 4356992 Contact Us For Availability
21
MAY R0131138 MAY R0131138 Contact Us For Availability
22
MAY 4357277 MAY 4357277 Contact Us For Availability
22
MAY 4357145 MAY 4357145 Contact Us For Availability
23
MAY W10294518 MAY W10294518 Contact Us For Availability
23
MAY 4390695 MAY 4390695 Contact Us For Availability
NI
REFRIGERANT CHARGE (6.9 OZ. (R-134A)) MAY N/P Contact Us For Availability
× ![]()
