Model Whirlpool AQU1627BRW FREEZER – Common Parts &amp; Diagrams

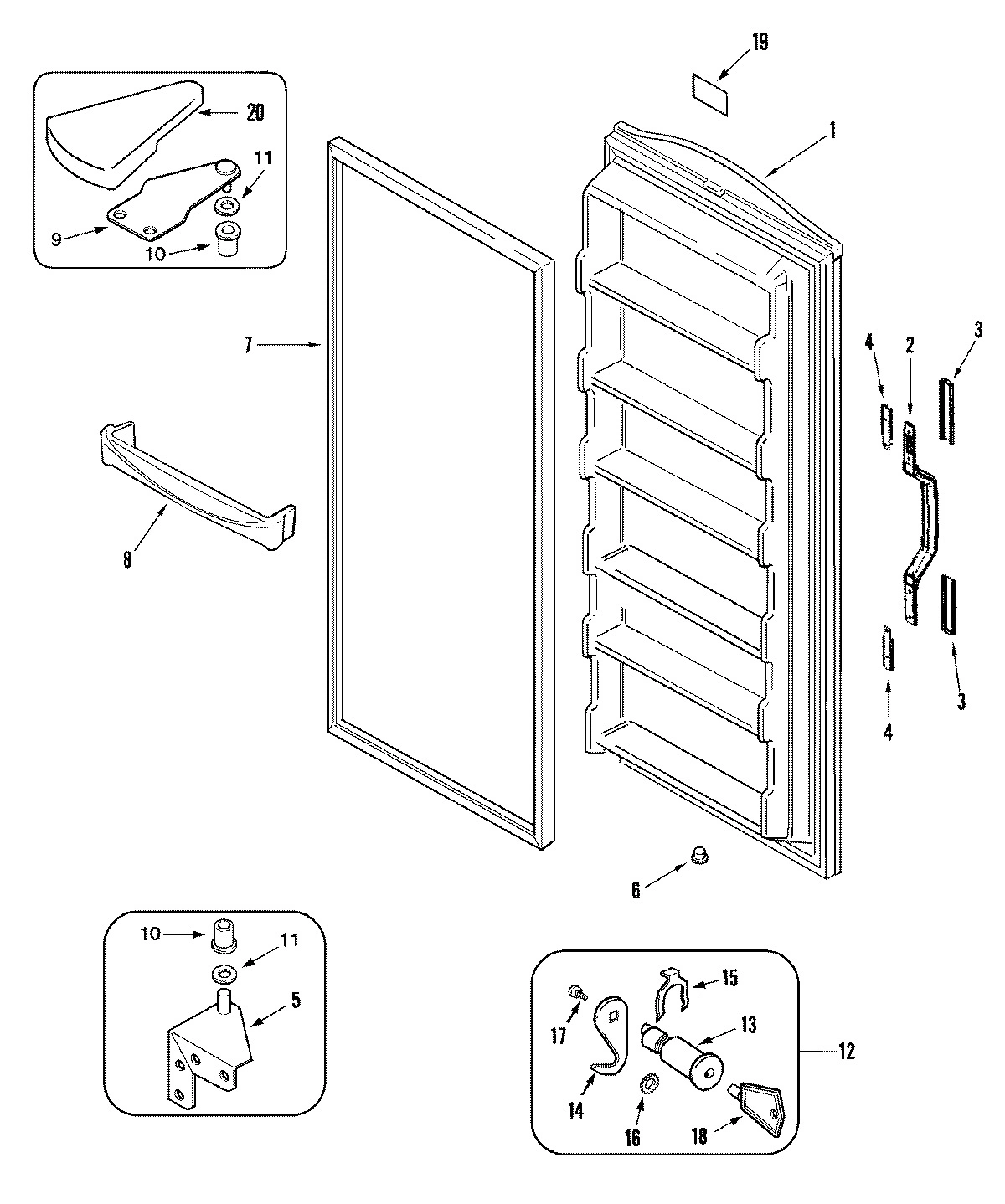

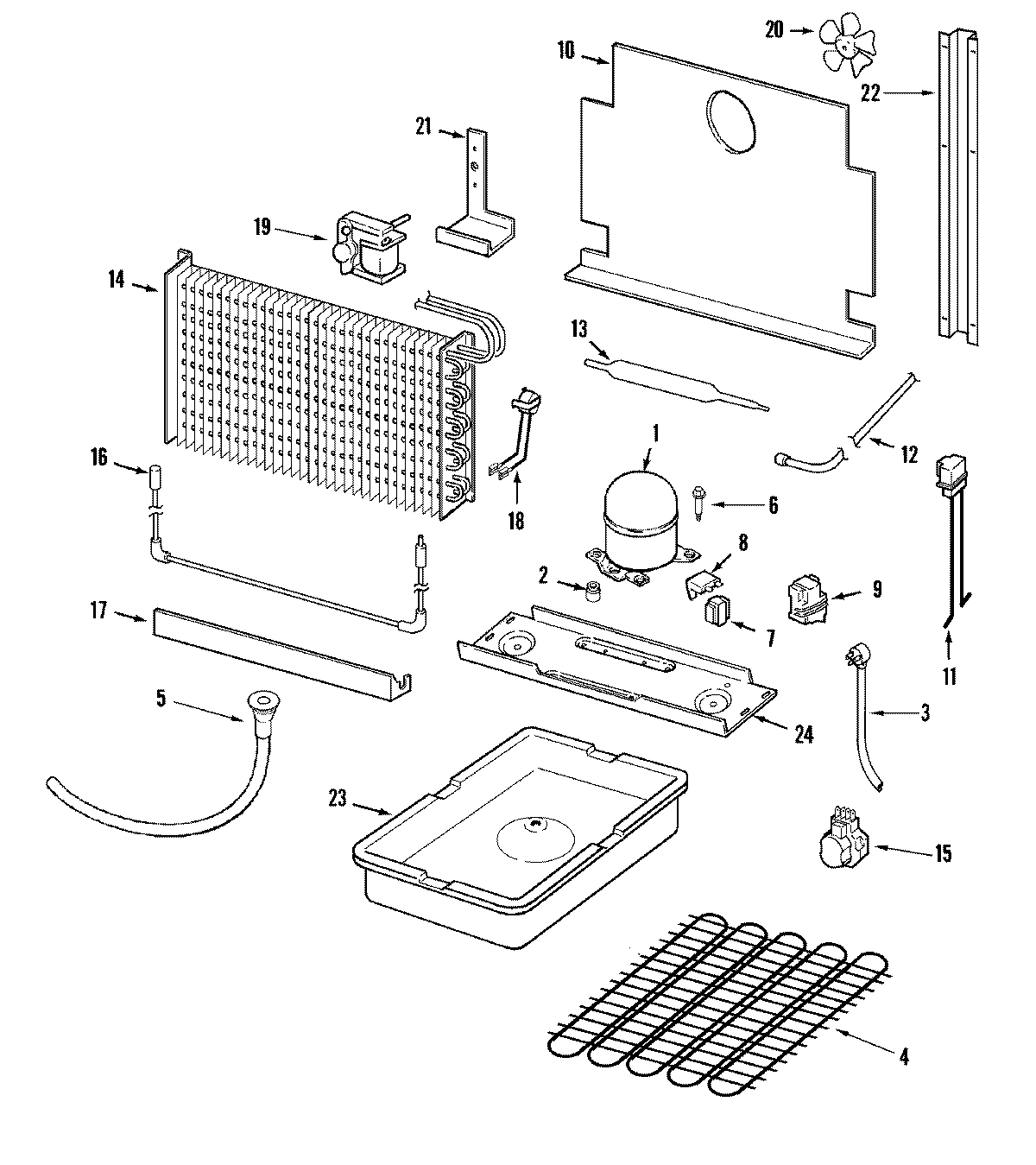

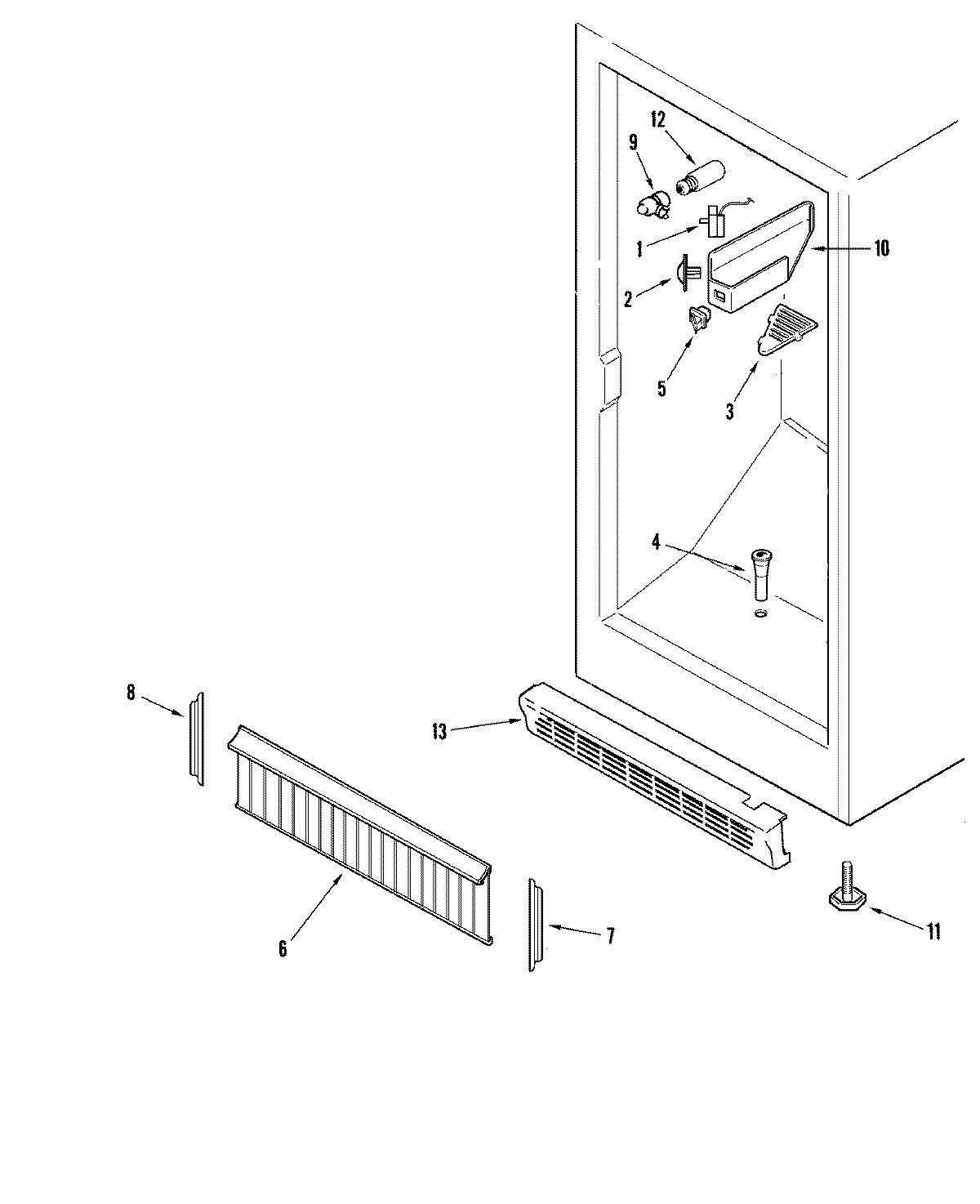

1

WP4-83053-001 Whirlpool Freezer Thermostat Backorder WPL WP4-83053-001 $122.53

1

DOOR ASSY., FRZ. FOAMED (WHT) WPL 68001745 Contact Us For Availability

1

MANUAL, USE & CARE (AMANA) WPL 12631111 Contact Us For Availability

2

3-82390-001 Whirlpool Freezer Thermostat Knob Backorder WPL 3-82390-001 $11.57

2

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.60

2

GROMMET, COMPRESSOR WPL Y09100025 Contact Us For Availability

2

HANDLE KIT WPL 68001560 Contact Us For Availability

2

SVC MAN, UPRIGHT FREEZER WPL 16023585 Contact Us For Availability

3

COVER, LIGHT (CLEAR) WPL 68001726 Contact Us For Availability

3

CORD, POWER WPL 68001718 Contact Us For Availability

3

TRIM, HANDLE (WHT) WPL R9800537 Contact Us For Availability

3

TAG, ENERGY WPL 382477001 Contact Us For Availability

4

W10451951 Whirlpool Refrigerator Condenser Backorder WPL W10451951 $128.15

4

RETAINER, TRIM WPL R9800538 Contact Us For Availability

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $16.36

5

PLUG, DRAIN WPL 68001103 Contact Us For Availability

5

DRAIN KIT WPL 68001472 Contact Us For Availability

5

HINGE KIT, LOWER WPL 68001628 Contact Us For Availability

6

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $4.90

6

8210220 Whirlpool Bolt Backorder WPL 8210220 $49.23

6

SHELF, LOWER WPL 482314002 Contact Us For Availability

6

SHELF, UPPER WPL 482315002 Contact Us For Availability

7

WP4-65151-001 Whirlpool Freezer Door Gasket Backorder WPL WP4-65151-001 $171.72

7

GATE (WHT) WPL 481140010 Contact Us For Availability

7

RELAY, START WPL 68001368 Contact Us For Availability

8

WP2149959 Whirlpool Refrigerator Overload Backorder WPL WP2149959 $46.65

8

SEAL, AIR BLOCK WPL 04558001 Contact Us For Availability

9

2-81016-105 Whirlpool Refrigerator Door Hinge Backorder WPL 2-81016-105 $18.72

9

2217635 Whirlpool Term Cover Backorder WPL 2217635 $30.29

9

4390489 Whirlpool Refrigerator Shim Backorder WPL 4390489 $3.84

9

WP3-82393-001 Whirlpool Refrigerator Socket Backorder WPL WP3-82393-001 $44.04

9

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $9.16

10

SCREW WPL 68001725 Contact Us For Availability

10

HOUSING, CONTROL WPL 68001731 Contact Us For Availability

10

PLATE WPL Y04556201 Contact Us For Availability

11

3-35956-013 Whirlpool Refrigerator Capacitor Backorder WPL 3-35956-013 $56.72

11

W11117769 Whirlpool Refrigerator Leveler Backorder WPL W11117769 $7.24

4357145 Whirlpool Freezer Door Lock Backorder WPL 4357145 $18.32

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.00

SHIELD, LIGHT BULB WPL 68001732 Contact Us For Availability

SCREW WPL 68001733 Contact Us For Availability

HEAT EXCHANGER WPL 68001323 Contact Us For Availability

13

KICKPLATE KIT (WHT) WPL 68001695 Contact Us For Availability

13

DRIER WPL 139001 Contact Us For Availability

13

LOCK BODY WPL 68001071 Contact Us For Availability

WP4-81546 Whirlpool Refrigerator Evaporator Backorder WPL WP4-81546 $239.91

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.60

GROMMET WPL Y04643801 Contact Us For Availability

HOOK, LOCK WPL 68001724 Contact Us For Availability

15

WP3-81329 Whirlpool Refrigerator Defrost Time In Stock WPL WP3-81329 $72.79

15

CLIP, LOCK WPL 68001073 Contact Us For Availability

16

W11175809 Whirlpool Refrigerator Heater In Stock WPL W11175809 $88.59

16

WASHER, LOCK WPL 04841704 Contact Us For Availability

17

WP4159193 Whirlpool Screw Backorder WPL WP4159193 $3.02

17

SHIELD, HEATER WPL Y04556601 Contact Us For Availability

18

WP1-81801-001 Whirlpool Refrigerator Bimetall In Stock WPL WP1-81801-001 $47.41

18

KEY, LOCK WPL 68001074 Contact Us For Availability

4357128 Whirlpool Refrigerator Motor Bracket Backorder WPL 4357128 $46.85

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $35.80

MOTOR, FAN WPL Y09100161 Contact Us For Availability

NAMEPLATE WPL 68001748 Contact Us For Availability

20

FAN BLADE WPL Y04556401 Contact Us For Availability

21

2-80028-101 Whirlpool Refrigerator Motor Brac Backorder WPL 2-80028-101 $59.07

21

SCREW WPL 04637704 Contact Us For Availability

22

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.60

22

COVER, WIRE WPL 68001603 Contact Us For Availability

24

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $2.60

24

PAN KIT, COMPRESSOR MTG. WPL 90027015 Contact Us For Availability

4-81785-001 Whirlpool Freezer Wire Harness Backorder WPL 4-81785-001 $55.08

4390663 Whirlpool Refrigerator Gasket Backorder WPL 4390663 $114.76

4390664 Whirlpool Refrigerator Gasket Backorder WPL 4390664 $60.10

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.60

WP3-80414-103 Whirlpool Refrigerator Vent Plu Backorder WPL WP3-80414-103 $6.06

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.84

SUPPORT, GATE (RT) WPL 655871 Contact Us For Availability

SCREW, GATE SUPPORT WPL 68001054 Contact Us For Availability

COVER KIT, EVAPORATOR WPL 68001506 Contact Us For Availability

WIRE HARNESS, MAIN WPL 482409001 Contact Us For Availability

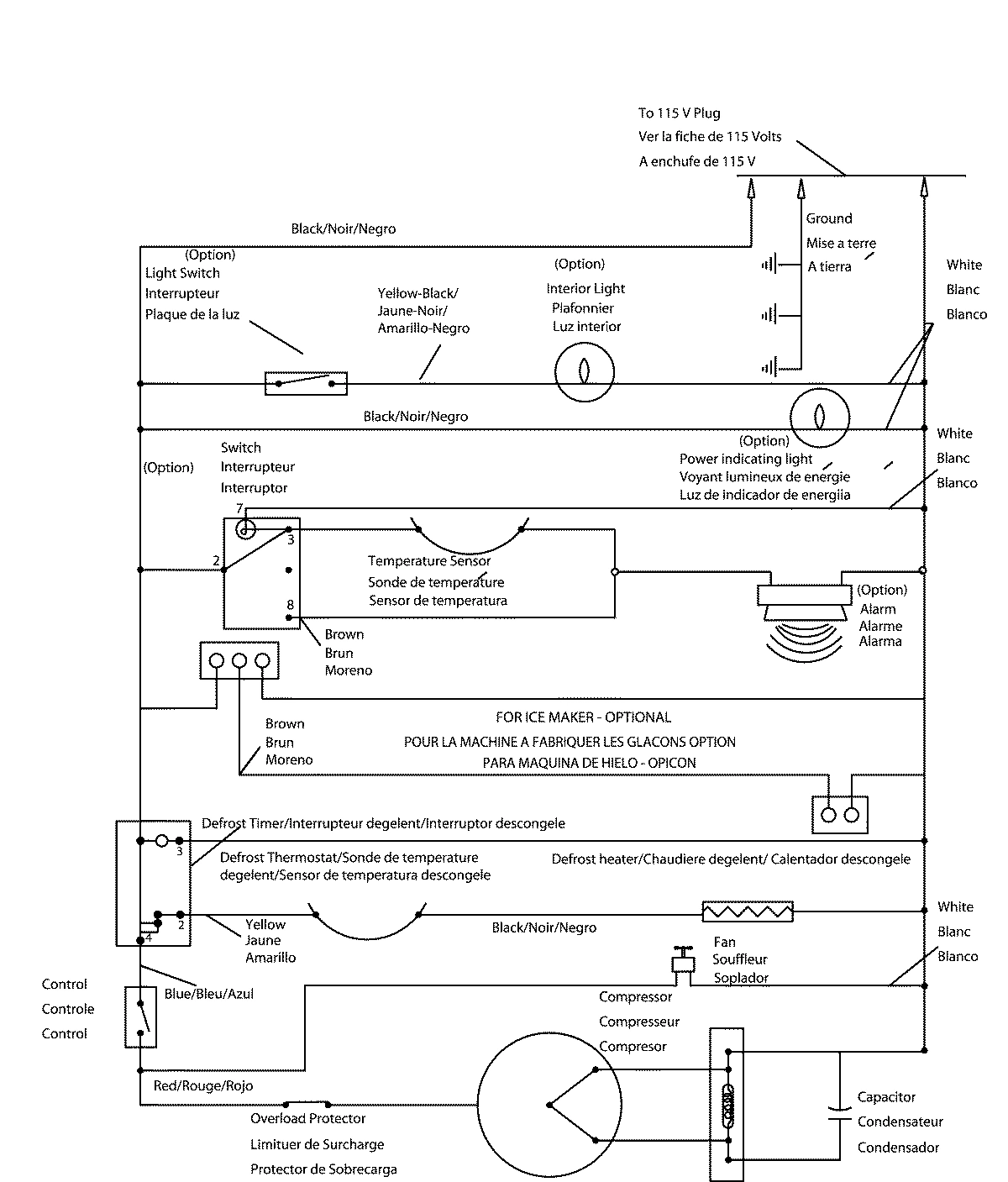

WIRING INFORMATION WPL 15003932 Contact Us For Availability
