Model Maytag AQU1501TRW00 FREEZER – Common Parts & Diagrams

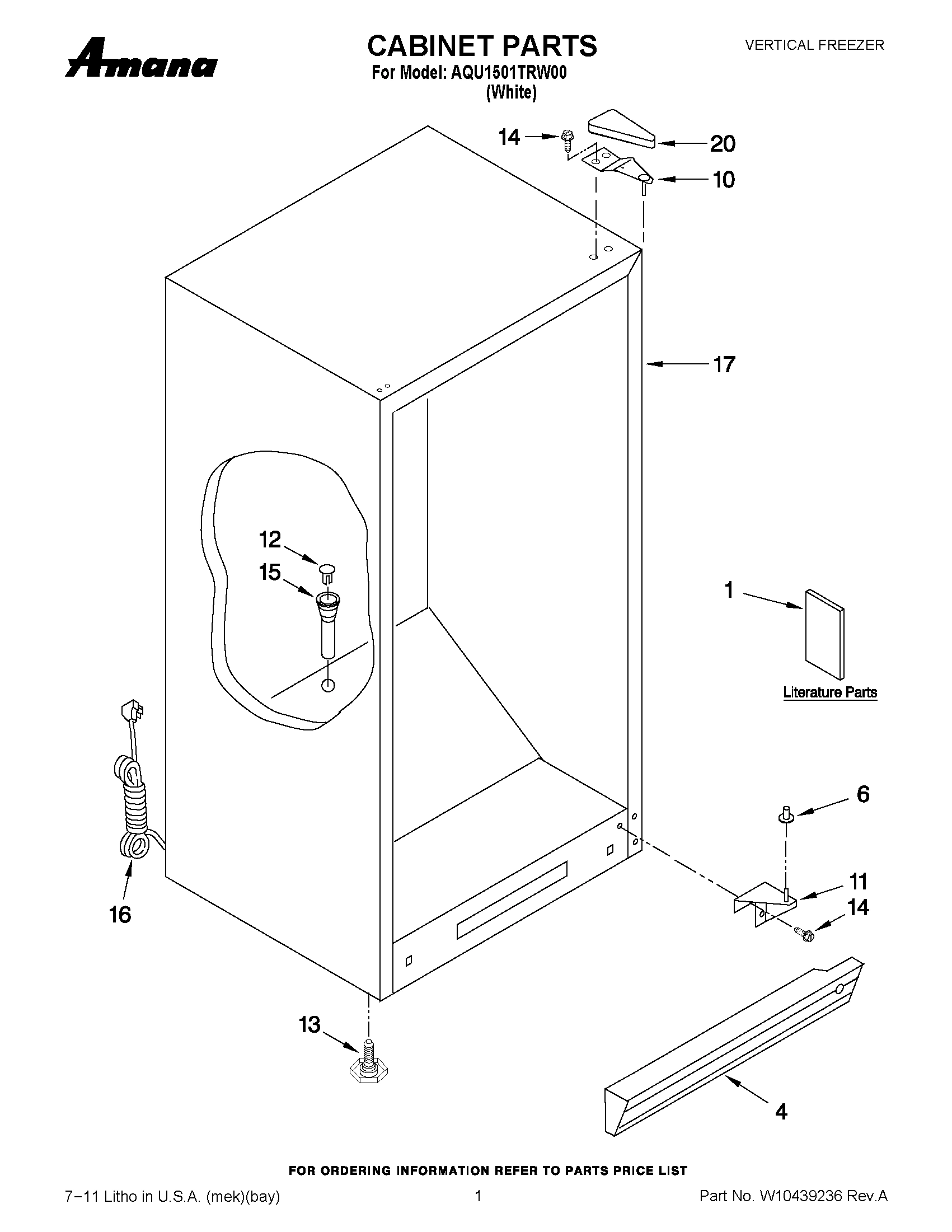

01 - CABINET PARTS

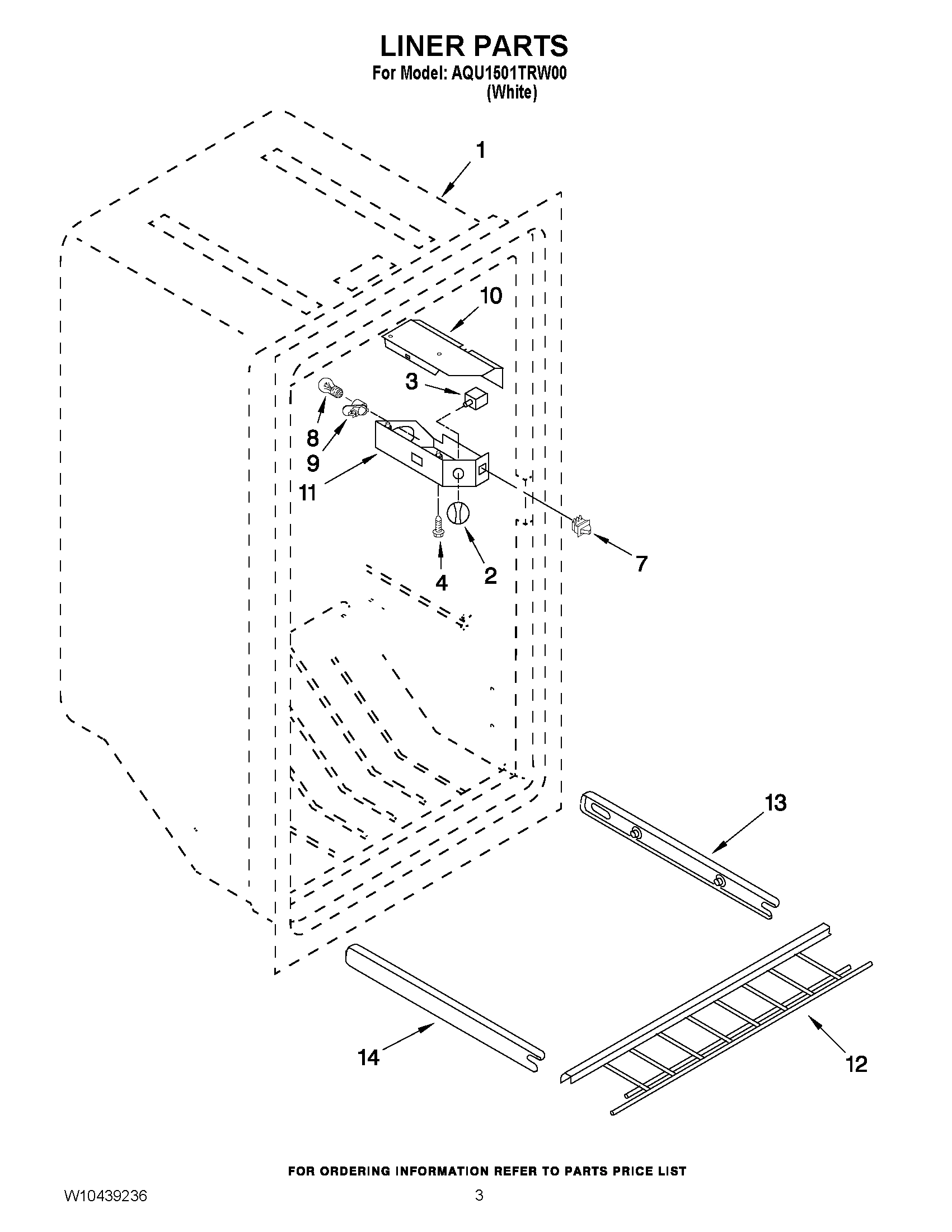

02 - LINER PARTS
03 - UNIT PARTS
04 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AQU1501TRW00 FREEZER
1
MAY W10326798 MAY W10326798 Contact Us For Availability
1
MAY W10373279 MAY W10373279 Contact Us For Availability
1
MAY 4-82684-003 MAY 4-82684-003 Contact Us For Availability
1
STOP, DOOR (TOP) (WHITE) MAY W10206524 Contact Us For Availability
2
HINGE, BUSHING MAY 4390731 Contact Us For Availability
2
KNOB CONTROL MAY 3-82390-001 Contact Us For Availability
2
MAY 4357299 MAY 4357299 Contact Us For Availability
3
MAY 4-83053-001 MAY 4-83053-001 Contact Us For Availability
4
GRILLE MAY 4-60461-005 Contact Us For Availability
4
MAY 4390511 MAY 4390511 Contact Us For Availability
4
RAIL, DOOR (4) MAY 4390608 Contact Us For Availability
5
SCREW, COMPRESSOR MOUNTING MAY 8210220 Contact Us For Availability
6
GROMMET MAY 4356335 Contact Us For Availability
6
MAY 4357067 MAY 4357067 Contact Us For Availability
7
Switch, Light MAY 4390513 Contact Us For Availability
7
COMPRESSOR (INCLUDES ITEMS 6, 8, 9, & 17) MAY 4-32812-262 Contact Us For Availability
8
LIGHT BULB MAY 1-34291-002 Contact Us For Availability
8
MAY 4356738 MAY 4356738 Contact Us For Availability
8
GASKET, DOOR MAY 4357007 Contact Us For Availability
9
Light Socket MAY 2162085 Contact Us For Availability
9
OVERLOAD MAY 4390624 Contact Us For Availability
9
MAY W10371963 MAY W10371963 Contact Us For Availability
10
HINGE, TOP MAY 2-81016-105 Contact Us For Availability
10
SHIELD MAY 8210351 Contact Us For Availability
10
MAY 4-82413-007 MAY 4-82413-007 Contact Us For Availability
11
HINGE, BOTTOM MAY W10201501 Contact Us For Availability
11
BOX, CONTROL MAY 8210406 Contact Us For Availability
11
MAY 4-82194-007 MAY 4-82194-007 Contact Us For Availability
11
STOP, DOOR (BOTTOM) (NATURAL) MAY 2-81124-001 Contact Us For Availability
12
MAY 4357019 MAY 4357019 Contact Us For Availability
12
MAY 4357163 MAY 4357163 Contact Us For Availability
12
MAY 4-82195-007 MAY 4-82195-007 Contact Us For Availability
13
LEG, LEVELER MAY W10205065 Contact Us For Availability
13
SUPPORT FENCE RH MAY 4357293 Contact Us For Availability
13
MAY 4-82197-006 MAY 4-82197-006 Contact Us For Availability
14
MAY 4356830 MAY 4356830 Contact Us For Availability
14
SUPPORT FENCE LH MAY 4356890 Contact Us For Availability
14
MAY 4357057 MAY 4357057 Contact Us For Availability
15
MAY 4357269 MAY 4357269 Contact Us For Availability
15
SCREW, EVAPORATOR MOUNTING MAY 4357223 Contact Us For Availability
16
CORD, POWER MAY 4-82399-001 Contact Us For Availability
16
MAY 2-82030-005 MAY 2-82030-005 Contact Us For Availability
17
MAY 4-34046-011 MAY 4-34046-011 Contact Us For Availability
19
MAY 8210273 MAY 8210273 Contact Us For Availability
20
COVER, HINGE (WHITE) MAY 4357279 Contact Us For Availability
20
MAY 4356854 MAY 4356854 Contact Us For Availability
21
MAY 4-81039-101 MAY 4-81039-101 Contact Us For Availability
22
MAY 4357277 MAY 4357277 Contact Us For Availability
NI
REFRIGERANT CHARGE (6.9 OZ. (R-134A)) MAY N/P Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, White (13 MAY 350930 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72107 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
