Model Maytag AQF1613TEW05 FREEZER – Common Parts & Diagrams
01 - CABINET PARTS
02 - LINER PARTS

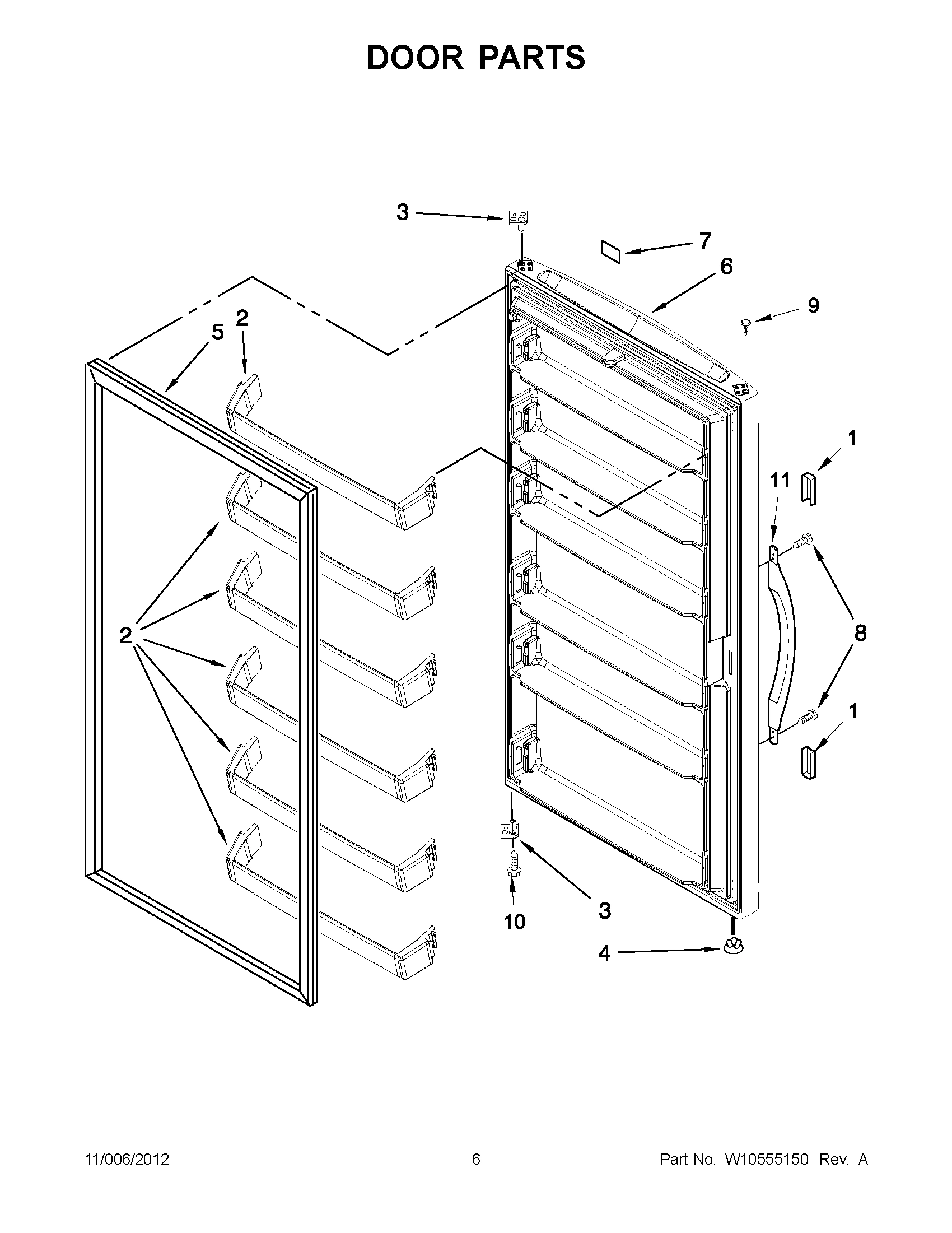

03 - DOOR PARTS

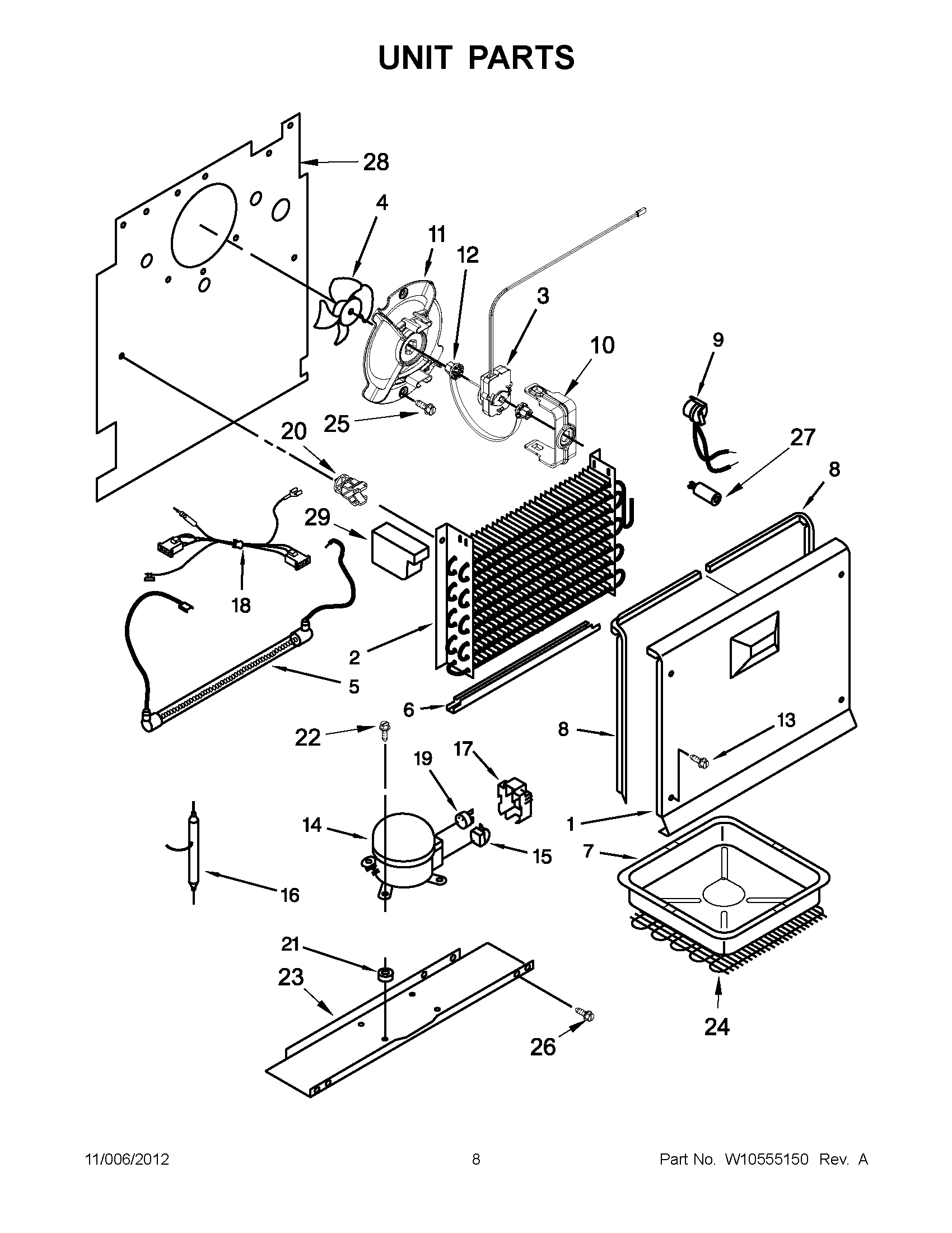

04 - UNIT PARTS
05 - PARTS NOT ILLUSTRATED
Common parts from model Maytag AQF1613TEW05 FREEZER
1
MAY 1-82514 MAY 1-82514 Contact Us For Availability
1
MAY W10326797 MAY W10326797 Contact Us For Availability
1
MAY W10326806 MAY W10326806 Contact Us For Availability
1
TRIM, HANDLE (WHITE) MAY 2-82012-001 Contact Us For Availability
1
MAY W10452370 MAY W10452370 Contact Us For Availability
2
MAY 3-23995-014 MAY 3-23995-014 Contact Us For Availability
2
KNOB CONTROL MAY 3-82390-001 Contact Us For Availability
2
RAIL, DOOR MAY 4-65427-001 Contact Us For Availability
2
MAY W10455861 MAY W10455861 Contact Us For Availability
3
DOOR, STOP (NATURAL) MAY 2-81124-001 Contact Us For Availability
3
FAN MOTOR MAY W10236142 Contact Us For Availability
4
TRIM, TOE KICK (WHITE) MAY 4-60461-005 Contact Us For Availability
4
THERMOSTAT MAY W10474749 Contact Us For Availability
4
SCREW MAY 2-25702-008 Contact Us For Availability
4
MAY 2169142 MAY 2169142 Contact Us For Availability
5
MAY 1-80271-106 MAY 1-80271-106 Contact Us For Availability
5
MAY 3-80732-014 MAY 3-80732-014 Contact Us For Availability
5
GASKET, DOOR (WHITE) MAY 4-65151-001 Contact Us For Availability
5
ASSEMBLY, HEATER HARNESS INCLUDES G87BIMETAL MAY W10486820 Contact Us For Availability
6
MAY 2-81312 MAY 2-81312 Contact Us For Availability
6
MAY W10389334 MAY W10389334 Contact Us For Availability
6
DOOR ASSEMBLY (WHITE) MAY 4-82827-012 Contact Us For Availability
6
MAY W10508692 MAY W10508692 Contact Us For Availability
7
MAY 3-25095-011 MAY 3-25095-011 Contact Us For Availability
7
BASKET, WIRE MAY 4-60064-002 Contact Us For Availability
7
MAY 2-82534-001 MAY 2-82534-001 Contact Us For Availability
7
MAY 4-82674-001 MAY 4-82674-001 Contact Us For Availability
8
MAY 3-80838-003 MAY 3-80838-003 Contact Us For Availability
8
TIMER, DEFROST MAY 3-81329 Contact Us For Availability
8
MAY 3-24004-091 MAY 3-24004-091 Contact Us For Availability
8
MAY 3-60180-001 MAY 3-60180-001 Contact Us For Availability
8
MAY 3-60180-002 MAY 3-60180-002 Contact Us For Availability
9
MAY 3-80675-105 MAY 3-80675-105 Contact Us For Availability
9
MAY 2-32164-001 MAY 2-32164-001 Contact Us For Availability
9
Hole PLug (White) MAY 2189000 Contact Us For Availability
9
BI-METAL DEFROST MAY W10491891 Contact Us For Availability
10
HINGE, TOP (WHITE) MAY 2-81016-105 Contact Us For Availability
10
MAY 1-80270-104 MAY 1-80270-104 Contact Us For Availability
10
MAY 3-24004-005 MAY 3-24004-005 Contact Us For Availability
10
MAY 13058002 MAY 13058002 Contact Us For Availability
11
MAY 4-82693-002 MAY 4-82693-002 Contact Us For Availability
11
MAY 1-34291-002 MAY 1-34291-002 Contact Us For Availability
11
HANDLE ASSEMBLY (WHITE) MAY 4-81902-001 Contact Us For Availability
11
MAY W10457575 MAY W10457575 Contact Us For Availability
12
Socket, Light MAY 2162085 Contact Us For Availability
12
STOP, DOOR MAY 2-81125-001 Contact Us For Availability
12
MAY W10150583 MAY W10150583 Contact Us For Availability
13
LEG, LEVELER (BLACK) MAY 3-82710-001 Contact Us For Availability
13
SHIELD, CORNER CONTROL MAY 3-82392-001 Contact Us For Availability
13
MAY W10451793 MAY W10451793 Contact Us For Availability
14
HOUSING, CORNER CONTROL MAY 4-82389-002 Contact Us For Availability
14
MAY 4-32972-142 MAY 4-32972-142 Contact Us For Availability
15
MAY 3-60696-001 MAY 3-60696-001 Contact Us For Availability
15
MAY 4-82315-002 MAY 4-82315-002 Contact Us For Availability
15
MAY W10466655 MAY W10466655 Contact Us For Availability
16
CORD, POWER MAY 4-82399-001 Contact Us For Availability
16
BAFFLE, AIR DUCT MAY 3-80414-103 Contact Us For Availability
16
MAY W10459086 MAY W10459086 Contact Us For Availability
17
MAY 4-82314-002 MAY 4-82314-002 Contact Us For Availability
17
MAY W10462677 MAY W10462677 Contact Us For Availability
18
MAY 1-80231-101 MAY 1-80231-101 Contact Us For Availability
18
MAY W10507269 MAY W10507269 Contact Us For Availability
19
MAY 1-80257-102 MAY 1-80257-102 Contact Us For Availability
19
MAY 2-34286-038 MAY 2-34286-038 Contact Us For Availability
20
MAY 10623002 MAY 10623002 Contact Us For Availability
21
MAY 13146462 MAY 13146462 Contact Us For Availability
22
MAY 2-82082-001 MAY 2-82082-001 Contact Us For Availability
23
MAY W10470130 MAY W10470130 Contact Us For Availability
24
MAY W10451951 MAY W10451951 Contact Us For Availability
25
MAY 3-80732-004 MAY 3-80732-004 Contact Us For Availability
26
MAY 3-24838-048 MAY 3-24838-048 Contact Us For Availability
27
MAY 1-80275-101 MAY 1-80275-101 Contact Us For Availability
28
MAY W10452115 MAY W10452115 Contact Us For Availability
29
MAY W10452121 MAY W10452121 Contact Us For Availability
NI
REFRIGERANT CHARGE (6.2 OZ. (R-134A)) MAY N/P Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
REFINISHING MATERIAL (WHITE) MAY 350930 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
REFINISHING MATERIAL (WHITE) MAY 72017 Contact Us For Availability
NI
REFINISHING MATERIAL (WHITE) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
