Model LG APHWC501M.ACUGEUS 58 Gal. High-Efficiency Electric Heat Pump Water Heater – Common Parts & Diagrams

Common parts from model LG APHWC501M.ACUGEUS 58 Gal. High-Efficiency Electric Heat Pump Water Heater

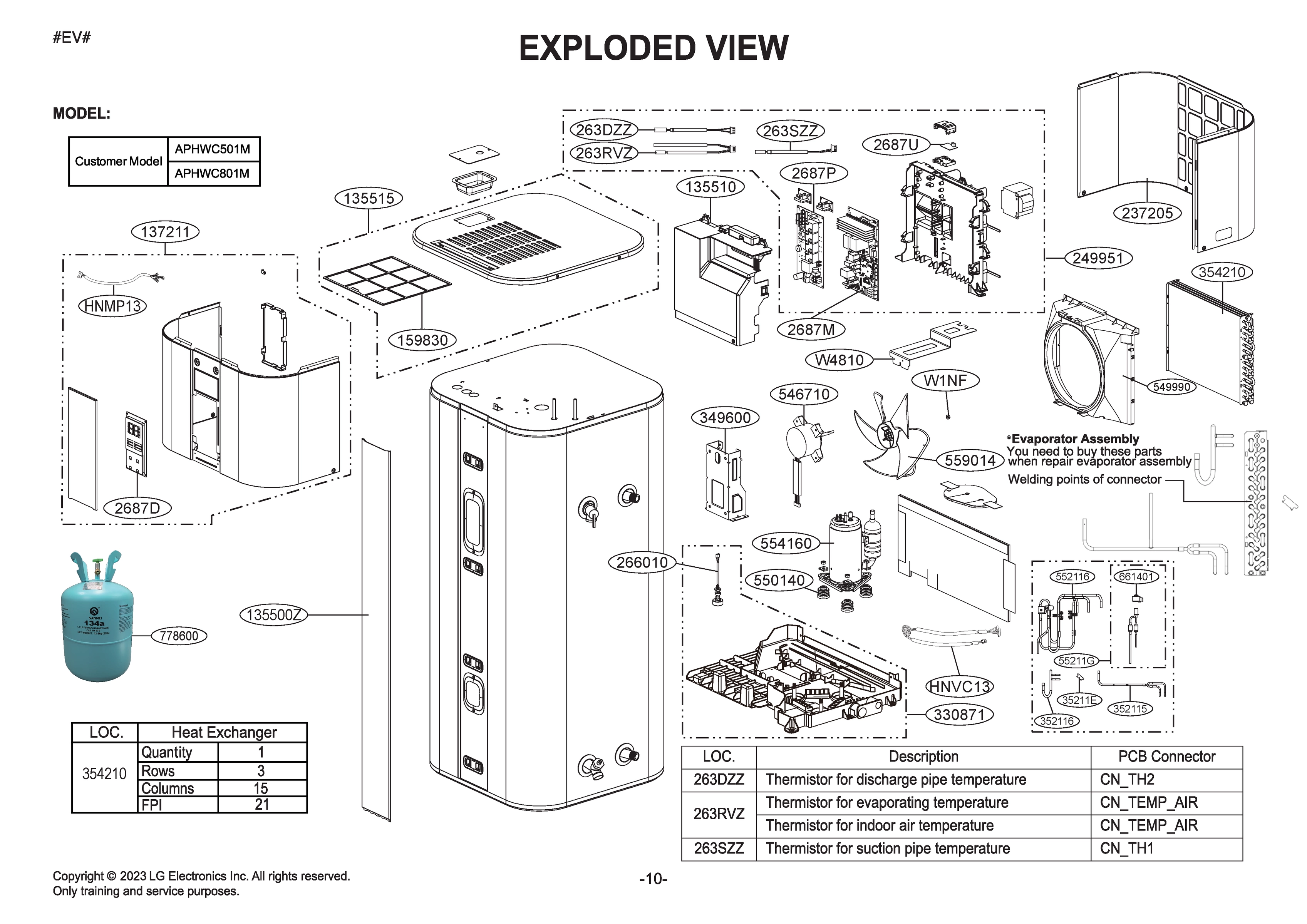

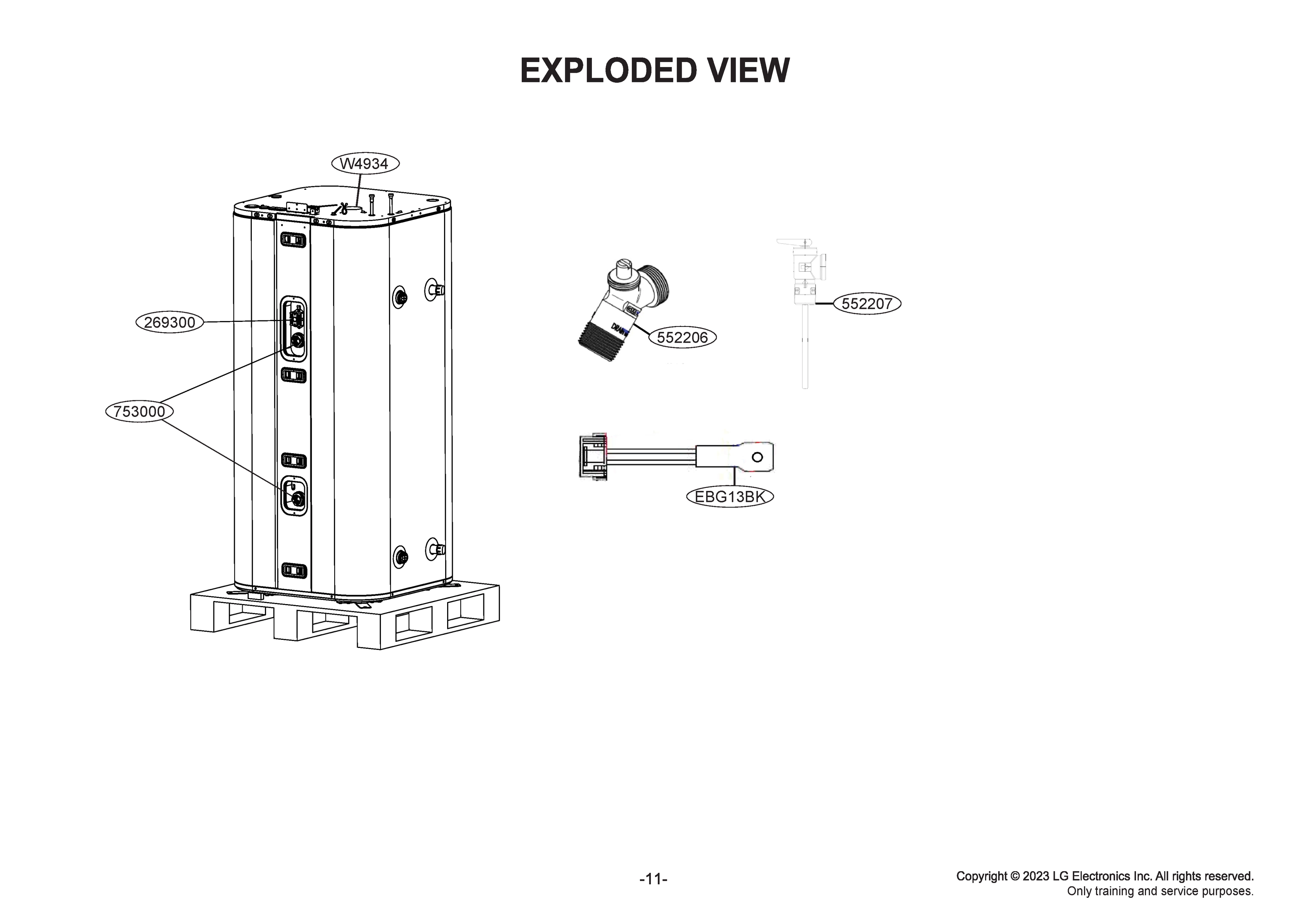

DIAGRAM 1

Print

• This Diagram
• All Diagrams

263DZZ

EBG61285804 LG Temperature Sensor Thermistor Backorder LGE EBG61285804 View Details $14.15

View on Model

263RVZ

EBG61107024 LG Thermistor NTC Assembly Backorder LGE EBG61107024 View Details $22.29

View on Model

2687M

PCB Assembly,Main Backorder LGE EBR86444853 View Details $417.58

View on Model

2687P

PCB Assembly,Power LGE EBR89294707 Contact Us For Availability

View on Model

2687U

Accessory Assembly,Single LGE AAA30576702 Contact Us For Availability

View on Model

35211E

AJR73972017 LG Air Conditioner Connector Tube Backorder LGE AJR73972017 View Details $18.59

View on Model

55211G

Tube Assembly,Expansion LGE AJR77166303 Contact Us For Availability

View on Model

135500Z

MCK71094002 LG Air Conditioner Terminal Cover Backorder LGE MCK71094002 View Details $75.86

View on Model

135510

Cover Assembly,Control LGE ACQ91650704 Contact Us For Availability

View on Model

135515

ACQ91465901 LG Air Conditioner Top Cover Asse Backorder LGE ACQ91465901 View Details $112.21

View on Model

137211

Panel Assembly,Front Backorder LGE AGL77335702 View Details $58.41

View on Model

159830

5231A20004V LG Air Conditioner Filter Assembl Backorder LGE 5231A20004V View Details $13.52

View on Model

237205

Panel Assembly,Rear(Indoor) LGE AGL77356901 Contact Us For Availability

View on Model

249951

Case Assembly,Control LGE ABQ77444605 Contact Us For Availability

View on Model

266010

Switch Assembly Backorder LGE 6601A20013T View Details $49.19

View on Model

269300

Thermostat Backorder LGE EBG63947201 View Details $256.68

View on Model

330871

Pan Assembly,Drain LGE AGK74370603 Contact Us For Availability

View on Model

349600

MAZ63728003 LG Air Conditioner Motor Bracket Backorder LGE MAZ63728003 View Details $14.15

View on Model

352115

Tube Assembly,Evaporator(In) LGE AJR77166103 Contact Us For Availability

View on Model

352116

Tube Assembly,Evaporator(Out) LGE AJR77166202 Contact Us For Availability

View on Model

354210

ADL76501601 LG Air Conditioner Evaporator Ass Backorder LGE ADL76501601 View Details $300.89

View on Model

546710

EAU57945708 LG Outdoor DC Motor Assembly Backorder LGE EAU57945708 View Details $110.41

View on Model

549990

AHV73889901 LG Air Conditioner Shroud Assembl Backorder LGE AHV73889901 View Details $18.12

View on Model

550140

MCQ62508902 LG Compressor Damper Backorder LGE MCQ62508902 View Details $3.40

View on Model

552116

Tube Assembly,Reverse LGE AJR77166405 Contact Us For Availability

View on Model

552206

Valve,Drain LGE MJX65114801 Contact Us For Availability

View on Model

552207

Valve,Safety Backorder LGE MJX65114901 View Details $325.85

View on Model

554160

TBZ38974501 LG Air Conditioner Compressor Set Backorder LGE TBZ38974501 View Details $492.45

View on Model

559014

MDG63782801 LG Air Conditioner Fan Propeller Backorder LGE MDG63782801 View Details $37.90

View on Model

661401

Coil,Expansion Backorder LGE EAP63107115 View Details $30.20

View on Model

661401

Coil Module,Expansion Backorder LGE EAP65270704 View Details $58.41

View on Model

753000

Heater,Electric LGE MEE64293601 Contact Us For Availability

View on Model

778600

Refrigerant LGE 59219005 Contact Us For Availability

View on Model

EBG13BK

THERMISTOR ASSEMBLY Backorder LGE EBG63947301 View Details $112.21

View on Model

HNMP13

EAD63912726 LG Air Conditioner Multi Harness Backorder LGE EAD63912726 View Details $37.90

View on Model

HNVC13

Harness Assembly LGE EAD66047101 Contact Us For Availability

View on Model

W1NF

Nut,Common Backorder LGE 4H00947D View Details $5.71

View on Model

W4810

MAZ67151801 LG Air Conditioner Bracket Backorder LGE MAZ67151801 View Details $45.29

View on Model

W4934

Anticorrosive LGE RAC36181901 Contact Us For Availability

View on Model

×
