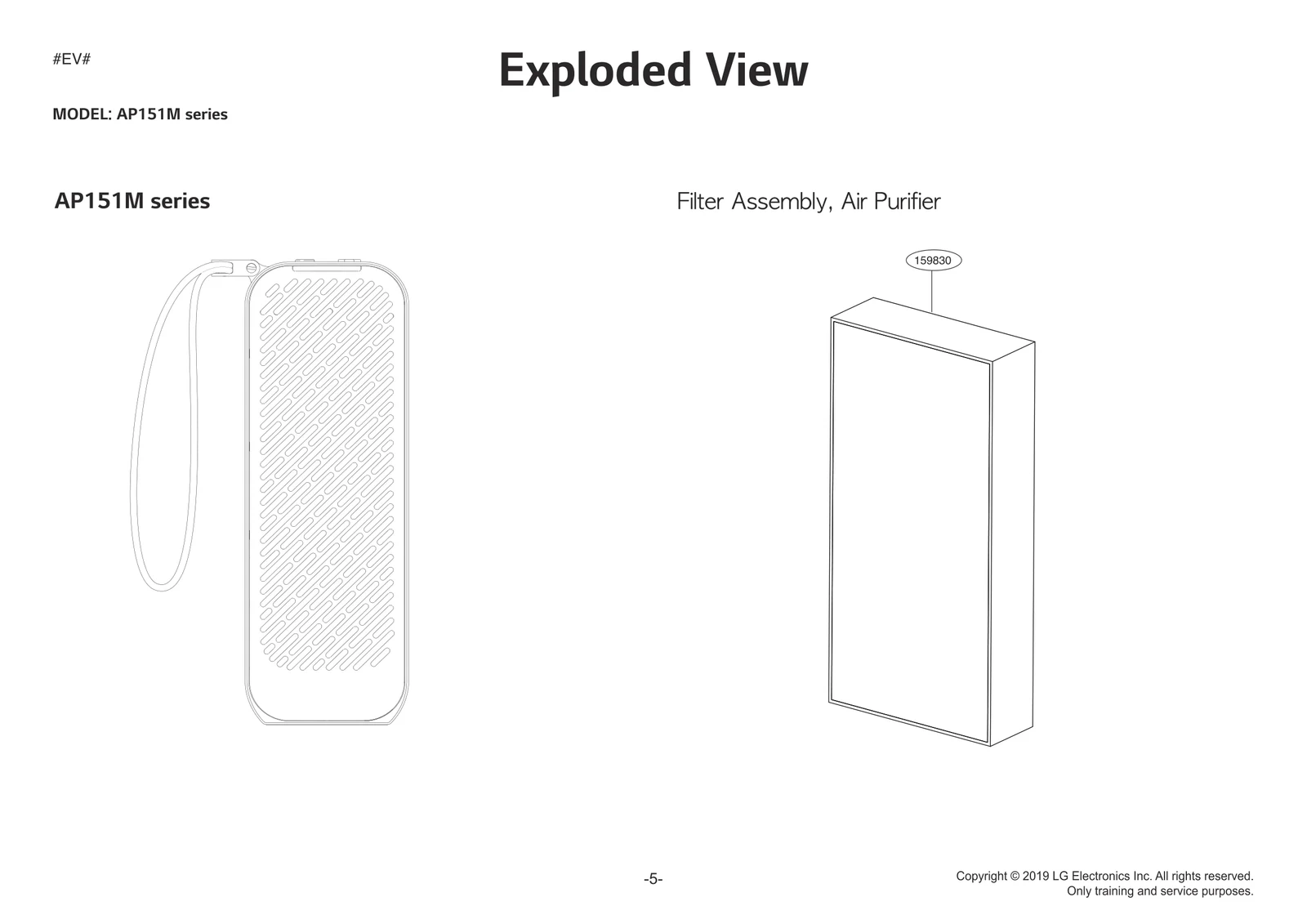

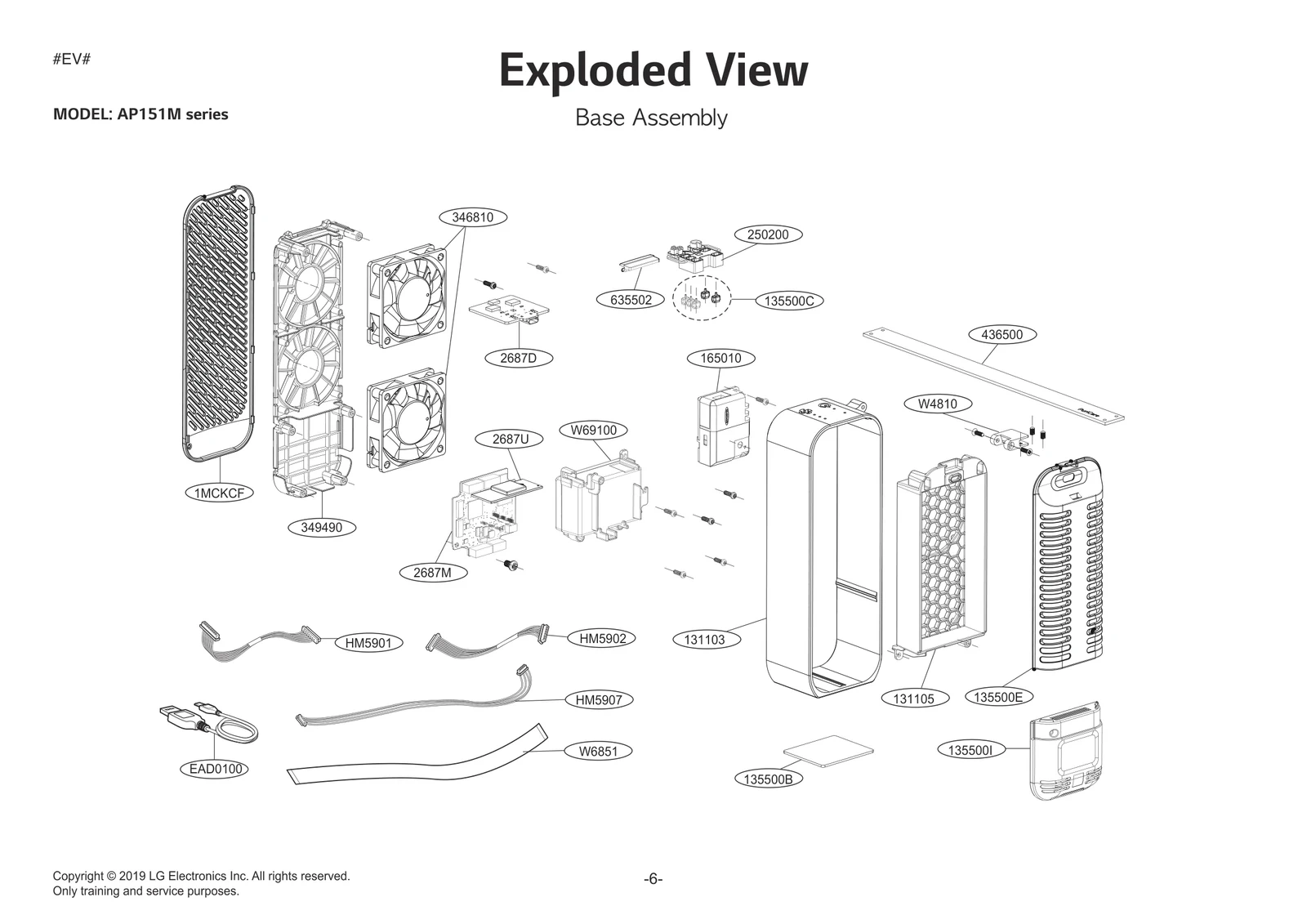

Model LG AP151MWA1 Air Cleaner – Common Parts & Diagrams

1MCKCF
Cover,Front
Cover,Front LGE MCK70686301 Contact Us For Availability
View on Model
2687M
PCB Assembly,Main
PCB Assembly,Main LGE EBR87502509 Contact Us For Availability
View on Model
2687U
PCB Assembly,Module
PCB Assembly,Module LGE EBR87738801 Contact Us For Availability
View on Model
131103
Case,Body
Case,Body LGE MBN65863401 Contact Us For Availability
View on Model
131105
Case,Filter
Case,Filter LGE MBN65863001 Contact Us For Availability
View on Model
135500B
Cover
Cover LGE MCK70886602 Contact Us For Availability
View on Model
135500C
Cover,LED
Cover,LED LGE MCK70686501 Contact Us For Availability
View on Model
135500E
Cover,Upper
Cover,Upper LGE MCK70686601 Contact Us For Availability
View on Model
165010
Sensor Assembly
Sensor Assembly LGE EBD63985301 Contact Us For Availability
View on Model
250200
Button
Button LGE MBG67382501 Contact Us For Availability
View on Model
346810
Motor Assembly,DC,Cooling
Motor Assembly,DC,Cooling LGE EAU64863101 Contact Us For Availability
View on Model
349490
Orifice
Orifice LGE MFX63201901 Contact Us For Availability
View on Model
436500
Handle,Grip
Handle,Grip LGE MEB65094305 Contact Us For Availability
View on Model
635502
Cover,Display
Cover,Display LGE MCK70686401 Contact Us For Availability
View on Model
EAD0100
Cable,Assembly
Cable,Assembly LGE EAD64746102 Contact Us For Availability
View on Model
HM5901
Harness,Single
Harness,Single LGE EAD65425901 Contact Us For Availability
View on Model
HM5902
Harness,Single
Harness,Single LGE EAD65425902 Contact Us For Availability
View on Model
HM5907
Harness,Single
Harness,Single LGE EAD65425908 Contact Us For Availability
View on Model
W4810
Bracket
Bracket LGE MAZ66704101 Contact Us For Availability
View on Model
W6851
Cable,FFC
Cable,FFC LGE EAD65426001 Contact Us For Availability
View on Model
W69100
Rechargeable Battery,Lithium Ion
Rechargeable Battery,Lithium Ion LGE EAC64198402 Contact Us For Availability
View on Model
W69100
Rechargeable Battery,Lithium Ion
Rechargeable Battery,Lithium Ion LGE EAC64198401 Contact Us For Availability
View on Model
