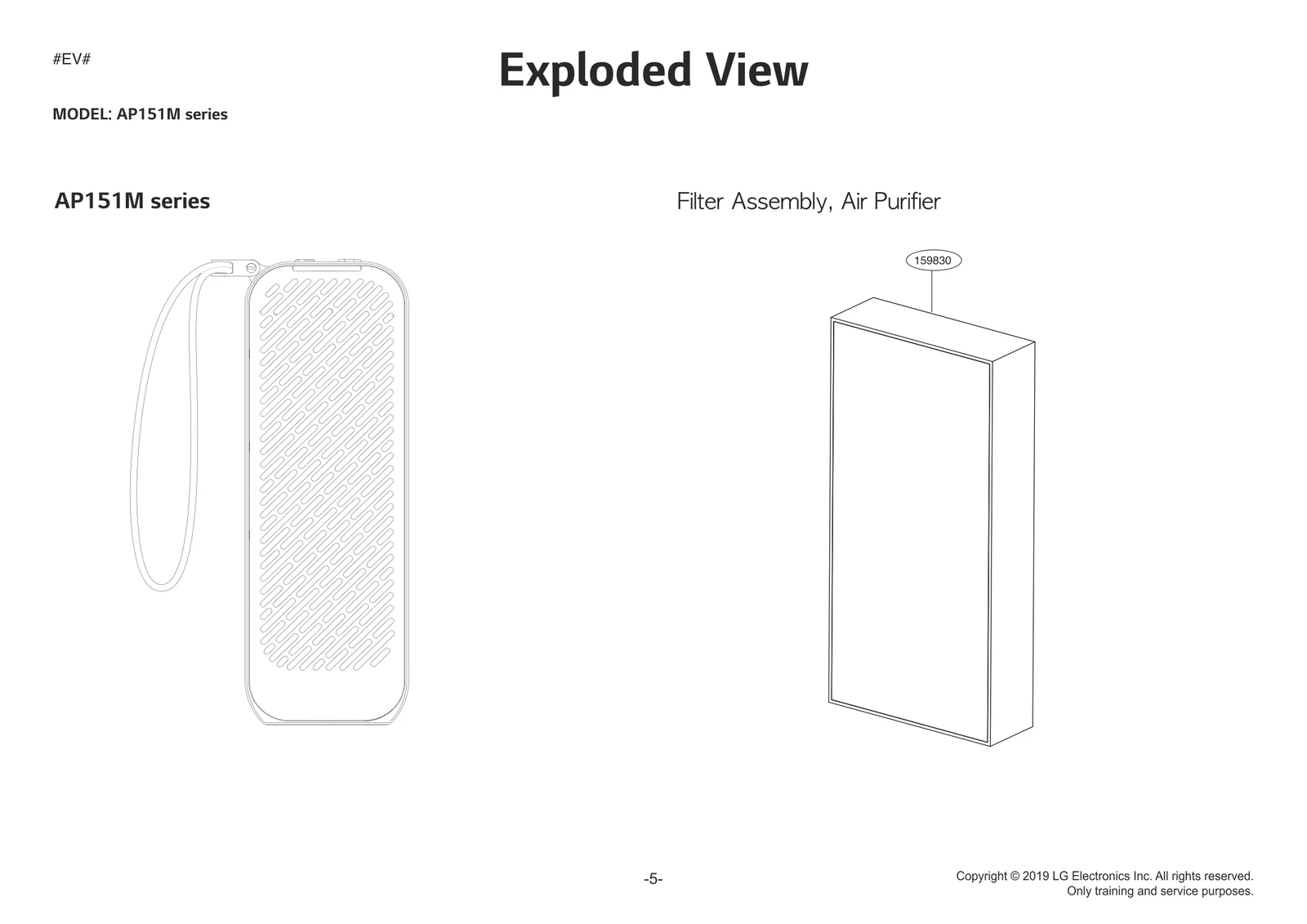

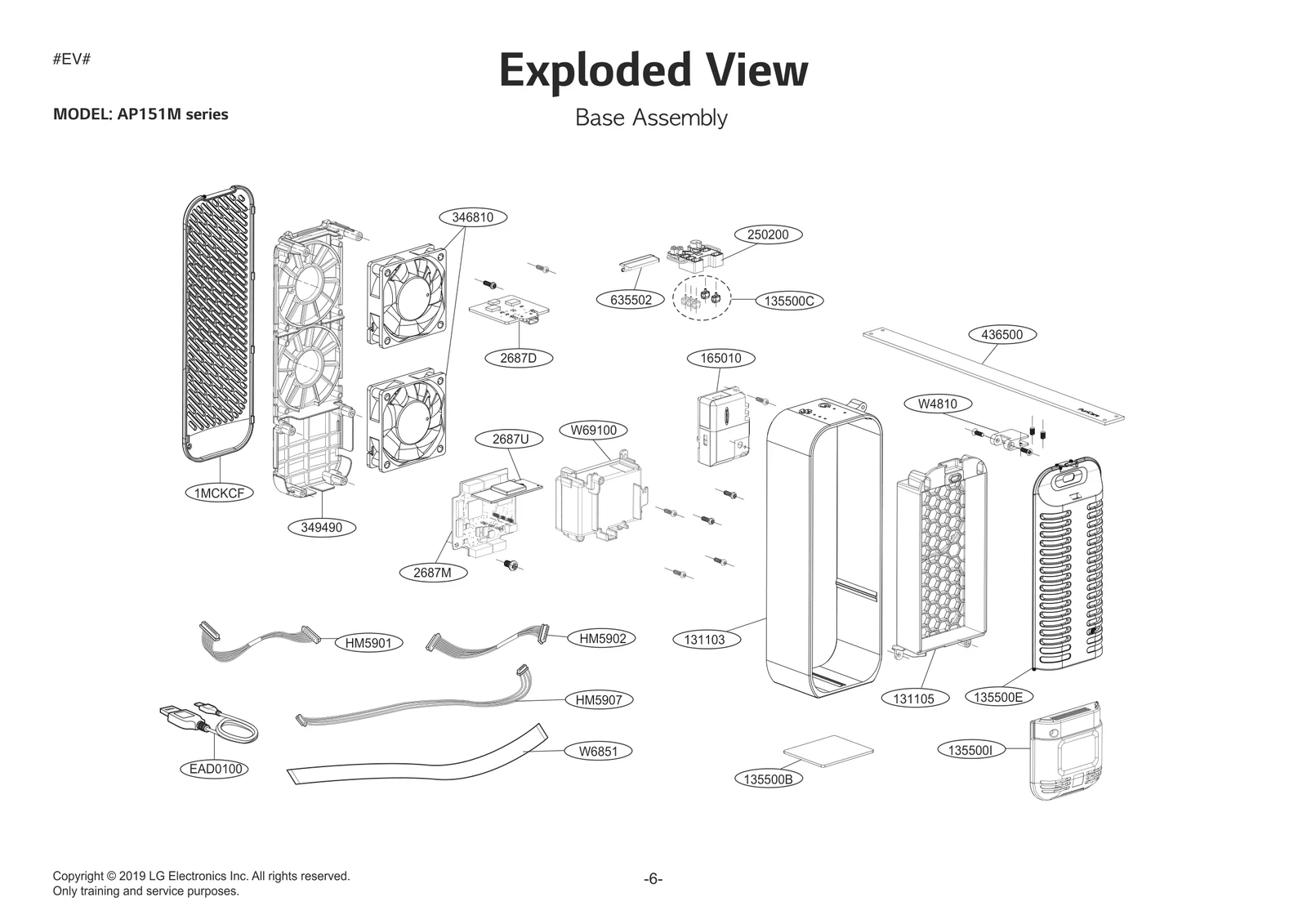

Model LG AP151MBA1 Air Cleaner – Common Parts & Diagrams

2687M
PCB Assembly,Main
PCB Assembly,Main LGE EBR87502509 Contact Us For Availability
View on Model
2687U
PCB Assembly,Module
PCB Assembly,Module LGE EBR87738801 Contact Us For Availability
View on Model
131103
Case,Body
Case,Body LGE MBN65863402 Contact Us For Availability
View on Model
131105
Case,Filter
Case,Filter LGE MBN65863002 Contact Us For Availability
View on Model
135500B
Cover
Cover LGE MCK70886602 Contact Us For Availability
View on Model
135500C
Cover,LED
Cover,LED LGE MCK70686501 Contact Us For Availability
View on Model
135500E
Cover,Upper
Cover,Upper LGE MCK70686602 Contact Us For Availability
View on Model
135500I
Cover,Lower
Cover,Lower LGE MCK70686702 Contact Us For Availability
View on Model
165010
Sensor Assembly
Sensor Assembly LGE EBD63985301 Contact Us For Availability
View on Model
250200
Button
Button LGE MBG67382501 Contact Us For Availability
View on Model
346810
Motor Assembly,DC,Cooling
Motor Assembly,DC,Cooling LGE EAU64863101 Contact Us For Availability
View on Model
349490
Orifice
Orifice LGE MFX63201901 Contact Us For Availability
View on Model
436500
Handle,Grip
Handle,Grip LGE MEB65094306 Contact Us For Availability
View on Model
635502
Cover,Display
Cover,Display LGE MCK70686401 Contact Us For Availability
View on Model
EAD0100
Cable,Assembly
Cable,Assembly LGE EAD64746102 Contact Us For Availability
View on Model
HM5901
Harness,Single
Harness,Single LGE EAD65425901 Contact Us For Availability
View on Model
HM5902
Harness,Single
Harness,Single LGE EAD65425902 Contact Us For Availability
View on Model
HM5907
Harness,Single
Harness,Single LGE EAD65425908 Contact Us For Availability
View on Model
W4810
Bracket
Bracket LGE MAZ66704102 Contact Us For Availability
View on Model
W6851
Cable,FFC
Cable,FFC LGE EAD65426001 Contact Us For Availability
View on Model
W69100
Rechargeable Battery,Lithium Ion
Rechargeable Battery,Lithium Ion LGE EAC64198401 Contact Us For Availability
View on Model
W69100
Rechargeable Battery,Lithium Ion
Rechargeable Battery,Lithium Ion LGE EAC64198402 Contact Us For Availability
View on Model
