Model Whirlpool AOR27DE ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams
07 - OVEN DOOR
02 - CHASSIS ASSY & CONTROL PANEL

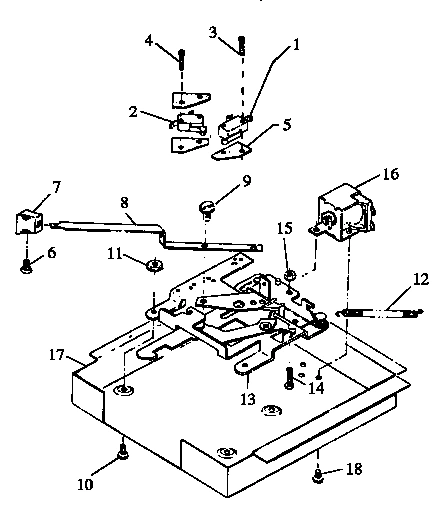

04 - DOOR LATCH

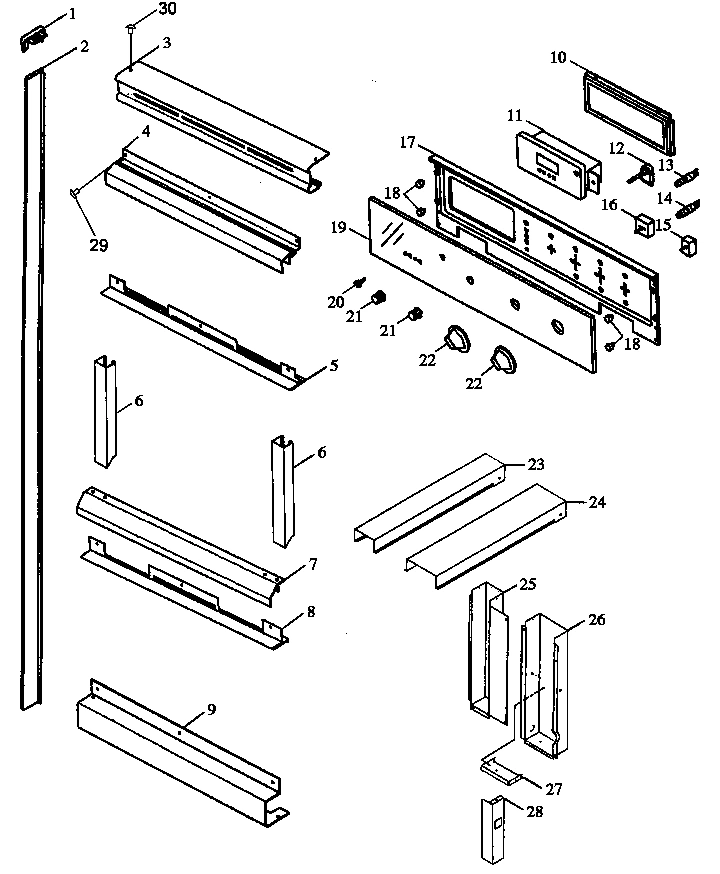

03 - CONTROL PANEL/TRIM
01 - CABINET SECTION

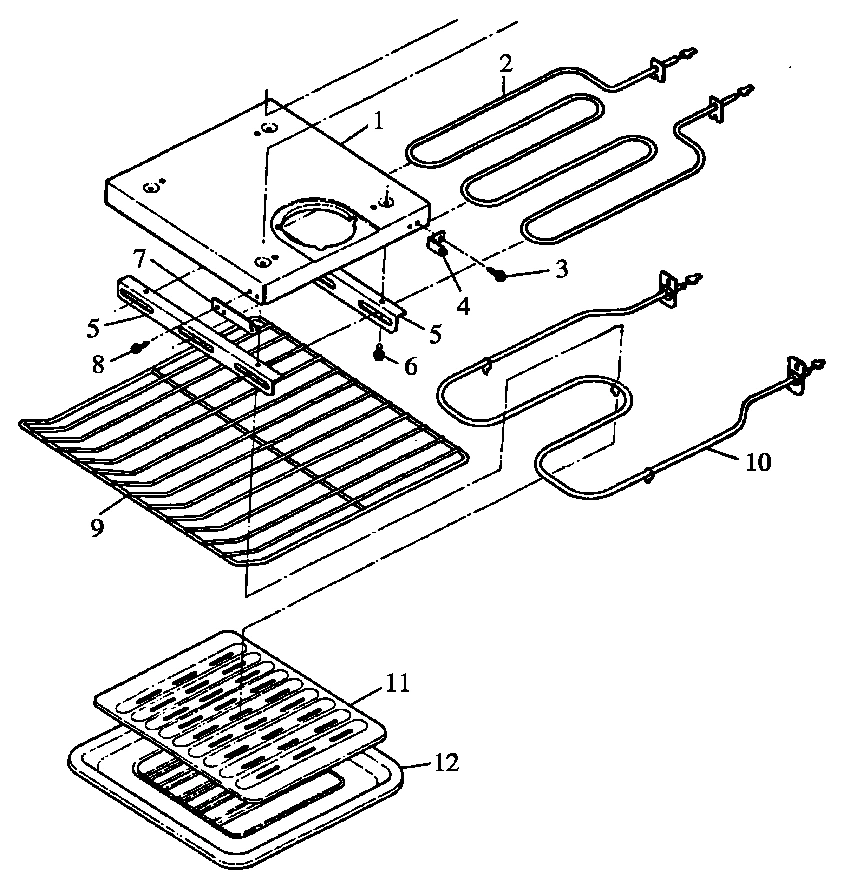

06 - LOWER OVEN COMPONENTS

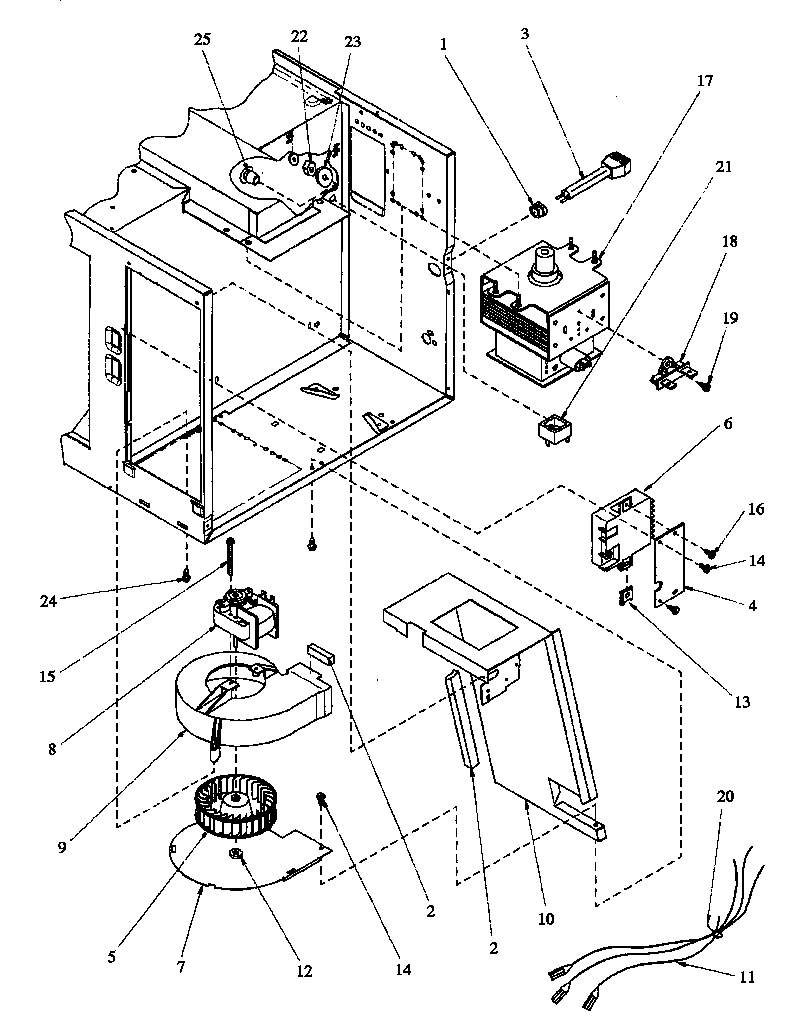

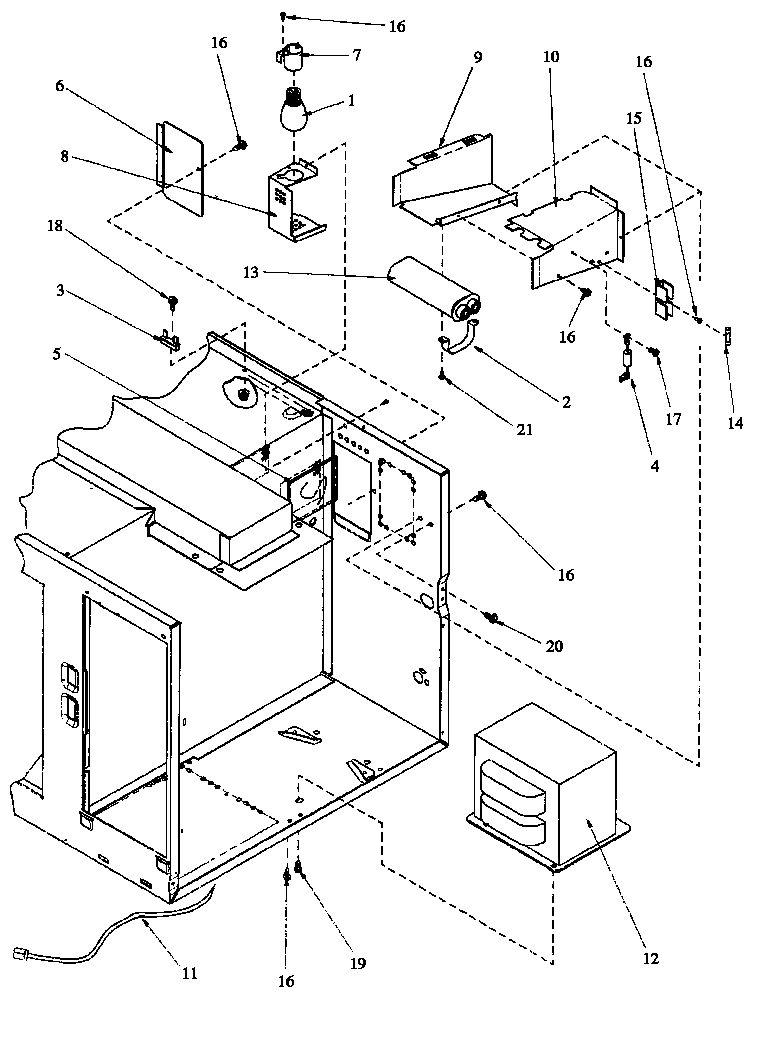

05 - ELECTRICAL PARTS AND COMPONENTS
Common parts from model Whirlpool AOR27DE ELECTRIC WALL OVEN/MICROWAVE COMBO
0
DIAL, SELECTOR WPL 309338T Contact Us For Availability
0
DIAL, THERMOSTAT WPL 309339T Contact Us For Availability
1
HANDLE, OVEN DOOR (BLK) WPL 307884B Contact Us For Availability
1
SWITCH, CLEAN, PRIMARY INTERL WPL Y0042052 Contact Us For Availability
1
TRIM, CORNER-RT (BLK) WPL 307887B Contact Us For Availability
1
TRIM, CORNER-LT (BLK) WPL 307888B Contact Us For Availability
1
CABINET TOP PYRO W.O. MM WPL Y0040286 Contact Us For Availability
1
REFLECTOR, BROIL ELEMENT WPL Y0306503 Contact Us For Availability
2
GLASS, DOOR (BLK) WPL 307885B Contact Us For Availability
2
MAIN CONTACT SWITCH WPL 0042051 Contact Us For Availability
2
TRIM, SIDE LEFT WPL 307723B Contact Us For Availability
2
TRIM, SIDE RIGHT WPL 307724B Contact Us For Availability
2
ELEMENT, BROIL (240V-2800W) WPL Y0042138 Contact Us For Availability
3
FRAME, OVEN DOOR (BLK) WPL 307886B Contact Us For Availability
3
SCREW 4 X 40X.500 DYRO T (BLK) WPL Y0041826 Contact Us For Availability
3
TRIM, TOP (BLK) WPL 307719B Contact Us For Availability
3
TOP, UPPER OVEN WPL Y0053064 Contact Us For Availability
4
BRACKET, HANDLE MTG. WPL 0307891 Contact Us For Availability
4
SCREW 4-40X15/16`` WPL Y0041821 Contact Us For Availability
4
TRIM, CONT. PANEL TOP WPL 307721B Contact Us For Availability
4
ASSY, CONDUIT WPL Y0052947 Contact Us For Availability
5
BAFFLE, INNER DOOR WPL 308414B Contact Us For Availability
5
INSULATION, ESM WPL Y0091523 Contact Us For Availability
5
TRIM, CONT. PANEL BOTTOM WPL 307722B Contact Us For Availability
5
FUSE BOX REINFORCEMENT BRKTS WPL Y0040881 Contact Us For Availability
5
BROIL ELEMENT SUPPORT PYRO WPL Y0040902 Contact Us For Availability
6
SCREW, No.6-32 X .250 PAN HD PH WPL Y0041785 Contact Us For Availability
6
SEE NOTE LOCKNUT -- (PART OF REF. NO. 4) WPL Y00000000 Contact Us For Availability
7
WINDOW MTG. BRKT. PK411 WPL Y0040955 Contact Us For Availability
7
KNOB, LATCH HANDLE (BLK) WPL 0302300 Contact Us For Availability
7
TRIM, CENTER UPPER WPL 307725B Contact Us For Availability
7
CLIP, THERMO CAPILLARY WPL Y0067053 Contact Us For Availability
8
WINDOW ASSY WPL 0041491 Contact Us For Availability
8
LATCH ARM WPL 303039B Contact Us For Availability
8
TRIM, CENTER LOWER WPL 307726B Contact Us For Availability
8
BRACKET-MOTOR MOUNT WPL Y0305242 Contact Us For Availability
9
BUSHING, HANDLE WPL Y0307893 Contact Us For Availability
9
SCREW 10-24 WPL 0041780 Contact Us For Availability
9
TRIM, BOTTOM (BLK) WPL 307720B Contact Us For Availability
9
FAN MOTOR WPL Y0042226 Contact Us For Availability
9
RACK, OVEN WPL Y0042711 Contact Us For Availability
10
LINER, DOOR WPL 308166CG Contact Us For Availability
10
SCREW 6 32X1 SLOTTED RN BRASS WPL 0041773 Contact Us For Availability
10
BRACKET, CLOCK WPL 0302748 Contact Us For Availability
11
SCREW No.8 18 X 1/2 BLACK WPL 0302844 Contact Us For Availability
11
CLOCK, ELECTRONIC WPL Y0302106 Contact Us For Availability
11
UPPER CABINET BACK 692 WPL Y0040350 Contact Us For Availability
12
LATCH PLATE WPL Y0052039 Contact Us For Availability
12
SPRING WPL 0044513 Contact Us For Availability
12
SWITCH, OVEN LIGHT WPL Y0308168 Contact Us For Availability
13
DOOR LATCH ASSY WO WPL Y0041909 Contact Us For Availability
13
UPPER CABINET SIDE RT 692 WPL Y0040320 Contact Us For Availability
14
INSULATION 2X20X72 WPL Y0041975 Contact Us For Availability
14
INDICATOR LIGHT WPL Y0042183 Contact Us For Availability
14
HOUSING, MICROWAVE FAN WPL Y0307545 Contact Us For Availability
15
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
15
THERMOSTAT - SELF CLEAN WPL 0307771 Contact Us For Availability
15
CAPILLARY SHIELD DO-692 WPL Y0040796 Contact Us For Availability
16
BACKER, OVEN DOOR (CG) WPL 40223CG Contact Us For Availability
16
SOLENOID EATON PYRO TH WO WPL Y0042049 Contact Us For Availability
16
SWITCH, SELECTOR WPL 0308356 Contact Us For Availability
16
RETAINER, SPRING WPL Y0060759 Contact Us For Availability
17
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
17
BKT, CONTROL PANEL (BLK) WPL 307876B Contact Us For Availability
17
RETAINER, SIDE INSUL WPL Y0309789 Contact Us For Availability
18
SCREW, No.10-32X1/2 (PH TAPTITE) WPL Y0091599 Contact Us For Availability
18
SCREW 10-32 X.250 HEX WPL 0041774 Contact Us For Availability
18
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
18
BOTTOM, LWR OVEN WPL Y0305701 Contact Us For Availability
18
FUSE, THERMAL WPL B5795305 Contact Us For Availability
19
SPACER, HANDLE (BLK) WPL 307892B Contact Us For Availability
19
GLASS, CONTROL PANEL (BLK) WPL 307871B Contact Us For Availability
19
SUB 41966, INSULATION WPL Y0041113 Contact Us For Availability
19
SUB 41966, INSULATION WPL Y0041976 Contact Us For Availability
20
ANGLE, GLASS SUPPORT (BLK) WPL 305587B Contact Us For Availability
20
BUTTON, SET W/CUSHION (BLK) WPL 307821B Contact Us For Availability
20
LOWER CABINET BACK WPL Y0059746 Contact Us For Availability
21
KNOB, CLOCK (BLACK) WPL 314315B Contact Us For Availability
21
UPPER OVEN TOP WPL Y0052848 Contact Us For Availability
22
KNOB, CONTROL WPL 307372B Contact Us For Availability
22
BOX, UPPER OVEN FLUE WPL 306384B Contact Us For Availability
23
TOP VENT, L H WPL Y0308011 Contact Us For Availability
24
TOP VENT WPL 0308010 Contact Us For Availability
24
FLUE BOX COVER REP 915 WPL Y0040842 Contact Us For Availability
25
DUCT, REAR LOUVER WPL 0307304 Contact Us For Availability
26
TUBE, REAR DUCT WPL Y0307305 Contact Us For Availability
26
SWITCH FAN SPDT WPL Y0042056 Contact Us For Availability
27
DUCT, DIVIDER WPL Y0308006 Contact Us For Availability
27
LIMIT CONTROL-UPPER OVEN-200 WPL Y0042045 Contact Us For Availability
28
REC MOUNT-E CT WPL 0308007 Contact Us For Availability
28
BACK, CONT COMP WPL Y0040905 Contact Us For Availability
29
SCREW No.8-18X3/8 HEX HD. WPL 0305423 Contact Us For Availability
29
GROMMET-FAN WPL Y0305243 Contact Us For Availability
30
BLADE, FAN WPL Y0042754 Contact Us For Availability
31
SUPPORT, RUNNER WPL 0307802 Contact Us For Availability
32
LATCH MTG. BRKT PYRO W/O WPL Y0040903 Contact Us For Availability
33
SUPPORT, MICROWAVE (BLK) WPL 307873B Contact Us For Availability
35
CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability
36
SMOKE ELIMINATOR VENT TUBE WPL Y0042409 Contact Us For Availability
36
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
37
SHIELD, REFLECTOR WPL Y0040850 Contact Us For Availability
38
PROBE RECEPT. COVER STAINLESS WPL Y0040848 Contact Us For Availability
39
RETAINER, SIDE INSUL WPL Y0060774 Contact Us For Availability
40
HINGE ASSY WPL Y0052095 Contact Us For Availability
41
SCREW, No.8-32 X 3/8 HEX WSH HD WPL Y0041825 Contact Us For Availability
43
BULB, LIGHT WPL Y0042175 Contact Us For Availability
44
SPRING, OVEN DOOR-PYRO W/O WPL Y0042740 Contact Us For Availability
45
LATCH HANDLE GUIDE PYRO WPL Y0042015 Contact Us For Availability
46
UPPER CABINET SIDE LT 692 WPL Y0040321 Contact Us For Availability
47
WEL WPL 314314CG Contact Us For Availability
48
WPL Y0042222 WPL Y0042222 Contact Us For Availability
49
WPL 307221B WPL 307221B Contact Us For Availability
49
WPL 307221W WPL 307221W Contact Us For Availability
49
WPL Y0307823 WPL Y0307823 Contact Us For Availability
50
WPL Y0042191 WPL Y0042191 Contact Us For Availability
51
WPL Y0042064 WPL Y0042064 Contact Us For Availability
NI
BLACK FIBER WASHER WPL 0041951 Contact Us For Availability
NI
TAPE, FOAM WPL 0043184 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
NI
INTERNAL LOCK WASHER No.10 WPL Y0041947 Contact Us For Availability
NI
WPL 0307800 WPL 0307800 Contact Us For Availability
NI
BLACK SCREW 8-18X.500 WPL 0041839 Contact Us For Availability
NI
SCREW WPL 0303209 Contact Us For Availability
NI
DIAL, SELECTOR WPL 309338B Contact Us For Availability
NI
DIAL, THERMOSTAT WPL 309339B Contact Us For Availability
NI
SCREW 6-32X3/16 SLO COOK SW WPL Y0041778 Contact Us For Availability
NI
SCREW No.8X3/8 SQ. DRIVE WPL Y0041832 Contact Us For Availability
NI
SWITCH BUSHING ,METAL WPL Y0042012 Contact Us For Availability
NI
No.6 PAN HD MACHINE SCREW WPL Y0078568 Contact Us For Availability
NI
SEAL, TESAMOL 28`` WPL Y0306067 Contact Us For Availability
NI
RECEPTACLE WPL Y0308008 Contact Us For Availability
NI
WPL 0040405 WPL 0040405 Contact Us For Availability
NI
WPL 0305420 WPL 0305420 Contact Us For Availability
NI
WPL 0307543 WPL 0307543 Contact Us For Availability
NI
WPL 0307544 WPL 0307544 Contact Us For Availability
NI
WPL Y0041017 WPL Y0041017 Contact Us For Availability
NI
WPL Y0041019 WPL Y0041019 Contact Us For Availability
NI
WPL Y0041804 WPL Y0041804 Contact Us For Availability
NI
WPL Y0052366 WPL Y0052366 Contact Us For Availability
NI
WPL Y0053099 WPL Y0053099 Contact Us For Availability
NI
WPL Y0307205 WPL Y0307205 Contact Us For Availability
NI
WPL Y0307380 WPL Y0307380 Contact Us For Availability
NI
TEMP PROBE WPL Y0307699 Contact Us For Availability
× ![]()
